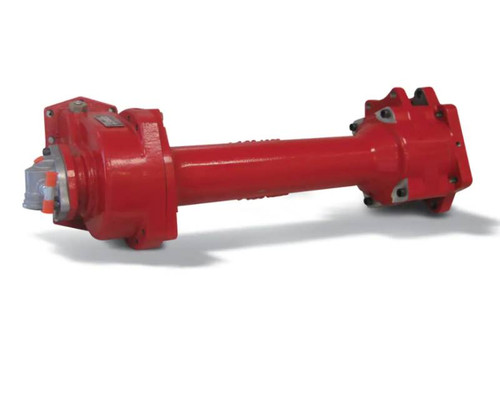

The Chelsea 897 Series Power Take-Off Assembly, part number 897CAFJW-M3ZS or 897CAFJWM3ZS, is a constant-mesh PTO built for Allison 3000 and 4000 Series transmissions. It mounts via a 10-bolt pattern and positions the SAE C output flange at the rear of the transmission, tucking the housing tightly inboard for improved clearance between the pump and the frame rail. A one-piece main shaft eliminates the input splines found in conventional PTO-plus-extension setups. Wet Spline Technology lubricates the output interface to reduce wear in high-cycle or demanding duty. Continuous torque capacity reaches 670 ft-lb; intermittent torque is rated at 501+ ft-lb. Output power at 1,000 RPM reaches 128 HP. Common applications include aerial trucks, fire and rescue, refuse, and truck cranes. Call us to confirm proper fit for your specific Allison transmission configuration.
Features
10-Bolt mounting for Allison 3000 and 4000 Series transmissions
Constant-mesh (constant engagement) shift type
SAE C output flange and SAE C (XS) output shaft
Wet Spline output extends pump shaft service life in demanding conditions
Continuous torque rated at 670 ft-lb; intermittent torque 501+ ft-lb
One-piece main shaft eliminates inter-section input splines for added rigidity
Tech Specs
- Transmission Fit: Allison 3000 and 4000 Series (World Transmissions)
- Input Gear Designator: FJ - Allison World Transmissions
- Mounting Type: 10-Bolt
- Shift Type: Constant Mesh - Constant Engagement
- Output Shaft Type: SAE C (XS Extended Shaft)
- Outlet Flange Type: SAE C
- Lubricant/Output Interface: Wet Spline
- Continuous Torque: 670 ft-lb / 908 Nm (verify actual rating on application pages)
- Intermittent Torque: 501+ ft-lb / 501+ Nm
- Output Power: 56+ HP / 51+ kW
- Shaft Power at 500 RPM: 64 HP / 48 kW
- Shaft Power at 1,000 RPM: 128 HP / 95 kW
