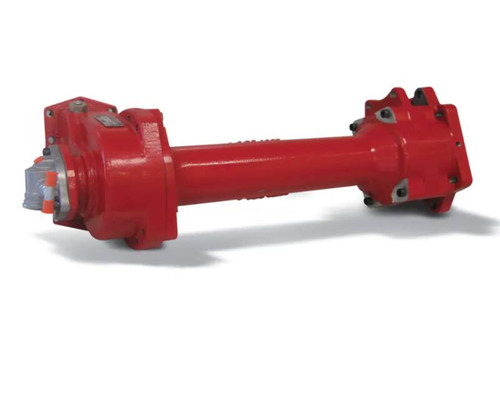

The Chelsea 897JAFJW-M3ZS or 897JAFJWM3ZS is a constant-engagement power take-off designed for Allison 3000 and 4000 Series transmissions, fitting the FJ input gear configuration with a 10-bolt mount. The 897 Series positions the SAE C output flange at the rear of the transmission, tucking the housing tightly against the case to free up space between the transmission and the frame rail. A one-piece main shaft eliminates the inter-unit input splines found on PTO-plus-extension arrangements, which reduces potential leak points and simplifies installation. Wet Spline lubrication is built in to extend output shaft and pump spline service life in demanding duty cycles. Continuous torque capacity reaches 670 ft-lb; shaft power output is 64 HP at 500 RPM and 128 HP at 1,000 RPM. Common applications include aerial trucks, fire and rescue, refuse, and truck crane service where pump space is tight and torque demand is high. Call us to confirm proper fit for your specific Allison configuration.
Features
Fits Allison 3000 and 4000 Series transmissions, FJ input gear designator
10-bolt mounting with rear-mounted SAE C output flange for improved pump clearance
Constant engagement (constant mesh) shift type
One-piece main shaft eliminates input splines between PTO body and output extension
Wet Spline output lubrication extends PTO and pump shaft life
Continuous torque rating: 670 ft-lb; shaft power 64 HP at 500 RPM, 128 HP at 1,000 RPM
Tech Specs
- Transmission Manufacturer: Allison 3000 / 4000 Series
- Input Gear Designator: FJ - Allison World Transmissions
- Mounting Type: 10-Bolt
- Output Shift Type: Constant Mesh (Constant Engagement)
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C (XS)
- Lubricant: Wet Spline
- Intermittent Torque: 501+ lb-ft, 501+ Nm
- Continuous Torque: 670 lb-ft, 908 Nm (verify actual rating on application pages)
- Output Power: 56+ HP, 51+ kW
- Shaft Power at 500 RPM: 64 HP, 48 kW
- Shaft Power at 1,000 RPM: 128 HP, 95 kW
Additional Information
Parts Manual: Chelsea 897 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
