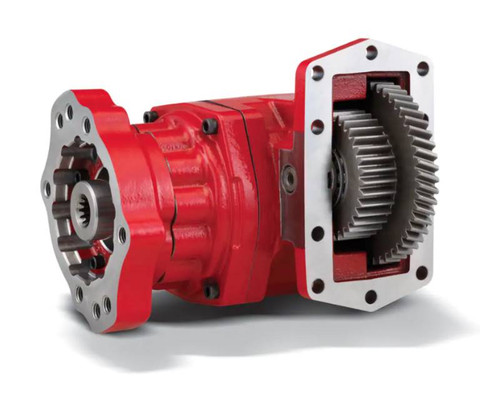

The Chelsea 897 Series Power Take-Off Assembly, part number 897LEFJW-M5XV or 897LEFJWM5XV, is a constant-engagement PTO engineered for Allison 3000 and 4000 Series transmissions. The 897 Series uses a one-piece main shaft that eliminates the input splines found between a standard PTO and an output extension, positioning the pump interface at the rear of the transmission so the housing and gear section tuck tightly against the transmission for better clearance. Mounting is 10-bolt, with an SAE C outlet flange and wet-spline output technology to reduce wear on the PTO and pump shaft under demanding duty cycles. Continuous torque rating reaches 670 ft-lb; shaft power output runs 64 HP at 500 RPM and 128 HP at 1,000 RPM. Typical applications include aerial trucks, fire and rescue, refuse, and truck crane service. Call us to confirm proper fit for your specific Allison transmission configuration.
Features
Fits Allison 3000 and 4000 Series transmissions via 10-bolt mounting
Constant-engagement (constant mesh) shift type with Allison World Transmission input gear
SAE C outlet flange and SAE C extended-shaft output for improved pump clearance
Wet-spline output technology reduces wear on PTO and pump shaft in demanding conditions
Continuous torque rating: 670 ft-lb; shaft power output: 64 HP at 500 RPM, 128 HP at 1,000 RPM
One-piece main shaft design eliminates input splines between PTO body and output extension
Tech Specs
- Transmission Application: Allison 3000 and 4000 Series
- Mounting Type: 10-Bolt
- Shift Type: Constant Engagement (Constant Mesh)
- Input Gear Designator: FJ - Allison World Transmissions
- Outlet Flange Type: SAE C
- Output Shaft Type: SAE C Extended Shaft (XS)
- Lubricant: Wet Spline
- Continuous Torque: 670 ft-lb / 908 Nm (verify actual rating on application pages)
- Intermittent Torque: 501+ ft-lb / 501+ Nm
- Output Power: 56+ HP / 51+ kW
- Shaft Power at 500 RPM: 64 HP / 48 kW
- Shaft Power at 1,000 RPM: 128 HP / 95 kW
