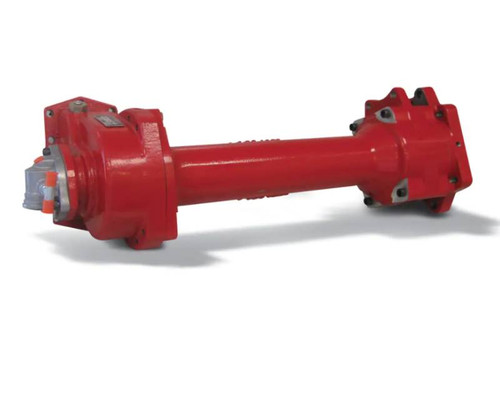

The Chelsea 897 Series Power Take-Off Assembly, part number 897RDFJW-M5XV or 897RDFJWM5XV, is a constant-engagement PTO engineered for Allison 3000 and 4000 Series transmissions. It uses a 10-bolt mounting configuration and positions the SAE C output flange at the rear of the transmission rather than the side, tucking the housing tightly against the transmission to free up critical clearance for the pump. The one-piece main shaft eliminates the input splines found in a conventional PTO-plus-extension setup. Wet Spline output technology reduces wear on the PTO and pump shaft in demanding, continuous-duty cycles. Continuous torque capacity reaches 670 ft-lb; intermittent torque is rated at 501+ ft-lb. Shaft power output runs 64 HP at 500 RPM and 128 HP at 1,000 RPM. Common applications include aerial work trucks, fire and rescue apparatus, refuse trucks, and truck cranes. Call us to confirm proper fit for your specific transmission configuration.
Features
Fits Allison 3000 and 4000 Series transmissions via 10-bolt mounting
Constant-engagement (constant mesh) shift type for continuous-duty operation
SAE C output flange and SAE C (XS) output shaft configuration
One-piece main shaft eliminates input splines between PTO body and output extension
Wet Spline output extends PTO and pump shaft service life under demanding conditions
Continuous torque rating up to 670 ft-lb; intermittent torque rated 501+ ft-lb
Tech Specs
- Transmission Fitment: Allison 3000 and 4000 Series
- Mounting Type: 10-Bolt
- Shift Type: Constant Engagement (Constant Mesh)
- Input Gear Designator: FJ - Allison World Transmissions
- Output Shaft Type: SAE C (XS Extended Shaft)
- Outlet Flange Type: SAE C
- Lubricant/Spline Type: Wet Spline
- Continuous Torque: 670 ft-lb / 908 Nm (verify on application pages for actual rating)
- Intermittent Torque: 501+ ft-lb / 501+ Nm
- Output Power: 56+ HP / 51+ kW
- Shaft Power at 500 RPM: 64 HP / 48 kW
- Shaft Power at 1,000 RPM: 128 HP / 95 kW
