Chelsea PTO 249V Series Parts Manual

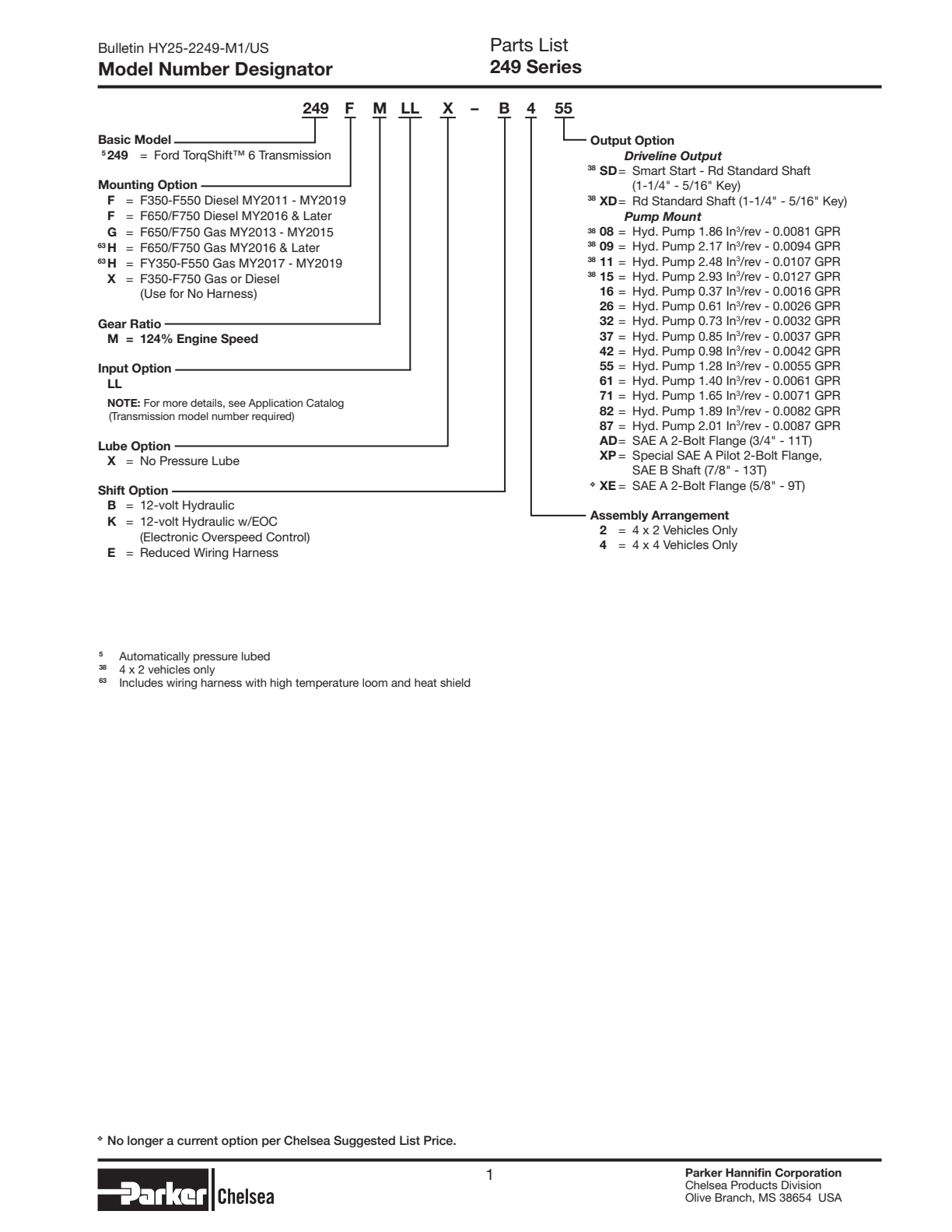

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|

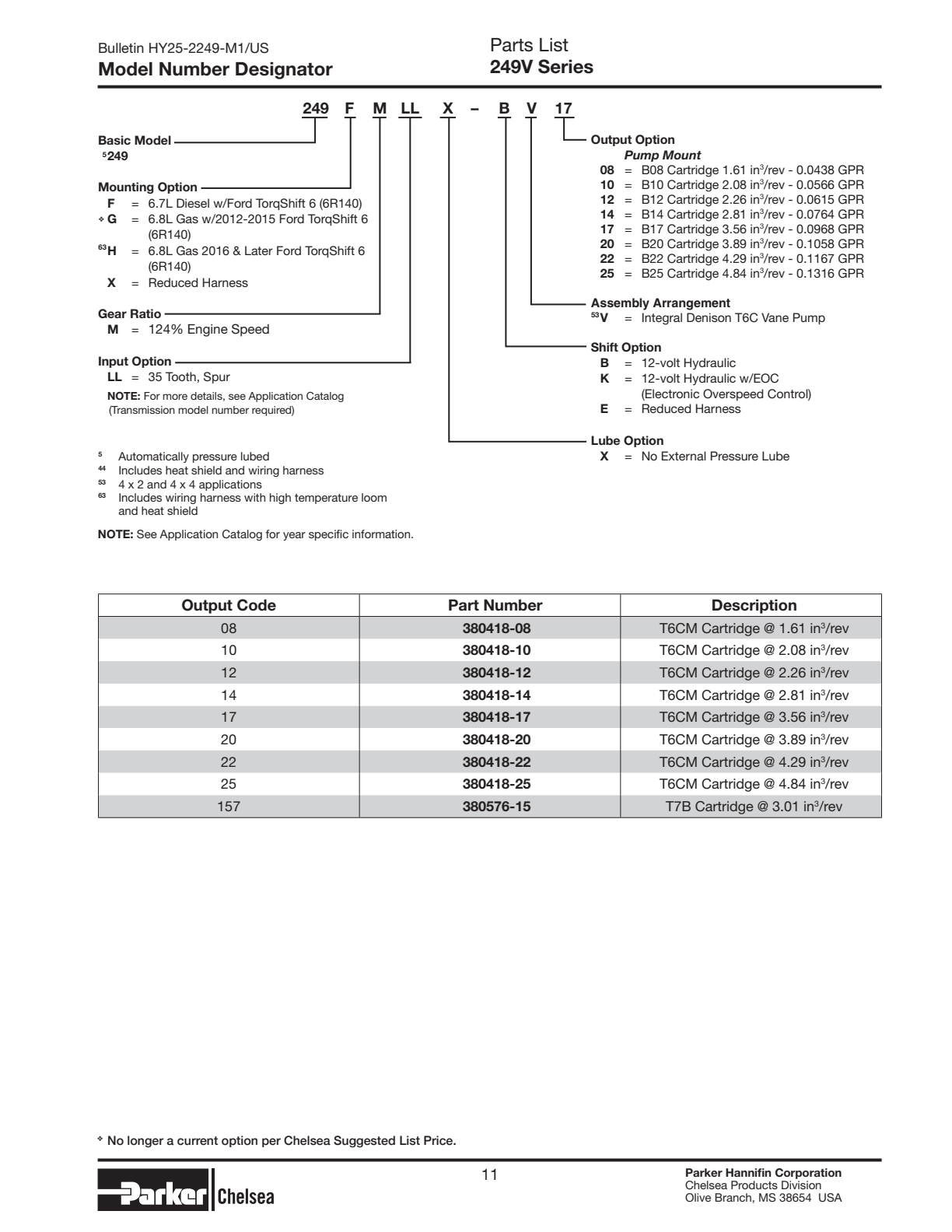

Model Number Designator 249V Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 6R140 | = - 20 B20 Cartridge 3.89 in3 /rev 0.1058 | GPR | — | Call for availability |
Parts List Bill of Materials 249V Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P761 | Housing | 1 | $624.86 | Add to Cart | |
| 3 | 68P511 | Adhesive Label | 1 | — | Call for availability | |
| 5 | 31P155 | Thrust Washer (1 .280 " X 2 .300 " X .064 ") | 2 | $5.03 | Add to Cart | |
| 6 | 9P128 | Shaft Idler (1 .260 ") | 1 | $112.20 | Add to Cart | |
| 7 | 3784308 | Hex Head Cap Screw (.312 " -18 X .750 ") | 1 | $2.06 | Add to Cart | |
| 8 | 27P9 | Lock Plate. | 1 | $3.19 | Add to Cart | |
| 9 | 28P179 | Oil Seal (1 .379 " X .875 " X .249 ") | 1 | $88.26 | Add to Cart | |
| 10 | 561030 | Needle Roller Bearing Assy (1 .375 " X 1 .750 X .750 ") | 1 | $28.30 | Add to Cart | |
| 11 | 33P92 | Reverse Idler Gear 41T. | 1 or | $968.52 | Add to Cart | |
| 33P88 | Reverse Idler Gear 41T. | 1 | — | No longer available — call for replacement | ||
| 12 | V379486 | Elbow (.438 " -20) | 1 | — | Call for availability | |
| 14 | 3794316 | Socket Head Cap Screw (.250 " X 20 " X 1 .000 ") | 3 | $4.02 | Add to Cart | |
| 15 | 22P123 | Valve Cap Gasket | 1 | $5.99 | Add to Cart | |
| 17 | 561029 | Needle Roller Bearing Assy (1 .260 " X 1 .811 " X 1 .260 ") | 1 | $53.91 | Add to Cart | |
| 18 | 379242 | Straight Adapter (.125 " -27 X .750 " -16) | 1 | $22.23 | Add to Cart | |
| 19 | 379231 | Plug Pipe (.125 " -27 ") | 1 | $1.50 | Add to Cart | |
| 21 | 28P335 | O-ring (1 .112 " X .103 ") | 1 | $6.32 | Add to Cart | |
| 22 | 3795642 | Cap Thread (.438 ") | 1 | $1.23 | Add to Cart | |
| 379243X | Speed Sensor Kit | 1 | $267.63 | Add to Cart | ||
| 24 | 28P171 | O-ring (.644 " X .087 ") (w/eoc Only) | 1 | $4.88 | Add to Cart | |
| 25 | 379243 | Sensor Speed (w/eoc Only) | 1 | $229.65 | Add to Cart | |
| 26 | 380458 | Plug Idler (1 .260 ") | 1 | $73.47 | Add to Cart | |
| 27 | 28P71 | O-ring (.674 " X .103 ") | 1 | $4.88 | Add to Cart | |
| 28 | 28P239 | O-ring (1 .046 " X .139 ") | 1 | $6.64 | Add to Cart | |
| 29 | 63P16 | Poppet Shifter | 1 | $9.26 | Add to Cart | |
| 30 | 37P73 | Spring (.231 " X .716 ") | 1 | $6.86 | Add to Cart | |
| 31 | 50059516 | Pin Slotted Spring (.125 " X 1 .250 ") | 1 | $1.18 | Add to Cart | |
| 32 | 31P140 | Thrust Washer (.880 " X .030 ") | 1 | $7.72 | Add to Cart | |
| 33 | 21P836 | Housing Pump Adapter | 1 | $497.84 | Add to Cart | |
| 34 | 22P140 | Pump Mounting Gasket | 1 | $11.30 | Add to Cart | |
| 35 | 3784478 | Socket Head Cap Screw (.312 " -18 " X 1 .500 ") | 4 | $2.32 | Add to Cart | |
| 37 | 28P259 | O-ring (3 .984 " X .139 ") | 1 | $52.57 | Add to Cart | |
| 38 | 1P732 | Vane Pump Housing | 1 | $538.13 | Add to Cart | |
| 39 | 37943516 | Socket Head Cap Screw (.500 " -13 " X 3 .500 ") | 4 | $17.21 | Add to Cart | |
| 40 | 28P119 | Oil Seal (1 .379 " X .875 " X .250 ") | 1 | $26.61 | Add to Cart | |
| 41 | 50089731 | Shipping Plug | 1 | — | No longer available — call for replacement | |
| 42 | 50089724 | Shipping Plug | 1 | — | No longer available — call for replacement | |
| 44 | 3784513 | Socket Head Setscrew (10-24 .250 ") | 1 | $1.83 | Add to Cart | |
| 22P124 | Mounting Gasket | 1 | $22.94 | Add to Cart | ||
| 3292486X | Gasket & Seal Kit Installation Kits | $240.69 | Add to Cart | |||
| 3292485X | Installation & Label Kit | 1 | $119.84 | Add to Cart | ||
| 329650X | Speed Limiter Assemby | 1 | $1,358.05 | Add to Cart | ||
| 329836X | Installation & Mounting Kit (non-eoc) (b Shift Option) (f Mount) | 1 | $1,006.04 | Add to Cart | ||
| 329837X | Installation & Mounting Kit (eoc) (k Shift Option) (f Mount) | 1 | $1,296.87 | Add to Cart | ||
| 329838X | Installation & Mounting Kit (non-eoc) (b Shift Option) (g Mount) | 1 | $906.30 | Add to Cart | ||
| 329950X | Installation & Mounting Kit (no Wire) (e Shift Option) (h Mount) | 1 | — | No longer available — call for replacement | ||
| 329951X | Installation & Mounting Kit (no Wire) (e Shift Option) (x Mount) Service Kits | 1 | $244.18 | Add to Cart | ||
| 3292482X | Bearing Kit | $223.61 | Add to Cart | |||
| 3292483X | Clutch Repair Kit | $154.18 | Add to Cart | |||
| 3292487X | Complete Rebuild Kit | $607.66 | Add to Cart |
Shift Options 249V Series Valve Cap Assembly 329614X Prior to April 1 2015
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 13 | 329614X | Valve Cap Assembly | $646.80 | Add to Cart | ||
| 21P720 | Valve Cap | 1 | — | No longer available — call for replacement | ||
| 28P119 | Oil Seal (1 .379 " X .875 " X .250 ") | 1 | $26.61 | Add to Cart | ||
| 378811 | Plate Seal Backup | 1 | $5.21 | Add to Cart | ||
| 378849 | Lockring | 1 | $2.12 | Add to Cart | ||
| 38012312 | 12-volt Cartridge Valve Non Regulating | 1 | $222.19 | Add to Cart | ||
| 3784474 | Socket Head Cap Screw (.312 " -18 X .750 ") | 1 | $1.78 | Add to Cart | ||
| 5008975 | Shipping Plug | 1 | — | Call for availability | ||
| 379484 | O-ring Boss Plug (.438 " -20) | 1 | $6.85 | Add to Cart | ||
| 561031 | Ball Bearing (.984 " X 1 .850 " X .472 ") Hold Down Clamp 380124 - | 1 | $27.59 | Add to Cart |
Shift Options 249V Series Valve Cap Assembly 329850X After April 1 2015
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 13 | 329850X | Valve Cap Assembly | $646.80 | Add to Cart | ||
| 21P848 | Valve Cap | 1 | $238.47 | Add to Cart | ||
| 28P119 | Oil Seal (1 .379 " X .875 " X .250 ") | 1 | $26.61 | Add to Cart | ||
| 378811 | Plate Seal Backup | 1 | $5.21 | Add to Cart | ||
| 378849 | Lockring | 1 | $2.12 | Add to Cart | ||
| 38012312 | 12-volt Cartridge Valve Non Regulating | 1 | $222.19 | Add to Cart | ||
| 3784474 | Socket Head Cap Screw (.312 " -18 X .750 ") | 1 | $1.78 | Add to Cart | ||
| 5008975 | Shipping Plug | 1 | — | Call for availability | ||
| 379484 | O-ring Boss Plug (.438 " -20) | 1 | $6.85 | Add to Cart | ||
| 561071 | Ball Bearing (.875 " X 1 .875 " X .375 ") | 1 | $27.59 | Add to Cart | ||
| 379464 | Internal Lockring (1 .875 ") (see 379462) Hold Down Clamp 380124 - | 1 | $3.79 | Add to Cart |

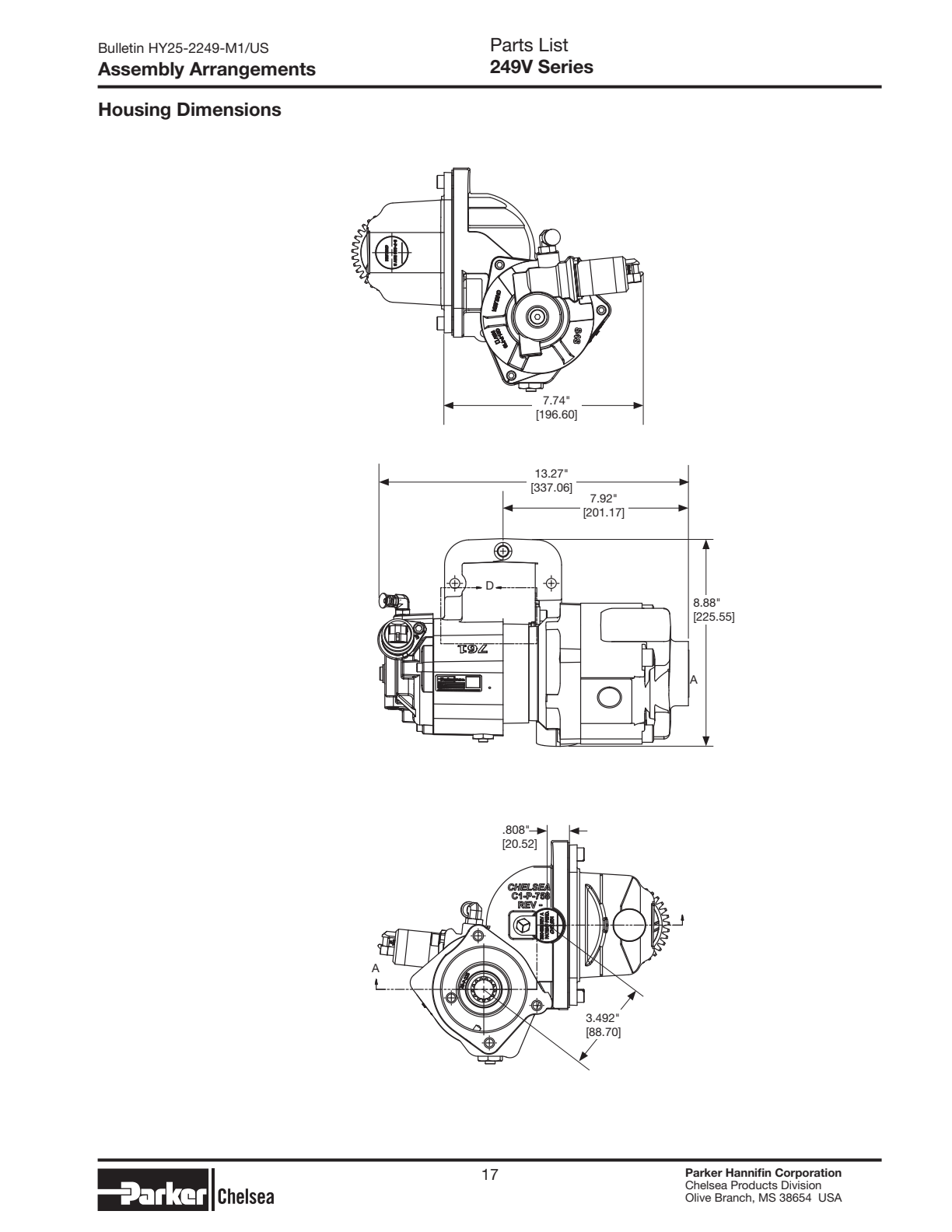

Output Options 249V Series Drive Shaft & Clutch Assembly 330031X, v329852X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 330031X | Drive Shaft & Clutch Assy (v329852X) | $1,936.03 | Add to Cart | |||
| 1 | 3P1149 | Output Shaft | 1 | $879.15 | Add to Cart | |
| 2 | 2P994 | Output Gear 42 Teeth | 1 or | $635.37 | Add to Cart | |
| V2P861 | Output Gear 42 Teeth | 1 | — | Call for availability | ||
| 3 | 561032 | Plain Bearing (1 .378 " X 1 .535 " X 1 .180 ") | 1 | $28.33 | Add to Cart | |
| 4 | 31P90 | Thrust Washer (1 .382 " X 2 .042 " X .062 ") | 1 | $9.04 | Add to Cart | |
| 5 | 378576 | Lockring | 1 | $3.16 | Add to Cart | |
| 6 | 380061 | Bell Gear 42Teeth | 1 | $139.69 | Add to Cart | |
| 7 | 329726X | Gear & Plates Kit | 1 | $203.96 | Add to Cart | |
| 2P860 | Output Gear 29Teeth | 1 | — | Call for availability | ||
| 379691 | Friction Disc | 9 | $25.49 | Add to Cart | ||
| 380060 | Clutch Plate | 8 | $6.90 | Add to Cart | ||
| 8 | 28P289 | O-ring (.864 " X .070 ") | 2 | $3.01 | Add to Cart | |
| 9 | 37P56 | Spring (1 .750 " X 1 .510 ") | 1 | $9.77 | Add to Cart | |
| 10 | 380063 | Piston Clutch | 1 | $92.57 | Add to Cart | |
| 11 | 28P288 | O-ring (3 .234 " X .139 ") | 1 | $14.27 | Add to Cart | |
| 12 | 380062 | Cylinder Clutch | 1 | $69.80 | Add to Cart | |
| 13 | 379693 | Lockring Chelsea Suggested List Price | 1 | $4.45 | Add to Cart |
Output Options 249/249V Series Adapter Assembly 330013X, V 329901X
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 42P245 | Housing Adapter | 1 | $351.81 | Add to Cart | |
| 2 | 9P100 | Idler Shaft (1 .260 ") | 1 | $76.07 | Add to Cart | |
| 3 | 5P1669 | Input Gear 36T | 1 or | $554.61 | Add to Cart | |
| V5P1555 | Input Gear 35T | 1 | — | Call for availability | ||
| 4 | 35P155 | Thrust Washer (1 .280 " X 2 .300 " X .064 ") | 2 | — | Call for availability | |
| 5 | 561029 | Needle Roller Bearing Assy (1 .260 " X 1 .811 " X 1 .260 ") | 1 | $53.91 | Add to Cart | |
| 6 | 385078 | Bushing Dowel (10 .870 " X 13 .010 " X 20 .000 ") | 2 | $5.29 | Add to Cart | |
| 7 | 3794313 | Socket Head Cap Screw (.250 " -20 X .625 ") | 1 | $3.39 | Add to Cart | |
| 8 | 28P336 | O-ring (1 .171 " X .139 ") | 1 | $13.66 | Add to Cart | |
| 9 | 28P337 | O-ring (1 .171 " X .139 ") (modified) Chelsea Suggested List Price | 1 | $18.86 | Add to Cart |

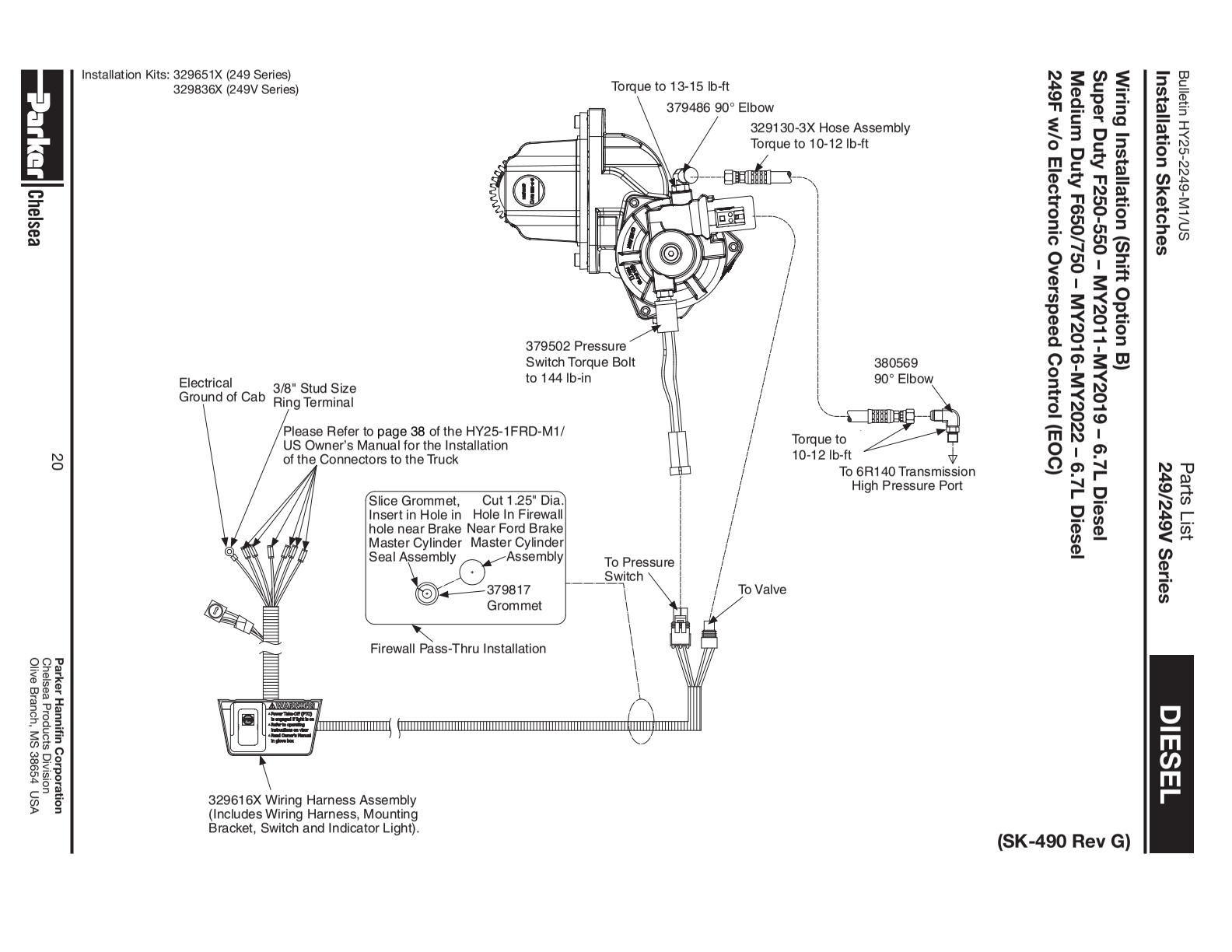

Diesel
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F250550 | MY2017-MY2019 6 .2/6 .8L Gas – – | v | — | Call for availability |
Parts List Kits Bill of Materials 249/249V Series
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1-P-698 | Housing | 1 | — | Call for availability | ||
| 329604-1X | Ass'y Drive Shaft & Clutch ("xd" Output) 1 Or | — | No longer available — call for replacement | |||
| 329604-2X | Ass'y Drive Shaft & Clutch ("xp" Output) 1 Or | $973.86 | Add to Cart | |||
| 329604-3X | Ass'y Drive Shaft & Clutch ("ad" Output) | 1 | — | No longer available — call for replacement | ||
| 68-P-51 | Plate Name | 1 | $2.14 | Add to Cart | ||
| 378422 | Screw Drive | 2 | $11.52 | Add to Cart | ||
| 31-P-135 | Washer Thrust 1.280" X 2.300" X .064" | 2 | — | No longer available — call for replacement | ||
| 9-P-107 | Shaft Idler 1.26" | 1 | — | Call for availability | ||
| 33-P-76 | Gear Reverse Idler 41T | 1 | $968.52 | Add to Cart | ||
| 379486 | Elbow 90° .438" 20 | 1 | $28.97 | Add to Cart | ||
| 31-P-119 | Washer Thrust 1.800" X 2.300" X .064" | 1 | $6.42 | Add to Cart | ||
| 329806X | Ass'y Adapter (includes Items 23-1 Thru 23-9) | 1 | — | Call for availability | ||
| 42-P-239 | Body Adapter | 1 | — | No longer available — call for replacement | ||
| 5-P-1436 | Gear Input 35T | 1 | $554.61 | Add to Cart | ||
| 36-P-16 | Poppet Shifter | 1 | — | Call for availability | ||
| 500720-17 | Pin Spring .125" X 1.250" | 1 | — | Call for availability | ||
| 3-P-1002 | Shaft Output ("xd" Output 1.25" Keyed) 1 Or | $398.72 | Add to Cart | |||
| 3-P-1003 | Shaft Output ("xp" Output 7/8" 13T) 1 Or | $497.21 | Add to Cart | |||
| 3-P-1004 | Shaft Output ("ad" Output 3/4" 11T) | 1 | $516.29 | Add to Cart | ||
| 2-P-861 | Gear Output 42 Teeth | 1 | $667.38 | Add to Cart | ||
| 28-P-247 | O-ring .984" X .139" | 1 | $7.16 | Add to Cart | ||
| 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | ||
| 379698 | Elbow Male 90° .438" 24 X .125" 27 | 1 | $13.51 | Add to Cart | ||
| 380089 | Adapter M10 X .125" 27 | 1 | $31.98 | Add to Cart | ||
| 379817 | Grommet | 1 | $6.42 | Add to Cart | ||
| 329232-1X | Hose Assembly | 1 | $77.91 | Add to Cart | ||
| 69-P-13 | Label Caution | 1 | — | Call for availability | ||
| 329616X | Wiring Harness Non E.o.c | 1 | $355.53 | Add to Cart | ||
| 329617X | Wiring Harness E.o.c | 1 | $678.71 | Add to Cart | ||
| 379744 | Flange Nut .375" (3/8") 24 | 3 | $1.63 | Add to Cart | ||
| 380073 | Bolt Flange Hex Head M10 X 1.5" 45mm | 3 | $6.96 | Add to Cart | ||
| 379428-18 | Metric Stud M10 1.5 X 3.75" 24 X 2.0" | 1 | $8.32 | Add to Cart | ||
| 379428-24 | Metric Stud M10 1.5 X 3.75" 24 X 2.375" | 2 | $15.10 | Add to Cart | ||
| 328946X | Kit Caution Labels | 1 | — | No longer available — call for replacement | ||
| 329789X | Wire Harness | 1 | $700.03 | Add to Cart | ||
| 379085-2 | Label Instruction P.t.o. Shifting | 1 | $4.02 | Add to Cart | ||
| 329790X | Kit Heat Shield | 1 | $102.61 | Add to Cart | ||
| 379624 | Warranty Card | 1 | $3.72 | Add to Cart | ||
| 69-P-12 | Label Caution | 1 | — | Call for availability | ||
| 379972 | Elbow 45° | 1 | $4.27 | Add to Cart | ||
| 385096 | Grommet | 1 | — | Call for availability | ||
| 28-P-276 | O-ring 1.674" X .103" | 1 | $8.68 | Add to Cart | ||
| 328949-6X | Gasket Installation Instructions 221CAJ, Eaj | $63.61 | Add to Cart | |||
| 35-P-41 | Gasket, Housing | 1 | $12.41 | Add to Cart | ||
| 379085-1 | P.t.o. Intructions Decal | 1 | $4.15 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 249V — every part in the manual, matched to our live inventory. We stock 118 of the 146 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 249V PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 249V |
| PTO type | Chelsea 200 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 36 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
