Chelsea PTO 352 Series Parts Manual
Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Bill of Materials 352 Series

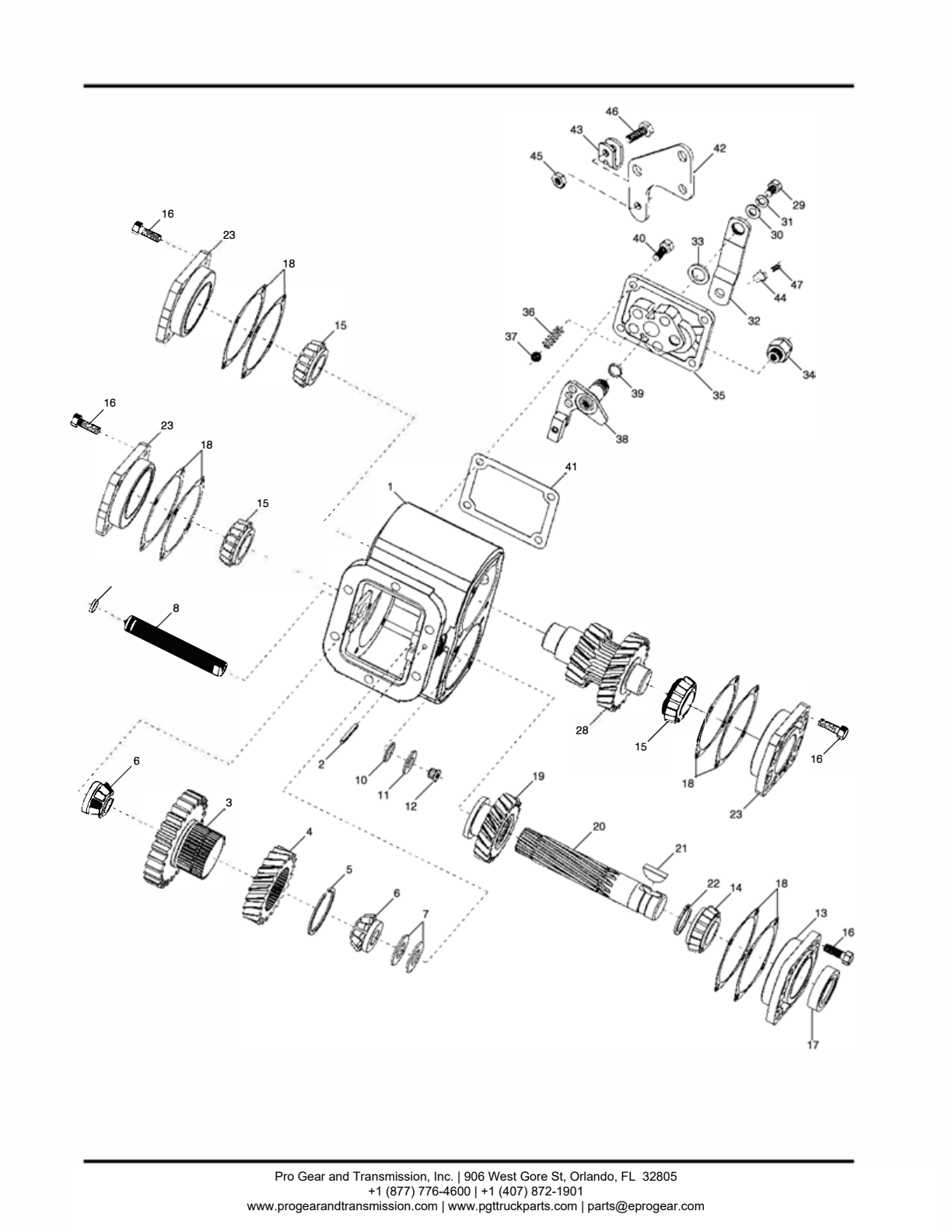

Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P520X | Housing W/roll Pin Standard Mount (assemblies 3 & 6) | 1 | $548.33 | Add to Cart | |
| 1 | 1P522X | Housing W/roll Pin Standard Mount (assemblies 4 & 5) | 1 | $607.37 | Add to Cart | |
| 2 | 55059716 | Roll Pin, Standard Mount | 1 | — | Call for availability | |
| 1 | 1P521X | Housing W/roll Pin Deep Mount (assemblies 3 & 6) | 1 | $842.51 | Add to Cart | |
| 1 | 1P523X | Housing W/roll Pin Deep Mount (assemblies 4 & 5) | 1 | $799.61 | Add to Cart | |
| 2 | 50059714 | Roll Pin, Deep Mount | 1 | $3.24 | Add to Cart | |
| 4 | 5P1153 | Gear, Ratio | 1 | $259.53 | Add to Cart | |
| 5 | 379522 | Retaining Ring | 1 | $5.76 | Add to Cart | |
| 6 | 550439 | Cone Bearing Input Gear | 2 | $51.63 | Add to Cart | |
| 7 | 14P15 | Spacer, Input Gear | 2 | $5.70 | Add to Cart | |
| 8 | 9P74 | Shaft, Input Idler | 1 | $71.73 | Add to Cart | |
| 9 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 10 | 28P190 | O-ring | 1 | $3.94 | Add to Cart | |
| 379542 | Retainer, O-ring | 1 | $4.65 | Add to Cart | ||
| 12 | 379484 | Plug O-ring Boss | 1 | $6.85 | Add to Cart | |
| 13 | 328273X | Bearing Cap Assembly, Open End (includes Bearing Cup) | 1 | $64.09 | Add to Cart | |
| 14 | 550532 | Bearing Cone, Open End | 1 | $36.75 | Add to Cart | |
| 15 | 550397 | Bearing Cone, Closed End & Reverse Idler Shaft | 3 | $36.75 | Add to Cart | |
| 16 | 37843010 | Capscrew, Hex Head (.3125"-18 X 1 .00") | 16 | $1.76 | Add to Cart | |
| 17 | 28P216 | Oil Seal Output Shaft | 1 | $21.40 | Add to Cart | |
| 18 | 22P241 | Gasket, Bearing Cap (.01 0") | A.R. | $2.30 | Add to Cart | |
| 18 | 22P242 | Gasket, Bearing Cap (.020") | A.R. | $10.49 | Add to Cart | |
| 18 | 22P243 | Gasket, Bearing Cap (.015") | A.R. | $10.49 | Add to Cart | |
| 19 | 2P721 | Sliding Gear, Output | 1 | $274.46 | Add to Cart | |
| 20 | 3P859 | Shaft, Standard Output 1 .250" Rd | 1 | $265.44 | Add to Cart | |
| 21 | 50000729 | Woodruff Key | 1 | $3.11 | Add to Cart | |
| 22 | 378391 | Retaining Ring Output Shaft | $2.47 | Add to Cart | ||
| 22 | 379522 | Retaining Ring Output Shaft | 2 | $5.76 | Add to Cart | |
| 23 | 328274X | Bearing Cap Assembly, Closed End (includes Bearing Cup) | 3 | $64.09 | Add to Cart | |
| 28 | 3P861 | Reverse Idler Gear & Shaft As Required Continued . - | 1 | $677.90 | Add to Cart | |
| 3288301X | Cable Shift Cover Assembly (assemblies 3 & 6) | 1 | $200.05 | Add to Cart | ||
| 3288302X | Cable Shift Cover Assembly (assemblies 4 & 5) (includes Items 29 Through 40) | 1 | $200.05 | Add to Cart | ||
| 29 | 5004096 | Screw, Shifter Lever (.3125"-24 X .625") | 1 | $1.23 | Add to Cart | |
| 30 | 50036522 | Flat Washer | 1 | $1.05 | Add to Cart | |
| 31 | 50035610 | Lock Washer, Shift Lever (.3125") | 1 | $1.53 | Add to Cart | |
| 32 | 51P13 | Shift Lever | 1 | $83.49 | Add to Cart | |
| 33 | 378004 | Washer, Shift Lever | 1 | $2.01 | Add to Cart | |
| 34 | 379652 | Indicator Switch (normally "on") | 1 | $40.79 | Add to Cart | |
| 35 | 34P74 | Cover, Shifter | 1 | $44.57 | Add to Cart | |
| 36 | 37P14 | Poppet Spring Shifter | 1 | $3.46 | Add to Cart | |
| 37 | 378002 | Ball, Shifter | 1 | $1.63 | Add to Cart | |
| 38 | 3288291X | Plate & Post Assembly (assemblies 3 & 6) | 1 | $65.55 | Add to Cart | |
| 38 | 3288292X | Plate & Post Assembly (assemblies 4 & 5) | 1 | $61.73 | Add to Cart | |
| 39 | 28P191 | O-ring, Shifter Post | 1 | $3.59 | Add to Cart | |
| 40 | 3784308 | Capscrew, Hex Head (.3125"-18 X .750") | 3 | $2.06 | Add to Cart | |
| 40 | 3784309 | Capscrew, Hex Head (.3125"-18 X .875") | 1 | $1.76 | Add to Cart | |
| 41 | 35P8 | Gasket, Shifter Cover Parts Shipped Loose | 1 | $3.48 | Add to Cart | |
| 32834610X | Cable Control Assembly (includes 378441 -10 10' Cable & 378502 Knob) | 1 | $135.56 | Add to Cart | ||
| 328380X | Mounting Parts Kit (cable Control) (includes Items 42 Through 47) | 1 | $13.25 | Add to Cart | ||
| 42 | 50P17 | Bracket, Cable Control | 1 | $5.47 | Add to Cart | |
| 43 | 50P19 | Bracket, Swivel | 1 | $3.48 | Add to Cart | |
| 44 | 378019 | Pin Pivot | 1 | $4.50 | Add to Cart | |
| 45 | 378326 | Nut, Hex | 1 | $2.22 | Add to Cart | |
| 46 | 5003968 | Capscrew, Hex Head (.250 " -20 X .50") | 1 | $1.17 | Add to Cart | |
| 47 | 5005684 | Setscrew (.250"-20 X .50") | 1 | $1.45 | Add to Cart | |
| 71702X | Stud Kit, Standard Mount | 1 | $30.69 | Superseded by 32817076XAdd to Cart | ||
| 71701X | Stud Kit, Deep Mount | 1 | $21.76 | Add to Cart | ||
| 3289486X | Mounting Gaskets And Installation Instructions | 1 | $24.01 | Add to Cart | ||
| 717072X | Stud Kit, "g" Mount Metric | $53.10 | Add to Cart | |||
| 32838840X | Air-o-matic Shift Installation Kit | 1 | $485.40 | Add to Cart | ||
| 328751X | Wire Or Lever Control Installation Kit Service Items | 1 | $65.59 | Superseded by 3287511XAdd to Cart | ||
| 32835658X | Gasket & Seal Kit (contains 8 Ea. Of 22-P-24-1 22-P-24-2, 4 Ea. Of 22-P-24-3, , 1 Ea. Of 28-P-190, 28-P-191 28-P-216, 35-P-8, 35-P-9-1 , And 35-P-9-2) | 1 | $91.61 | Add to Cart | ||
| 329218X | Service Kit, Booted Connector (379640) & Butt Connector (379252) -as Required . | 1 | $18.40 | Add to Cart |
Input Gear Chart 352 Series 352 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P1000 | 18 Military 6 X 6 Transfer Case | Spur | — | Call for availability | ||
| 5P1001 | 19 Universal 5-Pitch | Spur | $1,260.77 | Add to Cart | ||
| 5P1002 | 19 Fiat 2860 | Spur | — | Call for availability | ||
| 5P1003 | 22 Spicer 5000 & 6000 Series | Spur | $464.19 | Add to Cart | ||
| 5P1004 | 22 Universal 6-Pitch | Spur | $244.88 | Add to Cart | ||
| 5P1005 | 23 FullerT-1056A | Spur | — | No longer available — call for replacement | ||
| 5P1006 | 21 Spicer CM-4954A & D ES-52-5A & D | Left Hand | $368.61 | Add to Cart | ||
| 5P1007 | 21 Spicer Aux 7041 | Left Hand | $399.96 | Add to Cart | ||
| 5P1008 | 21 Spicer CM6000 Series | Left Hand | $535.77 | Add to Cart | ||
| 5P1009 | 22 New Process 541 R.h Side . | Left Hand | $187.23 | Add to Cart | ||
| 5P1010 | 22 L.h Side Clark 398V & Cl 558 . | Right Hand | $606.90 | Add to Cart | ||
| 5P1011 | 23 L.h Side Navistar T-32 Thru 36, T-494 Thru 496 . | Left Hand | $462.96 | Add to Cart | ||
| 5P1012 | 18 Clark 557 | Left Hand | $479.52 | Add to Cart | ||
| 5P1013 | 27 Universal 7 Pitch | Spur | — | Call for availability | ||
| 5P1014 | 27 7 Pitch 22.5 ° P.a. | Spur | — | Call for availability | ||
| 5P1015 | 24 Spicer 5000 Series & ES-60-5A, C & D | Left Hand | $321.54 | Add to Cart | ||
| 5P1016 | 25 Spicer 3000 Series L.h Side . | Right Hand | $251.25 | Add to Cart | ||
| 5P1017 | 25 Spicer 3000 Series R.h Side . | Left Hand | — | No longer available — call for replacement | ||
| 5P1018 | 23 New Process 203 Transfer Case | Left Hand | — | No longer available — call for replacement | ||
| 5P1019 | 23 New Process 205 Transfer Case | Right Hand | $500.31 | Add to Cart | ||
| 5P1020 | 22 R.h Side Clark 398V & Cl 558 . | Left Hand | $520.00 | Add to Cart | ||
| 5P1021 | 22 New Process 540 R.h Side . | Left Hand | $219.00 | Add to Cart | ||
| 5P1022 | 26 L.h Chev. CH-465 W/adapter 328555-1X . | Right Hand | $539.57 | Add to Cart | ||
| 5P1023 | 25 Chev. CH465 Gmc SM465 & Spicer ES-42-5A & 5D | Left Hand | $566.00 | Add to Cart | ||
| 5P1024 | 26 Clark & Hino "la", "lb", "le" | Right Hand | — | No longer available — call for replacement | ||
| 5P1025 | 26 New Process 420 & Clark 285V | Left Hand | $474.18 | Add to Cart | ||
| 5P1026 | 33 Spicer 3152 | Right Hand | — | Call for availability | ||
| 5P1027 | 26 WarnerT-98 | Right Hand | — | Call for availability | ||
| 5P1028 | 26 Warner T-18, T-19 T-98A | Left Hand | $390.51 | Add to Cart | ||
| 5P310 | 25 New Process 435 | Right Hand | — | Call for availability | ||
| 5P1029 | 25 New Process 435 & 4530 | Left Hand | — | No longer available — call for replacement | ||
| 5P1030 | 26 New Process 435DD, Fd & Gd | Left Hand | — | Call for availability | ||
| 5P1031 | 27 WarnerT-18's & T-19's | Left Hand | $474.18 | Add to Cart | ||
| 5P1035 | 22 New Process 540 L.h Side . | Spur | — | Call for availability | ||
| 5P1033 | 19 | Left Hand | — | Call for availability | ||
| 5P1032 | 33 | Right Hand | — | Call for availability | ||
| 5P674 | 27 | Right Hand | — | Call for availability | ||
| 5P1073 | 27 | Right Hand | — | Call for availability | ||
| 5P1036 | 17 | Left Hand | $349.82 | Add to Cart | ||
| 5P1037 | 23 Mack 2080 | Spur | $419.96 | Add to Cart | ||
| 5P1038 | 39 FullerT-8607A & B, T-1 106, T-1 107A & B | Spur | — | Call for availability | ||
| 5P1039 | 19 Hino "ka", "kb", MFO-6S Nissan MPS-608 & TMH-464 | Spur | — | Call for availability | ||
| 5P1040 | 20 Spicer 1214, 1410-2A, 38, & 1310 | Spur | — | Call for availability | ||
| 5P1041 | 21 Renault BDSL-132R, 181 2052R | Left Hand | $208.54 | Add to Cart | ||
| 5P1042 | 28 Renault BDSL-2142 | Left Hand | $349.82 | Add to Cart | ||
| 5P1043 | 26 Renault BDSL-2152 | Left Hand | $178.28 | Add to Cart | ||
| 5P1045 | 17 Clark 450 & 455 | Left Hand | — | No longer available — call for replacement | ||
| 5P1046 | 19 Clark 457 & Fuller FS-4005C | Left Hand | $342.28 | Add to Cart | ||
| 5P1048 | 20 | Left Hand | $363.33 | Add to Cart | ||
| 5P1044 | 27 | Left Hand | — | Call for availability | ||
| 5P1047 | 27 | Left Hand | — | Call for availability | ||
| 5P1049 | 22 | Spur | — | Call for availability | ||
| 5P1074 | 27 Warner T-19C (replaces "bz") | Left Hand | — | Call for availability | ||
| 5P1050 | 28 Fuller FS-5506, 7602A & 8206A | Left Hand | $480.56 | Add to Cart | ||
| 5P1051 | 20 Spicer CM-4052D | Left Hand | — | Call for availability | ||
| 5P1052 | 26 Spicer 4054A | Left Hand | $292.10 | Add to Cart | ||
| 5P1053 | 16 Clark CL-450 Chart Continued | Left Hand | — | Call for availability | ||
| 5P10555 | 36 Zed F, S5-42 Close Ratio | Left Hand | — | Call for availability | ||
| 5P10565 | Zed F, S5-42 Wide Ratio | Left Hand | — | Call for availability | ||
| 5P10755 | 30 Isuzu MSA-5D | Right Hand | — | Call for availability | ||
| 5P10585 | 30 | Left Hand | — | Call for availability | ||
| 5P10605 | 40 Fuller T-14607 A | Spur | — | Call for availability | ||
| 5P10615 | 20 Fuller FS-3005A & B, & 4005 | Left Hand | — | Call for availability | ||
| 5P10635 | 25 NVG-4500 Chev/gmc | Left Hand | — | Call for availability | ||
| 5P10645 | 26 NVG-4500 Dodge | Left Hand | — | Call for availability | ||
| 5P10655 | 29 Getrag 360 | Left Hand | — | Call for availability | ||
| 5P10665 | 32 Zed-f S5-42 7.55 Ratio | Left Hand | — | Call for availability | ||
| 5P10685 | 25 | Left Hand | — | Call for availability | ||
| 5P10695 | 28 Nissan TMH704 & 762 & MHS-50 & 60 | Spur | — | Call for availability | ||
| 5P10705 | 26 Spicer ES-52-7 A, ESO-65-7 A | Left Hand | — | Call for availability | ||
| 5P10715 | 23 Renault G405-G406 | Left Hand | — | Call for availability | ||
| 5P10725 | 21 Mack/renault G-406-1 | Left Hand | — | Call for availability | ||
| 5P10985 | 28 Fuller FSO-8206A | Left Hand | — | Call for availability | ||
| 5P11505 | 26 Tremec 199F | Left Hand | — | Call for availability | ||
| 5P11525 | 29 Zed F S5-42 Wide Ratio | Left Hand | — | Call for availability | ||
| 5P12375 | 26 | Left Hand | — | Call for availability | ||
| 5P12365 | 32 | Spur | — | Call for availability | ||
| 5P12445 | 26 | Right Hand | — | Call for availability | ||
| 5P12685 | 33 | Left Hand | — | Call for availability | ||
| 5P13105 | 20 | Left Hand | — | Call for availability | ||
| 5P13165 | 25 | Left Hand | — | Call for availability | ||
| 5P12615 | 24 | Left Hand | — | Call for availability | ||
| 5P13195 | 23 Sketch See Su '4 \' Isof Fcr OPEFA'l'J3 N'STAU:::T1-::.m� 68-P-18 Control Plate .750 [19 .05) Ref. For Drill Size 378978 12-Volt lndica1or Light | Left Hand | — | Call for availability | ||
| 379640 | R Butt Connector � ��o=====f""'-��xj=�_j=====j = I | 1 J 1 | $18.40 | Add to Cart | ||
| 379652 | 379252 378884 Butt Connector 9-Amp Fuse Holder5 | $40.79 | Add to Cart |
Lever Control Parts 352 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3288251X | Lever Control Assembly (assemblies 3 & 6) | 1 | $653.81 | Add to Cart | ||
| 3288252X | Lever Control Assembly (assemblies 4 & 5) (includes Items 48 Through 61) | 1 | — | No longer available — call for replacement | ||
| 48 | 36P1 | Eye Bolt | 1 | $56.02 | Add to Cart | |
| 49 | 5003813 | Nut, Jam (.375"-24) | 1 | $1.10 | Add to Cart | |
| 50 | 28P207 | Oil Seal | 2 | $19.83 | Add to Cart | |
| 51 | 32P141 | Fork, Shifter | 1 | $180.33 | Add to Cart | |
| 52 | 11P129 | Shaft, Shifter | 1 | $200.74 | Add to Cart | |
| 53 | 65P23 | Cover, Shifter Shaft | 1 | $20.58 | Add to Cart | |
| 54 | 35P14 | Gasket, Shifter Shaft Cover | 1 | $2.88 | Add to Cart | |
| 55 | 378002 | Ball Shifter | 1 | $1.63 | Add to Cart | |
| 56 | 37P14 | Poppet Spring Shifter | 1 | $3.46 | Add to Cart | |
| 57 | 37854 | Poppet Cap, Shifter | 1 | — | Call for availability | |
| 58 | 34P82 | Cover, Shifter | 1 | $843.35 | Add to Cart | |
| 59 | 3784474 | Screw, Hex Head (.3125"-18 X .750") | 1 | $1.78 | Add to Cart | |
| 60 | 379652 | Indicator Switch (normally "on") | 1 | $40.79 | Add to Cart | |
| 61 | 3784304 | Capscrew, Hex Head (.3125"-18 X .50") | 2 | $6.00 | Add to Cart | |
| 62 | 35P8 | Gasket, Shift Cover | 1 | $3.48 | Add to Cart | |
| 63 | 3784308 | Capscrew, Hex Head (.3125"-18 X .750") | 4 | $2.06 | Add to Cart |
Air Control Parts 352 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3288261X | Air Shift Cover Assembly (assemblies A6 & G3 ) | 1 | $1,760.20 | Add to Cart | ||
| 3288262X | Air Shift Cover Assembly (assemblies A4 & Gs) | 1 | $1,760.20 | Add to Cart | ||
| 64 | 11P129 | Shaft, Shifter | 1 | $200.74 | Add to Cart | |
| 65 | 28P207 | Oil Seal | 1 | $19.83 | Add to Cart | |
| 66 | 34P82 | Cover, Shifter | 1 | $843.35 | Add to Cart | |
| 67 | 32P141 | Fork, Shifter | 1 | $180.33 | Add to Cart | |
| 68 | 3784474 | Capscrew, Socket Head, (.3125"-18 X .750") | 1 | $1.78 | Add to Cart | |
| 69 | 378554 | Poppet Cap | 1 | $12.41 | Add to Cart | |
| 70 | 379652 | Indicator Switch (normally "on") | 1 | $40.79 | Add to Cart | |
| 71 | 35P14 | Gasket, Shifter Shaft Cover | 2 | $2.88 | Add to Cart | |
| 72 | 65P23 | Cover, Shifter Shaft | 1 | $20.58 | Add to Cart | |
| 73 | 3784304 | Capscrew, Hex Head (.3125"-18 X .50") | 2 | $6.00 | Add to Cart | |
| 74 | 3784309 | Capscrew, Hex Head (.3125"-18 X .875") | 2 | $1.76 | Add to Cart | |
| 328824X | Air Shift Sub- Assembly (includes Items 75 Through 84) | 1 | $1,015.43 | Add to Cart | ||
| 75 | 28P71 | O-ring (.875") | 1 | $4.88 | Add to Cart | |
| 76 | 65P15 | Cylinder | 1 | $396.31 | Add to Cart | |
| 77 | 3784309 | Capscrew, Hex Head (.3125"-18 X .875") | 2 | $1.76 | Add to Cart | |
| 78 | 28P250 | O-ring (2") | 1 | $8.12 | Add to Cart | |
| 79 | 379102 | Washer, Spring Retainer | 2 | $9.78 | Add to Cart | |
| 80 | 37P50 | Spring | 1 | $7.39 | Add to Cart | |
| 81 | 379103 | Retaining Ring | 1 | $1.97 | Add to Cart | |
| 82 | 66P13 | Piston | 1 | $189.57 | Add to Cart | |
| 83 | 28P61 | O-ring (1 .875") | 1 | $7.18 | Add to Cart | |
| 84 | 34P81 | Cylinder Cap | 1 | $108.34 | Add to Cart | |
| 85 | 35P8 | Gasket, Shift Cover | 1 | $3.48 | Add to Cart | |
| 86 | 3784308 | Capscrew, Hex Head (.3125"-18 X .750") | 4 | $2.06 | Add to Cart |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 378978 | 12-Volt | $25.82 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 352 — every part in the manual, matched to our live inventory. We stock 134 of the 201 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 352 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 352 |
| PTO type | Chelsea 300 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 17 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
