Chelsea PTO 438 Series Parts Manual

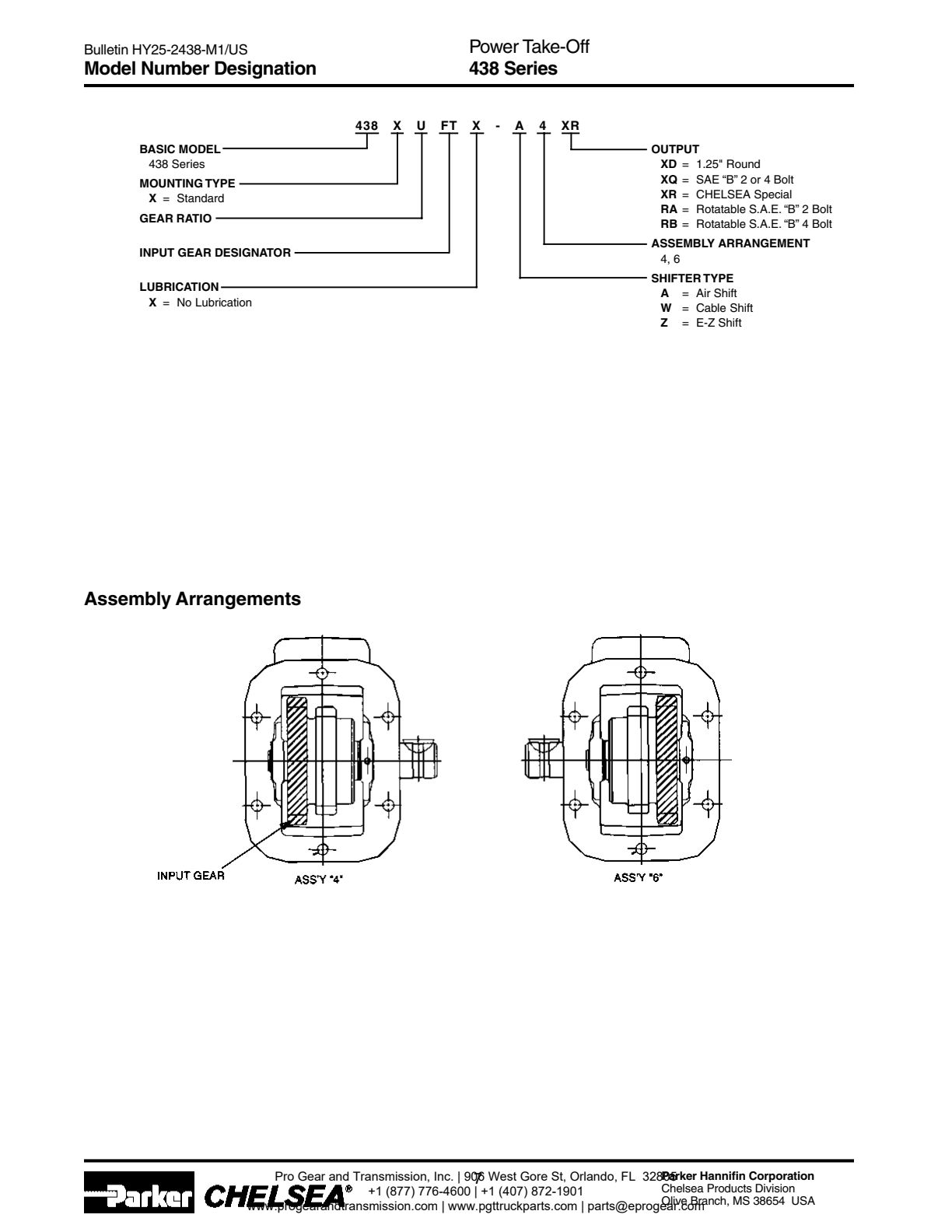

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|

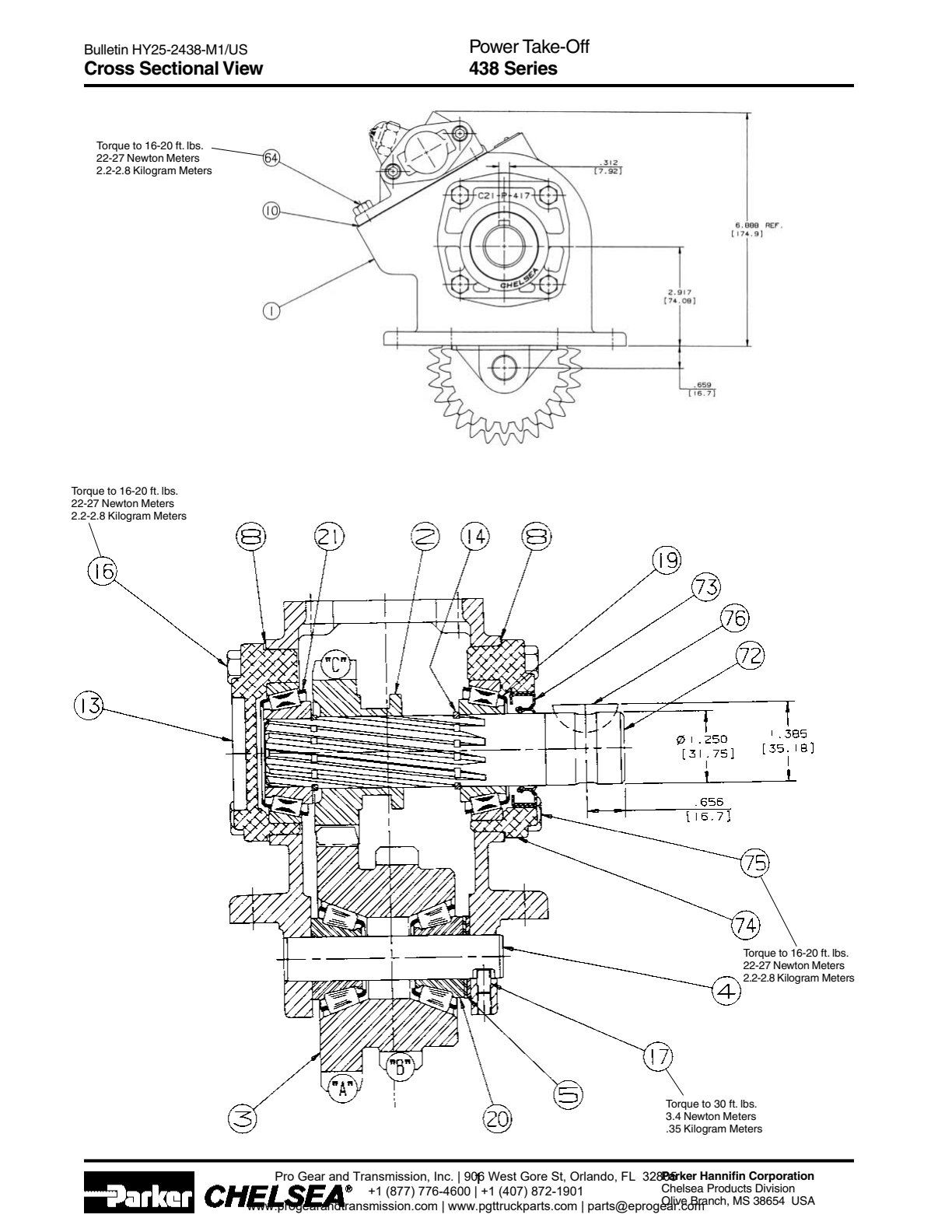

Power Take-Off Bill of Materials 438 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P483 | Housing | 1 | — | Call for availability | |
| 2 | 2P699 | Gear, Output | 1 | $259.97 | Add to Cart | |
| 3 | 5P951 | Gear, Input | 1 | — | Call for availability | |
| 4 | 9P72 | Shaft, Idler | 1 | $30.31 | Add to Cart | |
| 5 | 14P15 | Spacers, Input Gear | A/R | $5.70 | Add to Cart | |
| 8 | 22P241 | Gasket, Bearing Cap (.010) | A/R | $2.30 | Add to Cart | |
| 22P242 | Gasket, Bearing Cap (.020) | A/R | $10.49 | Add to Cart | ||
| 22P243 | Gasket, Bearing Cap (.015) | A/R | $10.49 | Add to Cart | ||
| 10 | 35P8 | Gasket, Shifter Cover | 1 | $3.48 | Add to Cart | |
| 68P2 | Name Plate (u .s.a.) | 1 | $2.65 | Add to Cart | ||
| 13 | 328274X | Bearing Cap Assembly (closed) | 1 | $64.09 | Add to Cart | |
| 14 | 378391 | Lockring | 2 | $2.47 | Add to Cart | |
| 15 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 16 | 37843010 | Capscrew, Hex Head (.312-18 X 1 .000) | 4 | $1.76 | Add to Cart | |
| 17 | 3784527 | Set Screw (.250-20 X .500) | 1 | $4.37 | Add to Cart | |
| 19 | 550397 | Bearing Cone | 1 | $36.75 | Add to Cart | |
| 20 | 550439 | Bearing Cone | 2 | $51.63 | Add to Cart | |
| 21 | 550532 | Bearing Cone | 1 | $36.75 | Add to Cart | |
| 64 | 3784308 | Capscrew, Hex Head (.312-18 X .750) “xr” Output | 4 | $2.06 | Add to Cart | |
| 66 | 3P283 | Shaft, Output | 1 | $187.84 | Add to Cart | |
| 67 | 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | |
| 68 | 329194X | Pump Flange Assembly (21 -P-574) | 1 | $135.04 | Add to Cart | |
| 69 | 379673 | Shoulder Stud (.312-24) | 4 | $12.77 | Add to Cart | |
| 70 | 379063 | Flat Washer “xd” Output | 4 | $2.70 | Add to Cart | |
| 72 | 3P202 | Shaft, Output | 1 | $95.42 | Add to Cart | |
| 73 | 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | |
| 74 | 328273X | Bearing Cap Assembly (open) | 1 | $64.09 | Add to Cart | |
| 75 | 37843010 | Capscrew, Hex Head (.312-18 X 1 .000) | 4 | $1.76 | Add to Cart | |
| 76 | 50000729 | Woodruff Key “xq” Output | 1 | $3.11 | Add to Cart | |
| 79 | 3P282 | Shaft, Output (pump) | 1 | $187.84 | Superseded by 3P282XAdd to Cart | |
| 80 | 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | |
| 81 | 328589X | Bearing Cap Assembly (21 -P-269) | 1 | $324.47 | Add to Cart | |
| 82 | 3784478 | Capscrew, Socket Head (.312-18 X 1 .500) “ra” Output | 4 | $2.32 | Add to Cart | |
| 83 | 3P283 | Output Shaft | 1 | $187.84 | Add to Cart | |
| 84 | 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | |
| 85 | 329195X | Pump Flange Assembly (21 -P-574) | 1 | $132.25 | Add to Cart | |
| 86 | 21P628 | Pump Flange 2-Bolt Rotating | 1 | $100.24 | Add to Cart | |
| 87 | 3784476 | Socket Head Capscrew (.312-18 X 1 .000) | 4 | $4.33 | Add to Cart | |
| 32859153X | Pump Field Conversion Kit (“xr” To “ra”) | $122.93 | Add to Cart | |||
| 32859155X | Pump Field Conversion Kit (“xd” To “ra”) “ra” Output | $382.35 | Add to Cart | |||
| 88 | 3P283 | Output Shaft | 1 | $187.84 | Add to Cart | |
| 89 | 28P216 | Oil Seal | 1 | $21.40 | Add to Cart | |
| 90 | 329195X | Pump Flange Assembly (21 -P-574) | 1 | $132.25 | Add to Cart | |
| 91 | 21P572 | Pump Flange 4-bolt Rotating | 1 | $114.69 | Add to Cart | |
| 92 | 3784476 | Socket Head Capscrew .312-18 X 1 .000 | 4 | $4.33 | Add to Cart | |
| 32859154X | Pump Field Conversion Kit (“xr” To “ra”) | $122.93 | Add to Cart | |||
| 32859156X | Pump Field Conversion Kit (“xd” To “ra”) Loose Parts | $382.35 | Add to Cart | |||
| 717072X | Stud Kit | 1 | $53.10 | Add to Cart | ||
| 35P72 | Gasket, Mounting | 2 | — | Call for availability | ||
| 3289616X | Gasket & Installation Instructions | 1 | $45.94 | Add to Cart | ||
| 95 | 32834615X | Cable Control Assembly | 1 | $187.92 | Add to Cart | |
| 328380X | Cable Control Parts Bag | 1 | $13.25 | Add to Cart | ||
| 328751X | Installation Kit | 1 | $65.59 | Superseded by 3287511XAdd to Cart | ||
| 32838837X | Installation Kit, Air Shift | 1 | $367.41 | Add to Cart | ||
| 328711X | Installation Kit, “xr” Pump | 1 | $14.26 | Add to Cart |
Cable Shift Control Assembly 438 Series Assembly 4 & 6
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3290381X | Cable Shifter Assembly (3 & 6) | 1 or | — | Call for availability | ||
| 3290382X | Cable Shifter Assembly (4 & 5) | 1 | — | Call for availability | ||
| 26 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 27 | 34P74 | Shifter Cover Gasket | 1 | $44.57 | Add to Cart | |
| 28 | 37P19 | Shifter Spring | 1 | $2.04 | Add to Cart | |
| 29 | 51P22 | Shifter Lever | 1 | $12.57 | Add to Cart | |
| 30 | 63P16 | Poppet Pin | 1 | $9.26 | Add to Cart | |
| 32 | 3288131X | Shifter Plate Ass'y (3 & 6) | 1 | — | Call for availability | |
| 3288132X | Shifter Plate Ass'y (4 & 5) | 1 or | — | Call for availability | ||
| 35 | 378004 | Flat Washer | 1 | $2.01 | Add to Cart | |
| 36 | 379110 | Indicator Switch (norm On) | 1 | $40.79 | Add to Cart | |
| 37 | 50036522 | Flat Washer | 1 | $1.05 | Add to Cart | |
| 38 | 50035610 | Lockwasher | 1 | $1.53 | Add to Cart | |
| 39 | 5004096 | Capscrew, Hex Head | 1 | $1.23 | Add to Cart | |
| 40 | 3784309 | Capscrew, Hex Head (.312-18 X .875) | 4 | $1.76 | Add to Cart |
Air Shift Control Assembly 438 Series Assembly 4 & 6
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3290421X | Air Shift Cover Assembly (3 & 6) | 1 or | $337.38 | Add to Cart | ||
| 3290422X | Air Shift Cover Assembly (4 & 5) | 1 | — | Call for availability | ||
| 45 | 11P112 | Shaft, Shifter | 1 | $51.93 | Add to Cart | |
| 46 | 28P207 | Oil Seal | 1 | $19.83 | Add to Cart | |
| 47 | 28P256 | Block Vee Ring | 2 | $5.03 | Add to Cart | |
| 48 | 32P166 | Shifter Fork E-z Shift™ | 1 | $106.87 | Add to Cart | |
| 3291681X | E-z Shift Cover Assembly (3 & 6) | 1 | — | Call for availability | ||
| 3291682X | E-z Shift Cover Assembly (4 & 5) | 1 | — | Call for availability | ||
| 49 | 34P76 | Shifter Cover | 1 | — | Call for availability | |
| 50 | 35P14 | Gasket | 2 | $2.88 | Add to Cart | |
| 51 | 37P25 | Shifter Spring | 1 | $11.57 | Add to Cart | |
| 54 | 65P14 | Cylinder Cap | 1 | $120.90 | Add to Cart | |
| 55 | 66P4 | Piston Floating | 1 | $9.22 | Add to Cart | |
| 56 | 3784474 | Capscrew, Allen Head | 3 | $1.78 | Add to Cart | |
| 57 | 378462 | Washer, Spring Retainer | 1 | $1.61 | Add to Cart | |
| 58 | 65P23 | Shifter Shaft Cover | 1 | $20.58 | Add to Cart | |
| 59 | 378908 | Capscrew, Button Head | 1 | — | No longer available — call for replacement | |
| 60 | 370110 | Indicator Switch (norm On) | 1 | — | Call for availability | |
| 61 | 379231 | Pipe Plug .125-27 Nptf Th 'd | 1 | $1.50 | Add to Cart | |
| 62 | 5008973 | Shipping Plug | 1 | — | No longer available — call for replacement | |
| 63 | 3784304 | Capscrew, Hex Head (.312-18 X .500) | 2 | $6.00 | Add to Cart |
