Chelsea PTO 446 Series Parts Manual

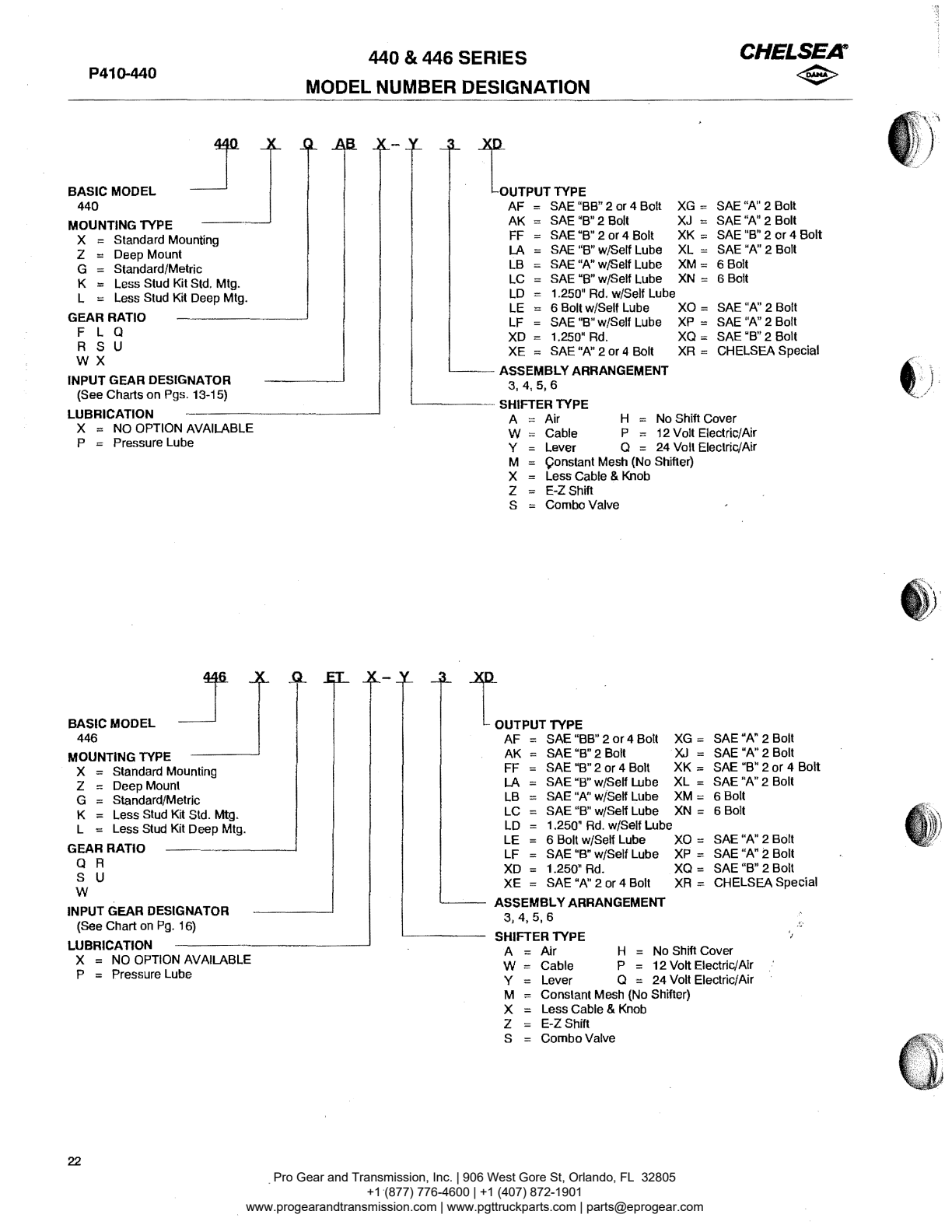

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Chelsea 440, 446 & 488 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P495X | Housing Standard Mount (includes Item 24) • 1 , . . | 1 | $257.42 | Add to Cart | |
| 1P496X | Housing Deep Mount (includes Item 24) • • 1 | 1 - | $253.28 | Add to Cart | ||
| 1P499X | Housing 8-Bolt Standard Mount (includes Item 24) - | 1 | $359.70 | Add to Cart | ||
| 1P527 | Housing Special Forjatco 1 | — | Call for availability | |||
| 4 | 3P202 | Output Shaft, Standard 1 1/4" Rd 5/16 K.w. 1 . . | 1 1 | $95.42 | Add to Cart | |
| 5 | 378391 | Lockring 2 | 2 2 | $2.47 | Add to Cart | |
| 6 | 550397 | Bearing Cone 1 | 1 1 | $36.75 | Add to Cart | |
| 7 | 550532 | Bearing Cone 1 • | 1 1 | $36.75 | Add to Cart | |
| 8 | 22P241 | Bearing Cap Gasket ( .010) A.a. | A.R. A.R. | $2.30 | Add to Cart | |
| 22P242 | Bearing Cap Gasket ( .020) A.a. | A.R. A.R. | $10.49 | Add to Cart | ||
| 22P243 | Bearing Cap Gasket ( .015) A.a. | A.R. A.R. | $10.49 | Add to Cart | ||
| 9 | 328274X | Bearing Cap Ass'y, Closed End 1 | 1 1 | $64.09 | Add to Cart | |
| 550221 | Bearing Race 1 | 1 1 | $14.19 | Add to Cart | ||
| 10 | 328273X | Bearing Cap Ass'y, Open End 1 | 1 1 | $64.09 | Add to Cart | |
| 11 | 37843010 | Hex Capscrew .312-18 X 1 .000" 4 | 4 4 | $1.76 | Add to Cart | |
| 28P216 | Oil Seal Standard Output Shaft 1 | 1 1 | $21.40 | Add to Cart | ||
| 13 | 50000729 | Woodruff Key 1 • • | 1 1 | $3.11 | Add to Cart | |
| 16 | 379522 | Lock Ring 1 • | 1 1 | $5.76 | Add to Cart | |
| 17 | 550439 | Bearing Cone 2 | 2 2 | $51.63 | Add to Cart | |
| 18 | 14P15 | Spacer, Input Gear A.a. | A .A A.R. | $5.70 | Add to Cart | |
| 19 | 9P74 | Idler Shaft, Standard 1 | 1 1 | $71.73 | Add to Cart | |
| 9P76 | Idler Shaft Pressure Lube 1 | 1 1 | — | Call for availability | ||
| 20 | 28P191 | O-ring 1 | 1 1 | $3.59 | Add to Cart | |
| 21 | 28P190 | O-ring 1 | 1 1 | $3.94 | Add to Cart | |
| 22 | 379542 | Retainer, O-ring 1 • | 1 1 | $4.65 | Add to Cart | |
| 23 | 379484 | Straight Thread Hex Socket 1 • • | 1 1 | $6.85 | Add to Cart | |
| 24 | 50059714 | Roll Pin (1 " Long) Deep Mount • 1 | 1 | $3.24 | Add to Cart | |
| 50059716 | Roll Pin (1 .125" Long) Sta Ndard Mount 1 , _ Cable Control Cover Assemblies For Ratios Q W, & X | 1 1 | $1.18 | Add to Cart | ||
| 3291191X | Assemblies 3 & 6 1 | 1 | $176.78 | Add to Cart | ||
| 3291192X | Assemblies 4 & 5 1 For Ratios F L, R, S & U · | ,t, 1 | $176.78 | Add to Cart | ||
| 3291211X | Assemblies 3 & 6 1 - | · 1 | $176.78 | Add to Cart | ||
| 3291212X | Assemblies 4 & 5 1 For Ratios Q & W | 1 | $176.78 | Add to Cart | ||
| 3291511X | Assemblies 3 & 6 - | 1 | $188.84 | Add to Cart | ||
| 3291512X | Assemblies 4 & 5 For Ratios R, S & U | 1 | $188.84 | Add to Cart | ||
| 3291521X | Assemblies 3 & 6 - | 1 | $192.95 | Add to Cart | ||
| 3291522X | Assemblies 4 & 5 • • ; Required Table Continued On Following Page . | 1 | $192.23 | Add to Cart |
Chelse~ 440, 446 & 488 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 25 | 34P74 | Shifter Cover 1 | 1 1 | $44.57 | Add to Cart | |
| 26 | 37P19 | Spring • 1 | 1 1 | $2.04 | Add to Cart | |
| 27 | 63P16 | Poppet Pin 1 • • | 1 1 | $9.26 | Add to Cart | |
| 28 | 28P191 | O-ring 1 • • Post & Plate Ass 'y For Ratios Q W, & X | 1 1 | $3.59 | Add to Cart | |
| 29 | 3291181X | For Assemblies 3 & 6 1 | 1 1 | $69.07 | Add to Cart | |
| 3291182X | For Assemblies 4 & 5 1 Post & Plate Ass 'y For Ratios F, L, R, S & U | 1 1 | $69.07 | Add to Cart | ||
| 3291202X | For Assemblies 4 & 5 1 | 1 1 | $86.10 | Add to Cart | ||
| 30 | 378004 | Flat Washer 1 | 1 1 | $2.01 | Add to Cart | |
| 31 | 51P22 | Shifter Lever 1 | 1 1 | $12.57 | Add to Cart | |
| 32 | 50036522 | Flat Washer 1 | 1 1 | $1.05 | Add to Cart | |
| 33 | 50035610 | Lock Washer 1 | 1 1 | $1.53 | Add to Cart | |
| 34 | 5004096 | Hex Capscrew • : • 1 | 1 | $1.23 | Add to Cart | |
| 35 | 379639 | Indicator Switch Pin Style • 1 | 1 | $25.03 | Add to Cart | |
| 379652 | Indicator Switch Pin Style • | 1 | $40.79 | Add to Cart | ||
| 36 | 35P8 | Gasket Shift Cover 1 | 1 1 | $3.48 | Add to Cart | |
| 37 | 3784309 | Hex Capscrew .312-18 X .875 4 Parts Shipped Loose | 4 4 | $1.76 | Add to Cart | |
| 328170200X | Stud Kit (for Pump Mounts Af, Az, Ff , Lb Lc Lf Xe Xk, Xo Xp & Xq) | 1 | $31.15 | Add to Cart | ||
| 328170127X | Stud Kit, Standard Mount - | 1 | $33.26 | Add to Cart | ||
| 32817076X | Stud Kit, Standard Mount 1 | 1 | $30.69 | Add to Cart | ||
| 32817077X | Stud Kit, Deep Mount 1 | 1 | $38.59 | Add to Cart | ||
| 717072X | Stud Kit, Metric Standard Mount 1 | $53.10 | Add to Cart | |||
| 32834610X | Cable Control Assembly 1 (includes 378441 -10 Cable And 378502 Knob) | 1 1 | $135.56 | Add to Cart | ||
| 328380X | Wire Control Parts Bag 1 • | 1 1 | $13.25 | Add to Cart | ||
| 32838837X | Air Shift Installation Kit 1 | 1 1 | $367.41 | Add to Cart | ||
| 32838847X | Electric/air Installation Kit 12V 1 | 1 1 | $563.43 | Add to Cart | ||
| 32838848X | Electric/air Installation Kit 24V 1 | 1 1 | $544.19 | Add to Cart | ||
| 32916612X | Electric Shift Installation Kit 12V 1 | 1 1 | — | Call for availability | ||
| 32838869X | Combo Valve Kit, Converts Single Air To Dual Air. 1 . | 1 1 | $558.92 | Add to Cart | ||
| 328751X | Indicator Light Instalufflon Kit 1 | 1 1 | $65.59 | Superseded by 3287511XAdd to Cart | ||
| 68P18 | Nameplate 1 | 1 1 | $4.50 | Add to Cart | ||
| 378978 | 12V Indicator Light 1 | 1 1 | $25.82 | Add to Cart | ||
| 378884 | 9-AMP Fuse Holder 1 | 1 ' 1 | $5.99 | Add to Cart | ||
| 379319 | Indicator Switch Boot 1 | 1 1 | — | Call for availability | ||
| 328711X | Pump Mounting Kit ("xr" Output) 1 | 1 1 | $14.26 | Add to Cart | ||
| 3289486X | Gaskets & Installation Instructions 1 | 1 | $24.01 | Add to Cart |
Chelsea
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329202X | Service Kit (includes 379639 379640 & 379252) 1 | 1 | $31.23 | Add to Cart | ||
| 32921BX | Service Kit (includes 379640 &379252) 1 | 1 1 | — | Call for availability | ||
| 329221X | Service Kit (includes 379652 379640 &379252) - | 1 | $104.48 | Add to Cart | ||
| 32835613X | Gasket &seal Kit 1 | 1 | $55.97 | Add to Cart | ||
| 328356S0X | Gasket &seal Kit . _ | 1 | — | Call for availability | ||
| 32835615X | Shift Cover Seal Kit (cable Control) 1 | 1 1 | $85.55 | Add to Cart | ||
| 32835617X | Shift Cover Seal Kit (air Shift) 1 | 1 1 | $77.91 | Add to Cart | ||
| 32835626X | Shift Cover Seal Kit (lever Control) 1 | 1 1 | — | Call for availability | ||
| 329143X | Shift Shaft Cover Kit 1 (includes Items 60 61 62 On Pg 7) , , . | 1 1 | $42.55 | Add to Cart | ||
| 328594BX | Repair Kit, Standard Idler Shaft (contains Items Listed Below) | — | Call for availability | |||
| 9P74 | Idler Shaft • 1 | 1 1 | $71.73 | Add to Cart | ||
| 14P151 | Spacer, Input Gear (.055) 2 | 2 2 | $5.56 | Add to Cart | ||
| 14P152 | Spacer, Input Gear (.060)• 2 | 2 2 | $5.50 | Add to Cart | ||
| 14P153 | Spacer, Input Gear (.065) 2 | 2 2 | $5.50 | Add to Cart | ||
| 379484 | Hex Socket Straight Thread 1 | 1 1 | $6.85 | Add to Cart | ||
| 379542 | Retainer, O-ring 1 • • | 1 1 | $4.65 | Add to Cart | ||
| 28P190 | O-ring 1 | 1 1 | $3.94 | Add to Cart | ||
| 28P191 | O-ring 1 | 1 1 | $3.59 | Add to Cart | ||
| 550439 | Bearing Cone 2 | 2 2 | $51.63 | Add to Cart | ||
| 328594SX | Repair Kit, Pressure Lube Idler Shaft (contains Items Listed Below) | — | Call for availability | |||
| 9P76 | Idler Shaft Pressure Lubed • • 1 | 1 1 | — | Call for availability | ||
| 5008411 | 90° Elbow 1 | 1 1 | $9.09 | Add to Cart |
E-Z Shifftm Parts ( 2 Designator)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3291651X | Shift Cover Assembly 12V (ass'y 3 & 6) 1 | 1 | — | Call for availability | ||
| 3291652X | Shift Cover Assembly 12V (ass'y 4 & 5) 1 | 1 | — | Call for availability | ||
| 3291691X | Shift Cover Assembly 12V (ass'y 3 & 6) - | 1 | — | Call for availability | ||
| 3291692X | Shift Cover Assembly 12V (ass'y 4 &5) - All The Assemblies Shown Above Include Items 38 Thru 46 | 1 | — | Call for availability | ||
| 38 | 34P76 | Shift Cover 1 | 1 1 | — | Call for availability | |
| 39 | 32P166 | Shifter Fork 1 | 1 1 | $106.87 | Add to Cart | |
| 40 | 32916212X | Electric Shift Ass 'y 1 | 1 1 | — | Call for availability | |
| 41 | 3784474 | Socket Head Capscrew 1 | 1 1 | $1.78 | Add to Cart | |
| 42 | 28P207 | Oil Seal 1 | 1 1 | $19.83 | Add to Cart | |
| 43 | 379639 | Indicator Switch 1 | 1 | $25.03 | Add to Cart | |
| 379652 | Indicator Switch | 1 | $40.79 | Add to Cart | ||
| 44 | 35P14 | Gasket Shifter Shaft Cover 1 | 1 1 | $2.88 | Add to Cart | |
| 45 | 65P23 | Shifter Shaft Cover 1 | 1 1 | $20.58 | Add to Cart | |
| 46 | 3784304 | Hex Capscrew .312-18 X .500" 4 | 4 4 | $6.00 | Add to Cart | |
| 47 | 3784308 | Hex Capscrew .312-18 X .750" 4 | 4 4 | $2.06 | Add to Cart | |
| 48 | 35P8 | Gasket Shifter Cover 1 , E-z Shift Conversion Kits | 1 1 | $3.48 | Add to Cart | |
| 328390138X | Cable To E-z Shift (ass'y 3 & 6) • 1 | — | Call for availability | |||
| 328390139X | Cable To E -2 Shift (ass'y 4 & 5) 1 | 1 | — | Call for availability | ||
| 328390141X | Cable To E-z Shift- Q & W Ratios Only (ass'y 3 & 6) - | 1 - | — | Call for availability | ||
| 328390142X | Cable To E-z Shift Q & W Ratios Only - (ass'y 4 & 5) - | 1 | — | Call for availability | ||
| 328390140X | Lever To E -2 Shift • 1 | 1 1 | — | Call for availability |
Lever Control Parts ('1V11 Designator)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3290351X | Lever Control Ass 'y (ass'y 3 & 6) 1 | 1 | — | No longer available — call for replacement | ||
| 3290352X | Lever Control Ass 'y _(ass'y 4 & 5) • • 1 | 1 | — | Call for availability | ||
| 3290401X | Lever Controlass 'y (ass'y 3 & 6) • - | 1 | — | Call for availability | ||
| 3290402X | Lever Control Ass 'y (ass'y 4 &5) • - Assemblies Shown Above Include Items 49 Thru 62 | 1 | — | Call for availability | ||
| 49 | 34P87 | Shifter Cover 1 | 1 1 | — | Call for availability | |
| 50 | 32P166 | Shifter Fork 1 | 1 1 | $106.87 | Add to Cart | |
| 51 | 11P112 | Shifter Shaft 1 • | 1 1 | $51.93 | Add to Cart | |
| 52 | 3784474 | Socket Head Capscrew 1 | 1 1 | $1.78 | Add to Cart | |
| 53 | 28P207 | Oil .seal 2 _ | 2 2 | $19.83 | Add to Cart | |
| 54 | 5003813 | Hex Lock Nut .375-24 1 ' . ' | , • 1 1 | $1.10 | Add to Cart | |
| 55 | 36P1 | Eye Bolt 1 | 1 1 | $56.02 | Add to Cart | |
| 56 | 379639 | Indicator Switch 1 | 1 | $25.03 | Add to Cart | |
| 379652 | Indicator Switch - | 1 | $40.79 | Add to Cart | ||
| 57 | 378002 | Poppet Ball 1 | 1 1 ; | $1.63 | Add to Cart | |
| 58 | 37P41 | Poppet Spring 1 | 1 1 | $4.45 | Add to Cart | |
| 59 | 378554 | Poppet Cap 1 | 1 1 | $12.41 | Add to Cart | |
| 60 | 35P14 | Gasket Shift Shaft Cover 1 | 1 1 | $2.88 | Add to Cart | |
| 61 | 65P23 | Shifter Shaft Cover 1 | 1 1 | $20.58 | Add to Cart | |
| 62 | 3784304 | Hex Capscrew 2 | 2 2 | $6.00 | Add to Cart | |
| 63 | 35P8 | Gasket Shift Cover 1 | 1 1 | $3.48 | Add to Cart | |
| 64 | 3784308 | Hex Caps Crew .312-18 X .750 4 | 4 4 | $2.06 | Add to Cart |

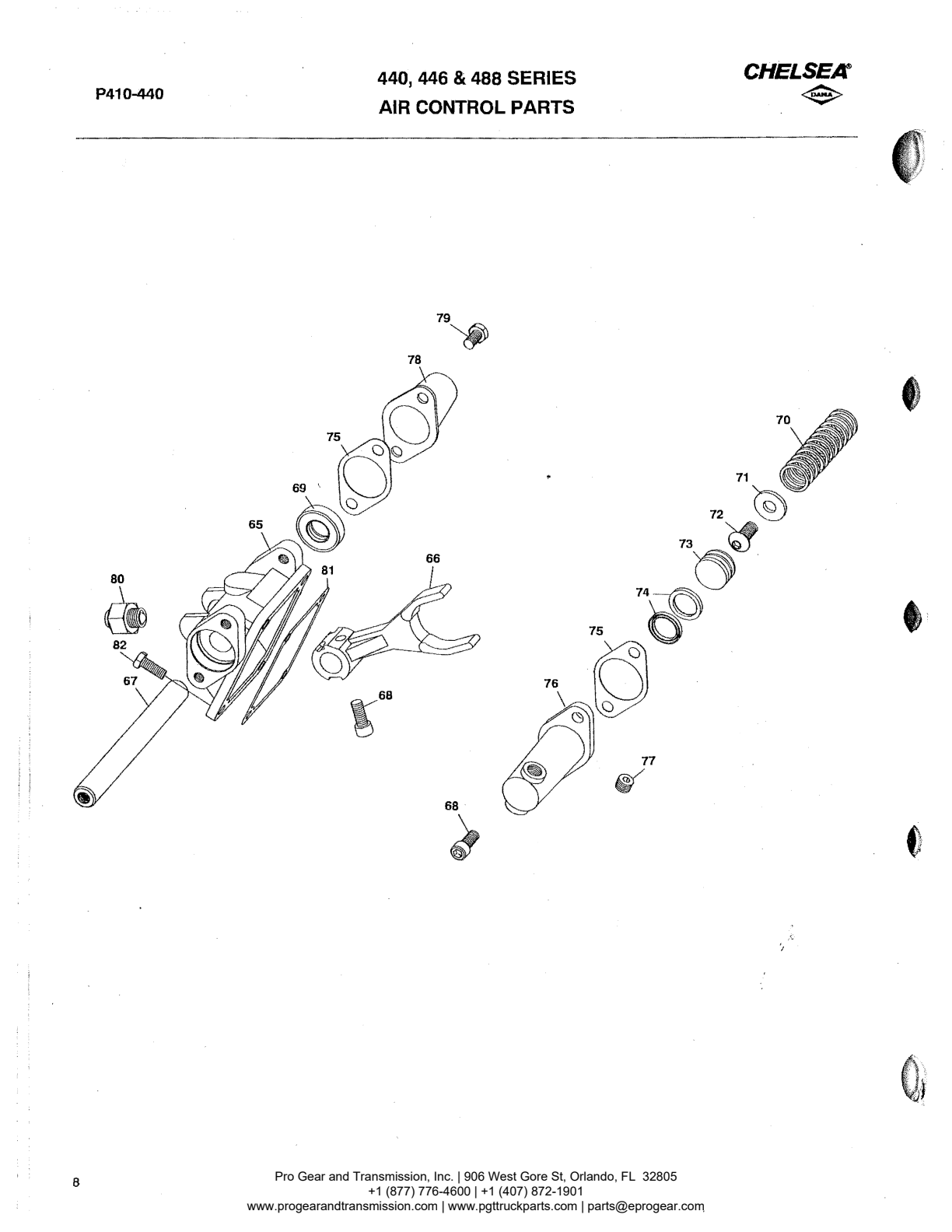

- AIR Control Parts ( "A11 Designator)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3290361X | Shift Cover Assembly (ass'y 3 & 6) 1 | 1 | $337.38 | Add to Cart | ||
| 3290362X | Shift Cover Assembly (ass'y 4 & 5) 1 _ | 1 | $337.38 | Superseded by 329361XAdd to Cart | ||
| 329042IX | Shift Cover Assembly (ass'y 3 & 6) - | 1 - | — | Call for availability | ||
| 3290422X | Shift Cover Assembly (ass'y 4 & 5) - Include Items 65 Thru 80 | 1 | — | Call for availability | ||
| 65 | 34P75 | Shifter Cover 1 | 1 1 | — | Call for availability | |
| 66 | 32P166 | Shifter Fork 1 | 1 1 | $106.87 | Add to Cart | |
| 67 | 11P112 | Shifter Shaft 1 | 1 1 | $51.93 | Add to Cart | |
| 68 | 3784474 | Socket Head Capscrew .312-18 X .750 " • 3 . | 3 3 | $1.78 | Add to Cart | |
| 69 | 28P207 | Oil Seal 1 • • | 1 1 | $19.83 | Add to Cart | |
| 70 | 37P25 | Return Spring • 1 | 1 1 | $11.57 | Add to Cart | |
| 71 | 378462 | Washer 1 | 1 1 | $1.61 | Add to Cart | |
| 72 | 378908 | Button Head Capscrew 1 | 1 1 | — | No longer available — call for replacement | |
| 73 | 66P4 | Piston 1 | 1 1 | $9.22 | Add to Cart | |
| 74 | 28P256 | Block Vee Ring 2 | 2 2 | $5.03 | Add to Cart | |
| 75 | 35P14 | Gasket Shifter Shaft Cover • 2 | 2 2 | $2.88 | Add to Cart | |
| 76 | 65P14 | Cylinder 1 | 1 1 | $120.90 | Add to Cart | |
| 77 | 379231 | Pipe Plug : 1 | 1 1 | $1.50 | Add to Cart | |
| 78 | 65P23 | Shifter Shaft Cover 1 | 1 1 | $20.58 | Add to Cart | |
| 79 | 3784304 | Hex Capscrew .312-18 X .500" 2 | 2 2 | $6.00 | Add to Cart | |
| 80 | 379639 | Indicator Switch 1 | 1 | $25.03 | Add to Cart | |
| 379652 | Indicator Switch • - | 1 | $40.79 | Add to Cart | ||
| 81 | 35P8 | Gasket Shift Cover : 1 | 1 1 | $3.48 | Add to Cart | |
| 82 | 3784308 | Hex Capscrew .312-18 X .750 • 4 Air Shift Conversion Kits | 4 4 | $2.06 | Add to Cart | |
| 32839085X | Lever To Air Shift • 1 | 1 1 | — | Call for availability | ||
| 328390105X | Lever To Electric Over Air 12V 1 | - 1 | — | Call for availability | ||
| 328390106X | Lever To Electric Over Air 24V 1 | 1 | — | Call for availability | ||
| 328390117X | Cable To Air (ass'y 3 & 6) 1 | 1 | $576.15 | Add to Cart | ||
| 32839011BX | Cable To Air (ass'y 4 & 5) • 1 | 1 | — | Call for availability | ||
| 328390125X | Cable To Air (ass'y 3 & 6) | 1 - | — | Call for availability | ||
| 328390126X | Cable To Air (ass'y 4 & 5) • - | 1 - | — | Call for availability | ||
| 328390119X | Cable To Electric/air 12V (ass'y 3 & 6) • 1 | - 1 | $1,071.10 | Add to Cart | ||
| 328390120X | Cable To Electric/air 24V (ass'y 3 & 6) 1 | 1 | $708.43 | Add to Cart | ||
| 328390121X | Cable To Electric/air 12V (ass'y 4 & 5) 1 | 1 | — | Call for availability | ||
| 328390122X | Cable To Electric/air 24V. (ass'y 4 & 5) 1 | - 1 | — | Call for availability | ||
| 328390131X | Cable To Electric/air 12V {ass'y 3 & 6) - | 1 - | — | Call for availability | ||
| 328390133X | Cable To Electric/air 24V {ass'y 3 & 6) - | 1 - | — | Call for availability | ||
| 32839013ZX | Cable To Electric/air 12V (ass'y 4 & 5) - | 1 - | — | Call for availability | ||
| 328390134X | Cable To Electric/air 24V (ass'v 4 & 5) | 1 - | — | Call for availability |
Constant MESH Parts ( 11M 11 Designator)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 35P8GA | Sket, Cover Plate (for Shifter Opening) 1 1 | — | Call for availability | |||
| 3784306HEX | Cap Screw .312-18 X .625 4 4 | — | Call for availability |
Chelse.lf
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 11 | 37843010 | Hexcapscrew .312 -18x 1 .000" 4 4 4 | $1.76 | Add to Cart | ||
| 88 | 3P857 | Output Shaft {ld Output) 1 1 1 | $444.71 | Add to Cart | ||
| 3P858 | Output Shaft (la, Lb Lc, Le, Lf Output) 1 1 1 T | — | No longer available — call for replacement | |||
| 89 | 329091X | Wbe Pump & Bearing Cap Assembly 1 1 1 | — | No longer available — call for replacement | ||
| 90 | 329092X | Pressure Lube Hose Assembly 1 1 1 | $92.32 | Add to Cart | ||
| 91 | 5008411 | 90 ° Street Elbow 1 1 1 | $9.09 | Add to Cart |
Chelsea
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 440AB5P1001 | 5/7 20 ° Spur 19 | — | Call for availability | |||
| 440AC5P1002 | 5 .34737 22 .5° Spur 19 | — | Call for availability | |||
| 440AH5P1004 | 6/8 20° Spur 22 | — | Call for availability | |||
| 440AL5P1005 | 6 .2418 19 .17 ° Spur 22 | — | Call for availability | |||
| 440AP5P1006 | 6 17 .30 ° 22 ° 15' LH 21 . | — | Call for availability | |||
| 440AQ5P1007 | 6/8 17 .30" 26° 00' 48" L.h 21 . | — | Call for availability | |||
| 440AR5P1008 | 6 17 .30 ° 26° 1O' 37 " L.h 21 \ . | — | Call for availability | |||
| 440AW5P1009 | 6 20° 17 ° 40' 41 " L.h 22 . | — | Call for availability | |||
| 440AX5P1010 | 6 .100 25° 18° 40' 48" R.h 22 . | — | Call for availability | |||
| 440BA5P1011 | 6 .540 18 .465 ° 23° 26' 48" L.h 23 . | — | Call for availability | |||
| 440BC5P1012 | 6 .100 25° 32 ° 16' 48" LH 18 . | — | Call for availability | |||
| 440BE5P1013 | 7 20° Spur 27 | — | Call for availability | |||
| 440BG5P1015 | 7 17 .30 ° 28° 04' 23" L.h 23 . | — | Call for availability | |||
| 440BH5P1016 | 7 20 ° 20° R.h · 25 | — | Call for availability | |||
| 4401N1BK5P1018 | 7 20° 28° L.h 23 . | — | Call for availability | |||
| 440BL5P1019 | 7 20 ° 30 ° 20' 40" R.h 22 . | — | Call for availability | |||
| 440BM5P1020 | 7 25° 30 ° 46' 48" L.h 22 . . | — | Call for availability | |||
| 440BN5P1021 | 7 .1952 16 .8836 ° 33° 30' L .h 22 . | — | Call for availability | |||
| 440BP5P1022 | 7 .345 20 ° 24 ° R.h 26 . | — | Call for availability | |||
| 440805P1023 | 7 .345 20° 24 ° L.h 25 . | — | Call for availability | |||
| 440BR5P1024 | 7 .6168 18 .489 ° 23° 12' 57" R.h 26 . | — | Call for availability | |||
| 440BS5P1025 | 7 .6168 18 .489 ° 23° 12' 57" L.h 26 . | — | Call for availability | |||
| 440BU5P1026 | 8 .35 20 ° Spur 33 | — | Call for availability | |||
| 440BZ5P1028 | 8 .0829 20° 30 ° L.h 26 . | — | Call for availability | |||
| 440CB5P1029 | 8 .1160 20 ° 33° 30' L.h 25 . | — | Call for availability | |||
| 440CD5P1031 | 8 .0829 20 ° 30 ° LH 27 . | — | Call for availability | |||
| 440CM5P1035 | 6/8 20 ° Spur 22 | — | Call for availability | |||
| 440CR5P1036 | 5 17 .30 ° 24 ° 48' 42" L.h 17 . | — | Call for availability | |||
| 440DA5P1037 | 6 .48 17 .6528 ° Spur 23 | — | Call for availability | |||
| 440D85P1038 | 10 .10 20 ° Spur 39 | — | Call for availability | |||
| 440DC5P1039 | 5 .08 20 ° Spur 19 | — | Call for availability | |||
| 440DH5P1041 | 6.35 20 ° 21 ° 45' L .h 21 . | — | Call for availability | |||
| 440DJ5P1042 | 8 .4666 22 .30 ° 28° 27' 29• L.h 28 . | — | Call for availability | |||
| 440DK5P1043 | 7 .8154 22 .30 ° 28° 30' 24" L.h 26 . | — | Call for availability | |||
| 440UM5P1045 | 5 .700 25° 38° 42' L.h 17 . | — | Call for availability | |||
| 440DN5P1046 | 6 .100 25 ° 32 ° 30.' L .h 19 . | — | Call for availability | |||
| 440D05P1048 | 5 .4978 22 .30 ° 16° 57' 59• L.h 20 . | — | Call for availability | |||
| 440DU5P1050 | 7 .500 22 ° 15° L.h 28 . | — | Call for availability | |||
| 440DX5P1052 | 7 .3449 20 ° 24° L.h 26 . | — | Call for availability | |||
| 440DY5P1053 | 5 .700 25 ° 38° 42' L .h 16 . (continued On Next Page .) | — | Call for availability | |||
| 5P1059 | 6 .35 20° 22° L.h 22 . 10 .10 21 .30° Spur 40 6 .100 20 .30° 29° L.h ?o . 8 .4667 20° Spur 34 7 .9366 22 .4987° 30 ° L.h 26 . | $271.87 | Add to Cart | |||
| 5P1065 | 8 .4667 17.30° 28.481 ° L.h 29 . | $393.34 | Add to Cart | |||
| 5P1069 | 10 20° Spur 28 ] | $159.06 | Add to Cart | |||
| 5P1070 | 7 .00 17 .30° 18° L.h 26 . | $430.19 | Add to Cart | |||
| 5P1071 | 6 .773 22 .30° 23° 51 ' 56 " L.h ,23 . , , 6 .3500 22 .30° 24° 48' 28 " LH 21 . | $356.85 | Add to Cart | |||
| 5P1152 | 9 .9608 20° 28 ° 30 ' L .h 29 . Automatic Transmission Use 2-P-709 For The Output Gear. . Ratio Gear Chart 440 Series Output Gear Chart Number No Teeth Ratio Part Number No. Teeth · . Next Page F 2-P-726 37 | $414.30 | Add to Cart | |||
| L5P964 | 25 L 2-P-727 34 ) 19 Q 2-P-559 24 : | — | Call for availability | |||
| R5P1214 | 22 · R 2-P-559 24 | — | Call for availability | |||
| S5P966 | 24 S 2-P-637 22 | — | Call for availability | |||
| U5P967 | 26 U 2-P-560 20 | — | Call for availability | |||
| W5P968 | 26 W 2-P-561 j7 | — | Call for availability | |||
| X5P969 | 38 X 2-P-728 : 21 | — | Call for availability | |||
| 440FAB | 5-P-1076 5/7 20° Spur 19 21 | — | Call for availability | |||
| 440FAH | 5-P-1 .077 6/8 20° Spur 22 21 | — | Call for availability | |||
| 440FAP | 5-P-1079 6 17 .30° 22° 15' L.h 21 21 . | — | Call for availability | |||
| 440FAR | 5-P-1080 6 17 .30° 26° 1 O' 37" L .h 21 21 . | — | Call for availability | |||
| 440FBC | 5-P-1081 6 .100 25° 32° 16' 48" L .h 18 21 . | — | Call for availability | |||
| 440FBG | 5-P-1082 7 17 .30° 28° 04 ' 23" L .h 23 21 . | — | Call for availability | |||
| 440FBM | 5-P-1083 7 25° 30° 46 ' 48" L .h 22 21 . | — | Call for availability | |||
| 440FBQ | 5-P-1084 7 .34498 20° 24° L .h 25 21 . | — | Call for availability | |||
| 440FDA | 5-P-1085 6 .4800 17 .6528° Spur 23 21 | — | Call for availability | |||
| 440FDJ | 5-P-1086 8 .467 22 .30° 28° 27 ' 29" L .h 28 21 . | — | Call for availability | |||
| 440FDN | 5-P-1087 6 .100 25° 32° 30 ' L .h 19 21 . | — | Call for availability | |||
| 440FDU | 5-P-1088 7 .500 22° 15° L .h 28 21 . | — | Call for availability | |||
| 440FEC | 5-P-1089 10 .3673 20° 28° L .h 36 21 . | — | Call for availability | |||
| 440FED | 5-P-1 Cm;jo 9 .9608 20° 28° 30 ' L .h 34 21 . | — | Call for availability | |||
| 440FEP | 5-P-1091 9 .6046 20° 21 ° 36' R.h 35 21 . | — | Call for availability | |||
| 440FES | 5-P-1092 6 .35 20° 22° L .h 22 21 . . | — | Call for availability | |||
| 440FEV | 5-P-1094 10 .10 21 .ao Spur 40 21 · | — | Call for availability | |||
| 440FEW | 5-P-1095 6 .100 20 .ao0 .. 29° L .h 20 21 . | — | Call for availability | |||
| 440FFN | 5-P-1097 7 17 .30° 18° L .h 26 21 . | — | Call for availability | |||
| 440FGQ | 5-P-1 149 8 .1935 20° 29° 59' 17" L .h 26 21 . | — | Call for availability | |||
| 440FGS | 5-P-1151 9 .9608 20° 28° 30 ' L .h 29 21 . · | — | Call for availability | |||
| 5P1178 | 8 .0829 20° 30° LH 27 19 2-P-697 24 . | — | Call for availability | |||
| 5P869 | 6 .35 20° 22° L H 22 19 2-P-697 24 . | $305.04 | Add to Cart | |||
| 5P865 | 6 .5 20° 23° LH 19 19 2-P-697 24 . | $337.31 | Add to Cart | |||
| 5P979 | 6 .9589 20° 25° L.h 29 19 2-P-697 24 . | — | Call for availability | |||
| 5P1145 | 6 .2716 22 .5° Spur 23 19 2-P-697 24 | — | No longer available — call for replacement | |||
| 5P1218 | 8 .0829 20° 30 ° L.h 'zl 22 2-P-697 24 . | — | Call for availability | |||
| 5P1216 | 6 .35 20° 22° L.h 22 22 2-P-697 24 . | — | Call for availability | |||
| 5P1215 | 6 .5 20° 23° L.h 19 22 2ap:597 24 . | — | Call for availability | |||
| 5P1217 | 6 .2716 22 .5° Spur 23 22 2-P-697 24 | — | Call for availability | |||
| 5P1179 | 8 .0829 20° 30 ° L.h 27 24 2-P-698 22 . | — | Call for availability | |||
| 5P870 | 6 .35 20° 22° LH 22 24 2-P-698 22 . | $322.31 | Add to Cart | |||
| 5P866 | 6 .5 20° 23° L.h 19 24 2-P-698 22 . | $305.04 | Add to Cart | |||
| 5P1146 | 6 .2716 22 .5° Spur 23 24 2-P-698 22 | — | Call for availability | |||
| 5P1180 | 8 .0829 20° 30° LH 27 26 2-P-699 20 . | — | Call for availability | |||
| 5P971 | 6 .35 20 ° 22° L.h 22 26 2-P~699. 20 . | $1,367.75 | Add to Cart | |||
| 5P867 | 6 .5 20° 23° L,h 19 26 2-P-699 20 . | $251.99 | Add to Cart | |||
| 5P1147 | 6 .2716 22 .5° Spur 23 26 2-P-699 20 · | — | Call for availability | |||
| 5P1181 | 8 .0829 20° 30° L.h 27 26 2-P-700 17 . | — | Call for availability | |||
| 5P872 | 6 .35 20° 22° LH 22 26 2-P-700 17 . S | $305.04 | Add to Cart | |||
| 5P868 | 6 .5 20° 23° LH 19 26 2-P-700 17 . | $360.82 | Add to Cart | |||
| 5P890 | 8 .4667 17 .5" 28 .481 ° LH 29 26 2-P-700 17 . | $377.95 | Add to Cart | |||
| 5P988 | 5 .2917 24° 11 .4167° R.h 19 26 2-P-700 17 . | — | Call for availability | |||
| 5P1148 | 6 .2716 22 .5° Sour 23 26 2-P-700 17 Transmission P .t.o Output Gear . Of The 446 Series Input Gear Requires That T Lle Spacers Used To Shim The Input Bearings _ Of The Normal Position Found On The 440 And 488 Series For The 446 Series Install . (item 18 On Pg 3) On The Idler Shaft Between The Input Gear And Pto Housing . . | $412.45 | Add to Cart |
Chel$ejt
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 488AB5P1001 | 5/7 20° Spur 19 | — | Call for availability | |||
| 488AH5P1004 | 6/8 20° Spur 22 | — | Call for availability | |||
| 488AR5P1008 | 6 ~7 .30 ° 26° 1O' 37" L .h 21 . | — | Call for availability | |||
| 488BG5P1015 | 7 17 .30° 28° 04 ' 23" L .h 23 . | — | Call for availability | |||
| 4880U5P1050 | 7 .500 22° 15° L .h 28 . | — | Call for availability | |||
| 488EV5P1060 | 10 .10 21 .30° Spur 40 | — | Call for availability | |||
| 488FAB5P1076 | 5/7 20° Spur 19 21 | — | Call for availability | |||
| 488FAH5P1077 | 6/8 200 Spur 22 21 | — | Call for availability | |||
| 488FAR5P1080 | 6 17 .30" 26° 1O' 37" L .h 21 21 . | — | Call for availability | |||
| 488FBG5P1082 | 7 17 .30° 28° 04 ' 23" L .h 23 21 . | — | Call for availability | |||
| 488FDU5P1088 | 7 .500 22° 15° L .h 28 21 . | — | Call for availability | |||
| 488FEV5P | .1094 10 .10 21 .30° Spur 40 21 · | — | Call for availability |
440 ,446 & 488 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32859130X | Af — Socket Head 378447-10 | $508.28 | Add to Cart | |||
| 329088X | Flange Assembly For Af | $363.17 | Add to Cart | |||
| 3P854 | Putput Shaft For Af | $599.82 | Add to Cart | |||
| 28P219 | Oil Seal For Af | $28.20 | Add to Cart | |||
| 32859128X | Ak — Socket Head 378447-8 | $392.52 | Add to Cart | |||
| 328989X | Flange Assembly For Ak | $378.21 | Add to Cart | |||
| 3P282 | Putput Shaft For Ak | $187.84 | Superseded by 3P282XAdd to Cart | |||
| 28P216 | Oil Seal For Ak | $21.40 | Add to Cart | |||
| 32859129X | Ff — Socket Head 378447-10 | — | No longer available — call for replacement | |||
| 3P851 | Putput Shaft For Ff | — | Call for availability | |||
| 32859144X | La• — Socket Head 378447-8 | — | Call for availability | |||
| 3P858 | Putput Shaft For La• | — | No longer available — call for replacement | |||
| 32859145X | Lb• — Socket Head 378447-8 | — | Call for availability | |||
| 328328X | Flange Assembly For Lb• | $318.47 | Add to Cart | |||
| 32859146X | Lc• — Socket Head 378447-8 | — | Call for availability | |||
| 328589X | Flange Assembly For Lc• | $324.47 | Add to Cart | |||
| 32859147X | Le• — Socket Head 378447-8 | — | Call for availability | |||
| 328584X | Flange Assembly For Le• | — | Call for availability | |||
| 32859148X | Lf• — Socket Head 378447-8 | $1,029.12 | Add to Cart | |||
| 328333X | Flange Assembly For Lf• | $239.73 | Add to Cart | |||
| 32859155X | Ra — Socket Head 378447-S(tt) | $382.35 | Add to Cart | |||
| 329195X | Flange Assembly For Ra | $132.25 | Add to Cart | |||
| 3P283 | Putput Shaft For Ra | $187.84 | Add to Cart | |||
| 32859156X | Rb — Socket Head 378447-S(tt) | $382.35 | Add to Cart | |||
| 32859127X | Xe — Socket Head 378447-8 | $402.60 | Add to Cart | |||
| 3P800 | Putput Shaft For Xe | $319.56 | Add to Cart | |||
| 32859HOX | Xg — Socket Head 378447-8 | — | Call for availability | |||
| 328580X | Flange Assembly For Xg | $439.30 | Add to Cart | |||
| 3P281 | Putput Shaft For Xg | $224.42 | Add to Cart | |||
| 32859111X | Xj — Socket Head 378447-8 | $369.75 | Add to Cart | |||
| 3P284 | Putput Shaft For Xj | $289.72 | Add to Cart | |||
| 32859116X | Xk — Socket Head 378447-8 | $357.11 | Add to Cart | |||
| 32859118X | Xl — Socket Head 378447-8 | — | Call for availability | |||
| 32859120X | Xm — Socket Head 378447-8 | — | Call for availability | |||
| 328583X | Flange Assembly For Xm | — | Call for availability | |||
| 32859121X | Xn — Socket Head 378447-8 | — | Call for availability | |||
| 32859126X | Xo — Socket Head 378447-8 | — | Call for availability | |||
| 32859123X | Xp — Socket Head 378447-8 | — | Call for availability | |||
| 32859117X | Xo ** — Socket Head 378447-8 | $357.11 | Add to Cart | |||
| 32859152X | Xr — Socket Head 379673(t) | $260.80 | Add to Cart | |||
| 329194X | Flange Assembly For Xr | $135.04 | Add to Cart | |||
| USE3290961X | Putput Shaft For To Convert Pto's | — | Call for availability |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329106-39X | Air Shift (ass'y 3 & 6) | $575.22 | Add to Cart | |||
| 329106-40X | Air Shift (ass'y 4 & 5) | $575.22 | Add to Cart | |||
| 329106-43X | Electric/air 12V (ass'y 3 & 6) | $825.45 | Add to Cart | |||
| 329106-44X | Electric/air 12V (ass'y 4 & 5) | — | Call for availability | |||
| 329106-45X | Electric/air 24V (ass'y 3 & 6) ' | — | No longer available — call for replacement | |||
| 329106-46X | Electric/air 24V (ass'y 4 & 5) | — | Call for availability | |||
| 329106-48X | Lever Shift (ass'y 4 & 5) | — | Call for availability | |||
| 329106-105X | Cable Shift (q, W, & X Ratios, Ass'y 3 & 6) | $299.76 | Add to Cart | |||
| 329106-106X | Cable Shift (q, W, & X Ratios, Ass'y 4 & 5) | $295.91 | Add to Cart | |||
| 329106-107X | Cable Shift, Less Cable (q, W, & X Ratios, Ass'y 3 & 6) | $234.58 | Add to Cart | |||
| 329106-108X | Cable Shift, Less Cable (q, W, & X Ratios, Ass'y 4 & 5) | $234.58 | Add to Cart | |||
| 329106-109X | Cable Shift (f, L, R, S & U Ratios, Ass'y 3 & 6) | $291.44 | Add to Cart | |||
| 329106-110X | Cable Shift (f, L, R, S & U Ratios, Ass'y 4 & 5) | $291.44 | Add to Cart | |||
| 329106-111X | Cable Shift, Less Cable (f, L; R, S & U Ratios, Ass'y 3 & 6) | $270.02 | Add to Cart | |||
| 329106-112X | Cable Shift, Less Cable (f, L, R, S & U Ratios, Ass'y 4 & 5) | $270.02 | Add to Cart | |||
| 329106-125X | E-z Shift (ass'y 3 & 6) | — | Call for availability | |||
| 329106-126X | E-z Shift (ass'y 4 & 5) | — | Call for availability | |||
| 329106-71X | Air Shift (ass'y 3 & 6) | — | No longer available — call for replacement | |||
| 329106-72X | Air Shift (ass'y 4 & 5) | — | Call for availability | |||
| 329106-75X | Electric/air 12V (ass'y 3 & 6) | $611.09 | Add to Cart | |||
| 329106-76X | Electric/air 12V (ass'y 4 & 5) | — | Call for availability | |||
| 329106-77X | Electric/air 24V (ass'y 3 & 6) | — | No longer available — call for replacement | |||
| 329106-78X | Electric/air 24V (ass'y 4 & 5) | — | Call for availability | |||
| 329106-79X | Lever Shift (as$'y 3 & 6) | — | No longer available — call for replacement | |||
| 329106-113X | Cable Shift (q & W Ratios, Ass'y 3 & 6) | — | Call for availability | |||
| 329106-114X | Cable Shift (q & W Ratios, Ass'y 4 & 5) | — | No longer available — call for replacement | |||
| 329106-117X | Cable Shift (r, S & U Ratios, Ass'y 3 & 6) | — | No longer available — call for replacement | |||
| 329106-129X | E-z Shift (ass'y 3 & 6) | — | Call for availability | |||
| 329106-130X | E-z Shift (ass'y 4 & 5) | — | Call for availability | |||
| 4-P-166 | Spacer, Drive Shaft 1 | 1 | $26.33 | Add to Cart | ||
| 4-P-167 | Spacer, Drive Shaft 1 | 1 | — | Call for availability | ||
| 2-P-559 | 24 : | $224.47 | Add to Cart | |||
| 2-P-561 | j7 | $224.47 | Add to Cart | |||
| 2-P-728 | : | 21 | $228.95 | Add to Cart | ||
| 5-P-1001 | $1,260.77 | Add to Cart | ||||
| 5-P-1003 | $464.19 | Add to Cart | ||||
| 5-P-1004 | $244.88 | Add to Cart | ||||
| 5-P-1005 | — | No longer available — call for replacement | ||||
| 5-P-1006 | $368.61 | Add to Cart | ||||
| 5-P-1007 | $399.96 | Add to Cart | ||||
| 5-P-1008 | $535.77 | Add to Cart | ||||
| 5-P-1009 | $187.23 | Add to Cart | ||||
| 5-P-1010 | $606.90 | Add to Cart | ||||
| 5-P-1011 | $462.96 | Add to Cart | ||||
| 5-P-1012 | $479.52 | Add to Cart | ||||
| 5-P-1015 | $321.54 | Add to Cart | ||||
| 5-P-1016 | $251.25 | Add to Cart | ||||
| 5-P-1018 | — | No longer available — call for replacement | ||||
| 5-P-1019 | $500.31 | Add to Cart | ||||
| 5-P-1020 | $520.00 | Add to Cart | ||||
| 5-P-1021 | $219.00 | Add to Cart | ||||
| 5-P-1022 | $539.57 | Add to Cart | ||||
| 5-P-1023 | $566.00 | Add to Cart | ||||
| 5-P-1024 | — | No longer available — call for replacement | ||||
| 5-P-1025 | $474.18 | Add to Cart | ||||
| 5-P-1028 | $390.51 | Add to Cart | ||||
| 5-P-1029 | — | No longer available — call for replacement | ||||
| 5-P-1031 | $474.18 | Add to Cart | ||||
| 5-P-1036 | $349.82 | Add to Cart | ||||
| 5-P-1037 | $419.96 | Add to Cart | ||||
| 5-P-1041 | $208.54 | Add to Cart | ||||
| 5-P-1042 | $349.82 | Add to Cart | ||||
| 5-P-1043 | $178.28 | Add to Cart | ||||
| 5-P-1045 | — | No longer available — call for replacement | ||||
| 5-P-1046 | $342.28 | Add to Cart | ||||
| 5-P-1048 | $363.33 | Add to Cart | ||||
| 5-P-1050 | $480.56 | Add to Cart | ||||
| 5-P-1052 | $292.10 | Add to Cart | ||||
| 5-P-1076 | $401.18 | Add to Cart | ||||
| 5-P-1079 | $338.98 | Add to Cart | ||||
| 5-P-1080 | $484.49 | Add to Cart | ||||
| 5-P-1081 | $445.55 | Add to Cart | ||||
| 5-P-1082 | $321.50 | Add to Cart | ||||
| 5-P-1084 | $372.39 | Add to Cart | ||||
| 5-P-1085 | $419.96 | Add to Cart | ||||
| 5-P-1088 | $434.61 | Add to Cart | ||||
| 5-P-1091 | $152.23 | Add to Cart | ||||
| 5-P-1092 | $245.70 | Add to Cart | ||||
| 5-P-1094 | $428.09 | Add to Cart | ||||
| 5-P-1095 | $181.09 | Add to Cart | ||||
| 5-P-1097 | $389.04 | Add to Cart | ||||
| 5-P-1151 | $414.30 | Add to Cart | ||||
| 2-P-697 | $238.13 | Add to Cart | ||||
| 2-P-698 | $259.97 | Add to Cart | ||||
| 2-P-699 | $259.97 | Add to Cart | ||||
| 2-P-700 | $184.49 | Add to Cart | ||||
| 5-P-1060 | $473.37 | Add to Cart | ||||
| 5-P-964 | $227.25 | Add to Cart | ||||
| 5-P-965 | $227.25 | Add to Cart | ||||
| 5-P-1214 | $227.27 | Add to Cart | ||||
| 5-P-966 | $257.25 | Add to Cart | ||||
| 5-P-967 | $227.25 | Add to Cart | ||||
| 5-P-968 | $227.25 | Add to Cart | ||||
| 5-P-969 | $227.25 | Add to Cart | ||||
| 2-P-726 | $228.95 | Add to Cart | ||||
| 2-P-727 | $228.95 | Add to Cart | ||||
| 2-P-637 | $224.47 | Add to Cart | ||||
| 2-P-560 | $224.47 | Add to Cart | ||||
| 5-P-1077 | $243.99 | Add to Cart | ||||
| 328591-10X | $174.50 | Add to Cart | ||||
| 378447-10 | $4.45 | Add to Cart | ||||
| 378447-8 | $2.32 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 446 — every part in the manual, matched to our live inventory. We stock 253 of the 450 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 446 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 446 |
| PTO type | Chelsea 400 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 23 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
Chelsea parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Chelsea PTO units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
Browse all Chelsea PTO parts — rebuild kits, seal kits, gears & shift covers — or shop complete Chelsea PTO units.
