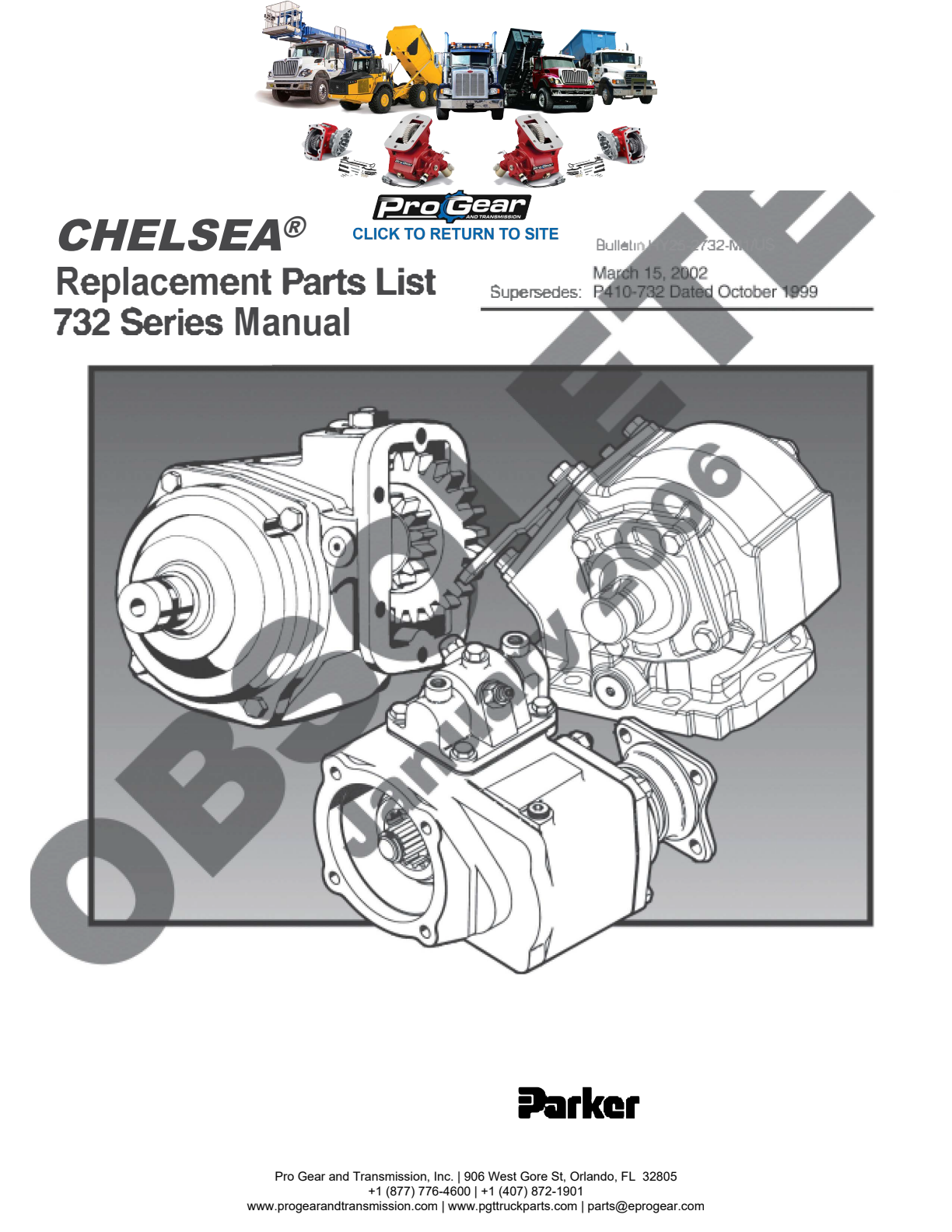

Chelsea PTO 732 Series Parts Manual

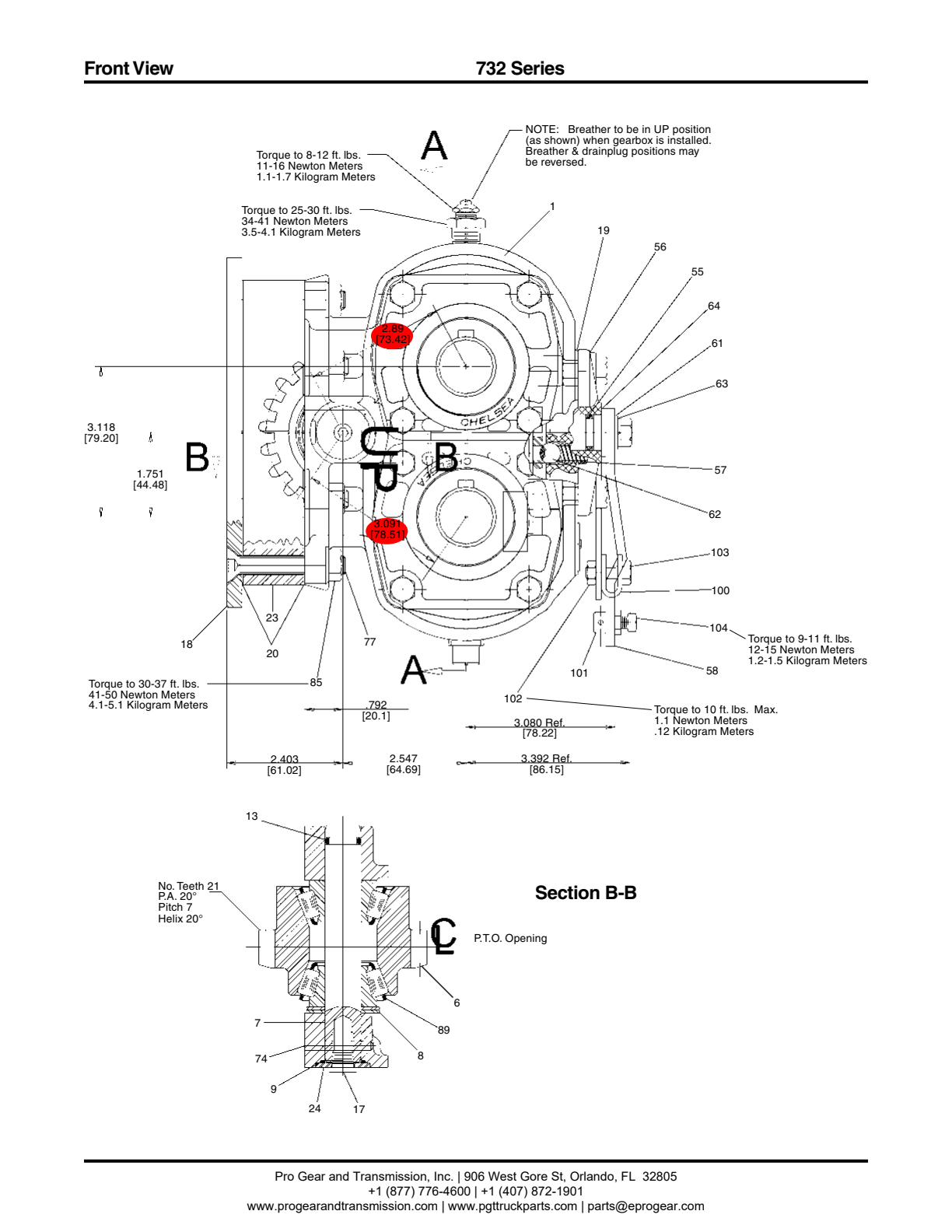

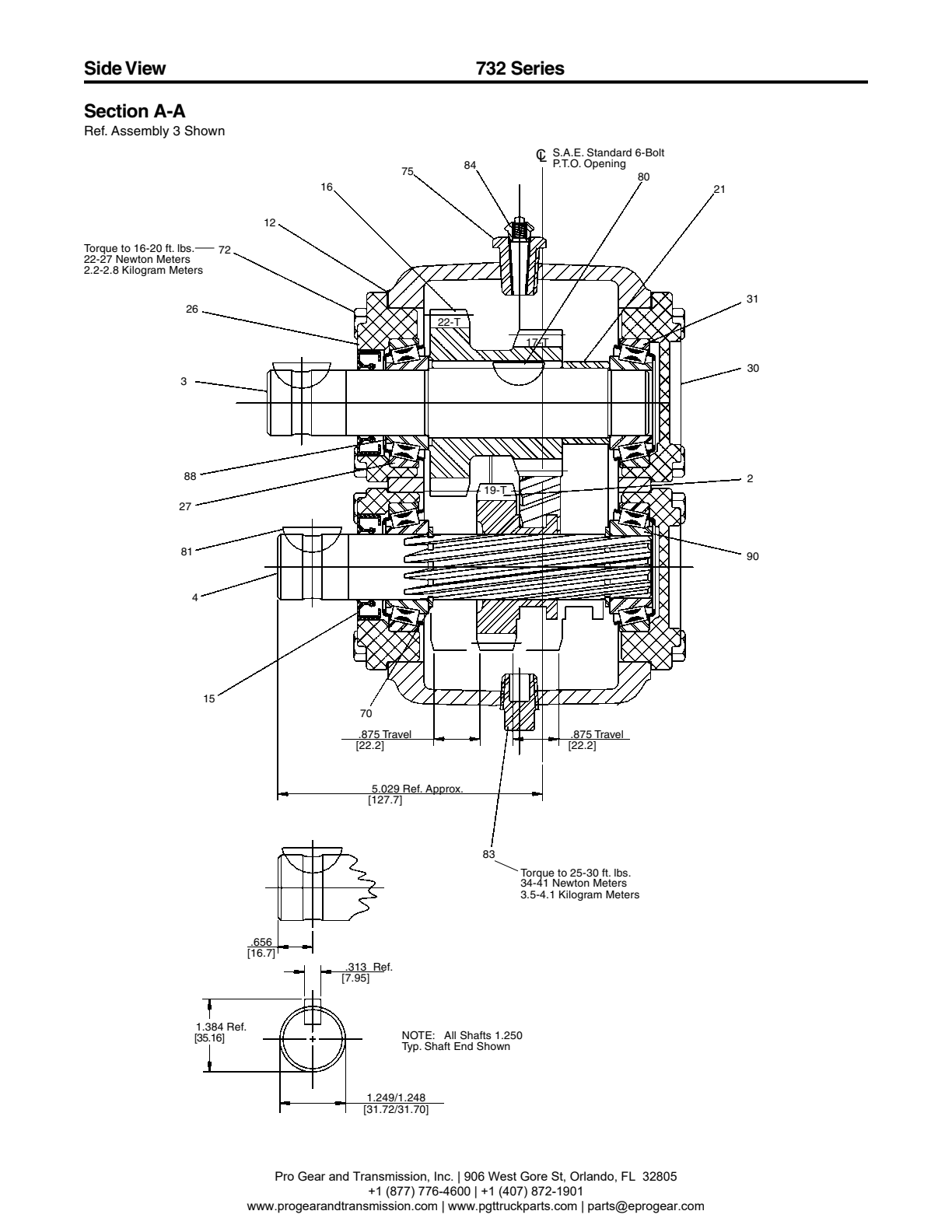

Bill of Materials 732 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3 | 3P315 | Drive Shaft Std. (1 .250" Dia. Input) | 1 | $174.42 | Add to Cart | |
| 4 | 3P859 | Drive Shaft Std. (1 .250" Dia. Output) | 1 | $265.44 | Add to Cart | |
| 6 | 5P220 | Gear, Idler | 1 | — | No longer available — call for replacement | |
| 7 | 9P74 | Shaft, Idler | 1 | $71.73 | Add to Cart | |
| 8 | 14P15 | Spacer, Idler Gear | 1 | $5.70 | Add to Cart | |
| 9 | 28P190 | $3.94 | Add to Cart | |||
| 12 | 22P241 | $2.30 | Add to Cart | |||
| 22P242 | $10.49 | Add to Cart | ||||
| 22P243 | Gasket, Bearing Cap ( .015" Thick) | A/R | $10.49 | Add to Cart | ||
| 13 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 15 | 28P216 | Oil Seal | 2 | $21.40 | Add to Cart | |
| 16 | 33P64 | Gear, Reverse Idler | 1 | $254.31 | Add to Cart | |
| 17 | 379484 | O-ring Boss Plug | 1 | $6.85 | Add to Cart | |
| 18 | 34P18 | Cover Plate | 1 | — | No longer available — call for replacement | |
| 19 | 35P8 | Gasket, Shifter Cover ( .020" Thick) | 1 | $3.48 | Add to Cart | |
| 20 | 35P92 | Gasket, ( .020" Thick) | 1 | $4.35 | Add to Cart | |
| 21 | 40P4 | Spacer, Reverse Idler Gear | 2 | $6.78 | Add to Cart | |
| 22 | 68P2 | Name Plate (chelsea) | 1 | $2.65 | Add to Cart | |
| 23 | 7A1250 | Spacer | 1 | — | Call for availability | |
| 24 | 379542 | Retainer O-ring | 1 | $4.65 | Add to Cart | |
| 328273X | Bearing Cap Sub-assembly, Open (includes Items 26 & 27) | $64.09 | Add to Cart | |||
| 26 | 21P418 | Bearing Cap | 1 | — | Call for availability | |
| 27 | 550221 | Bearing Cup | 1 | $14.19 | Add to Cart | |
| 328274X | Bearing Cap Sub-assembly, Closed (includes Items 30 & 31) | $64.09 | Add to Cart | |||
| 30 | 21P420 | Bearing Cap | 1 | — | Call for availability | |
| 31 | 550221 | Bearing Cup | 1 | $14.19 | Add to Cart | |
| 49 | 3784308 | Capscrew, Hex Head ( .312"-18 X .75") | 4 | $2.06 | Add to Cart | |
| 70 | 378391 | Retaining Ring | 2 | $2.47 | Add to Cart | |
| 71 | 378422 | Drive Screw | 2 | $11.52 | Add to Cart | |
| 72 | 37843010 | Capscrew, Hex Head ( .312"-18 X 1 .000") | 16 | $1.76 | Add to Cart | |
| 74 | 50059716 | Roll Pin (standard Mount) | 1 | $1.18 | Add to Cart | |
| 75 | 3791314 | Reducer Bushing | 1 | — | No longer available — call for replacement | |
| 77 | 3792122 | Capscrew, Flat Head Hex Socket ( .375"-16 X 2 .500") (with Patch ) | 6 | — | No longer available — call for replacement | |
| 78 | 379334 | Oil Level Caution Tag (ship Wired To Unit) | 1 | $7.03 | Add to Cart | |
| 80 | 50000724 | Woodruff Key (ref. Input Shaft) | 1 | $1.83 | Add to Cart | |
| 81 | 50000729 | Woodruff Key (.312" X 1 .125") | 2 | $3.11 | Add to Cart | |
| 83 | 5001143 | Pipe Plug ( .500"-14) | 1 | — | No longer available — call for replacement | |
| 84 | 5001671 | Pressure Relief Fitting | 1 | — | No longer available — call for replacement | |
| 85 | 5003703 | Nut, Hex ( .375"-16) | 6 | $1.12 | Add to Cart | |
| 88 | 550397 | Bearing Cone, Tapered | 3 | $36.75 | Add to Cart | |
| 90 | 550532 | Bearing Cone, Tapered | 1 | $36.75 | Add to Cart | |
| 328380X | Wire Control Parts Bag (includes Items 99 Thru 104) | $13.25 | Add to Cart | |||
| 99 | 50P17 | Bracket | 1 | $5.47 | Add to Cart | |
| 100 | 50P19 | Bracket, Swivel | 1 | $3.48 | Add to Cart | |
| 101 | 378019 | Pivot Pin | 1 | $4.50 | Add to Cart | |
| 102 | 378326 | Nut, Hex Bushing | 1 | $2.22 | Add to Cart | |
| 103 | 5003968 | Screw, Hex Head ( .250"-20 X .750") | 1 | $1.17 | Add to Cart | |
| 104 | 5005684 | Set Screw, Square Head ( .250"-20 X .500") | 1 | $1.45 | Add to Cart | |
| 328751X | Installation Kit, Wire Or Lever Control | 1 | $65.59 | Superseded by 3287511XAdd to Cart |
41 42 46 1 .4-2.1 Kilogram Meters L
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3288251X | Lever Control Assembly (includes Items 35-48) | $653.81 | Add to Cart | |||
| 35 | 11P129 | Shaft, Shifter | 1 | $200.74 | Add to Cart | |
| 36 | 28P207 | Oil Seal | 2 | $19.83 | Add to Cart | |
| 37 | 32P141 | Shifter Fork | 1 | $180.33 | Add to Cart | |
| 38 | 34P82 | Cover, Shifter | 1 | $843.35 | Add to Cart | |
| 39 | 36P1 | Eye Bolt ( .375"-24) | 1 | $56.02 | Add to Cart | |
| 40 | 35P14 | Gasket | 1 | $2.88 | Add to Cart | |
| 41 | 37P14 | Spring | 1 | $3.46 | Add to Cart | |
| 42 | 378002 | Ball/poppet | 1 | $1.63 | Add to Cart | |
| 43 | 3784474 | Capscrew, Socket Head ( .312"-18 X .75") | 1 | $1.78 | Add to Cart | |
| 44 | 378554 | Cap, Poppet | 1 | $12.41 | Add to Cart | |
| 45 | 65P23 | Cover, Shifter Shaft | 1 | $20.58 | Add to Cart | |
| 46 | 379652 | Indicator Switch (norm “on”) | 1 | $40.79 | Add to Cart | |
| 47 | 5003813 | Nut, Hex ( .375"-24) | 1 | $1.10 | Add to Cart | |
| 48 | 3784304 | Capscrew, Hex Head | 2 | $6.00 | Add to Cart |
Cable Control 732 Series 95 Neutral \
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 3288301X | Wire Control Shift Cover Sub-assembly (included Items 55 Thru | 66) 1 | $200.05 | Add to Cart | ||
| 55 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 56 | 34P74 | Cover, Shifter | 1 | $44.57 | Add to Cart | |
| 57 | 37P14 | Spring Poppet | 1 | $3.46 | Add to Cart | |
| 58 | 51P13 | Lever, Shifter | 1 | $83.49 | Add to Cart | |
| 60 | 3288291X | Plate Assembly, Shifter | 1 | $65.55 | Add to Cart | |
| 61 | 50036522 | Washer, Flat | 1 | $1.05 | Add to Cart | |
| 62 | 378002 | Ball ( .438" Dia.) | 1 | $1.63 | Add to Cart | |
| 63 | 50035610 | Lockwasher | 1 | $1.53 | Add to Cart | |
| 64 | 378004 | Washer, Flat | 1 | $2.01 | Add to Cart | |
| 65 | 379652 | Indicator Switch (norm “on”) | 1 | $40.79 | Add to Cart | |
| 66 | 5004096 | Capscrew, Hex Head ( .312"-24 X .625") | 1 | $1.23 | Add to Cart | |
| 67 | 3784308 | Capscrew, Hex Head ( .312"-18 X .750") | 3 | $2.06 | Add to Cart | |
| 68 | 3784309 | Capscrew, Hex Head ( .312"-18 X .875") | 1 | $1.76 | Add to Cart | |
| 95 | 32834610X | Cable Control Assembly | 1 | $135.56 | Add to Cart | |
| 328380X | Parts Bag Wire Control | 1 | $13.25 | Add to Cart |
Mounting Detail 732 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379334 | $7.03 | Add to Cart |
This is the complete factory parts breakdown for the Chelsea PTO 732 — every part in the manual, matched to our live inventory. We stock 71 of the 81 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 732 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 732 |
| PTO type | Chelsea 700 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 12 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
