Chelsea PTO 247 Series Parts Manual
Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|
Power Take-Off Bill of Materials 247 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P625 | Housing | 1 | $977.11 | Add to Cart | |
| 2 | 3784527 | Set Screw Sh .250-20 | 2 | $4.37 | Add to Cart | |
| 3 | 33P75 | Gear-idler | 1 | $403.14 | Add to Cart | |
| 4 | 5P1387 | Gear-input | 1 | $466.17 | Add to Cart | |
| 6 | 9P98 | Shaft-idler | 2 | $60.31 | Add to Cart | |
| 10 | 4P179 | Spacer-idler Shaft | 1 | $118.93 | Add to Cart | |
| 11 | 14P78 | Spacer-input Shaft | 1 | $4.75 | Add to Cart | |
| 13 | 5008977 | Cap-shipping | 1 | — | Call for availability | |
| 14 | 329602X | Assembly-valve Cap (see Page 4) | 1 | $628.45 | Add to Cart | |
| 17 | 22P103 | Gasket-bearing Cap | 1 | $5.35 | Add to Cart | |
| 21 | 28P286 | Oil Seal (output Side) | 1 | $21.40 | Add to Cart | |
| 22 | 50000729 | Key-woodruff (xd Output Only) | 1 | $3.11 | Add to Cart | |
| 23 | 28P171 | O-ring- .644" X .087" (with E .o.c. Only) | 1 | $4.88 | Add to Cart | |
| 24 | 28P71 | O-ring- .674" X .103" | 2 | $4.88 | Add to Cart | |
| 27 | 31P117 | Washer-thrust- .879" X 1 .44" X .123" | 3 | $12.09 | Add to Cart | |
| 30 | 68P2 | Plate-name | 1 | $2.65 | Add to Cart | |
| 31 | 378422 | Screw-drive | 2 | $11.52 | Add to Cart | |
| 37 | 3293641X | Assembly-drive Shaft & Clutch (3-P-952) (“xd” Output) | .1 or | $963.70 | Add to Cart | |
| 3293642X | Assembly-drive Shaft & Clutch (3-P-953) (“xp” Output) | .1 or | $1,089.50 | Add to Cart | ||
| 3293643X | Assembly-drive Shaft & Clutch (3-P-954) (“ad” Output) | .1 or | $937.63 | Add to Cart | ||
| 3293644X | Assembly-drive Shaft & Clutch (3-P-955) (“xe” Output) | 1 | — | No longer available — call for replacement | ||
| 38 | 378890 | Reataining Ring | 2 | $5.27 | Add to Cart | |
| 39 | 31P110 | Thrust Washer. | 2 | $41.00 | Add to Cart | |
| 40 | 561013 | Needle Bearing Output Gear | 1 | $39.39 | Add to Cart | |
| 41 | 2P820 | Output Gear | 1 | $542.03 | Add to Cart | |
| 42 | 31P111 | Thrust Washer. | 1 | $55.13 | Add to Cart | |
| 43 | 379914 | Output Gear Bell | 1 | $70.21 | Add to Cart | |
| 44 | 3P952 | Output Shaft (“xd”), (1 -1/4" Round) | .1 or | $434.13 | Add to Cart | |
| 3P953 | Output Shaft (“xp”), (7/8"-13 Tooth Spline) | .1 or | $654.60 | Add to Cart | ||
| 3P954 | Output Shaft (“ad”), (3/4"-11 Tooth Spline) | .1 or | $818.43 | Add to Cart | ||
| 3P955 | Output Shaft (“xe”), (5/8"-9 Tooth Spline) | 1 | $262.63 | Add to Cart | ||
| 45 | 28P266 | O-ring (-022) | 2 | $5.74 | Add to Cart | |
| 46 | 2P819 | Clutch Gear | 1 | $59.57 | Add to Cart | |
| 47 | 31P108 | Thrust Washer. | 1 | $13.07 | Add to Cart | |
| 48 | 379691 | Friction Disk | 6 | $25.49 | Add to Cart | |
| 49 | 379692 | Seperator Plate | 5 | $13.91 | Add to Cart | |
| 50 | 37P56 | Clutch Spring | 1 | $9.77 | Add to Cart | |
| 51 | 379913 | Clutch Piston | 1 | $122.20 | Add to Cart | |
| 52 | 28P265 | Lip Seal Clutch | 1 | $7.39 | Add to Cart | |
| 53 | 379705 | Clutch Cylinder. | 1 | $117.22 | Add to Cart | |
| 54 | 379694 | Reataining Ring | 1 | $3.19 | Add to Cart | |
| 55 | 3794316 | Capscrew-sh- .250"-20 X 1 .00" | 3 | $4.02 | Add to Cart | |
| 56 | 379242 | Adapter-Straight-.125"-27 X .750"-16 (without E .o.c.) (with Qty 1 Of Item #69) | 1 | $22.23 | Add to Cart | |
| 57 | 379243 | Sensor-speed (with E .o.c. Only) 2 Chelsea Chelsea Products Products Division Division Ms | 1 | $229.65 | Add to Cart | |
| 69 | 379231 | Plug-Pipe-.125"-27 (qty. Of Only 1 With E .o.c. Option) | 2 | $1.50 | Add to Cart | |
| 73 | 561005 | Bearing-Ball-.9992" X 2 .0472" X .5900" | 1 | $41.37 | Add to Cart | |
| 74 | 561015 | Bearing-Ball-1 .2598" X 2 .2835" X .5118" | 1 | $102.32 | Add to Cart | |
| 75 | 561014 | Bearing-needle Roller Assembly-.875" X 1 .125" X 1 .000" | 3 | $55.69 | Add to Cart | |
| 82 | 379486 | Elbow-90°-.438"-20 | $28.97 | Add to Cart | ||
| 83 | 3795642 | Cap-shipping Loose Parts | $1.23 | Add to Cart | ||
| 379688 | Lubricant-spline | 1 | $8.98 | Add to Cart | ||
| 800019X | Stud Kit | $55.70 | Add to Cart | |||
| 28P200 | O-ring | 1 | $3.59 | Add to Cart | ||
| 379697 | Dowel Split Hollow | 2 | $5.26 | Add to Cart | ||
| 379706 | Hex Capscrew, (M10-1 .5" X 1 .18") | 3 | $4.78 | Add to Cart | ||
| 37957856 | Hex Capscrew, (M10-1 .5" X 150mm) | 1 | $15.13 | Add to Cart | ||
| 37942822 | Stud (M10 X 1 .50" X .375"-24 X 2 .250") | 2 | $25.79 | Add to Cart | ||
| 379744 | Flang Nut, ( .375"-24) Service Kits | 2 | $1.63 | Add to Cart | ||
| 3293761X | Kit-gasket & Seal | $107.83 | Add to Cart | |||
| 3293762X | Kit-bearing | $310.10 | Add to Cart | |||
| 3293763X | Kit-clutch Repair | $184.17 | Add to Cart | |||
| 3293764X | Kit-complete Rebuild (includes 329376-1X, -2X, -3X) | $546.00 | Add to Cart | |||
| 8611023Q1N | Kit-soft Goods-PGP-511 3 Chelsea Chelsea Products Products Division Division Ms | Parker Parker Hannifin Hannifin Corporation Corporation | $95.24 | Add to Cart |
Valve Cap Sub Assembly 247 Series Exploded Valve Cap Sub Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 14 | 329602X | Assembly-valve Cap | 1 | $628.45 | Add to Cart | |
| 21P711 | Valve Cap | 1 | $308.75 | Add to Cart | ||
| 28P119 | Oil Seal (high Press) | 1 | $26.61 | Add to Cart | ||
| 378811 | Washer | 1 | $5.21 | Add to Cart | ||
| 378849 | Retaining Ring | 1 | $2.12 | Add to Cart | ||
| 380012 | Plug O-ring ( .438" 20) - - | 1 | — | Call for availability | ||
| 3784476 | Socket Head Capscrew | 1 | $4.33 | Add to Cart | ||
| 38001112 | Hydraulic Valve 12V | 1 | $222.19 | Superseded by 38012312Add to Cart | ||
| 379484 | Hold Down Clamp (included With Hyd Valve) . 4 Chelsea Chelsea Products Products Division Division Ms | 1 | $6.85 | Add to Cart |
Power Take-Off Installation Kit Bill of Material 247 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 37843130 | Capscrew-hh .375"-16 X 4 .00" (“016” Series Pump) - | $17.26 | Add to Cart | |||
| 37843131 | Capscrew-hh .375"-16 X 4 .25" (“026” Series Pump) - | $7.52 | Add to Cart | |||
| 37843132 | Capscrew-hh .375"-16 X 4 .50" (“032” & “037” Series Pump) - | $62.16 | Add to Cart | |||
| 37843133 | Capscrew-hh .375"-16 X 4 .75" (“042” Series Pump) - | $48.25 | Add to Cart | |||
| 37843134 | Capscrew-hh .375"-16 X 5 .00" (“055” Series Pump) - | $19.77 | Add to Cart | |||
| 37843135 | Capscrew-hh .375"-16 X 5 .25" (“071 ” Series Pump) - | $19.77 | Add to Cart | |||
| 37843136 | Capscrew-hh .375"-16 X 5 .50" (“082” Series Pump) - | $16.73 | Add to Cart | |||
| 91 | 50036526 | Washer- Flat- .375 (qty. 4 W/ “042” & “055” Series Pump) | 2 or 4 | $2.11 | Add to Cart |
Wiring Installation Sketch Without E .O .C (SK-448 Rev A)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 329600X | Kit-installation & Mounting Non E .o.c. - | 1 | $470.56 | Add to Cart | ||
| 329598X | Wiring Harness | 1 | $184.17 | Add to Cart | ||
| 379502 | Pressure Switch | 1 | $93.06 | Add to Cart | ||
| 379698 | Elbow-male 90° .438" -24 X .125" -27 - | 1 | $13.51 | Add to Cart | ||
| 379817 | Grommet | 1 | $6.42 | Add to Cart | ||
| 3282321X | Assembly Hose | 1 | — | Call for availability | ||
| 800019X | Kit- Mounting 379625 90° Elbow 379502 Pressure Switch Torque Bolt To 120-140 In Lbs. . 329598X B B A A 379698 90° Firewall Pass-thru Installation Cut 1 .25" Dia Hole . Near Ford Clutch Master Seal Assembly 379817 Grommet Slice Grommet, Insert In Hole In Clutch Master Cylinder Seal Assembly 6 Chelsea Chelsea Products Products Division Division Ms | 1 | $55.70 | Add to Cart |
Hydraulic Installation Kit with Electronic Overspeed Control
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 32925512X | Assembly-speed Limiter (12V) | 1 | — | Call for availability | ||
| 379244 | Mounting Bracket | 1 | — | Call for availability | ||
| 379243 | P.t.o. Speed Sensor | 1 | $229.65 | Add to Cart | ||
| 32892310X | Speed Sensor Extension Cable, 10 Ft. (supplied W/e .o.c.) | 1 | — | No longer available — call for replacement | ||
| 329601X | Kit-installation & Mounting E .o.c. - | 1 | $474.61 | Add to Cart | ||
| 329599X | Wiring-harness-eoc | 1 | — | No longer available — call for replacement | ||
| 379502 | Switch-pressure | 1 | $93.06 | Add to Cart | ||
| 379698 | Elbow-male 90° .438"-24 X .125" -27 - | 1 | $13.51 | Add to Cart | ||
| 379817 | Grommet | 1 | $6.42 | Add to Cart | ||
| 3282321X | Assembly-hose | 1 | — | Call for availability | ||
| 800019X | Kit- Mounting | 1 | $55.70 | Add to Cart |

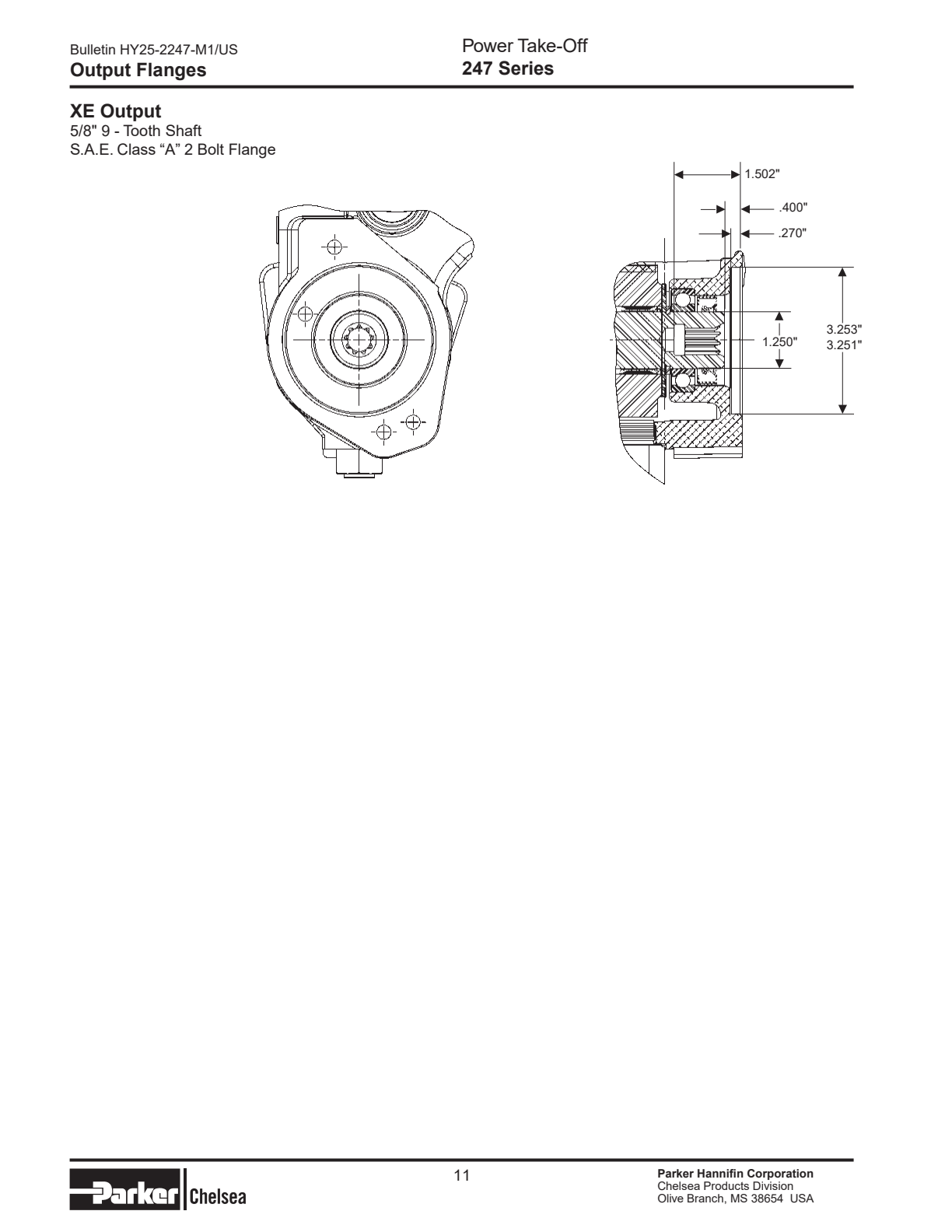

Output Flanges 247 Series XD Output XP Output AD Output
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price |
|---|

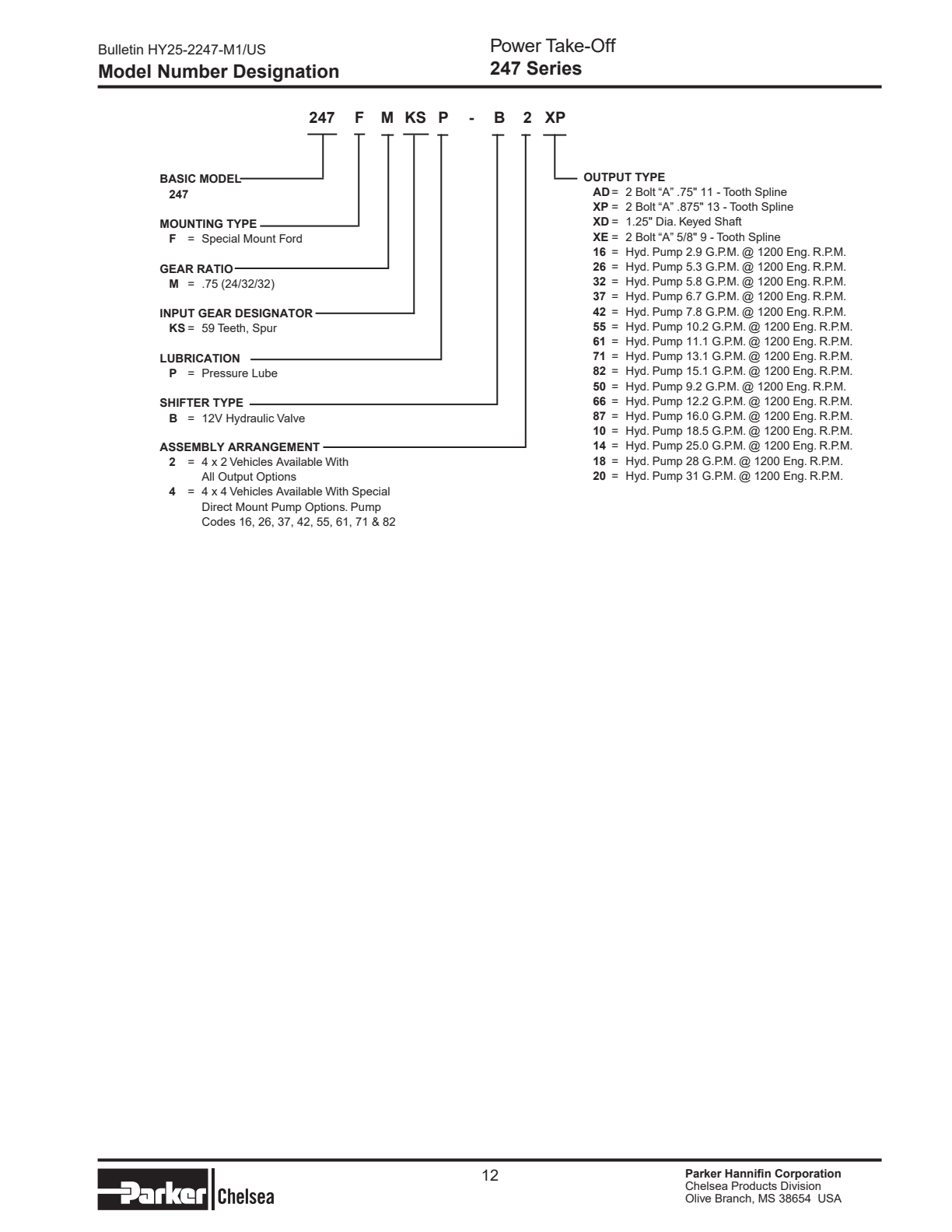

Model Number Designation 247 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| M75243232 | 32 = Hyd Pump 5.8 G .p.m @ 1200 . . 37 = Hyd Pump 6.7 G .p.m @ 1200 . . 42 = Hyd Pump 7.8 G .p.m @ 1200 . . | Eng R.P.M | — | Call for availability |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 379625 | 90° Elbow | $17.80 | Add to Cart |
