Chelsea PTO 452 Series Parts Manual

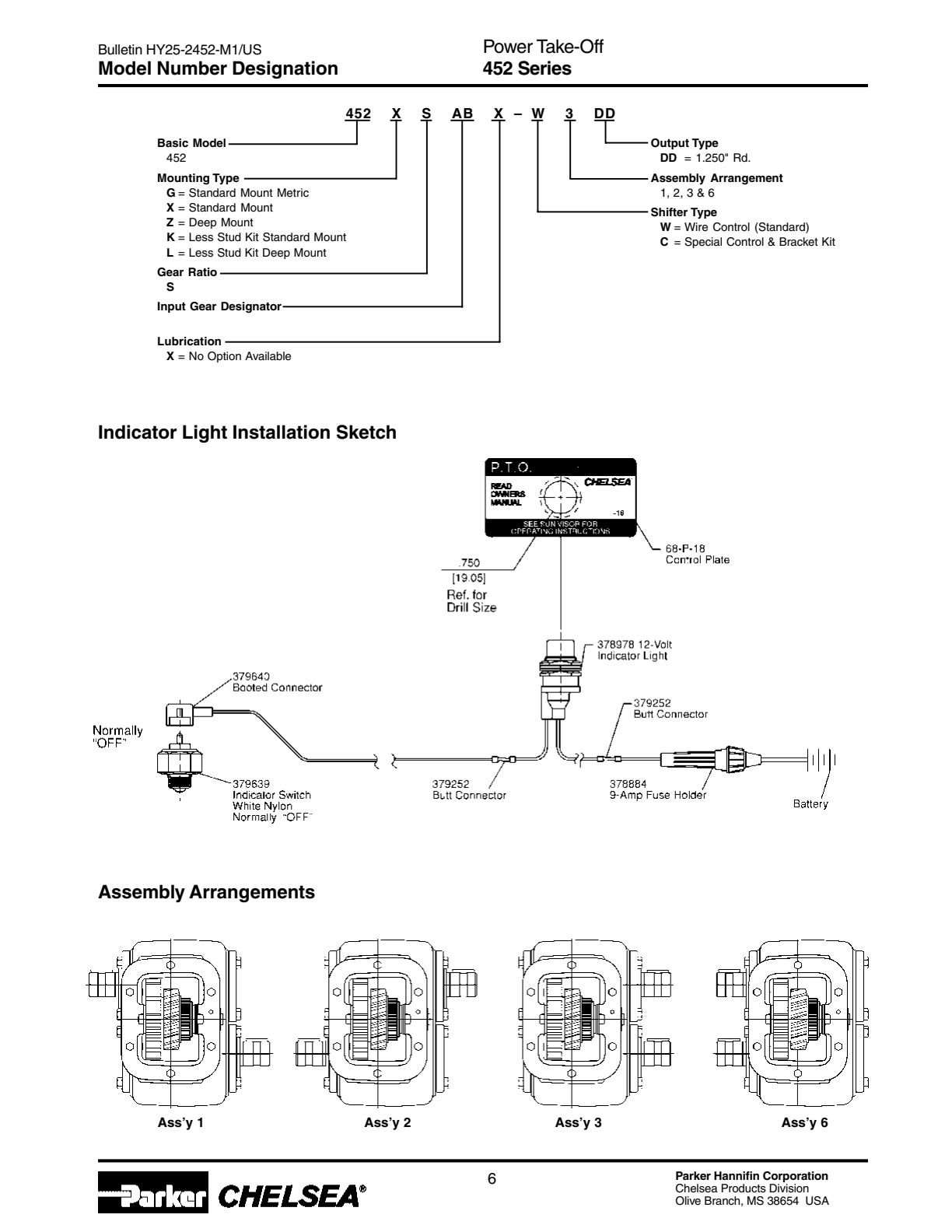

Model Number Designation
| Item | Part No. | Description | Qty | Notes | Price |
|---|

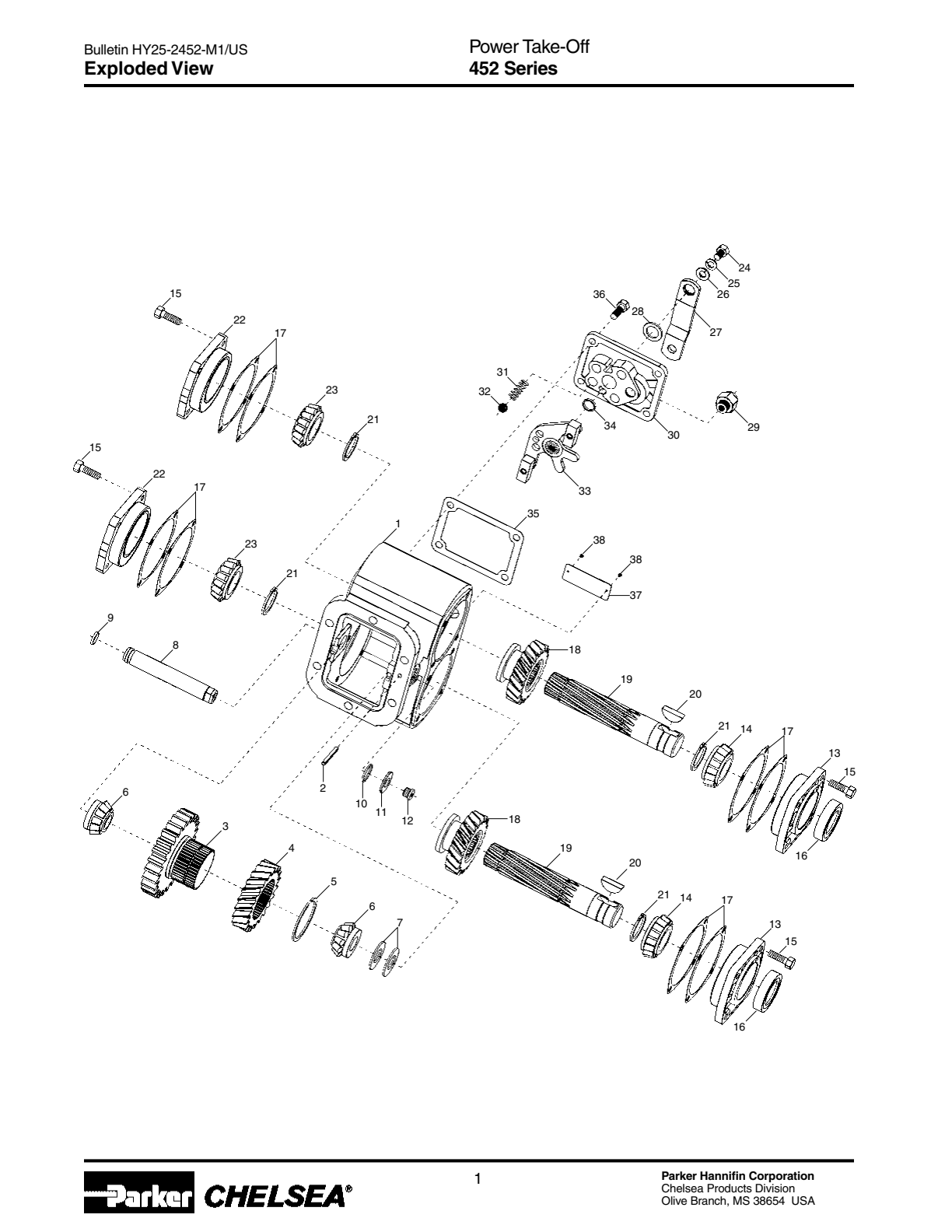

Power Take-Off Bill of Materials 452 Series
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 1P520X | Housing W/roll Pin Standard Mount | 1 | $548.33 | Add to Cart | |
| 1P521X | Housing W/roll Pin Deep Mount | 1 | $842.51 | Add to Cart | ||
| 2 | 50059714 | Roll Pin Deep Mount | 1 | $3.24 | Add to Cart | |
| 50059716 | Roll Pin Standard Mount | 1 | $1.18 | Add to Cart | ||
| 4 | 5P1153 | Gear, Ratio | 1 | $259.53 | Add to Cart | |
| 5 | 379522 | Retaining Ring | 1 | $5.76 | Add to Cart | |
| 6 | 550439 | Cone Bearing Input Gear | 2 | $51.63 | Add to Cart | |
| 7 | 14P15 | Spacer, Input Gear | A.R | $5.70 | Add to Cart | |
| 9P74 | Shaft, Input Idler Shaft | 1 | $71.73 | Add to Cart | ||
| 9 | 28P191 | O-ring | 1 | $3.59 | Add to Cart | |
| 10 | 28P190 | O-ring | 1 | $3.94 | Add to Cart | |
| 379542 | Retainer, O-ring | 1 | $4.65 | Add to Cart | ||
| 12 | 379484 | Plug O-ring Boss | 1 | $6.85 | Add to Cart | |
| 13 | 328273X | Bearing Cap Assembly, Open End (includes Bearing Cup) | 2 | $64.09 | Add to Cart | |
| 14 | 550532 | Bearing Cone, Open End & Reverse Idler Shaft | 2 | $36.75 | Add to Cart | |
| 15 | 37843010 | Capscrew, Hex Head (.3125"-18 X 1 ") | 16 | $1.76 | Add to Cart | |
| 16 | 28P52 | Oil Seal Output Shaft | 2 | — | Call for availability | |
| 17 | 22P241 | Gasket, Bearing Cap (.010") | A.R. | $2.30 | Add to Cart | |
| 22P242 | Gasket, Bearing Cap (.020") | A.R. | $10.49 | Add to Cart | ||
| 22P243 | Gasket Bearing Cap (.015") | A.R. | $10.49 | Add to Cart | ||
| 18 | 2P721 | Gear, Output | 1 | $274.46 | Add to Cart | |
| 3P859 | Shaft, Standard Output 1 .250" Rd | 2 | $265.44 | Add to Cart | ||
| 20 | 50000729 | Woodruff Key | 2 | $3.11 | Add to Cart | |
| 21 | 378391 | Retaining Ring Output Shaft | 4 | $2.47 | Add to Cart | |
| 22 | 328274X | Bearing Cap Assembly, Closed End (includes Bearing Cup) | 2 | $64.09 | Add to Cart | |
| 23 | 550397 | Bearing Cone, Closed End Output Shaft | 2 | $36.75 | Add to Cart | |
| 328837X | Cable Shift Cover Assembly, Single Shift (consists Of Items 24 Thru 34) | 1 | — | Call for availability | ||
| 24 | 5004096 | Screw, Shifter Lever (.3125"-24 X .625") | 1 | $1.23 | Add to Cart | |
| 25 | 50036510 | Lockwasher | 1 | — | Call for availability | |
| 26 | 50036522 | Flat Washer | 1 | $1.05 | Add to Cart | |
| 27 | 51P13 | Shift Lever | 1 | $83.49 | Add to Cart | |
| 28 | 378004 | Washer, Shift Lever | 1 | $2.01 | Add to Cart | |
| 29 | 379639 | Indicator Switch (normally Off) | 1 | $25.03 | Add to Cart | |
| 30 | 34P74 | Cover, Shifter | 1 | $44.57 | Add to Cart | |
| 31 | 37P14 | Popper Spring Shifter | 1 | $3.46 | Add to Cart | |
| 32 | 378002 | Ball Shifter , As Required Continued On — | 1 | $1.63 | Add to Cart | |
| 33 | 328836X | Plate & Post Assembly | 1 | — | Call for availability | |
| 34 | 28P191 | O-ring Shifter Post | 1 | $3.59 | Add to Cart | |
| 35 | 35P8 | Gasket, Shifter Cover | 1 | $3.48 | Add to Cart | |
| 36 | 3784308 | Capscrew, Hex Head (.3125"-18 X .750") | 3 | $2.06 | Add to Cart | |
| 3784309 | Capscrew, Hex Head (.3125"-18 x.875") | 1 | $1.76 | Add to Cart | ||
| 37 | 68P2 | Name Plate | 1 | $2.65 | Add to Cart | |
| 38 | 378422 | Drive Screw Parts Shipped Loose | 2 | $11.52 | Add to Cart | |
| 32834610X | Cable Control Assembly (includes 10' Cable 378441 -10 & Knob 378502) | 1 | $135.56 | Add to Cart | ||
| 328380X | Mounting Parts Kit, Cable Control | 1 | $13.25 | Add to Cart | ||
| 50P17 | Bracket, Cable Control | 1 | $5.47 | Add to Cart | ||
| 50P19 | Bracket, Swivel | 1 | $3.48 | Add to Cart | ||
| 378019 | Pin Pivot | 1 | $4.50 | Add to Cart | ||
| 378326 | Nut, Hex | 1 | $2.22 | Add to Cart | ||
| 5003968 | Capscrew, Hex Head (.250"-20 X .50") | 1 | $1.17 | Add to Cart | ||
| 5005684 | Setscrew (.250"-20 X .50") | 1 | $1.45 | Add to Cart | ||
| 71702X | Stud Kit, Standard Mount | 1 | $30.69 | Superseded by 32817076XAdd to Cart | ||
| 71701X | Stud Kit, Deep Mount | 1 | $21.76 | Add to Cart | ||
| 717072X | Stud Kit, “g” Mount (metric Studs) | 1 | $53.10 | Add to Cart | ||
| 3289486X | Mounting Gaskets And Installation Instructions | 1 | $24.01 | Add to Cart | ||
| 3287511X | Indicator Light, Installation Kit | 1 | $65.59 | Add to Cart | ||
| 329058X | Installation Kit (“fe” Gear Detail Only) Service Items | 1 | — | Call for availability | ||
| 32835659X | Gasket & Seal Kit (contains 8 Ea. Of 22-P-24-1 & 22-P-2 4 Ea. Of 22-P-24-3, , 1 28-P-190, 1 28-P-191 2 28-P-216, 1 35-P-8, 1 35-P-9-1 , & 1 35-P-9-2) | 1 | $79.10 | Add to Cart | ||
| 329218X | Service Kit, Booted Connector (379640) A.r. As Required — | 1 | $18.40 | Add to Cart |
Input Gear Chart 452 Series 452 Series
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 5P1001 | 19 Universal 5-Pitch Spur | $1,260.77 | Add to Cart | |||
| 5P1003 | 22 Spicer 5000 & 6000 Series Spur | $464.19 | Add to Cart | |||
| 5P1004 | 22 Universal 6-Pitch Spur | $244.88 | Add to Cart | |||
| 5P1006 | 21 Spicer CM-4954 & D, ES-52-5A & D Left Hand | $368.61 | Add to Cart | |||
| 5P1007 | 21 Spicer Aux 7041 Left Hand | $399.96 | Add to Cart | |||
| 5P1008 | 21 Spicer CM60 6000 Series Left Hand | $535.77 | Add to Cart | |||
| 5P1009 | 22 New Process 541 R .h Side Left Hand . | $187.23 | Add to Cart | |||
| 5P1010 | 22 L.h Side Clark 398V & Cl 558 Right Hand . | $606.90 | Add to Cart | |||
| 5P1011 | 23 L.h Side Navistar T-32 Thru 36 & T-494 Thru 496 Left Hand . | $462.96 | Add to Cart | |||
| 5P1012 | 18 Clark 557 Left Hand | $479.52 | Add to Cart | |||
| 5P1015 | 23 Spicer 5000 Series & ES-60-5A,C & D Left Hand | $321.54 | Add to Cart | |||
| 5P1017 | 25 Spicer 3000 Series R .h Side Left Hand . | — | No longer available — call for replacement | |||
| 5P1019 | 22 New Process 205 Transfer Case Right Hand | $500.31 | Add to Cart | |||
| 5P1020 | 22 R .h Side Clark 398V & Cl 558 Left Hand . | $520.00 | Add to Cart | |||
| 5P1021 | 22 New Process 540 R .h Side Left Hand . | $219.00 | Add to Cart | |||
| 5P1022 | 26 L.h Chev. Ch -465 W/adapter 328555-1X Right Hand . | $539.57 | Add to Cart | |||
| 5P1023 | 25 Chev. CH465 ,gmc SM465 Left Hand & Spicer ES-42-5A & 5D | $566.00 | Add to Cart | |||
| 5P1024 | 26 Clark & Hino “la” “lb” “le” Right Hand | — | No longer available — call for replacement | |||
| 5P1025 | 26 New Process 420 & Clark 285V Left Hand | $474.18 | Add to Cart | |||
| 5P1028 | 26 Warner T-18 T-19 T-98A Left Hand | $390.51 | Add to Cart | |||
| 5P1029 | 25 New Process 435 & 4530 Left Hand | — | No longer available — call for replacement | |||
| 5P1031 | 27 Warner T-18’s & T-19’s Left Hand | $474.18 | Add to Cart | |||
| 5P1037 | 23 Mack 2080 Spur | $419.96 | Add to Cart | |||
| 5P1038 | 39 Fuller T-8607A & B, T-1 106 T-1 107A & B Spur | — | Call for availability | |||
| 5P1039 | 19 Hino “ka” “kb” MFO-6S Nissan Spur , , MPS-60B & Tmh -464 | — | Call for availability | |||
| 5P1041 | 21 Renault BDSL-132R 181 2052R Left Hand | $208.54 | Add to Cart | |||
| 5P1043 | 26 Renault BDSL-2152 Left Hand | $178.28 | Add to Cart | |||
| 5P1045 | 17 Clark 450 & 455 Left Hand | — | No longer available — call for replacement | |||
| 5P1046 | 19 Clark 457 & Fuller FS-4005C Left Hand | $342.28 | Add to Cart | |||
| 5P1048 | 20 | $363.33 | Add to Cart | |||
| 5P1050 | 28 Fuller FS-5506 7206A, & 8206A Left Hand | $480.56 | Add to Cart | |||
| 5P1055 | 36 Zed F, S5-42 Close Ratio Left Hand | $279.18 | Add to Cart | |||
| 5P1056 | 34 Zed F, S5-42 Wide Ratio Left Hand | $389.02 | Add to Cart | |||
| 5P1075 | 30 Isuzu MSA-5D Right Hand | — | No longer available — call for replacement | |||
| 5P1059 | 22 Left Hand | $271.87 | Add to Cart | |||
| 5P1060 | 40 Fuller T-14607A Spur | $473.37 | Add to Cart | |||
| 5P1061 | 20 Fuller FS-3005A & B & 4005 Left Hand | $384.70 | Add to Cart | |||
| 5P1064 | 26 NVG-4500 Dodge Left Hand | $245.32 | Add to Cart | |||
| 5P1065 | 29 Getrag 360 Left Hand | $393.34 | Add to Cart | |||
| 5P1069 | 28 Nissan Tmh -704 762 MHS-50 & 60 Spur | $159.06 | Add to Cart | |||
| 5P1070 | 26 Spicer ES52-7A, ESO65-7A Left Hand | $430.19 | Add to Cart | |||
| 5P1071 | 23 Renault G405 G406 Left Hand | $356.85 | Add to Cart | |||
| 5P1098 | 28 Fuller FSO-8206A Left Hand | — | Call for availability | |||
| 5P1150 | 26 Tremec 199F Left Hand | $356.85 | Add to Cart | |||
| 5P1152 | 29 Zed F S5-42 Wide Ratio Left Hand | $414.30 | Add to Cart | |||
| 5P1268 | 33 Left Hand | $296.52 | Add to Cart | |||
| 5P1316 | 25 Left Hand | USA | $451.82 | Add to Cart |
Additional Parts Listed in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| CM-4954 | & D, ES-52-5A & D Left Hand | — | Call for availability | |||
| FSO-8206A | Left Hand | — | Call for availability |
This is the complete factory parts breakdown for the Chelsea PTO 452 — every part in the manual, matched to our live inventory. We stock 92 of the 108 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
This Chelsea Illustrated Parts List covering the 452 PTO helps you identify the correct gear sets, shifter kits and service parts for your power take-off before you order.
| Models covered | 452 |
| PTO type | Chelsea 400 Series |
| Document | Illustrated Parts List (Chelsea) |
| Length | 12 pages |
| Format | PDF — free download |
What’s inside
- Gear sets & output shaft assemblies
- Shifter & air-shift control kits
- Mounting gaskets & adapter plates
- Housings & cover assemblies
- Seal, bearing & snap-ring kits
- Application & ratio reference tables
- Exploded views with OEM part numbers
