Fabco TC 200 Parts Manual
P .2 Tc-200 Input Shaft Parts See Figure P.2
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 688-0694 | Locknut, 1 1/2-12 | 1 | $26.83 | Add to Cart | |
| 2 | 927-0775-005 | Washer | 1 | $61.55 | Add to Cart | |
| 3 | 732-0396 | Oil Seal | 1 | $47.43 | Add to Cart | |
| 4 | 233-0537 | Bearing Cup | 1 | — | No longer available — call for replacement | |
| 5 | 233-0558 | Bearing Cone | 1 | — | No longer available — call for replacement | |
| 6 | 432-0667 | Gear | 1 | $1,525.35 | Add to Cart | |
| 7 | 966-0329 | Woodruff Key | 1 | — | No longer available — call for replacement | |
| 8 | 776-0269 | Shaft | 1 | $3,590.10 | Add to Cart | |
| 9 | 432-0669 | Clutch Collar Gear | 1 | $1,239.54 | Add to Cart | |
| 10 | 233-0542 | Bearing Cone | 2 | $98.19 | Add to Cart | |
| 11 | 233-0539 | Bearing Cup | 2 | $41.15 | Add to Cart | |
| 12 | 756-0257-001 | Bearing Spacer Ring .352 Thick , | 1 | $479.49 | Add to Cart | |
| 756-0257-002 | Bearing Spacer Ring .355 Thick , | 1 | $100.14 | Add to Cart | ||
| 756-0257-003 | Bearing Spacer Ring .358 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-004 | Bearing Spacer Ring .361 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-005 | Bearing Spacer Ring .348 Thick , | 1 | — | Call for availability | ||
| 756-0257-006 | Bearing Spacer Ring .349 Thick , | 1 | — | Call for availability | ||
| 756-0257-007 | Bearing Spacer Ring .350 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-008 | Bearing Spacer Ring .351 Thick , | 1 | $709.20 | Add to Cart | ||
| 756-0257-009 | Bearing Spacer Ring .353 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-010 | Bearing Spacer Ring .354 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-011 | Bearing Spacer Ring .356 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-012 | Bearing Spacer Ring .357 Thick , | 1 | $866.49 | Add to Cart | ||
| 756-0257-013 | Bearing Spacer Ring .359 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-014 | Bearing Spacer Ring .360 Thick , | 1 | — | No longer available — call for replacement | ||
| 13 | 432-0665 | Gear | 1 | $2,203.87 | Add to Cart | |
| 14 | 756-0259 | Spacer Ring | 1 | — | No longer available — call for replacement | |
| 15 | 233-0443 | Bearing Cone | 1 | $87.23 | Add to Cart | |
| 16 | 233-0444 | Bearing Cup | 1 | $62.92 | Add to Cart | |
| 17 | 756-0258 | Spacer Ring | 1 | $178.75 | Add to Cart | |
| 18 | 688-0645 | Bearing Locknut | 1 | $118.09 | Add to Cart | |
| 19 | 744-0359-001 | Shim .002 Thick Red , | A/R | $17.28 | Add to Cart | |
| 744-0359-002 | Shim .005 Thick Blue , | A/R | 2 | $13.04 | Add to Cart | |
| 744-0359-003 | Shim .015 Thick Pink , | A/R | 2 | $14.65 | Add to Cart | |
| 744-0359-004 | Shim .030 Thick Coral , | A/R | 2 | $17.76 | Add to Cart | |
| 20 | 235-0647-001 | Cap | 1 | 3 | $329.89 | Add to Cart |
| 235-0647-002 | Cap | 1 | 4 | — | No longer available — call for replacement | |
| 21 | 265-0238 | Cap Screw, 7/16-14 X 1 1/4 Ring See Service Manual . . . Lubrication Pump . With Optional Lubrication Pump . – – | 6 | $7.99 | Add to Cart |

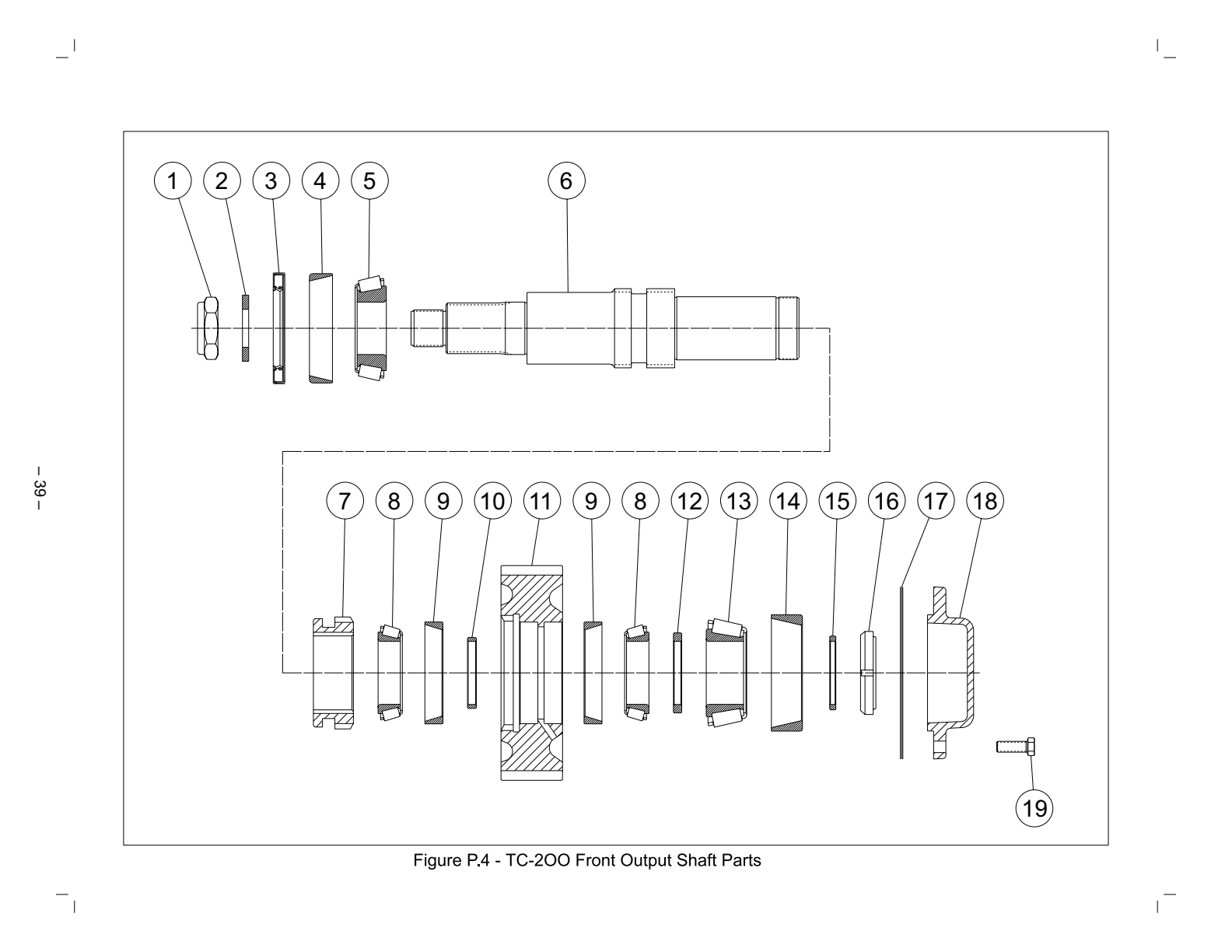

P .4 Tc-200 Front Output Shaft Parts See Figure P.4
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 688-0694 | Locknut, 1 1/2-12 | 1 | $26.83 | Add to Cart | |
| 2 | 927-0775-005 | Washer | 1 | $61.55 | Add to Cart | |
| 3 | 732-0396 | Oil Seal | 1 | $47.43 | Add to Cart | |
| 4 | 233-0272 | Bearing Cup | 1 | $38.59 | Add to Cart | |
| 5 | 233-0559 | Bearing Cone | 1 | $156.99 | Add to Cart | |
| 6 | 776-0272 | Shaft | 1 | $3,245.33 | Add to Cart | |
| 7 | 432-0669 | Clutch Collar Gear | 1 | $1,239.54 | Add to Cart | |
| 8 | 233-0542 | Bearing Cone | 2 | $98.19 | Add to Cart | |
| 9 | 233-0539 | Bearing Cup | 2 | $41.15 | Add to Cart | |
| 10 | 756-0257-001 | Bearing Spacer Ring .352 Thick , | 1 | $479.49 | Add to Cart | |
| 756-0257-002 | Bearing Spacer Ring .355 Thick , | 1 | $100.14 | Add to Cart | ||
| 756-0257-003 | Bearing Spacer Ring .358 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-004 | Bearing Spacer Ring .361 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-005 | Bearing Spacer Ring .348 Thick , | 1 | — | Call for availability | ||
| 756-0257-006 | Bearing Spacer Ring .349 Thick , | 1 | — | Call for availability | ||
| 756-0257-007 | Bearing Spacer Ring .350 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-008 | Bearing Spacer Ring .351 Thick , | 1 | $709.20 | Add to Cart | ||
| 756-0257-009 | Bearing Spacer Ring .353 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-010 | Bearing Spacer Ring .354 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-011 | Bearing Spacer Ring .356 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-012 | Bearing Spacer Ring .357 Thick , | 1 | $866.49 | Add to Cart | ||
| 756-0257-013 | Bearing Spacer Ring .359 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-014 | Bearing Spacer Ring .360 Thick , | 1 | — | No longer available — call for replacement | ||
| 11 | 432-0665 | Gear | 1 | $2,203.87 | Add to Cart | |
| 12 | 756-0259 | Spacer Ring | 1 | — | No longer available — call for replacement | |
| 13 | 233-0443 | Bearing Cone | 1 | $87.23 | Add to Cart | |
| 14 | 233-0444 | Bearing Cup | 1 | $62.92 | Add to Cart | |
| 15 | 756-0258 | Spacer Ring | 1 | $178.75 | Add to Cart | |
| 16 | 688-0645 | Bearing Locknut | 1 | $118.09 | Add to Cart | |
| 17 | 744-0359-001 | Shim .002 Thick Red , | A/R | 2 | $17.28 | Add to Cart |
| 744-0359-002 | Shim .005 Thick Blue , | A/R | 2 | $13.04 | Add to Cart | |
| 744-0359-003 | Shim .015 Thick Pink , | A/R | 2 | $14.65 | Add to Cart | |
| 744-0359-004 | Shim .030 Thick Coral , | A/R | 2 | $17.76 | Add to Cart | |
| 18 | 235-0649 | Cap | 1 | $265.82 | Add to Cart | |
| 19 | 265-0238 | Cap Screw, 7/16-14 X 1 1/4 See Service Manual . . – – | 6 | $7.99 | Add to Cart |
P .5 Tc-200 Rear Output Shaft Parts See Figure P.5
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 233-0272 | Bearing Cup | 1 | $38.59 | Add to Cart | |
| 2 | 233-0543 | Bearing Cone | 1 | $101.99 | Add to Cart | |
| 3 | 776-0273 | Shaft | 1 | $6,746.16 | Add to Cart | |
| 4 | 432-0669 | Clutch Collar Gear | 1 | $1,239.54 | Add to Cart | |
| 5 | 233-0542 | Bearing Cone | 2 | $98.19 | Add to Cart | |
| 6 | 233-0539 | Bearing Cup | 2 | $41.15 | Add to Cart | |
| 7 | 756-0257-001 | Bearing Spacer Ring .352 Thick , | 1 | $479.49 | Add to Cart | |
| 756-0257-002 | Bearing Spacer Ring .355 Thick , | 1 | $100.14 | Add to Cart | ||
| 756-0257-003 | Bearing Spacer Ring .358 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-004 | Bearing Spacer Ring .361 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-005 | Bearing Spacer Ring .348 Thick , | 1 | — | Call for availability | ||
| 756-0257-006 | Bearing Spacer Ring .349 Thick , | 1 | — | Call for availability | ||
| 756-0257-007 | Bearing Spacer Ring .350 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-008 | Bearing Spacer Ring .351 Thick , | 1 | $709.20 | Add to Cart | ||
| 756-0257-009 | Bearing Spacer Ring .353 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-010 | Bearing Spacer Ring .354 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-011 | Bearing Spacer Ring .356 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-012 | Bearing Spacer Ring .357 Thick , | 1 | $866.49 | Add to Cart | ||
| 756-0257-013 | Bearing Spacer Ring .359 Thick , | 1 | — | No longer available — call for replacement | ||
| 756-0257-014 | Bearing Spacer Ring .360 Thick , | 1 | — | No longer available — call for replacement | ||
| 8 | 432-0665 | Gear | 1 | $2,203.87 | Add to Cart | |
| 9 | 756-0262 | Spacer Ring | 1 | $147.28 | Add to Cart | |
| 10 | 233-0493 | Bearing Cone | 1 | $114.52 | Add to Cart | |
| 11 | 233-0544 | Bearing Cup | 1 | — | No longer available — call for replacement | |
| 12 | 756-0263 | Spacer Ring | 1 | $1,500.56 | Add to Cart | |
| 13 | 432-0678 | Gear, Speedometer Sensor | 1 | $1,688.40 | Add to Cart | |
| 14 | 744-0278 | Shim .030 Thick Coral , | A/R | 2 | $18.52 | Add to Cart |
| 744-0279 | Shim .015 Thick Pink , | A/R | 2 | $16.76 | Add to Cart | |
| 744-0282 | Shim .005 Thick Blue , | A/R | 2 | $13.54 | Add to Cart | |
| 744-0283 | Shim .002 Thick Red , | A/R | 2 | $13.54 | Add to Cart | |
| 15 | 237-0629 | Carrier | 1 | $529.88 | Add to Cart | |
| 16 | 732-0396 | Oil Seal | 1 | $47.43 | Add to Cart | |
| 17 | 688-0738 | Locknut | 1 | $52.43 | Superseded by 688F0738Add to Cart | |
| 18 | 265-0238 | Cap Screw, 7/16-14 X 1 1/4 Ring See Service Manual . . . – – | 6 | $7.99 | Add to Cart |
P .6 Tc-200 Front Drive Shift Parts See Figure P.6
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 265-0386 | Cap Screw, 1/4-20 X 3/4 | 4 | $5.22 | Add to Cart | |
| 2 | 235-0634 | Cap | 1 | $170.40 | Add to Cart | |
| 3 | 673-0229 | O-ring | 1 | — | Call for availability | |
| 4 | 688-0464 | Locknut, 3/8-24 | 1 | $8.21 | Add to Cart | |
| 5 | 927-0643 | Washer | 1 | $8.10 | Add to Cart | |
| 6 | 675-0326 | O-ring | 1 | — | Call for availability | |
| 7 | 753-0232 | Piston | 1 | $77.81 | Add to Cart | |
| 8 | 339-0223 | Felt Strip | 1 | $13.62 | Add to Cart | |
| 9 | 736-0747 | Stop Ring | 1 | $9.38 | Add to Cart | |
| 10 | 777-0477 | Spring | 1 | $26.12 | Add to Cart | |
| 11 | 782-0288 | O-ring | 1 | $6.16 | Add to Cart | |
| 12 | 776-1265 | Shifter Shaft Assembly | 1 | $2,032.00 | Add to Cart | |
| 13 | 927-0427 | Copper Washer | 1 | $8.16 | Add to Cart | |
| 14 | 798-0245 | Indicator Switch | 1 | $30.28 | Add to Cart | |
| 15 | 746-0739 | Shift Indicator Pin – – | 1 | — | No longer available — call for replacement |

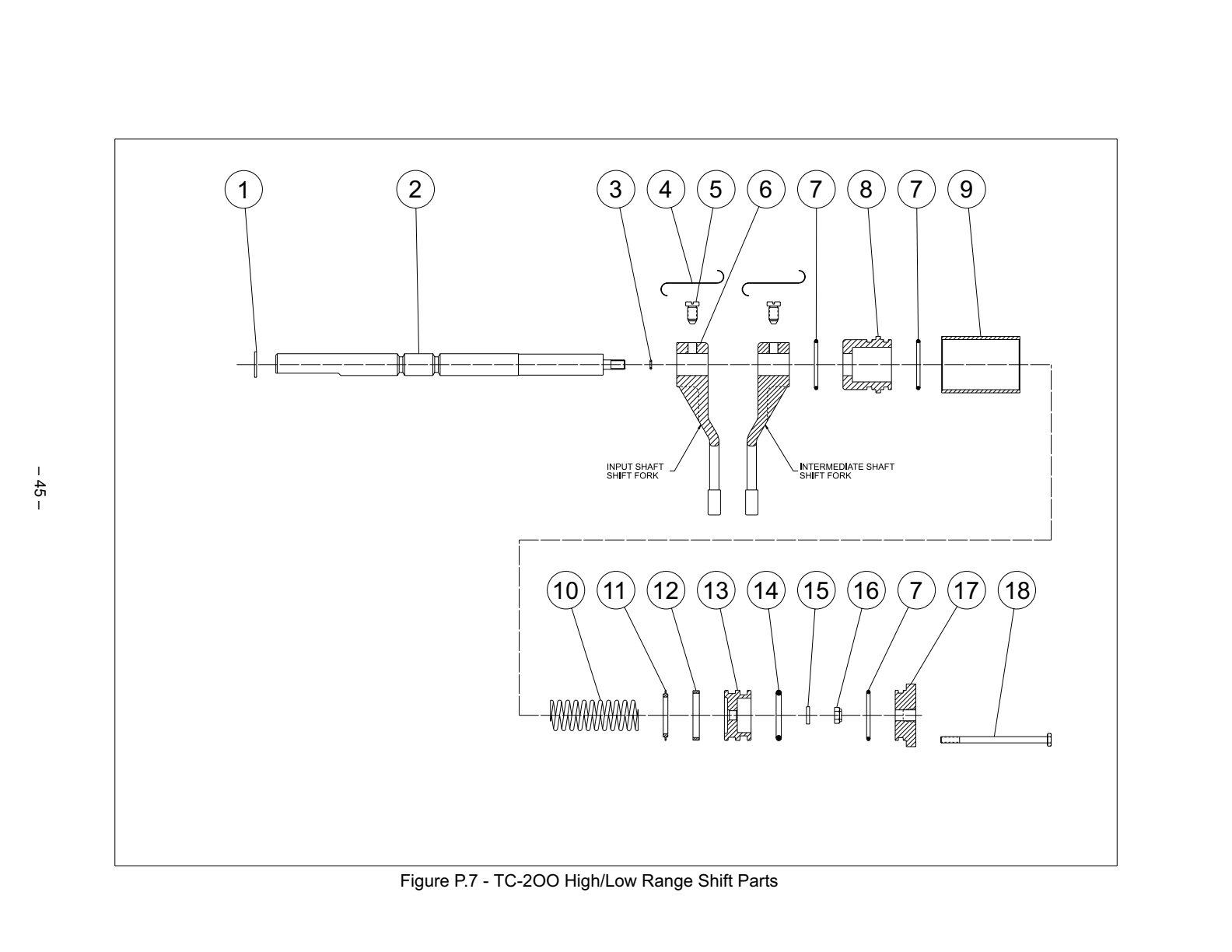

P .7 Tc-200 High/Low Range Shift Parts See Figure P.7
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 758-0328 | Expansion Plug | 1 | $12.30 | Add to Cart | |
| 2 | 776-0267 | Shifter Shaft | 1 | $852.39 | Add to Cart | |
| 3 | 782-0288 | O-ring | 1 | $6.16 | Add to Cart | |
| 4 | 947-0223 | Lockwire | 2 | $46.99 | Add to Cart | |
| 5 | 724-0222 | Set Screw | 2 | $25.97 | Add to Cart | |
| 6 | 367-0292 | Shift Fork | 2 | — | No longer available — call for replacement | |
| 7 | 675-0224 | O-ring | 3 | — | Call for availability | |
| 8 | 884-0224 | Adapter Tube | 1 | $135.31 | Add to Cart | |
| 9 | 883-0887-007 | Shift Cylinder Tube | 1 | $295.00 | Add to Cart | |
| 10 | 777-0534 | Spring | 1 | $37.50 | Add to Cart | |
| 11 | 736-0747 | Stop Ring | 1 | $9.38 | Add to Cart | |
| 12 | 339-0223 | Felt Strip | 1 | $13.62 | Add to Cart | |
| 13 | 753-0232 | Piston | 1 | $77.81 | Add to Cart | |
| 14 | 675-0326 | O-ring | 1 | — | Call for availability | |
| 15 | 927-0643 | Washer | 1 | $8.10 | Add to Cart | |
| 16 | 688-0464 | Locknut, 3/8-24 | 1 | $8.21 | Add to Cart | |
| 17 | 235-0352 | Cap | 1 | $63.16 | Add to Cart | |
| 18 | 283-0235 | Cap Screw, 1/4-20 X 4 1/4 – – | 4 | $11.84 | Add to Cart |

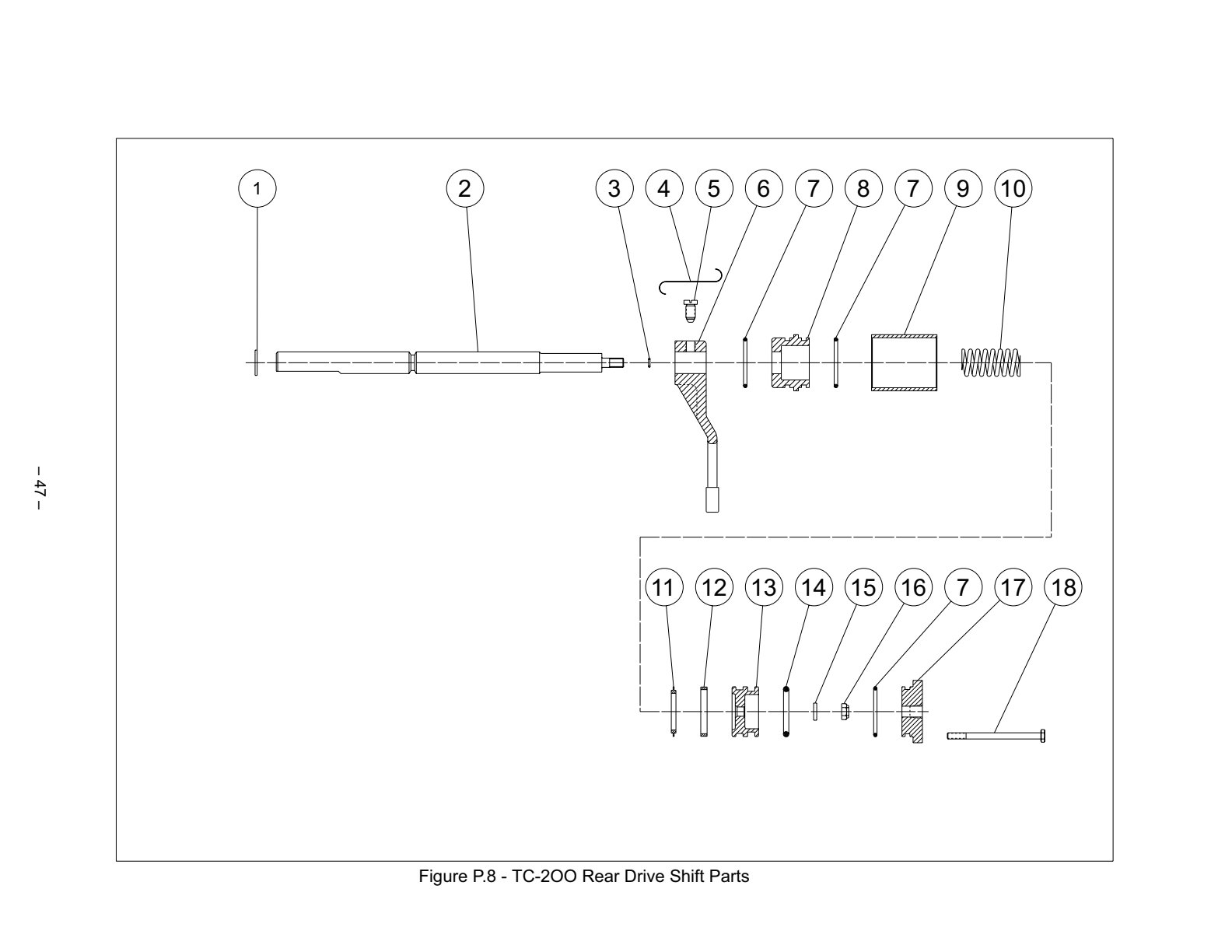

P .8 Tc-200 Rear Drive Shift Parts See Figure P.8
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 758-0328 | Expansion Plug | 1 | $12.30 | Add to Cart | |
| 2 | 776-0266 | Shifter Shaft | 1 | $1,646.39 | Add to Cart | |
| 3 | 782-0288 | O-ring | 1 | $6.16 | Add to Cart | |
| 4 | 947-0223 | Lockwire | 1 | $46.99 | Add to Cart | |
| 5 | 724-0222 | Set Screw | 1 | $25.97 | Add to Cart | |
| 6 | 367-0292 | Shift Fork | 1 | — | No longer available — call for replacement | |
| 7 | 675-0224 | O-ring | 3 | — | Call for availability | |
| 8 | 883-0482 | Adapter Tube | 1 | $99.33 | Add to Cart | |
| 9 | 883-0887-016 | Shift Cylinder Tube | 1 | $304.73 | Add to Cart | |
| 10 | 777-0477 | Spring | 1 | $26.12 | Add to Cart | |
| 11 | 736-0747 | Stop Ring | 1 | $9.38 | Add to Cart | |
| 12 | 339-0223 | Felt Strip | 1 | $13.62 | Add to Cart | |
| 13 | 753-0232 | Piston | 1 | $77.81 | Add to Cart | |
| 14 | 675-0326 | O-ring | 1 | — | Call for availability | |
| 15 | 927-0643 | Washer | 1 | $8.10 | Add to Cart | |
| 16 | 688-0464 | Locknut, 3/8-24 | 1 | $8.21 | Add to Cart | |
| 17 | 235-0352 | Cap | 1 | $63.16 | Add to Cart | |
| 18 | 265-0769 | Cap Screw, 1/4-20 X 3 3/4 – – | 4 | $8.73 | Add to Cart |
P .9 Tc-200 Housing Parts See Figure P.9
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 478-0282 | Housing Front , | 1 | $5,231.17 | Add to Cart | |
| 2 | 478-0284 | Housing Rear , | 1 | $3,618.31 | Add to Cart | |
| 3 | 265-0535 | Bolt, 1/2-13 X 4 Grade 5 Hex Head , , | 3 | $2.95 | Add to Cart | |
| 4 | 927-0722 | Washer, 1/2" | 22 | $5.31 | Add to Cart | |
| 5 | 287-0276 | Bushing | 2 | 1 | $54.00 | Add to Cart |
| 6 | 427-0539 | Gasket | 1 | — | No longer available — call for replacement | |
| 7 | 758-0232 | Plug 1/4 NPT , | 2 | $6.03 | Add to Cart | |
| 8 | 836-0223 | Vent, Breather | 1 | $22.40 | Add to Cart | |
| 9 | 357-0678 | Elbow | 1 | — | No longer available — call for replacement | |
| 10 | 626-0228 | Serial Number Plate | 1 | — | No longer available — call for replacement | |
| 11 | 724-0276 | Drive Screw | 2 | $7.94 | Add to Cart | |
| 12 | 758-0229 | Plug 3/4 NPT , | 2 | $6.68 | Add to Cart | |
| 13 | 265-0979 | Bolt, 1/2-13 X 3 1/2 Grade 5 Hex Head , , | 18 | — | No longer available — call for replacement | |
| 14 | 758-0274 | Magnetic Drain Plug 3/4 NPT , | 2 | 2 | $8.70 | Add to Cart |
| 15 | 758-0375 | Plug 3/8 NPT , For Transfer Case With Lubricatin Pump See Lubricatin System . For Transfer Case With Lubrication Pump See Lubrication . – – | 1 | . | $5.49 | Add to Cart |

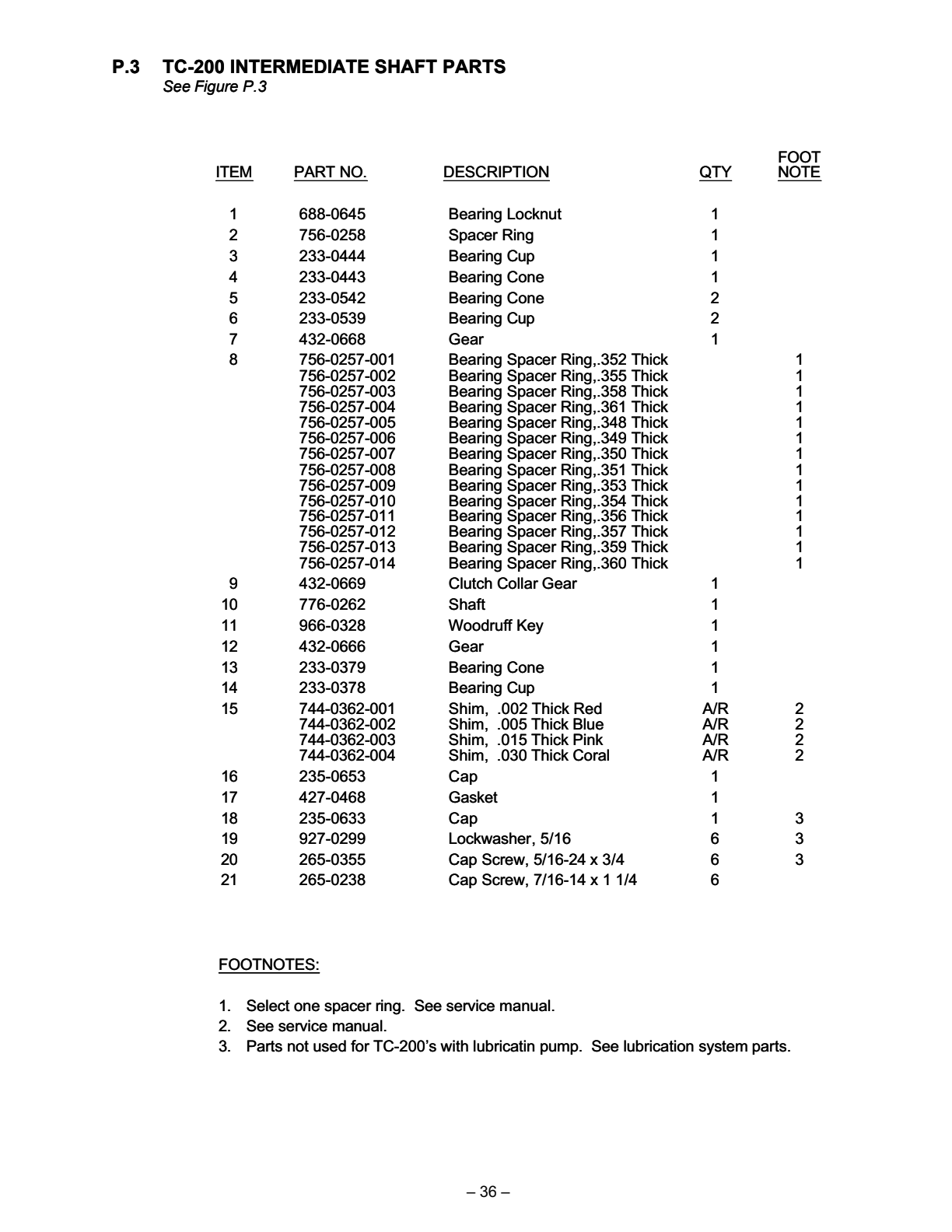

Additional Parts Listed In This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 233-0378 | Bear Ing Cup | — | No longer available — call for replacement | |||
| 233-0379 | Bear Ing Cone | $905.04 | Add to Cart | |||
| 235-0633 | Cap | $71.25 | Add to Cart | |||
| 235-0653 | Cap | $638.85 | Add to Cart | |||
| 265-0355 | Cap Screw, 5/16-24 X 3/4 | $1.57 | Add to Cart | |||
| 427-0468 | Gasket | $48.53 | Add to Cart | |||
| 432-0666 | Gear | $1,566.10 | Add to Cart | |||
| 432-0668 | Gear | $2,043.55 | Add to Cart | |||
| 744-0362-001 | Shim, .002 Thick Red | $9.32 | Add to Cart | |||
| 744-0362-002 | Shim, .005 Thick Blue | $12.47 | Add to Cart | |||
| 744-0362-003 | Shim, .015 Thick Pink | $22.03 | Add to Cart | |||
| 744-0362-004 | Shim, .030 Thick Coral | $21.59 | Add to Cart | |||
| 776-0262 | Shaft | — | No longer available — call for replacement | |||
| 873-0042-001 | TC-200 Transfer Case Assembly (manual Cover) | $22,500.00 | Add to Cart | |||
| 927-0299 | Lockwasher, 5/16 | $5.05 | Add to Cart | |||
| 966-0328 | Wood Ruff Key | — | No longer available — call for replacement |
This is the complete factory parts breakdown for the Fabco Transfer Case TC-200 — every part in the manual, matched to our live inventory. We stock 135 of the 189 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
P .2 Tc-200 Input Shaft Parts See Figure P.2 P .4 Tc-200 Front Output Shaft Parts See Figure P.4 P .5 Tc-200 Rear Output Shaft Parts See Figure P.5 P .6 Tc-200 Front Drive Shift Parts See Figure P.6 P .7 Tc-200 High/Low Range Shift Parts See Figure P.7 P .8 Tc-200 Rear Drive Shift Parts See Figure P.8 P .9 Tc-200 Housing Parts See Figure P.9 Additional Parts Listed In This Manual
No parts match that search — try the part number with no dashes.
This Fabco Illustrated Parts List covering the 200 transfer case covers the shafts, gear sets, housings and service parts for your transfer case, with exploded diagrams and OEM part numbers.
| Models covered | 200 |
| Transfer case type | Fabco transfer case |
| Document | Illustrated Parts List (Fabco) |
| Length | 19 pages |
| Format | PDF — view below or download free |
What’s inside
- Input, output & idler shaft assemblies
- Gear sets & ratio components
- Case halves, covers & housings
- Shift mechanism & air-control parts
- Bearing, seal & gasket kits
- Power-take-off & split-shaft components (where fitted)
- Exploded diagrams with OEM part numbers
Fabco parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Fabco transfer case units:
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
