Meritor TG-2213 Transfer Case Parts Manual

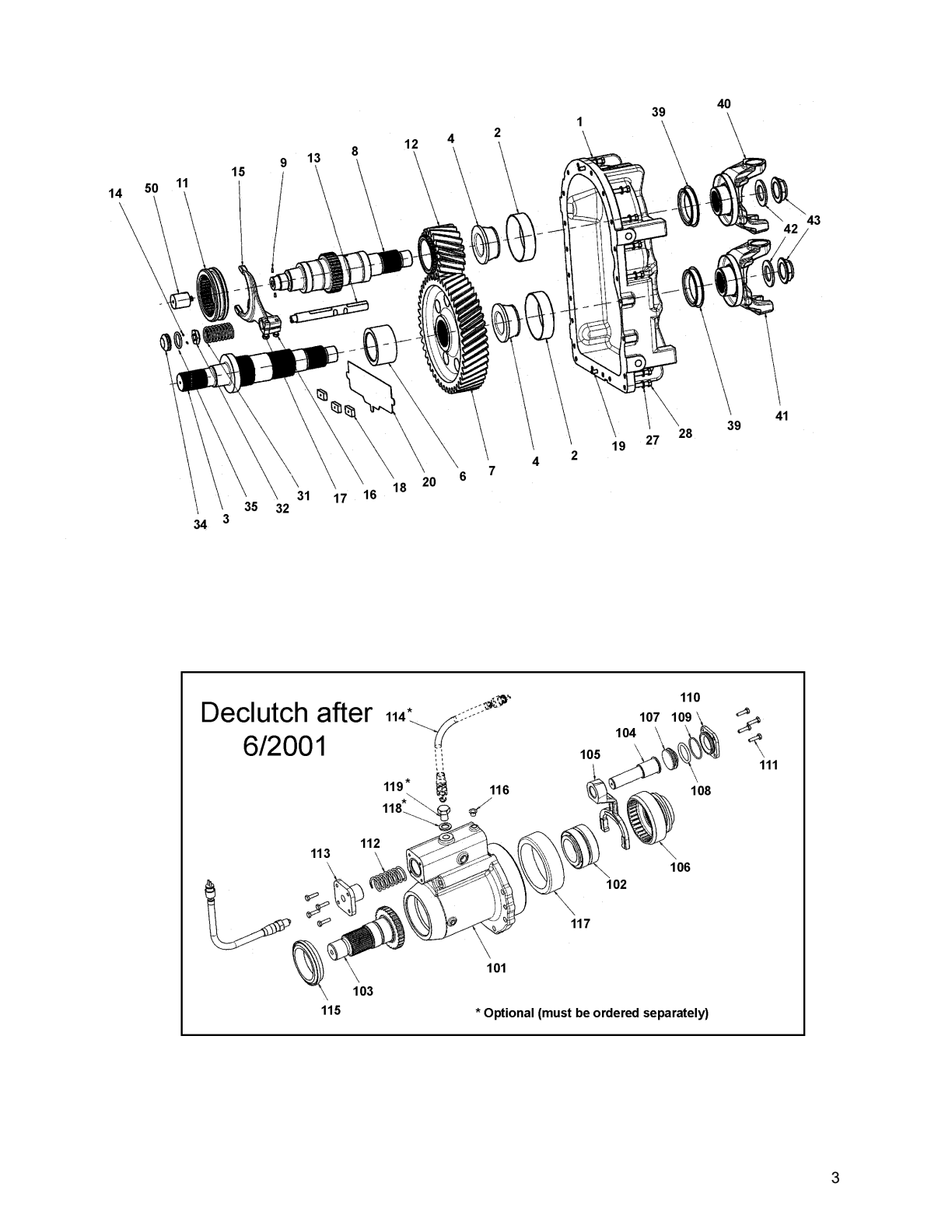

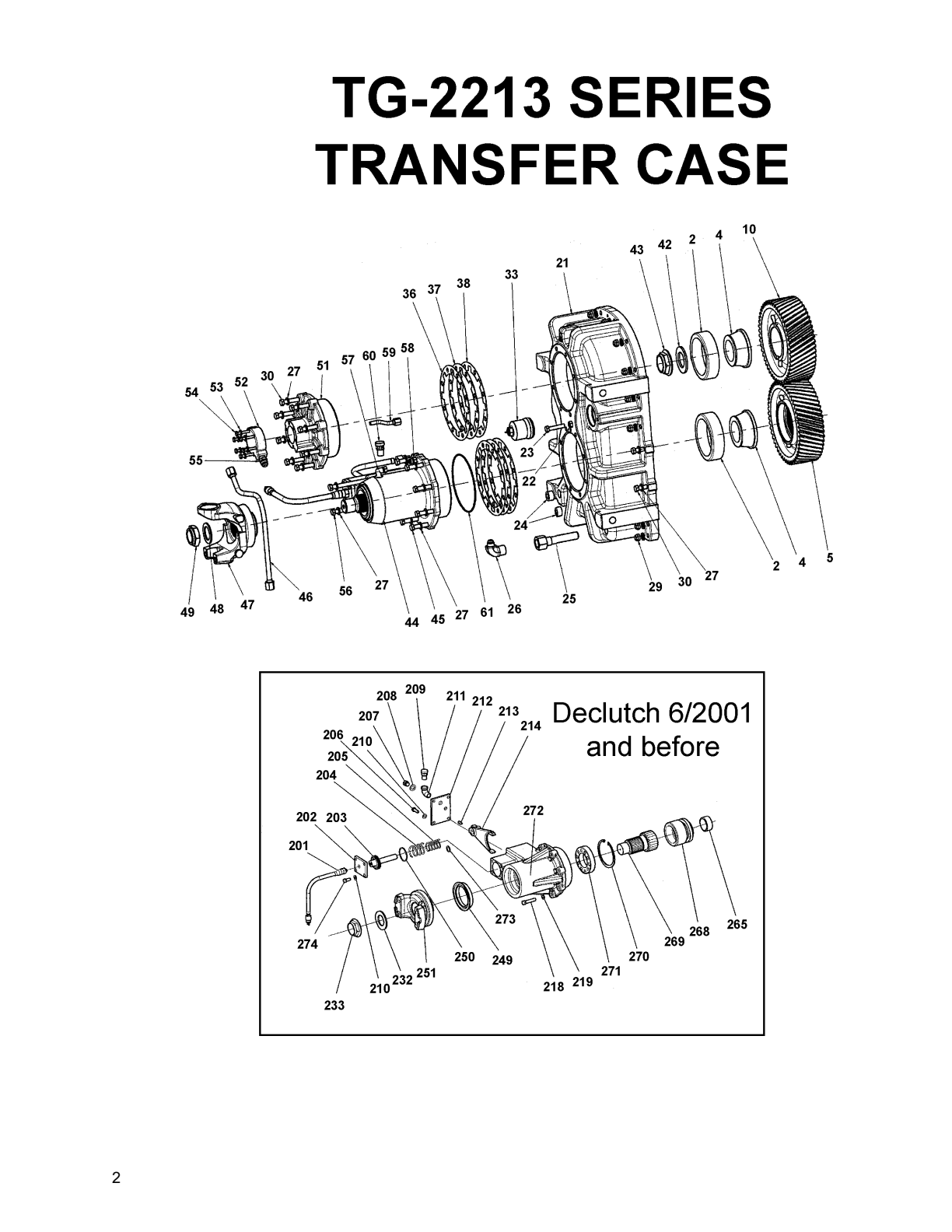

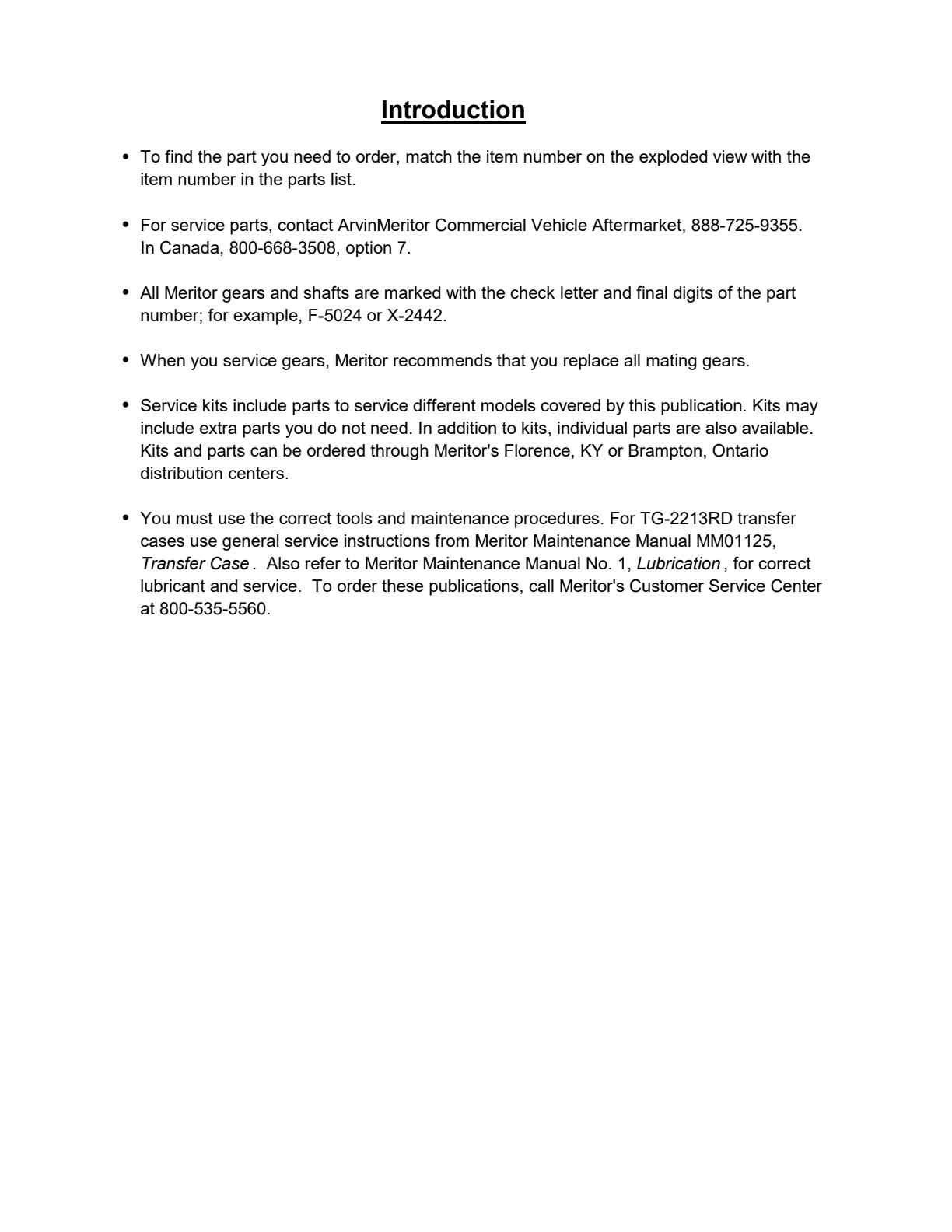

TG -2213 Transfer Case Parts List (refer to Exploded View)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3289E1071 | Transfer Case Cover | 1 | — | Call for availability | |
| 2 | H715311 | Cup Bearing | 3 | Included in KIT 4271 | $58.98 | Add to Cart |
| 3 | 3297L1468 | Output Shaft After 6/01 | 1 | — | Call for availability | |
| 3A | 3297Z1404 | Output Shaft Before 6/01 | 1 | — | Call for availability | |
| 4 | H715334 | Cone Bearing | 4 | Included in KIT 4271 | $132.26 | Add to Cart |
| 5 | 3892X5796 | High Ratio Driven Gear .85 Ratio | 1 | 3892-X-5796 replaces; 3892-T-5584 For models; purchased after 9/2003 service; ,; with KIT 4281 and select the; proper spacer from Item No 6 | — | Call for availability |
| 5 | 3892Z5798 | High Ratio Driven Gear 1 .00 Ratio | 1 | 3892-X-5798 replaces; 3892-P-5528 For models; purchased after 9/2003 service; ,; with KIT 4282 and select the; proper spacer from Item No 6 | — | Call for availability |
| 6 | 1244H2244 | Spacer | 1 | For the following Driven Gear; combinations:; 3892-P-5528 and 3892-R-5530; 3892-T-5584 and 3892-R-5530 | — | Call for availability |
| 6 | 1244D2474 | Spacer | 1 | For the following Driven Gear; combinations:; 3892-P-5528 and 3892-W-5795; 3892-T-5584 and 3892-W-5795; 3892-X-5796 and 3892-R-5530; 3892-Z-5798 and 3892-R-5530; For the following Driven Gear; combinations:; 3892-X-5796 and 3892-W-5795; 3892-Z-5798 and 3892-W-5795 | — | Call for availability |
| 7 | 3892W5795 | Low Ratio Driven Gear 2 .47 Ratio | 1 | 3892-W-5795 replaces; 3892-R-5530 For models; purchased after 9/2003 service; ,; with KIT 4283 and select the; proper spacer from Item No 6 | — | Call for availability |
| 8 | 3297Y1403 | Input Shaft | 1 | — | Call for availability | |
| 9 | 1246S1163 | Pump Drive Pin | 2 | Included in KIT 4279 | $5.37 | Add to Cart |
| 10 | 3892V5586 | High Ratio Drive Gear 0 .85 Ratio | 1 | Included in KIT 4274 | — | Call for availability |
| 10 | 3892N5526 | High Ratio Drive Gear 1 .00 Ratio | 1 | Included in KIT 4273 | — | Call for availability |
| 11 | 3107K1181 | High / Low Shift Clutch Collar | 1 | Included in KIT 2196 | $537.89 | Add to Cart |
| 12 | 3892Q5529 | Low Ratio Drive Gear 2 .47 Ratio | 1 | Included in KIT 4275 | $1,618.83 | Add to Cart |
| 13 | 2244L1156 | High / Low Shift Shaft | 1 | Included in KIT 2196 | — | No longer available — call for replacement |
| 14 | 1246D1174 | Retainer Pin | 2 | Included in KIT 2196 | $48.10 | Add to Cart |
| 15 | 3296Q1317 | High / Low Shift Fork | 1 | Included in KIT 2196 | $283.12 | Add to Cart |
| 16 | S16122 | Shift Fork Capscrew | 1 | Included in KIT 2196 | $1.38 | Add to Cart |
| 17 | S17122 | Shift Fork Capscrew | 1 | Included in KIT 2196 | $1.38 | Add to Cart |
| 18 | 2297K6771 | Magnet | 3 | $34.20 | Add to Cart | |
| 19 | 1846Z312 | Dowel | 2 | Included in KIT 2194 | $134.60 | Add to Cart |
| 20 | 2205D1122 | Oil Baffle | 1 | — | Call for availability | |
| 21 | 3290J1128 | Transfer Case Half | 1 | — | Call for availability | |
| 22 | 40X1300 | Caging Nut | 1 | — | Call for availability | |
| 23 | 41X1486 | Caging Capscrew | 1 | — | Call for availability | |
| 24 | 1250E473 | Fill / Drain Plug | 2 | Included in KIT 2197 | $16.72 | Add to Cart |
| 25 | A2206U1425 | Mesh Filter Assembly | 1 | Included in KIT 2197 & KIT 2199 | $624.34 | Add to Cart |
| 26 | 2206A1431 | Lube Line Elbow | 1 | Included in KIT 2197 & KIT 2199 | $123.88 | Add to Cart |
| 27 | 1229E1513 | Housing Washer | 58 | Included in KIT 2194 | $174.00 | Add to Cart |
| 28 | S27222 | Housing Capscrew | 20 | Included in KIT 2194 | — | Call for availability |
| 29 | NL271 | Lock Nut | 20 | Included in KIT 2194 | $121.00 | Add to Cart |
| 30 | S2716A2 | Housing Capscrew | 10 | Included in KIT 2194 | — | Call for availability |
| 31 | 2258L1364 | High / Low Shift Spring | 1 | Included in KIT 2196 | — | No longer available — call for replacement |
| 32 | 3105J1206 | Retainer | 1 | Included in KIT 2196 | $75.88 | Add to Cart |
| 33 | 3261A1067 | High / Low Shift Cylinder | 1 | Included in KIT 2196 | $24.14 | Add to Cart |
| 34 | 2230T1190 | High / Low Shift Piston | 1 | Included in KIT 2196 | $97.13 | Add to Cart |
| 35 | 5X1198 | O-ring | 1 | Included in KIT 2196 | $38.56 | Add to Cart |
| 36 | 2803Z2704 | Shim .010" | 6 | Included in KIT 4272 | $17.80 | Add to Cart |
| 37 | 2803A2705 | Shim .005" | 8 | Included in KIT 4272 | $18.44 | Add to Cart |
| 38 | 2803B2706 | Shim .003" | 10 | Included in KIT 4272 | $42.92 | Add to Cart |
| 39 | A1205R2592 | Oil Seal | 2 | Included in KIT 2195 | $104.91 | Add to Cart |
| 40 | Yoke Assembly | 1 | See yoke chart | — | Call for availability | |
| 41 | Yoke Assembly | 1 | See yoke chart | — | Call for availability | |
| 42 | 1229N1730 | Yoke Washer | 3 | $52.70 | Add to Cart | |
| 43 | 40X1233 | Lock Nut | 3 | $17.72 | Add to Cart | |
| 44 | A13226K1415 | Declutch Assembly | 1 | — | Call for availability | |
| 45 | S27122 | Capscrew (7/16 X 1 .5) | 6 | Included in KIT 2194 | $155.00 | Add to Cart |
| 46 | A2296U1139 | Lube Line Assembly | 1 | Included in KIT 2199 | $38.76 | Add to Cart |
| 47 | Yoke Assembly | 1 | See yoke chart | — | Call for availability | |
| 48 | 1229T1736 | Washer (2 .36 Od X .12 Thk) | 1 | $21.60 | Add to Cart | |
| 49 | 40X1237 | Locknut (M39 X 1 .5) | 1 | $24.28 | Add to Cart | |
| 50 | A3303X1038 | Pump Assembly | 1 | Included in KIT 2197 | $1,216.41 | Add to Cart |
| 51 | 3266F1410 | Bearing Cage | 1 | — | Call for availability | |
| 52 | 3266T1398 | Pump Cover | 1 | Included in KIT 2197 | $249.10 | Add to Cart |
| 53 | WA34 | Pump Cover Washer | 6 | Included in KIT 2197 | $49.20 | Add to Cart |
| 54 | S24142 | Pump Cover Capscrew | 6 | Included in KIT 2197 | $19.48 | Add to Cart |
| 55 | 2206D1434 | Lube Line Coupling | 1 | Included in KIT 2197 & KIT 2199 | $36.56 | Add to Cart |
| 56 | S27522 | Capscrew (7/16 X 6 .5) | 2 | Included in KIT 2194 | — | Call for availability |
| 57 | A1898U645 | Elbow | 1 | Included in KIT 2197 | — | Call for availability |
| 58 | 2206Z1430 | Connector Fitting | 1 | Included in KIT 2197 | $22.88 | Add to Cart |
| 59 | A2296M1131 | Declutch Lube Tube | 1 | Included in KIT 2197 | — | Call for availability |
| 60 | A1199P1394 | Breather Assembly | 1 | Included in KIT 2197 | $175.80 | Superseded by A1199W4053Add to Cart |
| 61 | 5X1299 | O-ring | 1 | Included in KIT 2195 | $27.22 | Add to Cart |
| 114 | 3237W1167 | Switch Assembly | 1 | Optional | $97.07 | Add to Cart |
| 118 | 1229U1503 | Washer Flat | 1 | Optional | $130.00 | Add to Cart |
| 119 | 41X1022 | Screw Special | 1 | Optional; 5 | $125.40 | Add to Cart |
| 101 | 3226K1415 | Cage Bearing | 1 | — | Call for availability | |
| 102 | KIT2593 | Bearing Assy. | 1 | — | No longer available — call for replacement | |
| 103 | 3297B1432 | Shaft Pto | 1 | $400.88 | Add to Cart | |
| 104 | 2244N1184 | Rod Push | 1 | $117.38 | Add to Cart | |
| 105 | 3296A1301 | Fork Shift | 1 | $288.72 | Add to Cart | |
| 106 | 3107D1018 | Clutch Collar Diff. Lockout | 1 | $191.60 | Add to Cart | |
| 107 | 2230T1190 | Piston Shifter | 1 | $97.13 | Add to Cart | |
| 108 | 5X1198 | O-ring | 1 | Included in KIT 2195 | $38.56 | Add to Cart |
| 109 | 5X1267 | O-ring | 1 | Included in KIT 2195 | $74.00 | Add to Cart |
| 110 | 2205N1132 | Plate Piston Cover | 1 | — | Call for availability | |
| 111 | S2482 | Capscrew | 8 | $102.00 | Add to Cart | |
| 112 | 2258N1262 | Spring Shifter | 1 | $40.70 | Add to Cart | |
| 113 | 2205P1134 | Cap | 1 | — | No longer available — call for replacement | |
| 115 | A1205P2590 | Seal Assy. Oil (front Output) | 1 | Included in KIT 2195 | $92.32 | Add to Cart |
| 116 | 1250N222 | Shipping Protector | 1 | — | Call for availability | |
| 117 | H715311 | Bearing Cup (for Models Built 6/2001 And | 1 | before) | $58.98 | Add to Cart |
| 201 | A3237A1041 | Indicator Switch Assembly | 1 | $110.74 | Add to Cart | |
| 202 | 2205C1043 | Cover Plate | 1 | — | No longer available — call for replacement | |
| 203 | 2230K1155 | Declutch Piston | 1 | Included in KIT 4280 | — | No longer available — call for replacement |
| 204 | 2258L1338 | Declutch Spring | 1 | Included in KIT 4280 | — | No longer available — call for replacement |
| 205 | 2258K1337 | Declutch Spring | 1 | Included in KIT 4280 | $55.06 | Add to Cart |
| 206 | S2682 | Plate Capscrew | 4 | $159.00 | Add to Cart | |
| 207 | 1250A495 | Switch Plug | 1 | $6.11 | Add to Cart | |
| 208 | 1229X1558 | Plug Washer | 1 | $660.00 | Add to Cart | |
| 209 | A1199P1394 | Breather Asembly | 1 | $175.80 | Superseded by A1199W4053Add to Cart | |
| 210 | 1229K1597P | Plate Washer | 8 | $172.00 | Add to Cart | |
| 211 | 2206F1254 | Breather Elbow | 1 | $62.27 | Add to Cart | |
| 212 | 2205J1128 | Cover Plate | 1 | — | Call for availability | |
| 213 | 26X1008 | Shift Fork Set Screw | 1 | Included in KIT 4280 | — | No longer available — call for replacement |
| 214 | 3296K1155 | Declutch Shift Fork | 1 | Included in KIT 4280 | — | Call for availability |
| 218 | S2716A2 | Capscrew | 8 | Included in KIT 4276 | — | Call for availability |
| 219 | 1229E1513 | Washer | 8 | Included in KIT 4276 | $174.00 | Add to Cart |
| 232 | 1229N1730 | Yoke Washer | 1 | $52.70 | Add to Cart | |
| 233 | 40X1233 | Lock Nut | 1 | $17.72 | Add to Cart | |
| 249 | A1205R2592 | Oil Seal Assembly | 1 | $104.91 | Add to Cart | |
| 250 | 5X1138 | Piston Quad Ring | 1 | Included in KIT 4280 | $11.84 | Add to Cart |
| 251A | 17TYS3876A1 | Yoke Assembly | 1 | Easy Service | — | Call for availability |
| 251B | 17NYS3832A1 | Yoke Assembly | 1 | Full Round | — | Call for availability |
| 265 | 1228Z1222 | Needle Bearing | 1 | Included in KIT 4280 | $65.38 | Add to Cart |
| 268 | 3107J1102 | Declutch Clutch Collar | 1 | — | No longer available — call for replacement | |
| 269 | A3297Q1395 | Declutch Shaft | 1 | Included in KIT 4280 | $401.71 | Add to Cart |
| 270 | 1229L4718 | Snap Ring | 1 | Included in KIT 4280 | — | Call for availability |
| 271 | 1228L194 | Ball Bearing | 1 | Included in KIT 4280 | $69.05 | Add to Cart |
| 272 | 3226X1350 | Declutch Housing | 1 | — | Call for availability | |
| 273 | 5X1137 | Declutch Quad Ring | 1 | Included in KIT 4280 | $24.92 | Add to Cart |
| 274 | S2672 | Plate Capscrew | 4 | $89.00 | Add to Cart |
Service Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H715311 | Bearing Cup | 4 | $58.98 | Add to Cart | ||
| H715334 | Bearing Cone | 4 | $132.26 | Add to Cart | ||
| 2803Z2704 | Pump Cover Shim .010" | 6 | $17.80 | Add to Cart | ||
| 2803A2705 | Pump Cover Shim .005" | 8 | $18.44 | Add to Cart | ||
| 2803B2706 | Pump Cover Shim .003" | 10 | $42.92 | Add to Cart | ||
| 2803Z2704 | Declutch Shim .010" | 6 | $17.80 | Add to Cart | ||
| 2803A2705 | Declutch Shim .005" | 8 | $18.44 | Add to Cart | ||
| 2803B2706 | Declutch Shim .003" | 10 | $42.92 | Add to Cart | ||
| 3892V5586 | Drive Gear .85 Ratio | 1 | — | Call for availability | ||
| 3892T5584 | Driven Gear | 1 | — | Call for availability | ||
| 3892X5796 | Driven Gear | 1 | — | Call for availability | ||
| 3892N5526 | Drive Gear 1 .00 Ratio | 1 | — | Call for availability | ||
| 3892P5528 | Driven Gear | 1 | — | Call for availability | ||
| 3892Z5798 | Driven Gear | 1 | — | Call for availability | ||
| 3892Q5529 | Drive Gear 2 .47 Ratio | 1 | $1,618.83 | Add to Cart | ||
| 3892R5530 | Driven Gear | 1 | — | Call for availability | ||
| 3892W5795 | Driven Gear | 1 | — | Call for availability | ||
| S2716A2 | Pump Cover Capscrew | 8 | — | Call for availability | ||
| 1229E1513 | Pump Cover Washer | 8 | $174.00 | Add to Cart | ||
| S2716A2 | Declutch Capscrew | 8 | — | Call for availability | ||
| 1229E1513 | Declutch Washer | 8 | $174.00 | Add to Cart | ||
| S27222 | Case Half Capscrew | 20 | — | Call for availability | ||
| S2716A2 | Case Half Capscrew | 2 | — | Call for availability | ||
| 1229E1513 | Case Half Washer | 42 | $174.00 | Add to Cart | ||
| NL271 | Case Half Locknut | 20 | $121.00 | Add to Cart | ||
| 1846Z312 | Dowel | 2 | $134.60 | Add to Cart | ||
| A2206U1425 | Mesh Filter Assembly | 1 | $624.34 | Add to Cart | ||
| 2206A1431 | Lube Line Elbow | 1 | $123.88 | Add to Cart | ||
| A2296U1139 | Lube Line Assembly | 1 | $38.76 | Add to Cart | ||
| 2206D1434 | Lube Line Coupling | 1 | $36.56 | Add to Cart | ||
| 1229E1513 | Housing Washer | 58 | $174.00 | Add to Cart | ||
| S27222 | Housing Capscrew | 20 | — | Call for availability | ||
| NL271 | Lock Nut | 20 | $121.00 | Add to Cart | ||
| S2716A2 | Housing Capscrew | 10 | — | Call for availability | ||
| S27122 | Capscrew (7/16 X 1 .5) | 6 | $155.00 | Add to Cart | ||
| S27522 | Capscrew (7/16 X 6 .5) | 2 | — | Call for availability | ||
| A1205R2592 | Unitized Seal | 3 | $104.91 | Add to Cart | ||
| A1205R2592 | Oil Seal | 2 | $104.91 | Add to Cart | ||
| 5X1299 | O-ring | 1 | $27.22 | Add to Cart | ||
| 5X1198 | O-ring | 1 | $38.56 | Add to Cart | ||
| 5X1267 | O-ring | 1 | $74.00 | Add to Cart | ||
| A1205P2590 | Seal Assy. Oil (front Output) | 1 | $92.32 | Add to Cart | ||
| 3107K1181 | High / Low Shift Clutch Collar | 1 | $537.89 | Add to Cart | ||
| 2244L1156 | High / Low Shift Shaft | 1 | — | No longer available — call for replacement | ||
| 1246D1174 | Retainer Pin | 2 | $48.10 | Add to Cart | ||
| 3296Q1317 | High / Low Shift Fork | 1 | $283.12 | Add to Cart | ||
| S16122 | Shift Fork Capscrew | 1 | $1.38 | Add to Cart | ||
| S17122 | Shift Fork Capscrew | 1 | $1.38 | Add to Cart | ||
| 2258L1364 | High / Low Shift Spring | 1 | — | No longer available — call for replacement | ||
| 3105J1206 | Retainer | 1 | $75.88 | Add to Cart | ||
| 3261A1067 | High / Low Shift Cylinder | 1 | $24.14 | Add to Cart | ||
| 2230T1190 | High / Low Shift Piston | 1 | $97.13 | Add to Cart | ||
| 5X1198 | O-ring | 1 | $38.56 | Add to Cart | ||
| 1250E473 | Fill / Drain Plug | 2 | $16.72 | Add to Cart | ||
| A3303X1038 | Pump Assembly | 1 | $1,216.41 | Add to Cart | ||
| 3266T1398 | Pump Cover | 1 | $249.10 | Add to Cart | ||
| WA34 | Pump Cover Washer | 6 | $49.20 | Add to Cart | ||
| S24142 | Pump Cover Capscrew | 6 | $19.48 | Add to Cart | ||
| A1898U645 | Elbow | 1 | — | Call for availability | ||
| 2206Z1430 | Connector Fitting | 1 | $22.88 | Add to Cart | ||
| A2296M1131 | Declutch Lube Tube | 1 | — | Call for availability | ||
| A1199P1394 | Breather Assembly | 1 | $175.80 | Superseded by A1199W4053Add to Cart | ||
| 1246S1163 | Pin | 2 | $5.37 | Add to Cart | ||
| 1228M1547 | Bearing Cup | 2 | $16.15 | Add to Cart | ||
| 1228N1548 | Bearing Cone | 2 | $32.13 | Add to Cart | ||
| 1244F2554 | Spacer | 1 | $80.66 | Add to Cart | ||
| 1244Q2565 | Spacer | 1 | $80.66 | Add to Cart | ||
| 1244R2566 | Spacer | 1 | $80.66 | Add to Cart | ||
| 1244S2567 | Spacer | 1 | $80.66 | Add to Cart | ||
| 1244T2568 | Spacer | 1 | $80.66 | Add to Cart | ||
| 1244U2569 | Spacer | 1 | $80.66 | Add to Cart | ||
| 1244V2570 | Spacer | 1 | $80.66 | Add to Cart | ||
| 1244K2585 | Spacer | 1 | — | No longer available — call for replacement | ||
| 1244L2586 | Spacer | 1 | — | No longer available — call for replacement | ||
| 1244M2587 | Spacer | 1 | — | No longer available — call for replacement | ||
| 1244N2588 | Spacer | 1 | $41.44 | Add to Cart | ||
| 1244P2590 | Spacer | 1 | — | No longer available — call for replacement | ||
| 1244Q2591 | Spacer | 1 | — | No longer available — call for replacement | ||
| 5X1137 | Quad Ring | 1 | $24.92 | Add to Cart | ||
| 5X1138 | Quad Ring | 1 | $11.84 | Add to Cart | ||
| 2230K1155 | Piston | 1 | — | No longer available — call for replacement | ||
| 3296K1155 | Shift Fork | 1 | — | Call for availability | ||
| 26X1008 | Set Screw | 1 | — | No longer available — call for replacement | ||
| 2258K1337 | Spring | 1 | $55.06 | Add to Cart | ||
| 2258L1338 | Spring | 1 | — | No longer available — call for replacement | ||
| A3297Q1395 | Declutch Shaft | 1 | $401.71 | Add to Cart | ||
| 1228L194 | Ball Bearing | 1 | $69.05 | Add to Cart | ||
| 1228Z1222 | Needle Bearing | 1 | $65.38 | Add to Cart | ||
| 1229L4718 | Snap Ring | 1 | — | Call for availability | ||
| DECLUTCHWITHA13226K1415 | (use To | replace the | — | Call for availability | ||
| A13226K1415 | Declutch Assembly | 1 | — | Call for availability | ||
| 3237W1167 | Switch Assembly | 1 | $97.07 | Add to Cart | ||
| 1229U1503 | Washer | 1 | $130.00 | Add to Cart | ||
| 41X1022 | Screw Special | 1 | $125.40 | Add to Cart | ||
| 1229T1736 | Washer Flat | 1 | $21.60 | Add to Cart | ||
| 40X1237 | Locknut | 1 | $24.28 | Add to Cart | ||
| 1229E1513 | Washer | 8 | $174.00 | Add to Cart | ||
| S27122 | Capscrew | 6 | $155.00 | Add to Cart | ||
| S27522 | Capscrew | 2 | — | Call for availability | ||
| A1898U645 | Elbow Assembly | 1 | — | Call for availability | ||
| 2206Z1430 | Fitting Connector | 1 | $22.88 | Add to Cart | ||
| A2296M1131 | Lube Tube Declutch | 1 | — | Call for availability | ||
| 3297L1468 | Shaft Output, Fin | 1 | — | Call for availability | ||
| H715334 | Cone Bearing | 2 | $132.26 | Add to Cart | ||
| H715311 | Cup Bearing | 1 | $58.98 | Add to Cart | ||
| 2803Z2704 | Shim .010 | 2 | $17.80 | Add to Cart | ||
| 2803A2705 | Shim .005 | 2 | $18.44 | Add to Cart | ||
| 2803B2706 | Shim .003 | 2 | $42.92 | Add to Cart | ||
| 5X1299 | O-ring (note: Yoke Assembly Must Be Ordered Separately) | 1 | $27.22 | Add to Cart |
Easy Service Yokes (TYS)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 17TYS3876A1 | Easy Service Yokes (tys) — Part Number | — | Call for availability | |||
| 176TYS3827A1 | Easy Service Yokes (tys) — Part Number | — | Call for availability | |||
| 17N476411X | Easy Service Yokes (tys) — Part Number | $403.45 | Add to Cart | |||
| 17TYS3268A1 | Easy Service Yokes (tys) — Part Number | — | Call for availability |
This is the complete factory parts breakdown for the Meritor TG-2213 Transfer Case — every part in the manual, matched to our live inventory. We stock 142 of the 227 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
No parts match that search — try the part number with no dashes.
