Spicer PSO175-16B Parts Manual
Drive Gear Input Shaft Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 550944 | Bearing | 1 | — | Call for availability | |
| C-2 | 97-35-34 | Drive Gear Input Shaft 2" 10 Spline | 1 | $379.29 | Add to Cart | |
| C-3 | 550889 | Pocket Bearing | 1 | $28.25 | Add to Cart | |
| C-3 | 97-35-39 | ( 28T) - For PS0150 -16A | — | Call for availability | ||
| C-3 | 97-35-112 | ( 26T) - For PS0165 -16B & PS0175 -16B | — | Call for availability | ||
| C-3 | 97-35-209 | ( 26T ) - For PS0150 -16B | — | Call for availability | ||
| C-5 | 97-466-13 | Clutch Ring Drive And Splitter. | 1 | $218.64 | Add to Cart | |
| C-6 | 97-381-31 | Snap Ring | 1 | $6.17 | Add to Cart | |
| C-7 | 97-456-26 | Clutch Collar- Splitter. | 1 | — | Call for availability | |
| C-8 | 97-466-17 | Clutch Splitter Gear. | 1 | $187.62 | Add to Cart | |
| C-9 | 97-381-2 | Snap Ring | 1 | — | Call for availability |
Mainshaft Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| D-1 | 97-362-51 | Mainshaft. | 1 | $857.22 | Add to Cart | |
| D-2 | 98-381-2 | Snap Ring | 1 | $5.31 | Add to Cart | |
| D-3 | 330810 | Thrust Washer External ( 24T ) | 2 | $23.58 | Add to Cart | |
| D-4 | 330869 | Thrust Washer Internal ( 18T ) | 3 | $24.39 | Add to Cart | |
| D-5 | 98-381-1 | Snap Ring | 3 | $6.27 | Add to Cart | |
| D-6 | 97-8-113 | Mainshaft Gear ( 64T ) 1st 4th | 1 | $785.81 | Add to Cart | |
| D-7 | 97-465-24 | Clutch Collar ( 1st 4th And Reverse ) | 1 | $213.84 | Add to Cart | |
| D-8 | 97-8-182 | Shift Gear ( 64T) Reverse | 1 | $528.68 | Add to Cart | |
| D-9 | 97-381-32 | Snap Ring | 2 | $4.36 | Add to Cart | |
| D-10 | 550925 | Bearing | 1 | $107.78 | Add to Cart | |
| D-11 | 97-381-1 | Snap Ring | 3 | $6.27 | Add to Cart | |
| D-12 | 330814 | Thrust Washer External ( 20T ) | 3 | $20.46 | Add to Cart | |
| D-13 | 330730 | Thrust Washer Internal ( 15T ) | 3 | $14.16 | Add to Cart | |
| D-14 | 97-381-4 | Snap Ring | 3 | $3.75 | Add to Cart | |
| D-14 | 97-8-305 | (54T) - For PS0150 -16A | — | Call for availability | ||
| D-14 | 97-8-325 | (52T) - For PS0150 -168 I PS0165 -168 I PS0175 -168 | — | Call for availability | ||
| D-16 | 97-465-21 | Clutch Collar- (5th 12th) | 1 | $124.23 | Add to Cart | |
| D-16 | 97-8-303 | (40T) -for PS0150 -16A | — | Call for availability | ||
| D-16 | 97-8-327 | (38T) - For PS0150 -16B I PS0165 -16B I Pso 175 -168 | — | Call for availability | ||
| D-16 | 97-8-301 | (32T) - For PS0150 -16A | — | Call for availability | ||
| D-16 | 97-8-329 | (30T) - For PS0150 -16B I PS0165 -16B I PS0175 -16B | — | Call for availability | ||
| D-19 | 97-465-50 | Clutch Collar- (13th -16th) | 1 | $87.40 | Add to Cart | |
| D-19 | 97-35-36 | (26T) - For PS0150 -16A | $167.99 | Add to Cart | ||
| D-19 | 97-35-114 | (24T) - For PS0165 -16B I PS0175 -16B | $601.52 | Add to Cart | ||
| D-19 | 97-35-207 | (24T) - For PS0150 -16B | — | Call for availability | ||
| D-21 | 97-466-13 | Clutch Ring- Drive And Splitter. | 1 | $218.64 | Add to Cart | |
| D-22 | 97-381-31 | Snap Ring | 1 | $6.17 | Add to Cart |

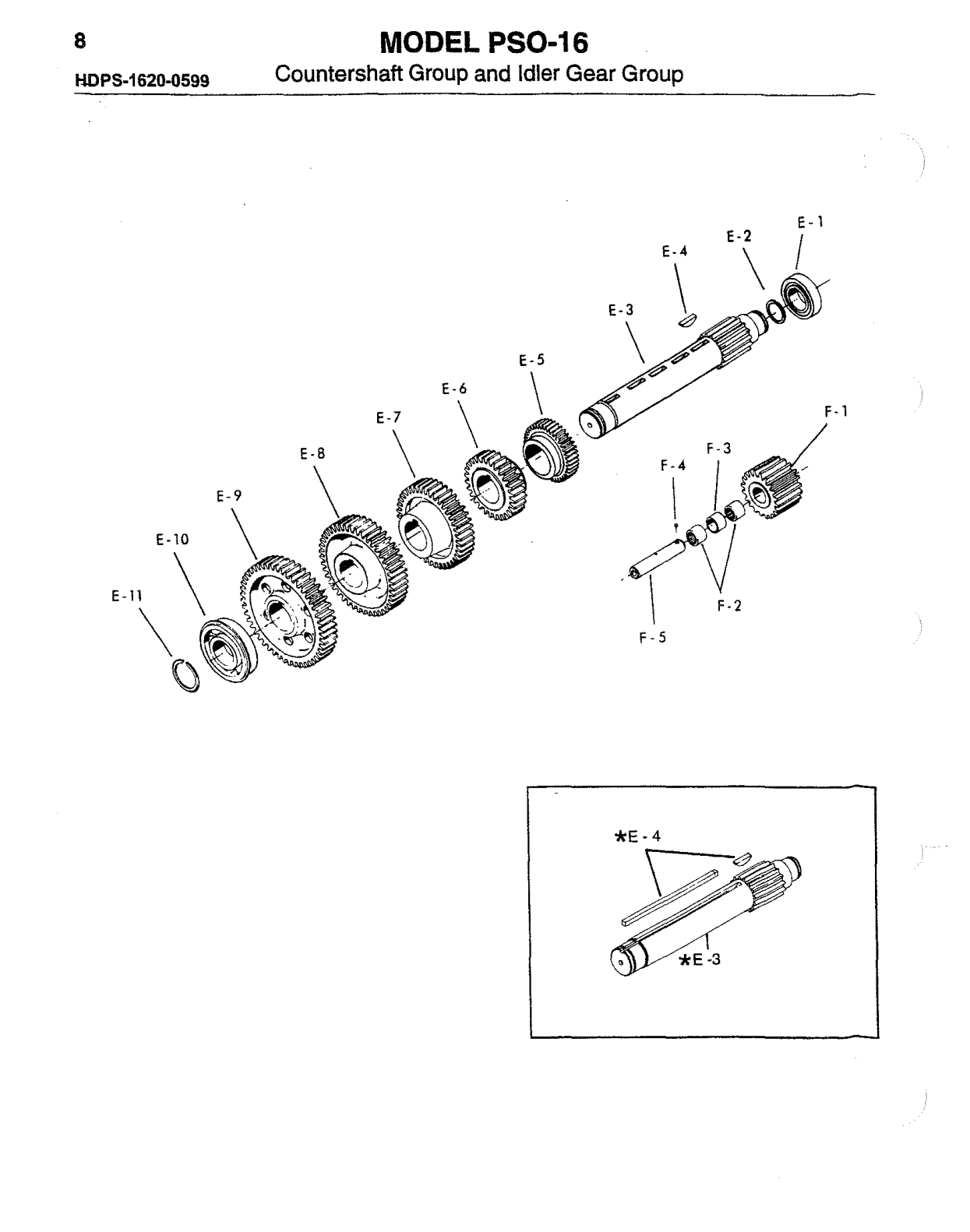

Countershaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 550969 | Bearing - Rear | 2 | $120.90 | Add to Cart | |
| E-2 | 97-381-34 | Snap Ring - For Rear Bearing | 2 | $4.59 | Add to Cart | |
| E-2 | 97-30-46-1X | (includes E-3, E-4 And E-11) | — | Call for availability | ||
| E-2 | 97-30-77-1X | (includes E-3, E-4 And E-11) | — | Call for availability | ||
| E-2 | 97-30-46 | Shaft- For PS0150-16A & PS0150 -16B | — | Call for availability | ||
| E-2 | 97-30-77 | Shaft- For PS0165-16B & PS0175 -16B | — | Call for availability | ||
| E-4 | 500010-8 | Woodruff Key (use With 97-30-46) | 10 | $2.89 | Add to Cart | |
| E-4 | 97-196-355 | (26T) - For PS0150-16A | — | Call for availability | ||
| E-4 | 97-196-375 | (26T) - For PS0150-16B I PS0165 -16B I PS0175 -16B | — | Call for availability | ||
| E-4 | 97-196-353 | (40T) - For PS0150-16A | — | Call for availability | ||
| E-4 | 97-196-377 | (41T) - For PS0150 -168 I PS0165 -16B I PS0175 -16B | — | Call for availability | ||
| E-4 | 97-196-351 | (46T) -forPS0150 -16A | — | Call for availability | ||
| E-4 | 97-196-379 | (48T) - For PS0150-16B I PS0165 -16B I PS0175 -16B | — | Call for availability | ||
| E-4 | 97-196-53 | (54T) -for PS0150-16A | — | Call for availability | ||
| E-4 | 97-196-177 | (56T) - For PS0165-16B I PS0175 -16B | $466.92 | Add to Cart | ||
| E-4 | 97-196-381 | (56T) - For PSOIS0-168 | — | Call for availability | ||
| E-4 | 97-1-21 | (49T) - For PS0150-16A | — | Call for availability | ||
| E-4 | 97-1-59 | (sot)- For PS0165-16B I PS0175 -168 | — | Call for availability | ||
| E-4 | 97-1-90 | (sot) -for PS0150-16B | — | Call for availability | ||
| E-4 | 97-482-2 | $284.96 | Add to Cart | |||
| E-4 | 550952 | $231.89 | Add to Cart | |||
| E-11 | 97-381-30 | Snap Ring | 2 | $6.73 | Add to Cart |
Idler Gear Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 97-5-1 | Gear- Idler ( 21 T) | 2 | $268.01 | Add to Cart | |
| F-2 | 550886 | Bearing -for Idler Gear. | 4 | $11.32 | Add to Cart | |
| F-3 | 97-37-1 | Spacer- For Idler Gear Bearings | 2 | $2.43 | Add to Cart | |
| F-4 | 500566-8 | Lockball - 9132" Diameter. | 2 | — | Call for availability | |
| F-5 | 97-60-1 | Shaft - For Reverse Idler Gear. | 2 | $45.67 | Add to Cart |
Auxiliary Countershaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 550899 | Bearing Countershaft Front Taper | 2 | — | Call for availability | |
| H-2 | 550900 | Bearing Countershaft Front Taper | 2 | $31.43 | Add to Cart | |
| H-2 | 97-1-33 | (31 T I 5P) For PS0150 -16B | — | Call for availability | ||
| H-2 | 97-1-61 | (31T 15P) For PS0165 -16B & PS0175 -16B | — | Call for availability | ||
| H-2 | 97-1-84 | (32T 15P) For PS0150 -16A | — | Call for availability | ||
| H-4 | 500010-18 | Key Countershaft | 2 | — | Call for availability | |
| H-4 | 97-30-57 | (26n Slotted For PS0150 -16A | — | Call for availability | ||
| H-4 | 97-30-82 | (25T) Slotted For PS0165 -16B & PS0175 -16B | — | Call for availability | ||
| H-4 | 97-30-90 | (25T) Slotted For PS0150 -16B | — | Call for availability | ||
| H-6 | 550936 | Bearing Countershaft Taper | 2 | — | Call for availability | |
| H-7 | 550935 | Bearing Countershaft Taper | 2 | — | Call for availability |

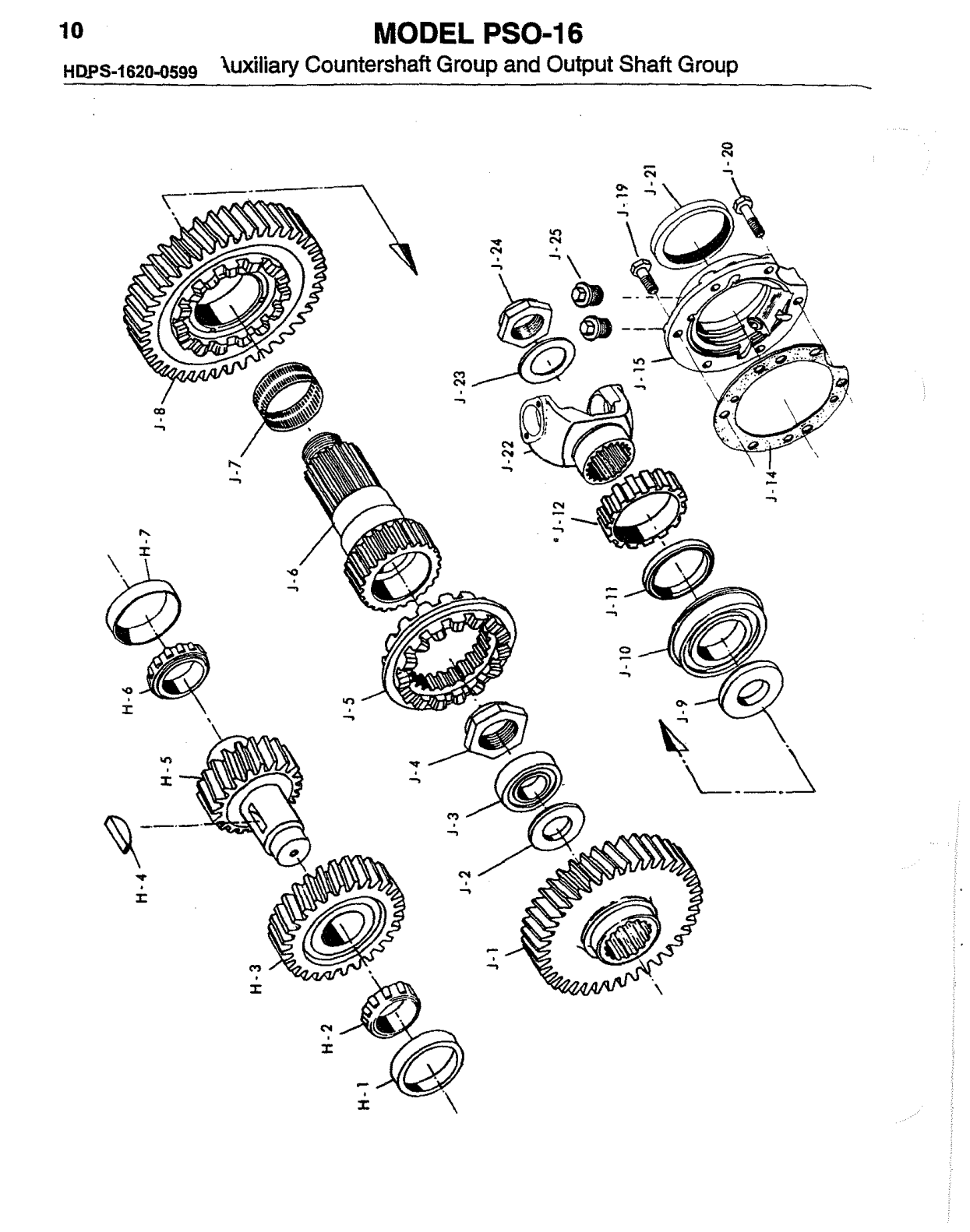

Output Shaft Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-7 | 97-8-59 | (34T 15P) - PS0150 -16A & PS0150 -16B | — | Call for availability | ||
| H-7 | 97-8-248 | (34T Isp) - PS0165 -16B & PS0175 -16B | — | Call for availability | ||
| J-2 | 97-47-3 | Washer Auxiliary Mainshaft Bearing Thrust. | 1 | — | Call for availability | |
| J-3 | 550921 | Bearing | 1 | $102.76 | Add to Cart | |
| J-4 | 545006 | Nut. | 1 | — | Call for availability | |
| J-5 | 97-465-27 | Collar For Output Shaft. | 1 | $255.11 | Add to Cart | |
| J-6 | 97-362-59 | Mainshaft (auxiliary Output) | 1 | $517.59 | Add to Cart | |
| J-7 | 550932 | Needle Bearing For Mainshaft Output | 1 | $40.03 | Add to Cart | |
| J-7 | 97-8-220 | (40T 15P) - PS0150 -16A & PS0150 -16B | — | Call for availability | ||
| J-7 | 97-8-249 | (40T I Sp) - PS0165 -16B & PS0175 -16B | — | Call for availability | ||
| J-9 | 97-47-4 | Washer Auxiliary Mainshaft Bearing Thrust. | 1 | — | Call for availability | |
| J-10 | 550925 | Bearing | 1 | $107.78 | Add to Cart | |
| J-11 | 97-37-17 | Speedometer (used With 97-452-14 & 97-37-7) | 1 | — | Call for availability |
Gear Spacer
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-11 | 97-452-22 | Electronic Speedometer Ring Gear With Hub | — | Call for availability | ||
| J-11 | 97-452-14 | Electronic Speedometer Ring Gear (use With 97-37-17) | — | Call for availability | ||
| J-11 | 97-37-7 | Used When There Is Not Speedometer With 97 -37 -17 | $11.22 | Superseded by 49377Add to Cart | ||
| J-11 | 55-334-1 | Plug ( Used Without Speedometer Driven Gear) | 1 | $88.44 | Add to Cart | |
| J-13 | 60-475-1 | Bushing Main Shaft Bearing Speedometer. | 1 | $32.75 | Add to Cart |
Rear Cap
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-14 | 97-223-2 | Gasket Mainshaft Bearing | 1 | $4.64 | Add to Cart | |
| J-19 | 545001-4 | Bolt 112" 13 1 112" Hex Head Self Locking | 4 | $1.74 | Add to Cart | |
| J-20 | 545001-8 | Bolt -112 " 13 2 112" Hex Head Self Locking | 2 | — | Call for availability | |
| J-21 | 97-463-33 | Seal Mains Haft Bearing Oil Seal | 1 | $26.73 | Add to Cart | |
| J-23 | 330734 | Washer For Output Shaft Nut. | 1 | $6.27 | Add to Cart | |
| J-24 | 545065 | Nut For Output Shaft. | 1 | $31.43 | Add to Cart | |
| J-25 | 545021 | Plug | 2 | $18.89 | Add to Cart |

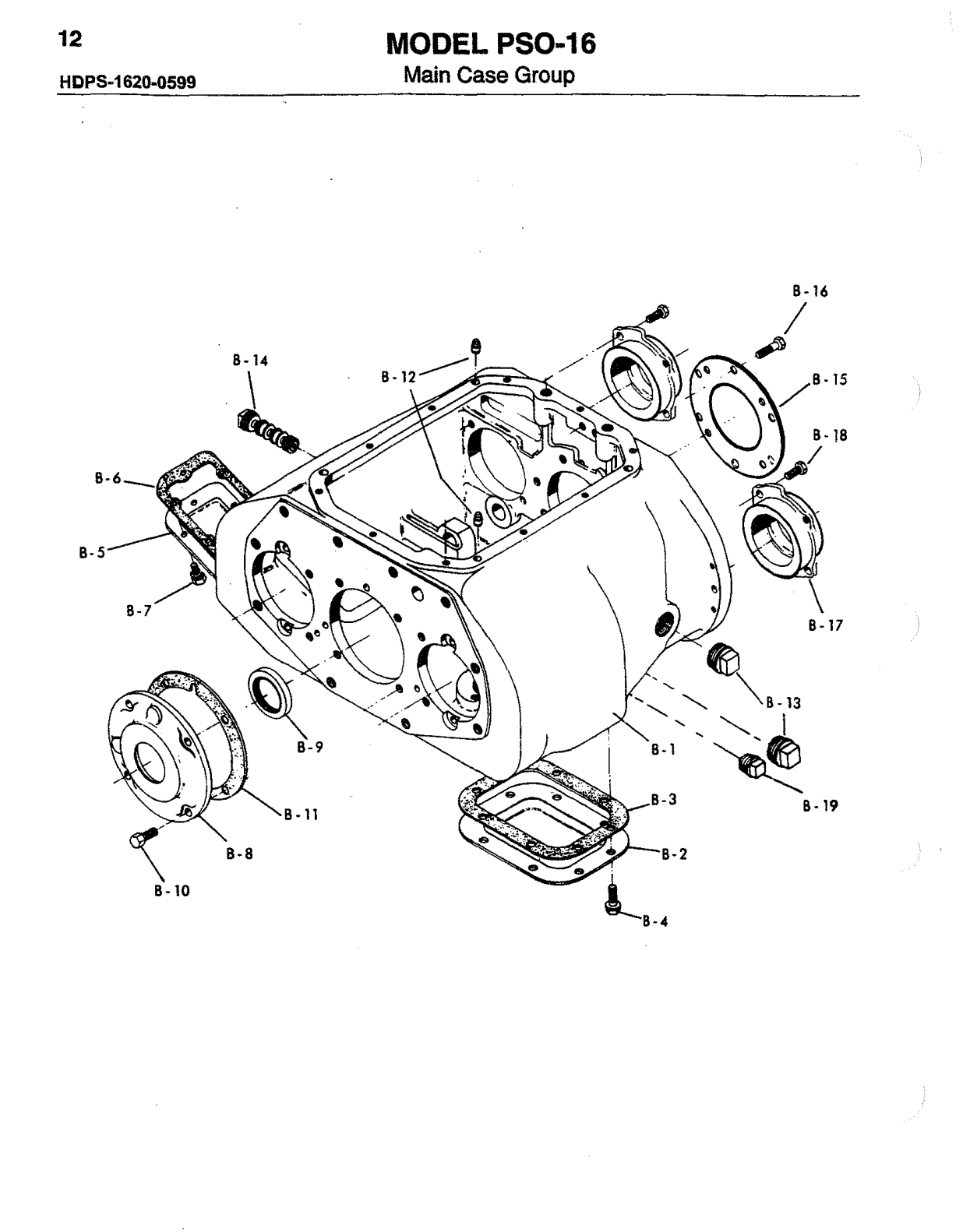

Main Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 97-15-61-1X | Case Assembly (97 -15-90-1 X Be Used In Place | — | Call for availability | |||
| 97-15-90-1X | Case Assembly (97 -15-90-1 X Will Service | — | Call for availability | |||
| B-2 | 73-267-1 | Cover P .t.o Aperture ( 8 Hole) | 1 | $160.99 | Add to Cart | |
| B-3 | 97-324-2 | Gasket P .t .o Aperture ( 8 Hole) | 1 | $6.27 | Add to Cart | |
| B-4 | 545012 | Bolt- 7/16" 14 3/4" Flanged Head Self Locking | 8 | $3.23 | Add to Cart | |
| B-5 | 50-267-2 | Cover P .t.o Aperture ( 6 Hole) | 1 | $122.97 | Add to Cart | |
| 'B -6 | 97-324-1 | Gasket P .t.o Aperture ( 6 Hole) | 1 | $3.91 | Add to Cart | |
| B-7 | 330800 | Bolt 3/8" 16 3/4" Flanged Head Self Locking | 6 | — | Call for availability | |
| B-8 | 97-19-36-1X | Bearing Cap And Oil Seal Assembly (8 -8 & 89) | 1 | $283.06 | Add to Cart | |
| B-9 | 97-463-32 | Oil Seal | 1 | $26.60 | Add to Cart | |
| B-10 | 545002-4 | Bolt- 3/8 " 16 1 1/8" Hex Head Self Locking | 4 | $6.93 | Add to Cart | |
| B-11 | 97-223-1 | Gasket For Bearing Cap | 1 | $4.72 | Add to Cart | |
| B-12 | 274-SP | Dowel Pin Locator For Shifter Housing | 2 | $2.77 | Add to Cart | |
| B-13 | 62-39-3 | Drain And Filler Plug Magnetic | 2 | $9.27 | Add to Cart | |
| B-14 | 97-39-1 | Drain Plug Magnetic | 1 | — | Call for availability | |
| B-15 | 97-360-8 | Main Shaft Rear Bearing Retainer. | 1 | — | Call for availability | |
| B-16 | 545001-5 | Bolt- 1/2 " 13 1 1/4" Flanged Head Self Locking | — | Call for availability | ||
| B-17 | 97-360-6 | Countershaft Rear Bearing Retainer. | 2 | — | Call for availability | |
| B-18 | 545002 | Bolt 3/8" 16 1 Hex Head Self Locking | 4 | $1.98 | Add to Cart | |
| B-19 | 500114 | Plug Temperature Indicator Hole | 1 | — | Call for availability |

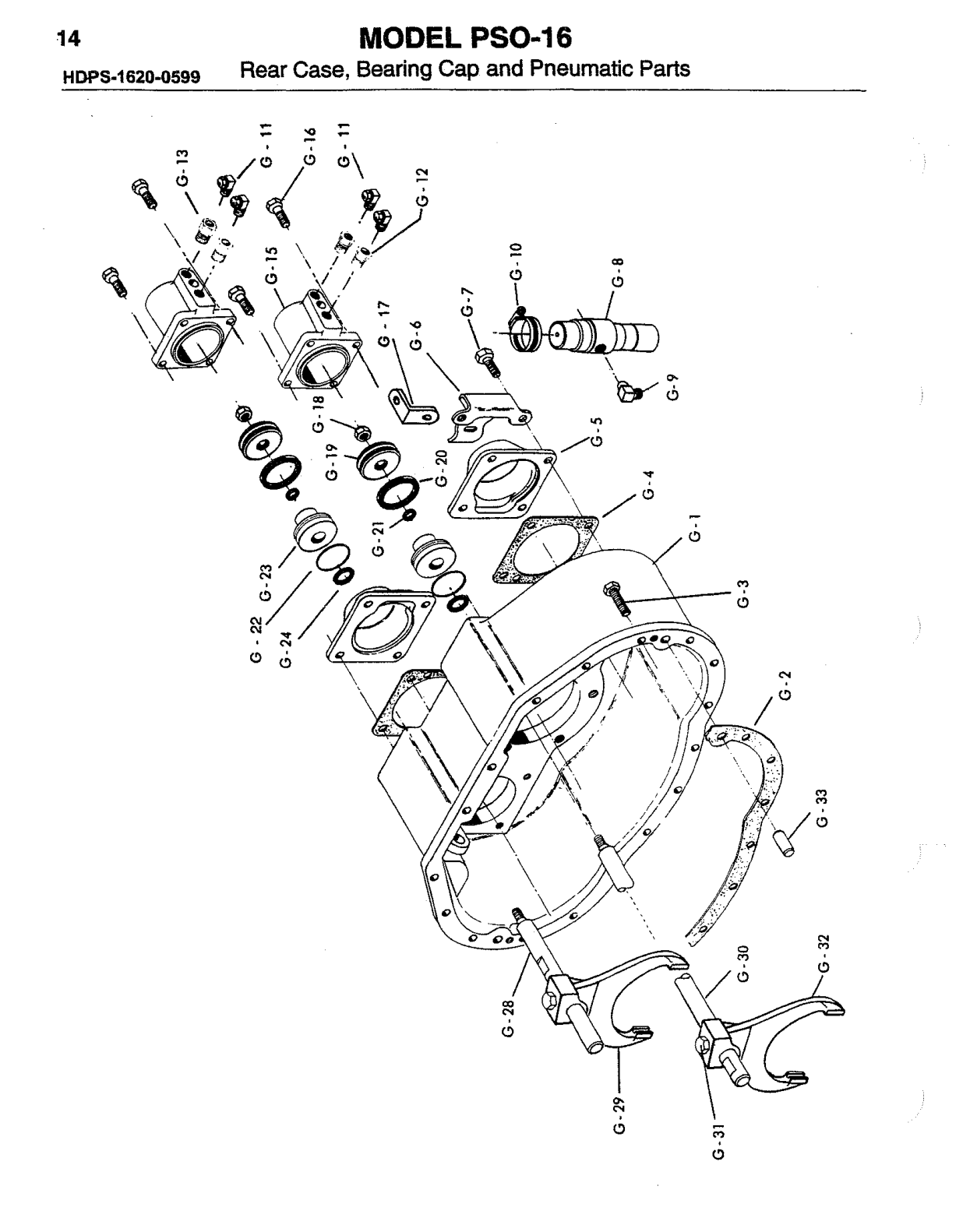

Rear Cap
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| · G-1 | 97-15-68-1X | Auxiliary Case Assembly (includes) | 1 | — | Call for availability | |
| · G-1 | 97-15-68 | Auxiliary | 1 | — | Call for availability | |
| · G-1 | NP-203 | Name Plate | 1 | — | Call for availability | |
| · G-1 | 252-SP | Name Plate | 4 | — | Call for availability | |
| G-2 | 97-155-11 | Gasket Auxiliary I Main Case | 1 | — | Call for availability | |
| G-3 | 545002-4 | Bolt- 318" 16 1 118" Hex Head Self Locking | 17 | $6.93 | Add to Cart | |
| G-4 | 97-223-23 | Gasket Countershaft Bearing | 2 | — | Call for availability | |
| G-5 | 97-22-23 | Bearing Cap Countershaft Bearing | 2 | — | Call for availability | |
| G-6 | 97-411-2 | Bracket Air Filter And Regulator. | 1 | — | Call for availability | |
| G-7 | 545015 | Bolt- 3/8" -16 15/16 | 8 | version * (see the manual's footnote) | $3.14 | Add to Cart |
| G-7 | 313607X | Kit Control & Mounting Parts (includes G-8, G-9, G-1 0 | — | Call for availability | ||
| G-8 | 313042 | Regulator I Filter | 1 | $784.67 | Add to Cart | |
| G-9 | 545025-1 | Elbow Regulator I Filter. | 1 | $20.33 | Add to Cart | |
| G-10 | 330831 | Clamp Regulator I Filter. | 1 | — | Call for availability | |
| G-11 | 545025-2 | Elbow Splitter Piston Housing | 4 | $28.71 | Add to Cart | |
| G-12 | 330944 | Reducer- .047" Diameter Orifice (splitter) | 2 | — | Call for availability | |
| G-13 | 330945 | Reducer- .036" Diameter Orifice (range) | 2 | — | Call for availability | |
| G-15 | 97-501-26 | Piston Housing | 2 | — | Call for availability | |
| G-15 | 97-501-26-6X | Splitter Piston Housing Assembly (includes G-11 G-12, G15) | 1 | — | Call for availability | |
| G-15 | 97-501-26-7X | Range Piston Housing Assembly (includes G-11 G-13 G 15). | 1 | — | Call for availability | |
| G-16 | 545002 | Bolt 318" 16 1 " Hex Head Self Locking (for Piston Box) | 8 | $1.98 | Add to Cart | |
| G-17 | 330564-1 | Lift Hook. | 2 | $3.15 | Add to Cart | |
| G-18 | 545045 | Nut For Splitter Piston Rod. | 2 | $3.15 | Add to Cart | |
| G-19 | 97-136-14 | Piston For Splitter | 2 | $42.78 | Add to Cart | |
| G-20 | 97-463-4 | "0 " Ring For Splitter Piston Rod. | 2 | $11.34 | Add to Cart | |
| G-21 | 183-463-6 | "0 " Ring -for Splitter Piston Rod. | 2 | — | Call for availability | |
| G-22 | 97-463-38 | Pilot Spacer "0 " Ring | 2 | — | Call for availability | |
| G-23 | 97-37-32 | Spacer Air Cylinder Pilot Stop | 2 | — | Call for availability | |
| G-24 | 97-463-5 | "0 " Ring -for Splitter Piston Rod. | 2 | — | Call for availability | |
| G-28 | 97-65-45 | Rod Range Fork. | 1 | $61.38 | Add to Cart | |
| G-29 | 97-66-118 | Fork Range Shift. | 1 | — | Call for availability | |
| G-30 | 97-65-46 | Rod Splitter Fork. | 1 | $70.31 | Add to Cart | |
| G-31 | 545119 | Bolt | 2 | — | Call for availability | |
| G-32 | 97-66-116 | Fork Splitter Shift. | 1 | — | Call for availability | |
| G-33 | 500043-15 | Pin Dowel (locator Pin) | 2 | — | Call for availability |

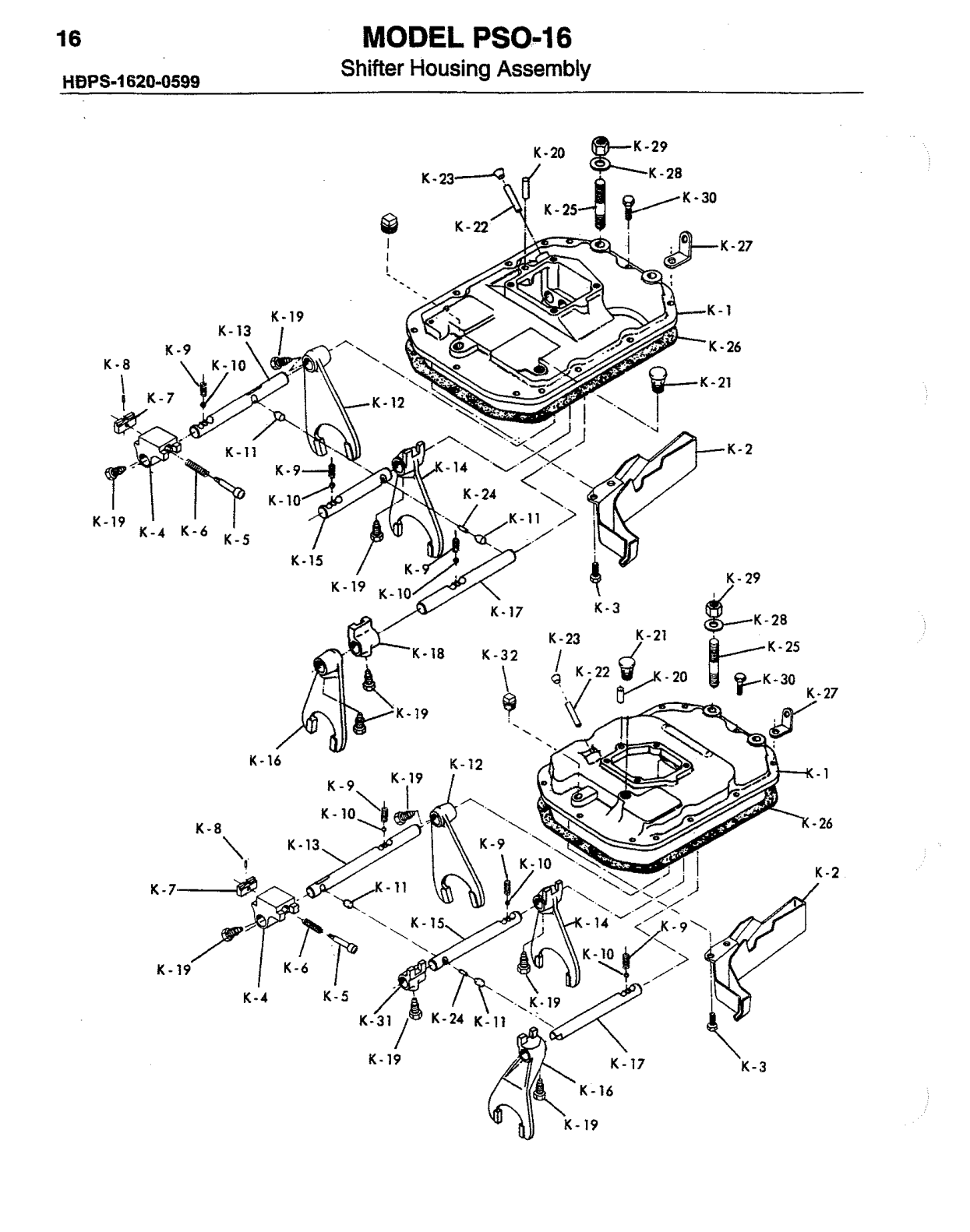

Shifter Housing and Oil Trough Assembly 1
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 97-16-64-1X | Shifter Housing And Oil Trough Assembly | — | Call for availability | ||
| K-1 | 97-16-96-2X | Shifter Housing And Oil Trough Assembly | — | Call for availability | ||
| K-1 | 97-16-106-3X | Shifter Housing And Oil Trough Assembly | — | Call for availability | ||
| NOT | 97-468-4 | Oil Baffle - Used In 97 -16-96-3x & 97 -16 -106 -3x | — | Call for availability | ||
| SHOWN | 545021 | Plug For Neutral Safety Switch | $18.89 | Add to Cart | ||
| SHOWN | 97-438-19 | Pin For Interlock Poppet | — | Call for availability | ||
| SHOWN | 97-438-22 | Plunger For Neutral Safety Switch | — | Call for availability | ||
| K-3 | 330800 | $3.27 | Add to Cart | |||
| K-6 | 97-72-2 | Spring 1st 4th & Shift Bracket | — | Call for availability | ||
| K-7 | 330736 | Block Shift Bracket | — | Call for availability | ||
| K-8 | 500593-6 | Pin 1 St 4th & Shift Bracket | — | Call for availability | ||
| K-9 | 97-72-11 | — | Call for availability | |||
| K-9 | 97-72-26 | Spring Shift Rod Poppet Ball | — | Call for availability | ||
| K-9 | 97-72-29 | Spring Shift Rod Poppet Ball | — | Call for availability | ||
| K-10 | 50-80-5 | $2.28 | Add to Cart | |||
| K-10 | 50-80-4 | Ball Shift Rod Poppet | $7.01 | Add to Cart | ||
| K-12 | 97-66-124 | $655.81 | Add to Cart | |||
| K-13 | 97-67-189 | — | Call for availability | |||
| K-13 | 97-67-190 | Rod 1 St 4th & Shift 1 | — | Call for availability | ||
| K-13 | 97-67-230 | Rod 1st 4th & Shift | — | Call for availability | ||
| K-14 | 97-66-24 | $441.29 | Add to Cart | |||
| K-15 | 97-67-102 | Rod 5th 12th Shift | — | Call for availability | ||
| K-15 | 97-67-231 | Rod 5th 12th Shift | — | Call for availability | ||
| K-16 | 97-66-5 | $186.58 | Add to Cart | |||
| K-16 | 97-66-37 | Fork 13th 16th Shift | — | Call for availability |

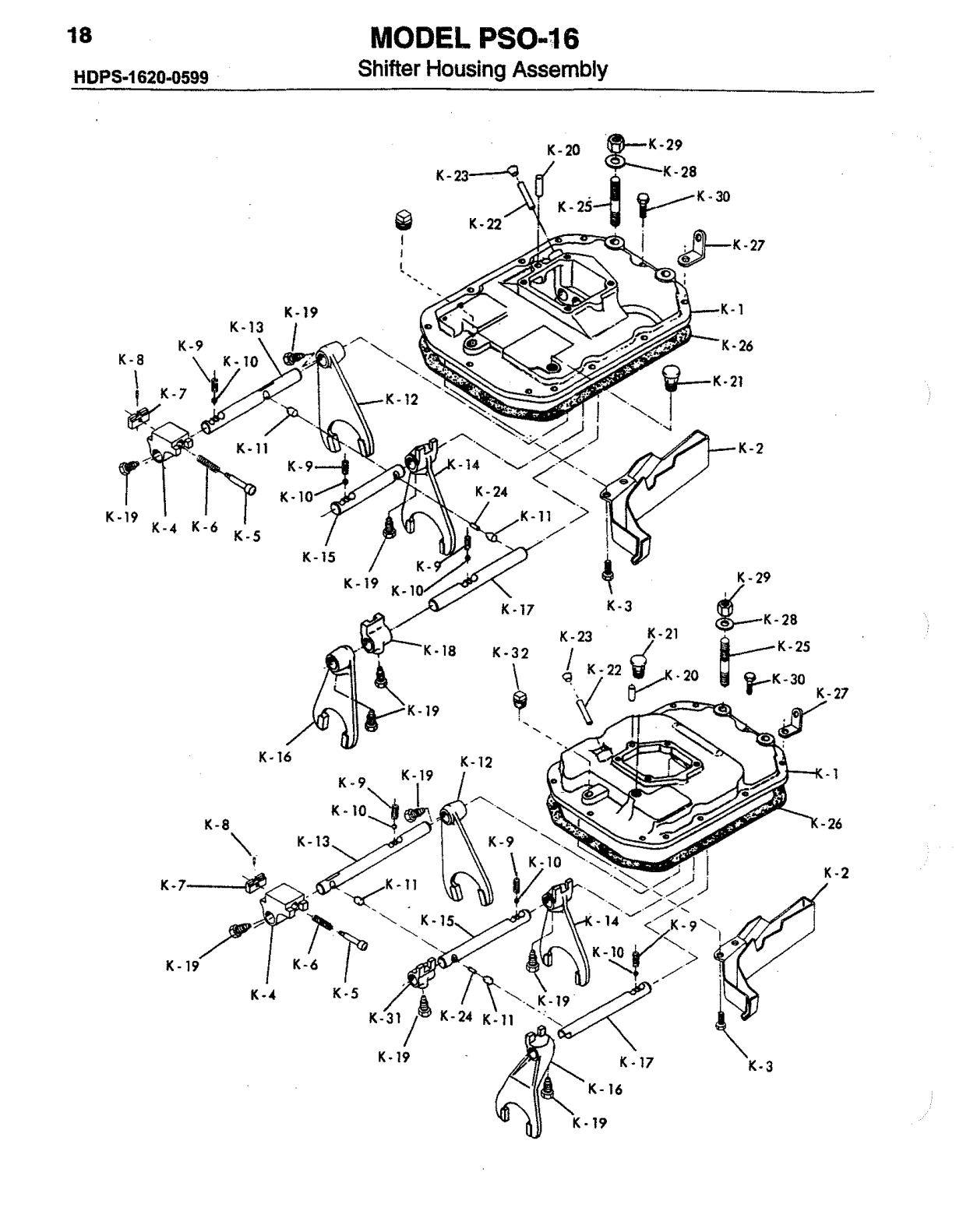

Shifter Housing Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-18 | 97-354-6 | Bracket 13th 16th Shift 1 | 1 1 | — | Call for availability | |
| K-19 | 545011 | Bolt For Shift Fork 5 5 | 5 5 | $16.57 | Add to Cart | |
| K-20 | 545000 | Locator Pin 1 | 1 1 | — | Call for availability | |
| K-20 | 545010 | Locator Pin - 1 | — | Call for availability | ||
| K-21 | 312268 | Breather 1 1 | 1 1 | $31.32 | Add to Cart | |
| K-22 | 330739-1 | Pin Reverse Switch 1 1 | 1 1 | $3.98 | Add to Cart | |
| K-23 | 500897-11 | Plug Reverse Switch Hole (shipping) 1 1 | 1 1 | — | Call for availability | |
| K-24 | 194-SP | Pin Interlock 1 1 | 1 | — | Call for availability | |
| K-25 | 330360-15 | Stud 5/8" 11 And 5/8 " 18 X 3 1/2 | 2 2 | version * (see the manual's footnote) | — | Call for availability |
| K-25 | 330360-18 | Stud 5/8" 11 And 5/8 " -1 8x4 " 2 2 | $9.03 | Add to Cart | ||
| K-26 | 97-155-1 | Gasket Shifter Housing 1 1 | 1 1 | $15.74 | Add to Cart | |
| K-27 | 330564-1 | Hook -lift 4 4 | 4 4 | $3.15 | Add to Cart | |
| K-28 | 500365-46 | Washer- Shifter Housing Mounting Stud 2 2 | 2 2 | — | Call for availability | |
| K-29 | 500371-7 | Nut Shifter Housing Mounting Stud 2 2 | 2 2 | — | Call for availability | |
| K-30 | 545002-4 | Bolt- 3/8" 16 X 1 1/8" Hex Head Self Locking 10 10 | 10 10 | $6.93 | Add to Cart | |
| K-31 | 97-354-3 | Bracket - 3rd 4th 5th 6th Shift - 1 | — | Call for availability | ||
| K-32 | 500114 | Plug Oil Return Hole 1 1 | 1 1 | — | Call for availability |
Cover & Joint Assembly - Remote Control
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 311866X | Cover Assembly | — | Call for availability | |||
| 311914X | Cover Assembly | — | Call for availability | |||
| 312918X | Cover Assembly | — | Call for availability | |||
| 97-16-42-2X | Cover Assembly | — | Call for availability | |||
| N .S | 82-24-3 | $21.66 | Add to Cart | |||
| R-2 | 8039X | Shift Finger Rod And Bracket Assembly 1 | — | Call for availability | ||
| R-2 | 311888X | Shift Finger Rod And Bracket Assembly | — | Call for availability | ||
| R-2 | 312917X | Shift Finger Rod And Bracket Assembly | — | Call for availability | ||
| R-2 | 97-65-17-1X | Shift Finger Rod And Bracket Assembly | — | Call for availability | ||
| R-3 | Rod Shift Finger | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| R-4 | Bracket Shift Finger Rod | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| R-5 | 85-24-4 | Bushing Shift Rod Bracket. | — | Call for availability | ||
| N .S | Woodruff Key #11 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | ||
| R-6 | 500007-19 | Woodruff Key# 11 1 | — | Call for availability | ||
| R-7 | 82-6-9 | Finger Inner Shift | — | Call for availability | ||
| R-8 | 545063 | Bolt | $6.27 | Add to Cart | ||
| R-9 | 82-65-5 | Rod Remote Control Shift 1 | $22.31 | Add to Cart | ||
| R-9 | 82-65-22 | Rod Remote Control Shift (counter Sunk Spot At 90) | — | Call for availability | ||
| R-10 | 82-6-7 | Finger Outer Shift 1 | $171.09 | Add to Cart | ||
| R-11 | 28P-19 | Seal Remote Control Shift Rod 2 2 2 | — | Call for availability | ||
| R-12 | 10380-SF | U Joint Assembly Control Rod 1 1 1 | — | Call for availability | ||
| R-13 | 82-118-1 | Gasket Aperture 1 | — | Call for availability | ||
| R-14 | 82-96-1 | Aperture Cover. 1 | — | Call for availability | ||
| R-15 | 545005-1 | Bolt 5/16 " 18 5/8" 4 4 4 | — | Call for availability | ||
| R-15 | 500397-8 | Bolt | — | Call for availability | ||
| N .S | 500357-10 | Washer | — | Call for availability | ||
| R-16 | 500166-16 | Expansion Plug 1 | — | Call for availability | ||
| N .S | 311903X | Boot Kit Remote Control | — | Call for availability | ||
| N .S | 82-483-1 | Boot Standard | — | Call for availability | ||
| N .S | 82-483-2 | Boot Type | — | Call for availability | ||
| N .S | LW-3-9 | Lockwire | — | Call for availability |

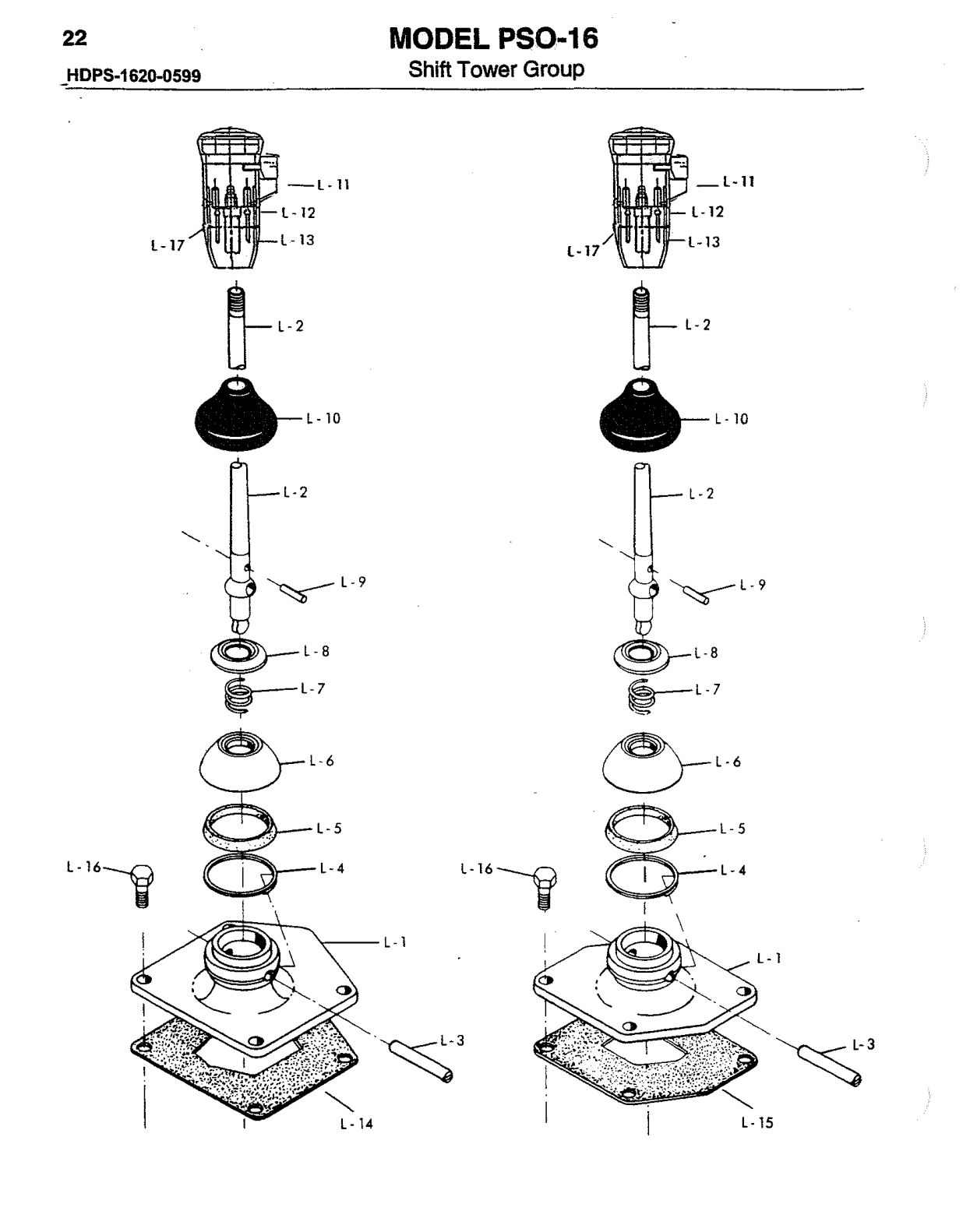

Parts Listed Below Are Not Included in Assembly
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| R-17 | 97-155-12 | Gasket- To Remote Control (six Holes) 1 | $4.72 | Add to Cart | ||
| R-18 | 545028-4 | Bolt -7/16 " -14 X 1 1/8" Hex Head Self Locking 6 | — | No longer available — call for replacement | ||
| L-1 | 85-16-37 | Shift Tower (center Control) 1 | — | Call for availability | ||
| L-1 | 97-16-27 | Shift Tower (forward Control) - | 1 | $10.99 | Add to Cart | |
| L-2 | 25Q-1570 | Shift Lever (length 33" Straight) 1 | — | Call for availability | ||
| L-2 | 25Q-1702-59 | Shift Lever (length 28 .5" Straight) - | 1 | — | Call for availability | |
| L-3 | 53Q-15 | Shaft For Shift Lever 1 | 1 | $6.27 | Add to Cart | |
| L-4 | 62-381-7 | Snap Ring - For Shaft 1 | 1 | $8.10 | Add to Cart | |
| L-5 | 69Q-6 | Washer- Shift Lever Compression 1 | 1 | — | Call for availability | |
| L-6 | 54Q-13 | Cup Shift Lever Compression 1 | 1 | — | No longer available — call for replacement | |
| L-7 | 56Q-25 | Spring - Shift Lever Compression 1 | 1 | $6.27 | Add to Cart | |
| L-8 | 55Q-7 | Collar- Shift Lever Compression 1 | 1 | $3.15 | Add to Cart | |
| L-9 | 286-SP | Pin Shift Lever Compression Collar 1 | 1 | $2.95 | Add to Cart | |
| L-10 | 55Q-5 | Grommet Shift Lever 1 | 1 | — | Call for availability | |
| L-11 | 313816 | Selector Valve | 1 | — | Call for availability | |
| L-12 | 312526 | Connector For Valve And Air Lines | 6 | $13.94 | Add to Cart | |
| L-13 | 85-420-1 | Tubing Air Line | 1 | $41.22 | Add to Cart | |
| L-14 | 97-155-12 | Gasket For Center Control Housing | 1 | $4.72 | Add to Cart | |
| L-15 | 97-155-13 | Gasket -for Forward Control Housing | 1 | $3.15 | Add to Cart | |
| L-16 | 545028-4 | Bolt- 7/16 " 14 X 1 1/8" Hex Head Self Locking | 4 | — | No longer available — call for replacement | |
| L-17 | 500803 | Nut For Selector Valve | 1 | — | Call for availability |
Air Control Piping Diagram and Parts
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313557X | Control Parts Kit (includes All Below Except 85 -420-1 -1 ) | 1 | — | Call for availability | ||
| T-1 | 313816 | Valve Air Splitter Control | 1 | — | Call for availability | |
| T-2 | 500803 | Jam Nut Shift Lever. | 1 | — | Call for availability | |
| T-3 | 312526 | Line Connector- Valve To Air Line | 6 | $13.94 | Add to Cart | |
| T-4 | 85-420-1 | Tubing- Air Line (50 Feet) | 1 | $41.22 | Add to Cart | |
| T-4 | 85-420-1-1 | Tubing- Air Line (1 00 Feet) | 1 | — | Call for availability | |
| Shown | 330717 | Zip Slider. | 1 | — | Call for availability | |
| Shown | 330716-1 | Protective Cover For Tubing | 1 | — | Call for availability | |
| Shown | 2798 | Service Bulletin Piping Diagram. | 1 | — | Call for availability | |
| Shown | 2799 | Service Bulletin Piping Diagram. | 1 | — | Call for availability | |
| Shown | 2857 | Service Bulletin Direct Air Control Diagram. | 1 | — | Call for availability |
Clutch Housing Dimensions
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 97-518-3 | C97-518-4 | Iron 2 4 .187" 2 .625 | version * (see the manual's footnote) | — | Call for availability | |
| 97-518-14 | C97-518-7 | Iron 2 4 .375" 2 .375" 3 .50 " 6 .50 " 97-518-14-1X | — | Call for availability | ||
| 97-518-15 | C97-518-2 | Iron 1 4 .187" 2 .625" - - 97-518-15-1X | — | Call for availability | ||
| 97-518-25 | C97-518-13-1 | Iron 1 3 .750" 1 .500" 4 .00 " 8 .50 " 97-518-25-1 | X | — | Call for availability | |
| 97-518-63 | C97-518-2-2 | Iron 1 | — | Call for availability | ||
| 97-518-63 | L-6-615 | 6.615 | — | Call for availability |
Clutch Housing
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-2 | 97-352-1 | Gasket | 1 | $4.72 | Add to Cart | |
| A-3 | 545008-3 | Bolt - 5/8"-11x1 3/4" Hex Head Self Locking | 10 | — | Call for availability | |
| A-4 | 330829 | Flat Washer - 5/8 | 1 0 | version * (see the manual's footnote) | — | Call for availability |
| A-5 | 545001 | Bolt - 1/2" ·13x1 1/4" Hex Head Self Locking | 4 | $2.49 | Add to Cart | |
| A-6 | 97-96-18-1X | Hand Hole Adjustment Cover Assembly (includes) | 1 | — | Call for availability | |
| A-6 | 97-96-18 | Cover. | 1 | — | Call for availability | |
| A-6 | 330863 | Spring | 1 | $1.80 | Add to Cart | |
| A-6 | 545037 | Screw | 1 | $2.16 | Add to Cart |
Clutch Release Parts
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-7 | 128C-20 | Bushing For Clutch Release Shaft | 2 | $8.55 | Add to Cart | |
| A-7 | 106C-1185 | Short (length 5 .750") | — | Call for availability | ||
| A-7 | 106C-1498 | Short (length 6 .500") | — | Call for availability | ||
| A-7 | 105C-117 | For Lipe Railway, Borg And Beck Push Type Clutch | — | Call for availability | ||
| A-7 | 105C-137 | For Spicer 14" Or 15 1/2" (2 Plate) Pull Type Clutch | $54.53 | Add to Cart |

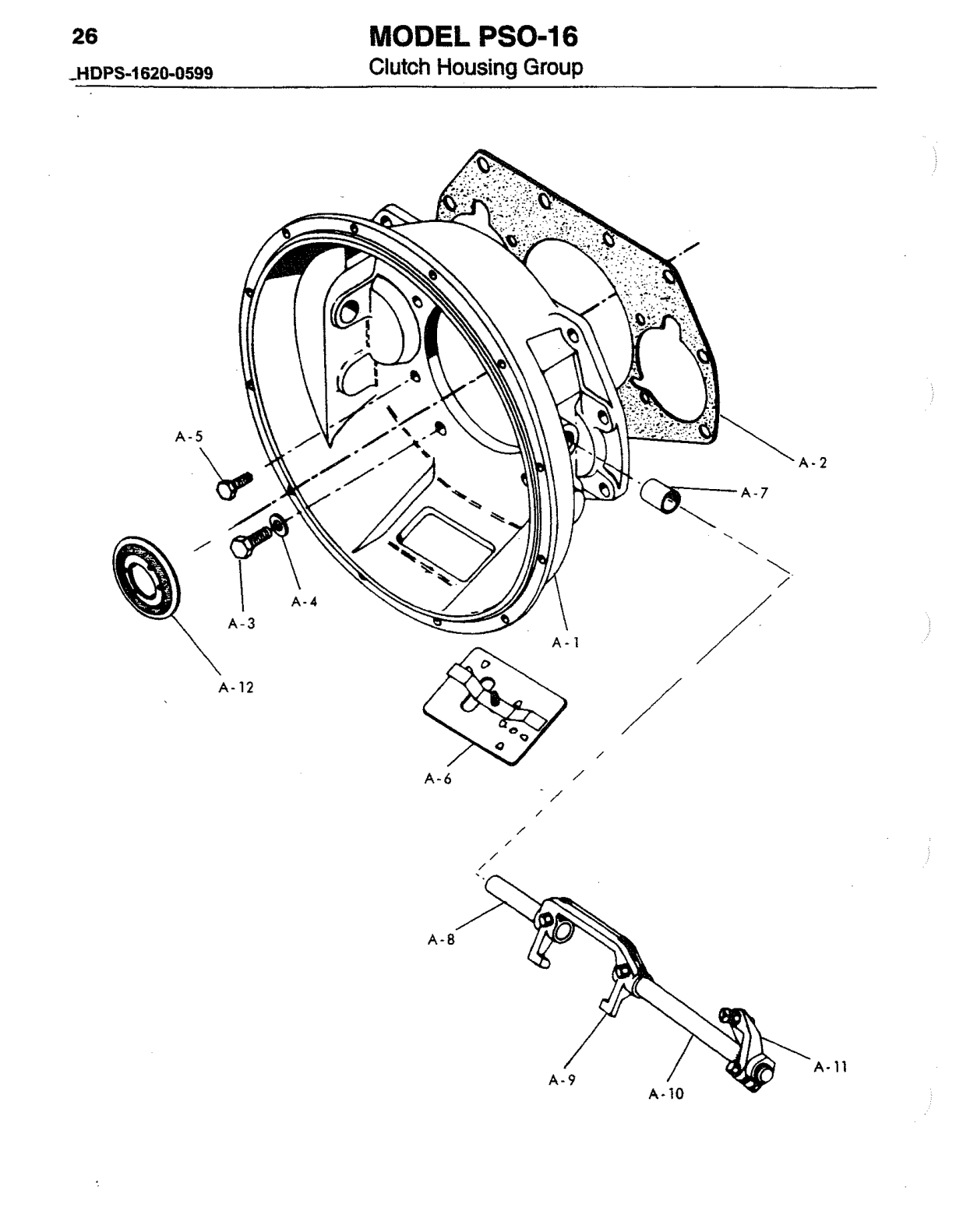

Clutch Release Yoke Attaching Parts (includes)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-7 | 330231 | Bolt - For Clutch Release Yoke | 2 | $3.15 | Add to Cart | |
| A-7 | 500356-12 | Lock Washer- For Clutch Release Yoke Bolt | 2 | $2.43 | Add to Cart | |
| A-7 | 10-30 | Key | 1 | $8.04 | Add to Cart | |
| A-7 | 106C-438 | Long (length 14 .000 ") | — | Call for availability | ||
| A-7 | 106C-617 | Long (length 10 .469 ") | — | Call for availability | ||
| A-7 | 106C-939 | Long (length 10 .000 ") | — | Call for availability | ||
| A-7 | 106C-1047 | Long ( Length 9 .468 ") | — | Call for availability | ||
| A-7 | 106C-1094 | Long ( Length 8 .469 ") | — | Call for availability | ||
| A-7 | 106C-1123 | Long (length 12 .968 ") | — | Call for availability | ||
| A-7 | 310233X | For Left Side Mounting | — | Call for availability | ||
| A-7 | 310473X | For Right Side Mounting | — | Call for availability | ||
| A-12 | 127760X | Clutch Brake | 1 | — | Call for availability |

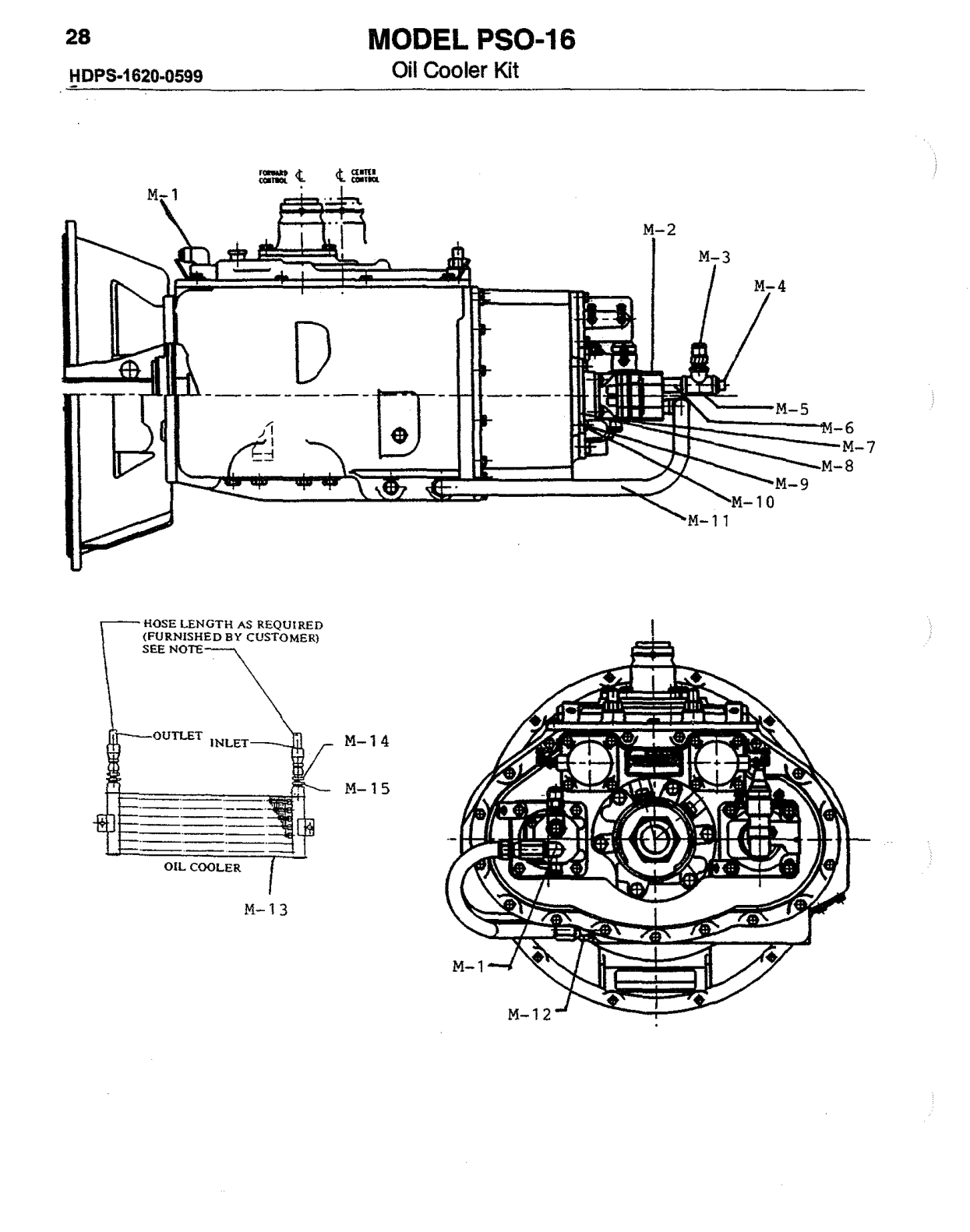

Oil Cooler Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313411-1X | Oil Cooler Kit. | 1 | — | Call for availability | ||
| 313411-3X | Pump And Adapter Kit (includes M-1 M-12) | 1 | — | Call for availability | ||
| M-1 | 545051 | Elbow Outlet. | 2 | — | Call for availability | |
| M-2 | 313292 | Oil Assembly | 1 | — | Call for availability | |
| M-3 | 545036 | Connector Outlet. | 1 | — | Call for availability | |
| M-4 | 500114 | Plug Outlet Tee | 1 | — | Call for availability | |
| M-5 | 545146 | Tee Pipe (pump Outlet) | 1 | — | Call for availability | |
| M-6 | 545049-1 | Nipple Outlet. | 1 | $5.12 | Add to Cart | |
| M-7 | 70-223-25 | Gasket Oil | 1 | $4.82 | Add to Cart | |
| M-8 | 97-22-19 | Bearing Cap Countershaft | 1 | — | Call for availability | |
| M-9 | 545002-6 | Bolt- 318" 16 11/4 " Hex Head Self Locking | 4 | $2.29 | Add to Cart | |
| M-10 | 97-223-23 | Gasket Countershaft Bearing | 1 | — | Call for availability |
Rear Cap
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| M-11 | 313117-4 | H As Sembly Outlet To Inlet. | I 1 | — | Call for availability |
Ose Case Pump
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| M-12 | 313229 | Filter- _ Oil _ Assembly | 1 | — | Call for availability | |
| M-12 | 313444X | Oil Cooler And Adapter Fittings (includes M-13 -M-15) | 1 | — | Call for availability | |
| M-13 | 313110 | Oil C?oler Assembly | 1 | — | Call for availability | |
| M-14 | 500714-14 | Bushmg Reducer For Cooler Inlet And Outlet. | 2 | — | Call for availability | |
| M-15 | 545036 | Adapter Rtting -for Cooler Inlet And Outlet. | 1 2 | — | Call for availability |
Major Service Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313400-42X | Major Service Kit. | 1 | $1,486.88 | Superseded by 974002XAdd to Cart | ||
| 500566-8 | Ball Reverse Idler Shaft | 2 | — | Call for availability | ||
| 500010-8 | Woodruff Key #29 | 10 | $2.89 | Add to Cart | ||
| 545065 | Nut Mainshaft Output | 1 | $31.43 | Add to Cart | ||
| 97-59-2 | Stop Pin And Plug | 1 | — | Call for availability | ||
| 545060 | Neutral Switch Plug | 1 | — | Call for availability | ||
| 97-35-34 | Drive Gear 2" 1 0 Spline | 1 | $379.29 | Add to Cart | ||
| 313574X | Gasket And "0 " Ring Kit. | 2 | — | Call for availability | ||
| 313401-20X | Thrust Washer Kit. | 1 | $326.01 | Add to Cart | ||
| 313429-1X | Shifter Housing Small Parts Kit | 1 | — | Call for availability | ||
| 313432-9X | Minor Service Kit. | 1 | — | Call for availability |
Minor Service Kit
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313432-9X | Minor Service Kit. | 1 | — | Call for availability |
Front Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 550952 | Countershaft Front | 2 | — | Call for availability | ||
| 550886 | Reverse Idler Shaft | 4 | — | Call for availability | ||
| 550925 | Mainshaft Rear | 1 | — | Call for availability | ||
| 550944 | Drive Gear : | 1 | — | Call for availability | ||
| 550889 | Input Shaft Pocket | 1 | — | Call for availability | ||
| 550969 | Countershaft Rear | 2 | — | Call for availability |
Rear Case
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 550899 | Countershaft Cup Front | 2 | — | Call for availability | ||
| 550900 | Countershaft Cone Front | 2 | — | Call for availability | ||
| 550921 | Output Shaft Pocket | 1 | $102.76 | Add to Cart | ||
| 550925 | Output Shaft | 1 | — | Call for availability | ||
| 550935 | Countershaft Cup Rear | 2 | — | Call for availability | ||
| 550936 | Countershaft Cone Rear | 2 | — | Call for availability | ||
| 550932 | Auxiliary Mainshaft Needle Bearing | 1 | $40.03 | Add to Cart | ||
| 97-463-32 | Oil Seal Drive Gear | 1 | $26.60 | Add to Cart | ||
| 97-463-33 | Oil Seal Mainshaft Rear | 1 | $26.73 | Add to Cart | ||
| 97-463-35 | "0 " Ring Splitter & Range Piston Housing | 2 | — | Call for availability | ||
| 545ON | Bearing Lubricant | 1 | — | Call for availability | ||
| 545080-1 | Loctite | 1 | — | Call for availability | ||
| 2783 | Loctite Application For M/s Nuts | 1 | — | Call for availability | ||
| 2775 | Pocket Bearing Installation Instructions | 1 | — | Call for availability | ||
| 2836 | Assembly Instructions | 1 | — | Call for availability | ||
| 2374 | Service Manual For 16 & 18 Speeds | 1 | — | Call for availability | ||
| 313024-9X | Snap Ring Kit. | 1 | — | Call for availability | ||
| 312475-35X | Gasket Kit. | 1 | $89.99 | Add to Cart |
Included in Major and Minor Service KITS
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 312475-35X | Gasket Kit · · · · · · · · 1 | $89.99 | Add to Cart | |||
| 82-118-1 | Remote Control Aperture Cover 1 | — | Call for availability | |||
| 97-155-1 | Shifter Housing 1 | — | Call for availability | |||
| 97-155-11 | Rear Case To Front Case 1 | — | Call for availability | |||
| 97-155-12 | Tower- Center (6 Holes) 1 | — | Call for availability | |||
| 97-155-13 | Tower- Forward (4 Holes) 1 | — | Call for availability | |||
| 97-223-1 | Bearing Cap Drive Gear 1 | $4.72 | Add to Cart | |||
| 97-223-2 | Bearing Cap Mainshaft (rear Case) 1 | $4.64 | Add to Cart | |||
| 97-223-8 | Cover Without Air Control 1 | — | Call for availability | |||
| 97-223-23 | Bearing Cap Countershaft Rear Case 2 | — | Call for availability | |||
| 97-223-25 | P 1ston Ousmg a1r Centro 2 | — | Call for availability | |||
| 97-352-1 | Clutch Housing 1 | — | Call for availability | |||
| 97-324-1-1X | P .t .o 6 Bolt Gasket Kit. (includes) 1 | manual lists 97-324-1-1X - we stock the base part 97-324-1 | $3.91 | Add to Cart | ||
| 330950 | Tag Instruction 1 | — | Call for availability | |||
| 97-324-1 | Gasket- P .t .o Aperture Cover (6 Hole) 1 | $3.91 | Add to Cart | |||
| 97-324-2-1X | P .t .o 8 Bolt Gasket Kit. (includes) 1 | manual lists 97-324-2-1X - we stock the base part 97-324-2 | $6.27 | Add to Cart | ||
| 97-324-2 | Gasket- P .t .o Aperture Cover (8 Hole) 1 | $6.27 | Add to Cart |
Tab Rear Rear End Yoke or Housing Lever& Remote
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| -2 97-15-68-1X | 97-19-60-1X | 97-16-70-2X | $190.58 | Add to Cart | ||
| -3 97-15-68-1X | 97-19-60-1X | 97-16-70-2X | $190.58 | Add to Cart | ||
| -4 97-15-68-1X | 97-19-60-1X | 97 -16-64-2X | $190.58 | Add to Cart | ||
| -5 97-15-68-1X | 97-19-60-1X | 97-16-64-2X | $190.58 | Add to Cart | ||
| -6 | 97-15-68-1X | 97-19-60-1X 97-16-64-2X | — | Call for availability | ||
| -7 | 97-15-68-1X | 97-19-60-1X 97 -16-64-2X | — | Call for availability | ||
| -8 | 97-15-68-1X | 97-19-60-1X 97-452-14 6 .3-4-41 -1 97-16-106-4X | — | Call for availability | ||
| -9 | 97-15-68-1X | 97-19-60-1X 97-452-14 97-16-1 06-4X | — | Call for availability | ||
| -10 | 97-15-68-1X | 97-19-60-1X 97-452-22 97-16-70-2X | — | Call for availability | ||
| -1 | 97-15-68-1X | 97-19-60-1X 97-452-22 97-16-106-4X | — | Call for availability | ||
| -2 | 97-15-68-1X | 97-19-51 -1X 97 -16-96-3X | — | Call for availability | ||
| -3 | 97-15-68-1X | 97-19-60-1X 97-452-22 97-16-106-4X | — | Call for availability | ||
| -4 | 97-15-68-IX | 97-19-60-1X 97 -16-70-2X | — | Call for availability | ||
| -5 | 97-15-68-1X | 97 -19 -51 -ix 97 -16-96-3X | — | Call for availability | ||
| -11 | 97-15-68-1X | 97 -19 -51 -ix 97-452-22 97-16-70-2X | — | Call for availability | ||
| -12 | 97-15-68-1X | 97-19-60-1X 97-452-22 97-16-106-4X | — | Call for availability | ||
| -13 | 97-15-68-1X | 97-19-51 -1X 97-16 ,106-4X | — | Call for availability | ||
| -14 | 97-15-68-1X | 97-19-51 -1 X 5-4-6531 -1 97-16-106-4X | — | Call for availability | ||
| -4 | 97-15-68-1X | 97-19-51 -1 X 97 -16-96-SX | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission PSO150-16A — every part in the manual, matched to our live inventory. We stock 137 of the 397 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the PSO175-16B transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | PSO175-16B |
| Transmission type | 16-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 39 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
- All Spicer transmission parts & units
- Remanufactured transmissions
- Search our catalog for PSO175-16B
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
