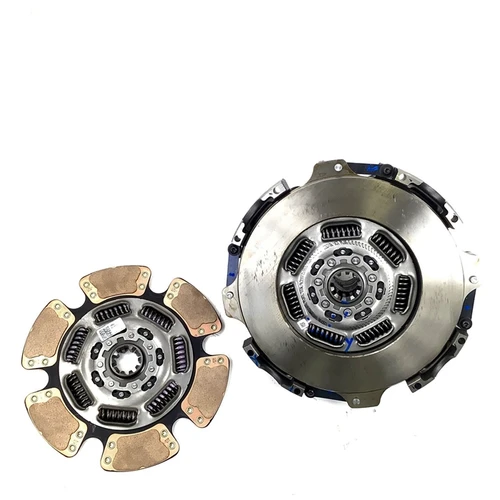

The Eaton Easy Pedal Advantage clutch, part number 308925-25 or 30892525, is a 15.5-inch manual-adjust clutch rated at 2,050 ft-lb of torque. It features a ceramic facing material with 6 friction pads across 2 discs and a 7-spring damper assembly. The input shaft is 2.00 inches with a 10-spline configuration. There is no pre-damper and no hydraulic linkage, making this a straightforward mechanical-linkage application for heavy-duty manual transmissions. Cross-references include 208925-25, EAT-308925-25, ETP-308925-25, CL108825-25, and NMU898-147-6. Call us to confirm proper fit for your application before ordering.
Shipped on pallet.
Features
Clutch size: 15.5 inches
Torque rating: 2,050 ft-lb
Facing material: ceramic with 6 friction pads
Input shaft: 2.00 inch diameter, 10-spline
Disc count: 2, with 7-spring damper assembly
Manual adjust, no hydraulic linkage, no pre-damper
Tech Specs
- Clutch Size: 15.5 in
- Torque Rating: 2,050 ft-lb
- Input Shaft Size: 2.00 in - 10 spline
- Facing Material: Ceramic
- Friction Pad Count: 6
- Number of Discs: 2
- Damper Spring Count: 7
- Transmission Type: Manual
- Hydraulic Linkage: No
- Pre-Damper: No
- Vehicle Classification: Heavy Duty
- Portfolio Rating: Best
- Adjust Type: Manual Adjust
