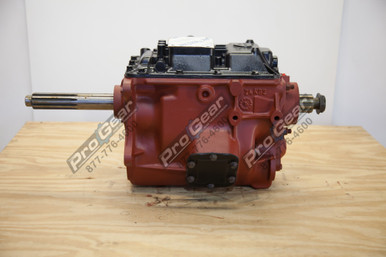

Eaton Fuller FS-5005A Parts Manual
This is the Eaton Fuller Illustrated Parts List covering the FS-5005A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | FS-5005A |
| Transmission type | 5-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 19 pages |
| Format | PDF — view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Read the manual
This is the complete factory parts breakdown for the Eaton Fuller FS-5005A — every part in the manual, matched to our live inventory. We stock 193 of the 228 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Case Countershaft Assy Input Shaft Kits & Assemblies Lever Assy Mainshaft Assy Miscellaneous Remote Control Reverse Idler Gear Assy Shift Bar Housing
No parts match that search — try the part number with no dashes.

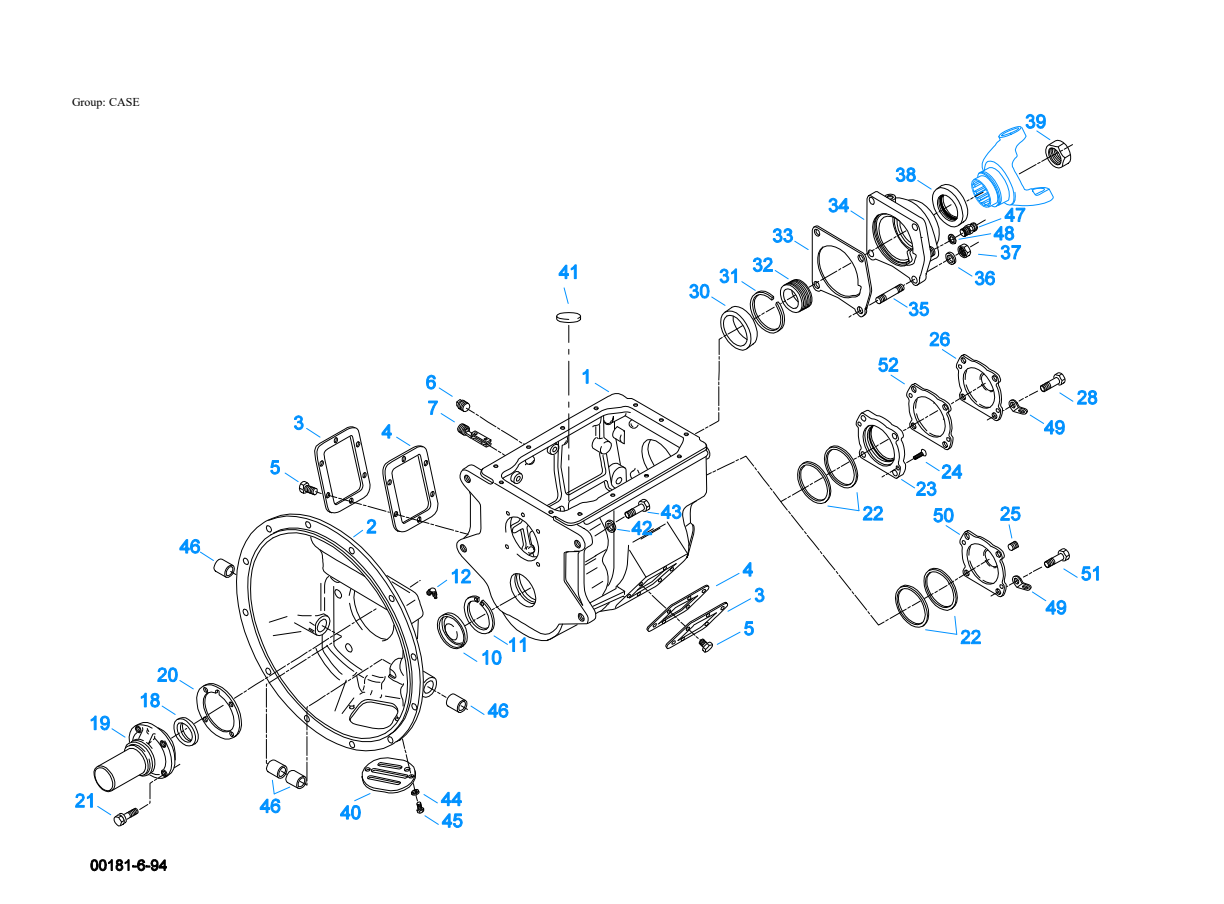

Case
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1911 | Case Assy | 1 | Replaces 4300218. | $2,999.54 | Add to Cart |
| 1 | S-1922 | Case Assy | 1 | Replaces 4300983. METRIC BOSS HOLES | $1,813.33 | Add to Cart |
| 2 | 230548 | Clutch Hsg Assy | 1 | Replaces 230549. #2 PUSH-IRON W/10H25 FITTINGS | — | Call for availability |
| 2 | A-5205 | Clutch Hsg Assy | 1 | Replaces 21646. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | — | No longer available — call for replacement |
| 2 | A-5634 | Clutch Hsg Assy | 1 | Replaces 23726, 3316236, 3316237, A-5632, A-5771. #2 ALUMINUM, ABOVE CENTER LINE PULL TYPE | $429.71 | Add to Cart |
| 2 | A-5751 | Clutch Hsg Assy | 1 | Replaces 4300418. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | $328.83 | Add to Cart |
| 2 | A-7513 | Clutch Hsg Assy | 1 | Replaces 3316239. #2 ALUMINUM, PUSH TYPE (FORK) | — | No longer available — call for replacement |
| 3 | 201398 | Pto Cover | 2 | $9.08 | Add to Cart | |
| 4 | 201400 | Gasket | 2 | $10.64 | Add to Cart | |
| 5 | 239613 | Capscrew | 12 | 3/8"-16X5/8" | $4.45 | Add to Cart |
| 6 | X-12-1210 | Pipe Plug | 1 | Replaces X121206. | $4.89 | Add to Cart |
| 7 | X-12-1207 | Pipe Plug | 1 | Replaces X121202X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 10 | 3315679 | Plug | 1 | $5.72 | Add to Cart | |
| 11 | 3315686 | Snap Ring | 1 | $5.26 | Add to Cart | |
| 12 | 10H25 | Fitting-straight | 2 | — | Call for availability | |
| 12 | 4300301 | FITTING-45 Degree | 2 | Replaces 11H15. | $5.45 | Add to Cart |
| 18 | 4300121 | Oil Seal | 1 | Replaces 3315623. SHAFT 1.873, WIDTH .375, OD 2.68 | $9.12 | Add to Cart |
| 18 | 4300204 | Oil Seal | 1 | Replaces 235394. SHAFT 1.873, WIDTH .375 | $7.21 | Add to Cart |
| 18 | 4300798 | Oil Seal | 1 | Replaces 235393. SHAFT 1.625, WIDTH .375 | $6.14 | Add to Cart |
| 19 | 23147 | Front Brg Cover-pull | 1 | Replaces 3315538. USE 4300121 OIL SEAL | $117.76 | Add to Cart |
| 19 | 235357 | Front Brg Cover-push | 1 | USE 4300204 OIL SEAL | $214.76 | Add to Cart |
| 19 | 235358 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $185.11 | Add to Cart |
| 19 | 235650 | Front Brg Cover-pull | 1 | USE 4300204 OIL SEAL | $175.92 | Add to Cart |
| 19 | 4300354 | Front Brg Cover-push | 1 | USE 4300204 OR 4300798 OIL SEAL | $204.88 | Add to Cart |
| 19 | 4300355 | Front Brg Cover-push | 1 | USE 4300204 OIL SEAL | $229.94 | Add to Cart |
| 19 | 4300882 | Front Brg Cvr- Push/pull | 1 | Replaces 237335. USE 4300798 OIL SEAL | $160.59 | Add to Cart |
| 20 | 235403 | Shim .004 | 1 | QUANTITY AS REQUIRED | $5.85 | Add to Cart |
| 20 | 235404 | Shim .007 | 1 | QUANTITY AS REQUIRED | $5.29 | Add to Cart |
| 20 | 235405 | Shim .010 | 1 | QUANTITY AS REQUIRED | $5.98 | Add to Cart |
| 20 | 235406 | Shim .020 | 1 | QUANTITY AS REQUIRED | $6.50 | Add to Cart |
| 20 | 4300979 | Shim .040 | 1 | $14.17 | Add to Cart | |
| 21 | 239614 | Screw | 4 | 5/16-18X.81 | $7.31 | Add to Cart |
| 22 | 22015 | Shim .004 | 1 | QUANTITY AS REQUIRED | $8.70 | Add to Cart |
| 22 | 22016 | Shim .007 | 1 | QUANTITY AS REQUIRED | $5.66 | Add to Cart |
| 22 | 22017 | Shim .010 | 1 | QUANTITY AS REQUIRED | $5.83 | Add to Cart |
| 22 | 22018 | Shim .020 | 1 | QUANTITY AS REQUIRED | $8.38 | Add to Cart |
| 22 | 4300982 | Shim .040 | 1 | $7.28 | Add to Cart | |
| 23 | 22011 | No Longer Available | 1 | — | Call for availability | |
| 24 | 9G416H | Screw | 2 | 1/4"-20X1" | $6.60 | Add to Cart |
| 25 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 26 | 22013 | Bearing Retainer | 1 | $30.21 | Add to Cart | |
| 28 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 30 | 235422 | Bearing Assy | 1 | INCLUDES 226331 SNAP RING | — | Call for availability |
| 31 | 226331 | Snap Ring | 1 | $4.45 | Add to Cart | |
| 32 | 21558 | Speedo Rotor | 1 | 16 TEETH - 1.96 OUTPUT | $61.79 | Add to Cart |
| 32 | 3314685 | Speedo Drive Gear | 1 | 6 TEETH - 1.96 OUTPUT | $80.39 | Add to Cart |
| 33 | 4300852 | Gasket | 1 | Replaces 2356532367334301096. | $14.03 | Add to Cart |
| 34 | 241705 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $213.72 | Add to Cart |
| 34 | K-7041 | Rear Brg Cover Kit | 1 | Replaces 4302617. USE 4300119 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $214.98 | Add to Cart |
| 34 | K-7042 | Rear Brg Cover Kit | 1 | Replaces 4302618. USE 4300119 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $156.87 | Add to Cart |
| 34 | S-7032 | Nla-rear Brg Cover Assy | 1 | Replaces 23247, 4301986. USE 4300203 OIL SEAL NOTE: SENSOR SEAL REQUIRED | — | Call for availability |
| 34 | S-7033 | Rear Brg Cover Assy | 1 | Replaces 23341, 4302023. USE 23484 OR 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $594.66 | Add to Cart |
| 34 | S-7034 | Rear Brg Cover Assy | 1 | Replaces 21557, 4302000. USE 23484 OR 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $159.80 | Add to Cart |
| 35 | 239433 | Stud | 4 | 1/2"-20X2-5/16" | $5.16 | Add to Cart |
| 36 | 239436 | Washer | 4 | 1/2" | $2.49 | Add to Cart |
| 37 | 86D8 | Nut | 4 | Replaces 86D08. 1/2"-20 | $2.63 | Add to Cart |
| 38 | 23484 | Oil Seal | 1 | SHAFT 2.505, WIDTH .433 | $43.16 | Add to Cart |
| 38 | 235655 | Oil Seal | 1 | SHAFT 2.75, WIDTH .5 | $19.68 | Add to Cart |
| 38 | 4300119 | Oil Seal | 1 | SHAFT 2.753, WIDTH .5 | $11.37 | Add to Cart |
| 38 | 4300203 | Oil Seal | 1 | Replaces 229985, 237983. SHAFT 2.503, WIDTH .5 | $7.31 | Add to Cart |
| 39 | 21937 | Nut | 1 | Replaces 216053, 235656, 238026. 1-1/4"-18 | $20.79 | Add to Cart |
| 40 | 23380 | Cover | 1 | Replaces 206466. | $5.20 | Add to Cart |
| 41 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 42 | X-3-1000 | Lockwasher | 4 | 5/8" | $1.69 | Add to Cart |
| 43 | X-8-1011 | Capscrew | 4 | Replaces 1C1036. 5/8"-11X2-1/4" | $3.64 | Add to Cart |
| 44 | X-3-400 | Lockwasher | 2 | Replaces 4E04. 1/4" | $1.17 | Add to Cart |
| 45 | 1C408 | Capscrew | 2 | 1/4"-20 | $1.41 | Add to Cart |
| 46 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 46 | 8677 | Bushing | 2 | $19.09 | Add to Cart | |
| 47 | 3316225 | Sleeve | 1 | $38.30 | Add to Cart | |
| 48 | 4301954 | Sensor Seal | 1 | $4.84 | Add to Cart | |
| 49 | 238370 | Lifting Eye | 1 | $4.99 | Add to Cart | |
| 50 | 4301603 | Bearing Retainer | 1 | $73.34 | Add to Cart | |
| 51 | X-8-688 | Capscrew | 4 | 3/8"-16X1" | $2.77 | Add to Cart |
| 52 | 22014 | Gasket | 1 | $4.86 | Add to Cart |
Countershaft Assy
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3859 | Countershaft Brg Kit | 2 | Replaces 654166, 791943. | $79.58 | Add to Cart |
| 3 | 224024 | Snap Ring | 1 | $5.28 | Add to Cart | |
| 4 | 4301181 | Drive Gear-cntrshft | 1 | $157.74 | Add to Cart | |
| 4 | A-6326 | Countershaft Assy | 1 | $812.77 | Add to Cart | |
| 5 | 4301183 | 4TH Gear-cntrshft | 1 | $162.56 | Add to Cart | |
| 5 | A-6326 | Countershaft Assy | 1 | $812.77 | Add to Cart | |
| 6 | 4301185 | Countershaft | 1 | $457.10 | Add to Cart | |
| 6 | A-6326 | Countershaft Assy | 1 | $812.77 | Add to Cart |

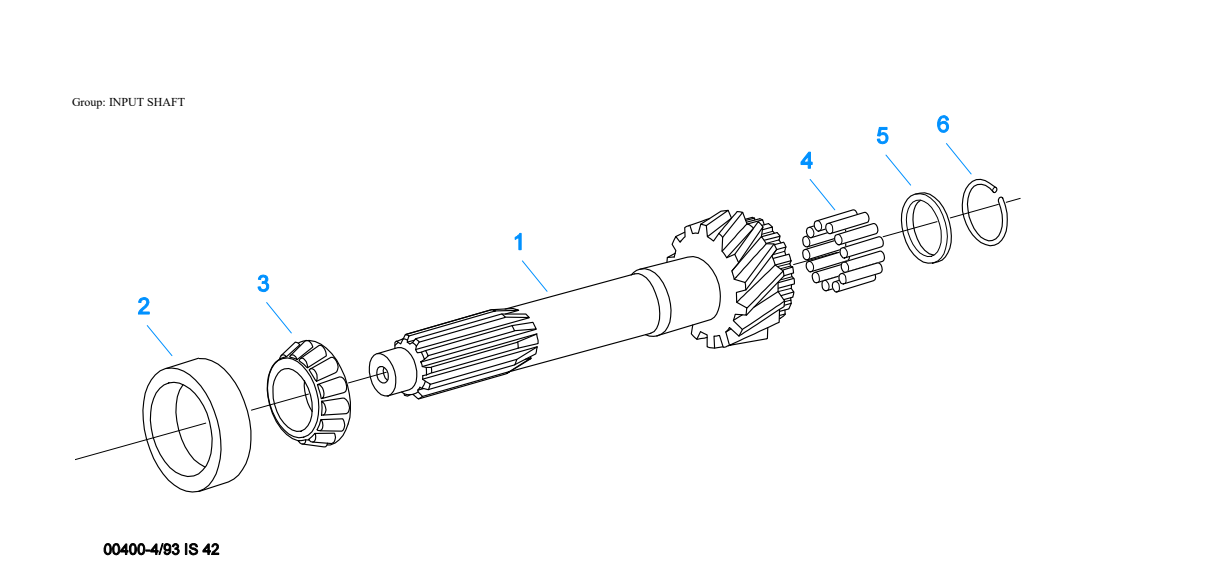

Input Shaft
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 235351 | Input SHAFT-1.50" Push | 1 | USE 4300882 FRONT BRG COVER | $163.10 | Add to Cart |
| 1 | 235353 | No Longer Available | 1 | USE 235358 FRONT BRG COVER | — | Call for availability |
| 1 | 235354 | Input SHAFT-1.50" Push | 1 | USE 235358 OR 4300354 FRONT BRG COVER | — | No longer available — call for replacement |
| 1 | 235433 | Input SHAFT-1.75" Push | 1 | USE 235357 FRONT BRG COVER | $225.31 | Add to Cart |
| 1 | 235648 | IN/SHAFT-1.75" Push/pul | 1 | USE 23147 OR 235650 FRONT BRG COVER | $350.41 | Add to Cart |
| 1 | 4300423 | No Longer Available | 1 | USE 4300355 FRONT BRG COVER | — | Call for availability |
| 1 | 4300885 | Input SHAFT-1.50" Push | 1 | USE 4300882 FRONT BRG COVER | $222.22 | Add to Cart |
| 2 | 1314774 | Bearing Cup | 1 | 1.50" INPUT | — | Call for availability |
| 2 | 235417 | Bearing Cup | 1 | 1.75" INPUT | — | Call for availability |
| 3 | 1314773 | Bearing Cone | 1 | 1.50" INPUT | — | Call for availability |
| 3 | 235418 | Bearing Cone | 1 | 1.75" INPUT | — | Call for availability |
| 4 | 235414 | Bearing | 14 | $1.79 | Add to Cart | |
| 5 | 235415 | Washer | 1 | $6.58 | Add to Cart | |
| 6 | 235416 | Snap Ring | 1 | $4.78 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-2085 | Gasket Kit | 1 | $24.54 | Add to Cart | ||
| K-2113 | Synchronizer Kit | 1 | $360.29 | Add to Cart | ||
| K-2114 | Synchronizer Kit | 1 | $237.19 | Add to Cart | ||
| K-2121 | Basic Rebuild Kit | 1 | FOR UNITS W/1.50" INPUT SHAFT & 2.00" MAINSHAFT | $469.06 | Add to Cart | |
| K-2122 | Basic Rebuild Kit | 1 | FOR UNITS W/1.50" INPUT SHAFT & 1.75" MAINSHAFT FOR UNITS W/1.75" INPUT SHAFT & 1.75" MAINSHAFT, IN ADDITION TO K- 2122 YOU MUST ORDER ONE 235417, 235418 & 4300204 FOR 2.503" COVER BORE DIAMETER OR 4300121 FOR 2.678" COVER BORE DIAMETER | $663.99 | Add to Cart | |
| K-2123 | Basic Rebuild Kit | 1 | FOR UNITS W/1.75" INPUT SHAFT & 2.00" MAINSHAFT | $471.57 | Add to Cart | |
| K-2132 | Small Parts Kit | 1 | $262.88 | Add to Cart | ||
| K-2291 | Mainshaft Kit | 1 | Replaces 23016. 1.96 SPLINE | $555.52 | Add to Cart | |
| K-2293 | Mainshaft Kit | 1 | Replaces 23118. 2.00 SPLINE | — | Call for availability | |
| K-2294 | Mainshaft Kit | 1 | Replaces 23119. 1.75 SPLINE | — | No longer available — call for replacement | |
| K-3859 | Countershaft Brg Kit | 1 | Replaces 654166, 791943. | $79.58 | Add to Cart | |
| K-7041 | Rear Brg Cover Kit | 1 | Replaces 4302617. | $214.98 | Add to Cart | |
| K-7042 | Rear Brg Cover Kit | 1 | Replaces 4302618. | $156.87 | Add to Cart | |
| K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart | |
| S-1643 | Shift Lever Assy-high | 1 | — | No longer available — call for replacement | ||
| S-1911 | Case Assy | 1 | Replaces 4300218. | $2,999.54 | Add to Cart | |
| S-1922 | Case Assy | 1 | Replaces 4300983. METRIC BOSS HOLES | $1,813.33 | Add to Cart | |
| S-7032 | Nla-rear Brg Cover Assy | 1 | Replaces 23247, 4301986. | — | Call for availability | |
| S-7033 | Rear Brg Cover Assy | 1 | Replaces 23341, 4302023. | $594.66 | Add to Cart | |
| S-7034 | Rear Brg Cover Assy | 1 | Replaces 21557, 4302000. | $159.80 | Add to Cart |

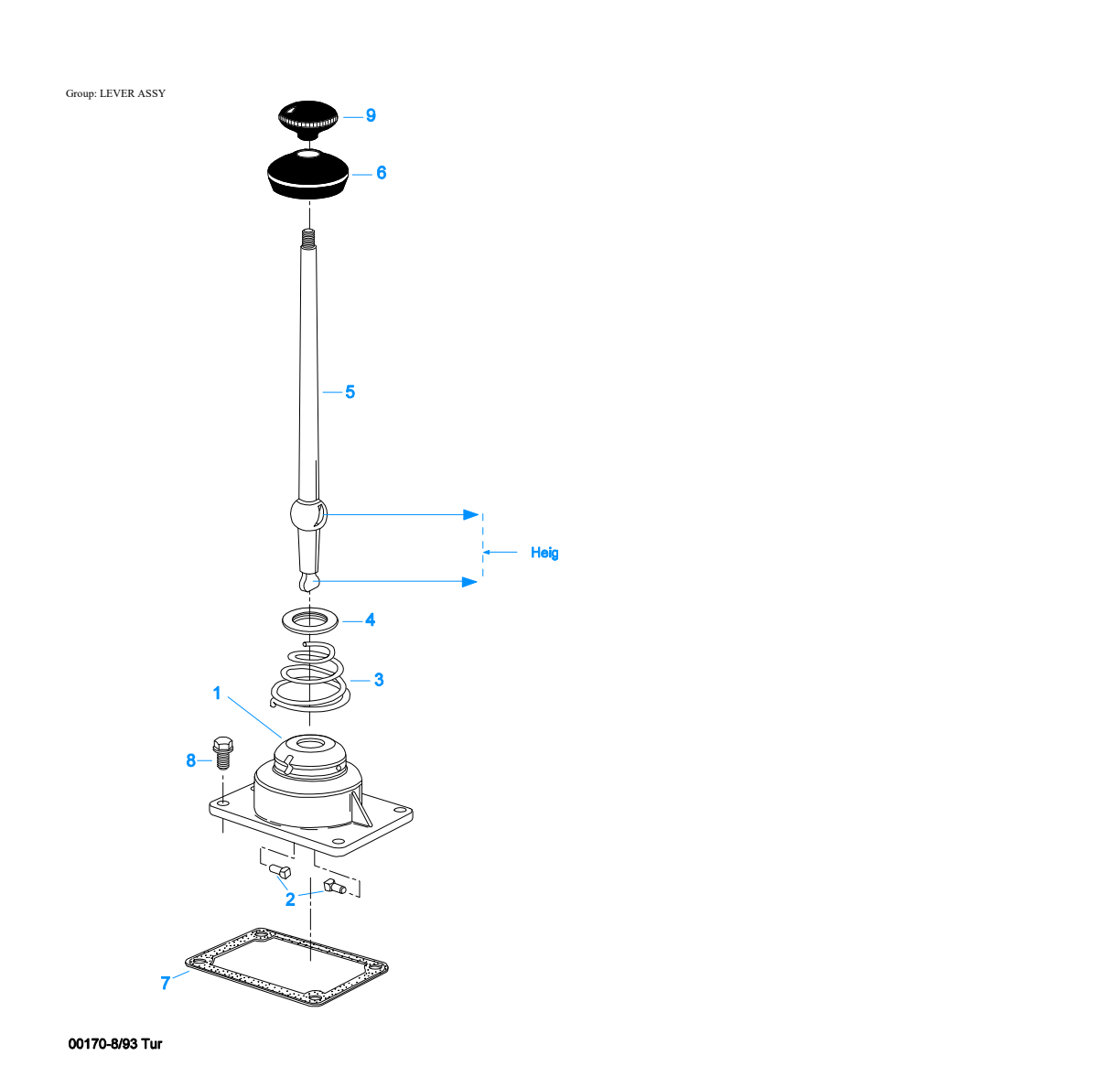

Lever Assy
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart |
| 2 | 201054 | Pin | 2 | FOR HSGS WITHOUT PIN SLEEVES | $5.88 | Add to Cart |
| 2 | 23180 | Pin | 2 | FOR HSGS WITH PIN SLEEVES | $4.86 | Add to Cart |
| 3 | 4300690 | Spring | 1 | Replaces 229337. | $9.49 | Add to Cart |
| 4 | 23181 | Washer | 1 | $2.77 | Add to Cart | |
| 5 | 228648 | Shift Lever | 1 | USE WITH K-7062 STRAIGHT LEVER - "BEND TO SUIT" | — | No longer available — call for replacement |
| 6 | 202484 | Dust Cover | 1 | $7.34 | Add to Cart | |
| 7 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 8 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 9 | 201401 | Shift Knob | 1 | 3/8"X24 THREAD | $19.73 | Add to Cart |
Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3704 | Bearing & Race Kit | 1 | Replaces 235382, 235383. | $46.86 | Add to Cart |
| 3 | 228296 | Synchronizer Cup | 2 | $36.60 | Add to Cart | |
| 4 | A-5401 | Synchronizer Assy 4/5 | 1 | $167.71 | Add to Cart | |
| 5 | 23694 | Clutch Hub 4/5 | 1 | Replaces 21635. | $48.39 | Add to Cart |
| 6 | 239353 | 4TH Gear-mainshaft | 1 | $100.45 | Add to Cart | |
| 7 | 239651 | Bearing | 1 | $17.79 | Add to Cart | |
| 8 | 224069 | Snap Ring | 1 | $4.50 | Add to Cart | |
| 9 | 4303687 | Washer | 1 | Replaces 23017. | $69.61 | Add to Cart |
| 10 | 10J06 | Steel Ball | 2 | 3/16" | $1.71 | Add to Cart |
| 11 | 239352 | 3RD Gear-mainshaft | 1 | $168.00 | Add to Cart | |
| 12 | 239653 | Bearing | 3 | $25.13 | Add to Cart | |
| 13 | 228306 | Synchronizer Cup | 1 | $43.31 | Add to Cart | |
| 14 | A-5693 | Synchronizer Assy 2/3 | 1 | Replaces A-5254, A-5543. | $228.33 | Add to Cart |
| 15 | 23696 | Mainshaft | 1 | 1.96 SPLINE | $496.86 | Add to Cart |
| 15 | 23697 | Mainshaft | 1 | 2.00 SPLINE | — | Call for availability |
| 15 | 23698 | Mainshaft | 1 | 1.75 SPLINE | — | No longer available — call for replacement |
| 15 | K-2291 | Mainshaft Kit | 1 | Replaces 23016. 1.96 SPLINE | $555.52 | Add to Cart |
| 15 | K-2293 | Mainshaft Kit | 1 | Replaces 23118. 2.00 SPLINE | — | Call for availability |
| 15 | K-2294 | Mainshaft Kit | 1 | Replaces 23119. 1.75 SPLINE | — | No longer available — call for replacement |
| 16 | 235366 | 2ND Gear-mainshaft | 1 | $152.54 | Add to Cart | |
| 17 | 235378 | Split Washer | 2 | $15.28 | Add to Cart | |
| 18 | 235379 | Retainer | 1 | $18.30 | Add to Cart | |
| 19 | 235365 | Reverse Gear- Mainshaft | 1 | $162.62 | Add to Cart | |
| 20 | 235371 | Clutch Hub 1/REV | 1 | $60.26 | Add to Cart | |
| 21 | 235372 | Snap Ring | 1 | $8.75 | Add to Cart | |
| 22 | 235373 | Sliding Clutch | 1 | $75.01 | Add to Cart | |
| 23 | 235431 | Spacer | 2 | $6.80 | Add to Cart | |
| 24 | 235363 | 1ST Gear-mainshaft | 1 | $153.66 | Add to Cart | |
| 25 | 235374 | Split Washer | 2 | $22.77 | Add to Cart | |
| 26 | 235375 | Retainer | 1 | $20.06 | Add to Cart | |
| 27 | 237227 | Bearing Cone | 1 | — | Call for availability | |
| 31 | 235376 | Bearing | 88 | $1.73 | Add to Cart |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart | |
| 71231 | Gasket Sealant | 1 | 8 MILLILITER SIZE | $33.25 | Add to Cart | |
| 71232 | Thread Adhesive | 1 | 10 MILLILITER SIZE | $28.73 | Add to Cart |
Remote Control
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3316284 | Control Housing Assy | 1 | Replaces 3316285. | — | Call for availability |
| 1 | 3316308 | Control Housing Assy | 1 | Replaces 221153316309. | $155.91 | Add to Cart |
| 2 | 12F100 | Plug 1" | 1 | $2.88 | Add to Cart | |
| 3 | 3312252 | Bushing | 3 | $5.88 | Add to Cart | |
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 5 | 3315948 | Breather | 1 | $14.64 | Add to Cart | |
| 6 | 21775 | Inner Shift Lever | 1 | — | Call for availability | |
| 7 | 3315272 | Screw | 2 | $5.85 | Add to Cart | |
| 8 | 3312745 | Washer | 1 | $4.32 | Add to Cart | |
| 9 | 3315837 | Spring | 1 | $7.74 | Add to Cart | |
| 10 | 3312225 | Oil Seal | 1 | $11.35 | Add to Cart | |
| 11 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 12 | 3314302 | Boot | 1 | $8.81 | Add to Cart | |
| 13 | 3316288 | No Longer Available | 1 | LEVER HEIGHT 5-1/8" | — | Call for availability |
| 13 | A-5273 | Shaft & Lever Assy | 1 | LEVER HEIGHT 3-3/4" | $108.19 | Add to Cart |
| 13 | A-5797 | No Longer Availalbe | 1 | — | Call for availability | |
| 999 | A-5399 | M/r Slave Control Assy | 1 | LEVER HEIGHT 3-3/4" | — | Call for availability |
| 999 | A-5795 | No Longer Available | 1 | — | Call for availability |

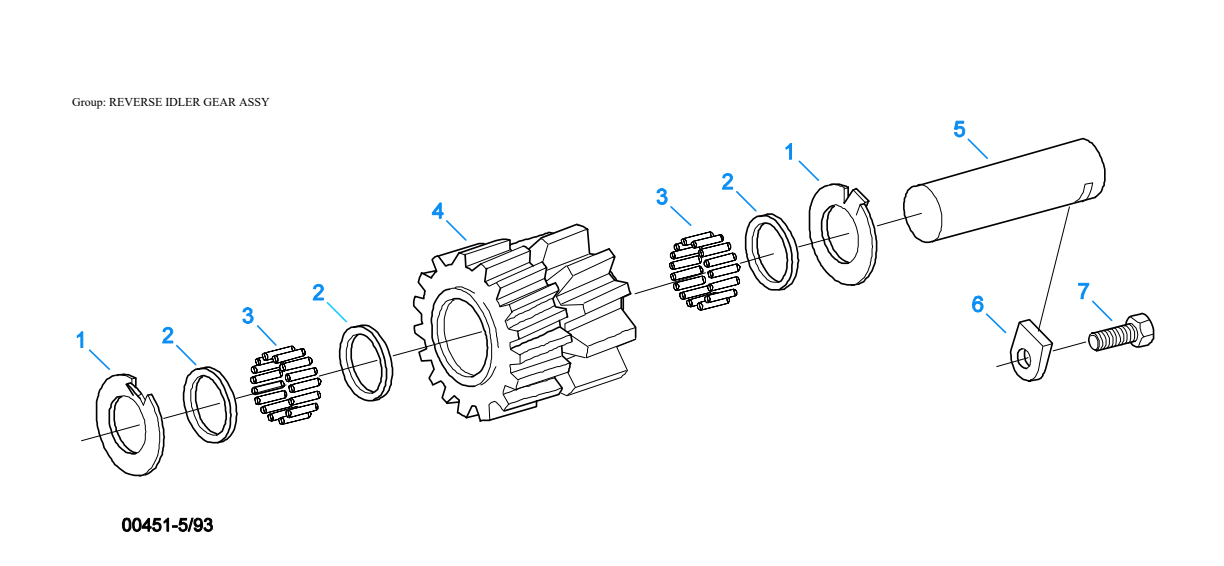

Reverse Idler Gear Assy
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 240023 | Washer | 2 | $6.86 | Add to Cart | |
| 2 | 235413 | Spacer | 3 | $4.58 | Add to Cart | |
| 3 | 235412 | Bearing | 52 | $1.76 | Add to Cart | |
| 4 | 235392 | Idler Gear | 1 | $216.94 | Add to Cart | |
| 5 | 203609 | Idler Shaft | 1 | $39.19 | Add to Cart | |
| 6 | 201929 | Shaft Lock | 1 | $2.63 | Add to Cart | |
| 7 | X-8C-600 | Capscrew | 1 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
Shift Bar Housing
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6535 | Shift Bar Hsg Assy | 1 | Replaces 235626, 4302945. HOUSING ONLY REVERSE SWITCH POSITION - RIGHT FRONT | $242.80 | Add to Cart |
| 2 | 228330 | Gasket | 1 | $6.37 | Add to Cart | |
| 3 | 10J14 | Steel Ball | 11 | 7/16" | $1.81 | Add to Cart |
| 4 | 4303939 | Spring | 3 | Replaces 201045. | $1.61 | Add to Cart |
| 5 | 235621 | Plug 1" | 1 | $13.94 | Add to Cart | |
| 6 | 235622 | Gasket | 1 | $2.11 | Add to Cart | |
| 7 | 235620 | Spacer | 1 | $760.40 | Add to Cart | |
| 8 | 3316218 | Spring | 1 | $4.94 | Add to Cart | |
| 9 | 235619 | Plunger | 1 | $23.93 | Add to Cart | |
| 10 | 235052 | Ca Plug | 1 | 9/16 - 18 | $1.50 | Add to Cart |
| 10 | 4303656 | Plug | 1 | Replaces 15917. 9/16 - 18, THREADED | $2.91 | Add to Cart |
| 11 | X-8C-600 | Capscrew | 14 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
| 13 | 238370 | Lifting Eye | 3 | $4.99 | Add to Cart | |
| 14 | 5879 | No Longer Available | 1 | — | Call for availability | |
| 15 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 19 | 14J1818 | Pin | 2 | $3.01 | Add to Cart | |
| 20 | 233043 | Capscrew | 4 | 3/8"-16X1" | $4.04 | Add to Cart |
| 21 | 4301277 | Shift Bar Retainer | 1 | FRONT | $21.53 | Add to Cart |
| 22 | 235609 | Shift Bar Retainer | 1 | REAR | $31.98 | Add to Cart |
| 23 | 235610 | Yoke Bar 1ST/REV | 1 | $42.74 | Add to Cart | |
| 24 | 21659 | Yoke Bar 2ND/3RD | 1 | $71.78 | Add to Cart | |
| 25 | 21658 | Yoke Bar 4TH/5TH | 1 | $73.94 | Add to Cart | |
| 26 | 4304465 | Yoke Bar 1ST/REV | 1 | $143.58 | Add to Cart | |
| 26 | K-3389 | Clutch/bar Repl Kit | 1 | Replaces 235607, 4301712. | $288.90 | Add to Cart |
| 27 | 14J1818 | Pin | 2 | $3.01 | Add to Cart | |
| 28 | 204756 | Spacer | 1 | FRONT | $6.44 | Add to Cart |
| 29 | 233384 | Spacer | 2 | REAR | $5.09 | Add to Cart |
| 30 | 235613 | Shift Block 1ST/REV | 1 | $50.21 | Add to Cart | |
| 31 | 235618 | Reverse Block | 1 | $59.22 | Add to Cart | |
| 32 | 235426 | Actuator | 1 | $38.03 | Add to Cart | |
| 33 | 106358 | Pin | 1 | $3.29 | Add to Cart | |
| 35 | 206641 | Spring | 1 | $6.20 | Add to Cart | |
| 36 | 235606 | Yoke 1ST/REV | 1 | — | Call for availability | |
| 37 | 201044 | Pin | 1 | $2.91 | Add to Cart | |
| 38 | A-5212 | No Longer Available | 1 | Replaces 21660, 228322. | — | Call for availability |
| 39 | 228324 | No Longer Available | 1 | Replaces 228325. | — | Call for availability |
| 40 | 227675 | Insert - Yoke Pad | 4 | $7.01 | Add to Cart | |
| 999 | S-7012 | No Longer Available | 1 | Replaces 235626. | — | Call for availability |
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for FS-5005A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
