Eaton Fuller FS-5106A Parts Manual
This is the Eaton Fuller Illustrated Parts List covering the FS-5106A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | FS-5106A |
| Transmission type | 6-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 19 pages |
| Format | PDF — view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Read the manual
This is the complete factory parts breakdown for the Eaton Fuller FS-5106A — every part in the manual, matched to our live inventory. We stock 216 of the 234 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Case Countershaft Assy Input Shaft Kits & Assemblies Lever Assy Mainshaft Assy Miscellaneous Remote Control Reverse Idler Gear Assy Shift Bar Housing
No parts match that search — try the part number with no dashes.

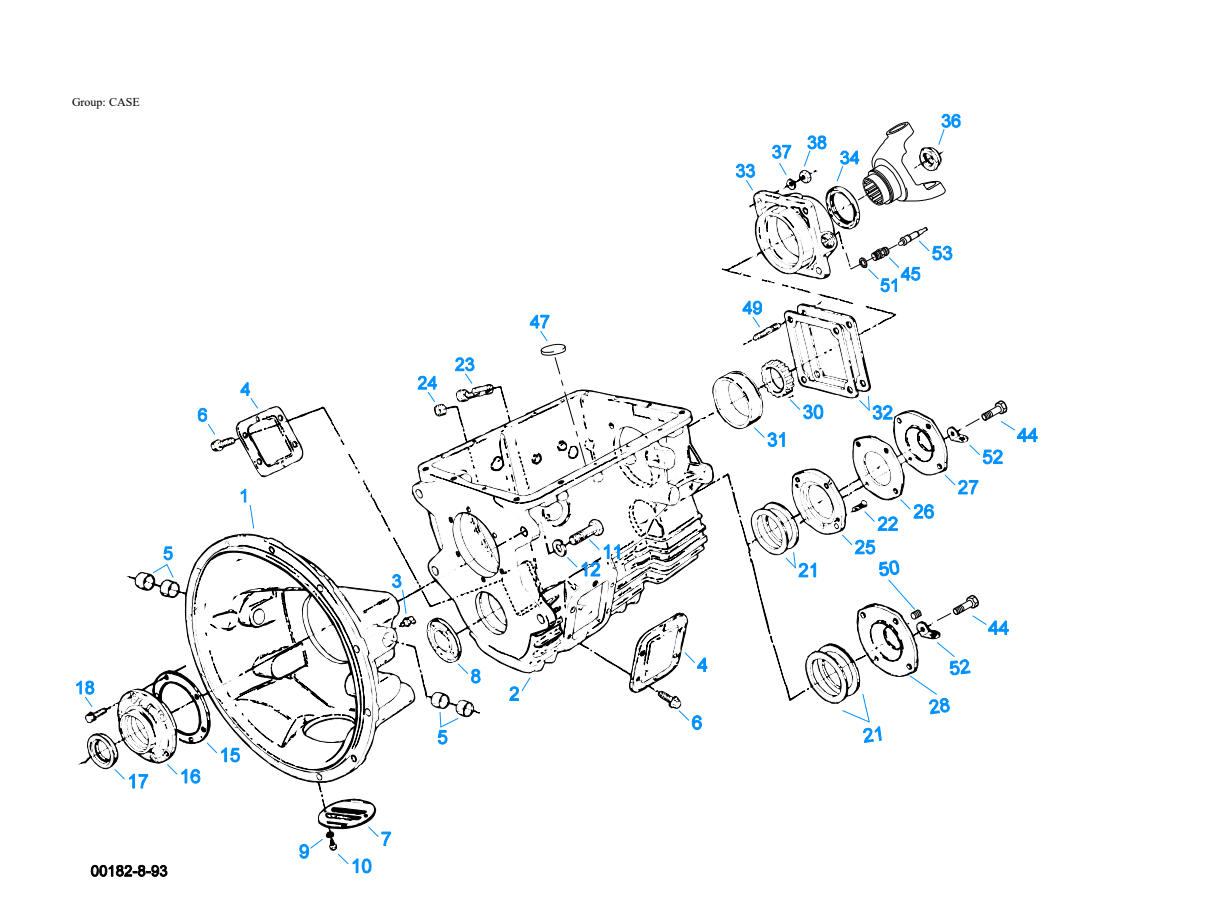

Case
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-5205 | Clutch Hsg Assy | 1 | Replaces 21646. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | — | No longer available — call for replacement |
| 1 | A-5631 | Clutch Hsg Assy | 1 | Replaces 23723. #2 PULL-IRON, W/90 DEG FITTINGS | $402.19 | Add to Cart |
| 1 | A-5634 | Clutch Hsg Assy | 1 | Replaces 23726, 3316236, 3316237, A-5632, A-5771. #2 ALUMINUM, ABOVE CENTER LINE PULL TYPE | $429.71 | Add to Cart |
| 1 | A-5751 | Clutch Hsg Assy | 1 | Replaces 4300418. #2 ALUMINUM, BELOW CENTER LINE PUSH TYPE | $328.83 | Add to Cart |
| 1 | A-5878 | Clutch Hsg Assy | 1 | Replaces 4300744. #2 PULL-ALUMINUM | $333.25 | Add to Cart |
| 1 | A-6228 | Clutch Hsg Assy | 1 | Replaces 23723. #2 PULL-IRON, W/45 DEG FITTINGS | $660.36 | Add to Cart |
| 1 | A-7514 | Clutch Hsg Assy | 1 | Replaces 3316241. #2 ALUMINUM, PUSH TYPE (FORK) | — | No longer available — call for replacement |
| 2 | S-2952 | Case Assy | 1 | Replaces 3316276, 4301285, 4304643, 4305177. | $1,717.12 | Add to Cart |
| 3 | 4300301 | FITTING-45 Degree | 2 | Replaces 11H15. | $5.45 | Add to Cart |
| 3 | 4872 | FITTING-90 Degree | 2 | Replaces 12H15. | $3.41 | Add to Cart |
| 4 | 201398 | Pto Cover | 2 | $9.08 | Add to Cart | |
| 5 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 5 | 8677 | Bushing | 2 | USE W/A-5205 CLUTCH HSG ASSY | $19.09 | Add to Cart |
| 6 | 239613 | Capscrew | 12 | 3/8"-16X5/8" | $4.45 | Add to Cart |
| 7 | 23380 | Cover | 1 | Replaces 206466. | $5.20 | Add to Cart |
| 8 | 3315679 | Plug | 1 | $5.72 | Add to Cart | |
| 9 | X-3-400 | Lockwasher | 2 | Replaces 4E04. 1/4" | $1.17 | Add to Cart |
| 10 | 1C408 | Capscrew | 2 | 1/4"-20 | $1.41 | Add to Cart |
| 11 | X-8-1011 | Capscrew | 4 | Replaces 1C1036. 5/8"-11X2-1/4" | $3.64 | Add to Cart |
| 12 | X-3-1000 | Lockwasher | 4 | 5/8" | $1.69 | Add to Cart |
| 15 | 3315659 | Gasket | 1 | $2.58 | Add to Cart | |
| 16 | 21893 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $193.63 | Add to Cart |
| 16 | 21982 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $250.83 | Add to Cart |
| 16 | 21992 | Front Brg Cover-push | 1 | USE 19110 OIL SEAL | $216.76 | Add to Cart |
| 16 | 3316171 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | — | Call for availability |
| 16 | 3316313 | Front Brg Cover-push | 1 | USE 4300798 OIL SEAL | $511.80 | Add to Cart |
| 16 | 4300887 | Front Brg Cover-push | 1 | USE 4300204 OIL SEAL | — | Call for availability |
| 16 | 4300888 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | $203.38 | Add to Cart |
| 16 | 4301144 | Front Brg Cover-pull | 1 | USE 4300121 OIL SEAL | $148.24 | Add to Cart |
| 17 | 19110 | Oil Seal | 1 | Replaces 18386. SHAFT 1.875, WIDTH .188 | $20.77 | Add to Cart |
| 17 | 4300121 | Oil Seal | 1 | Replaces 3315623. SHAFT 1.873, WIDTH .375, OD 2.68 | $9.12 | Add to Cart |
| 17 | 4300204 | Oil Seal | 1 | Replaces 235394. SHAFT 1.873, WIDTH .375 | $7.21 | Add to Cart |
| 17 | 4300798 | Oil Seal | 1 | Replaces 235393. SHAFT 1.625, WIDTH .375 | $6.14 | Add to Cart |
| 18 | 239614 | Screw | 6 | 5/16-18X.81 | $7.31 | Add to Cart |
| 21 | 3315681 | Shim .004 | 1 | QUANTITY AS REQUIRED | $3.01 | Add to Cart |
| 21 | 3315682 | Shim .007 | 1 | QUANTITY AS REQUIRED | $2.24 | Add to Cart |
| 21 | 3315683 | Shim .010 | 1 | QUANTITY AS REQUIRED | $3.06 | Add to Cart |
| 21 | 3315684 | Shim .020 | 1 | QUANTITY AS REQUIRED | $3.74 | Add to Cart |
| 21 | 4300977 | Shim .040 | 1 | $3.34 | Add to Cart | |
| 22 | 9G416H | Screw | 2 | 1/4"-20X1" | $6.60 | Add to Cart |
| 23 | X-12-1207 | Pipe Plug | 1 | Replaces X121202X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 24 | X-12-1210 | Pipe Plug | 1 | Replaces X121206. | $4.89 | Add to Cart |
| 25 | 4301607 | C/s Rear Brg Cover | 1 | Replaces K-3430. | $72.73 | Add to Cart |
| 26 | 3315671 | Gasket | 1 | $5.69 | Add to Cart | |
| 27 | 4301607 | C/s Rear Brg Cover | 1 | Replaces K-3430. | $72.73 | Add to Cart |
| 28 | 4301607 | C/s Rear Brg Cover | 1 | $72.73 | Add to Cart | |
| 30 | 3316160 | Speedo Rotor | 1 | 16 TEETH | $71.38 | Add to Cart |
| 30 | 3316283 | Speedo Drive Gear | 1 | 6 TEETH | $84.78 | Add to Cart |
| 30 | 4300003 | Speedo Rotor | 1 | 6 TEETH | $101.57 | Add to Cart |
| 30 | 86302 | Speedo Drive Gear | 1 | 5 TEETH | $118.45 | Add to Cart |
| 30 | 86310 | No Longer Available | 1 | 6 TEETH | — | Call for availability |
| 30 | 86313 | No Longer Available | 1 | 6 TEETH | — | Call for availability |
| 31 | 711123 | Bearing Cup | 1 | — | Call for availability | |
| 32 | 3315662 | Shim .004 | 1 | QUANTITY AS REQUIRED | $5.74 | Add to Cart |
| 32 | 3315663 | Shim .007 | 1 | QUANTITY AS REQUIRED | $6.73 | Add to Cart |
| 32 | 3315664 | Shim .010 | 1 | QUANTITY AS REQUIRED | $3.71 | Add to Cart |
| 32 | 3315665 | Shim .020 | 1 | QUANTITY AS REQUIRED | $5.51 | Add to Cart |
| 32 | 4300978 | Shim .040 | 1 | $12.31 | Add to Cart | |
| 33 | 21901 | No Longer Available | 1 | USE 4300119 OIL SEAL | — | Call for availability |
| 33 | 21947 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $319.65 | Add to Cart |
| 33 | 22020 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $199.60 | Add to Cart |
| 33 | 3316278 | Rear Brg Cover | 1 | USE 4300119 OIL SEAL | $198.89 | Add to Cart |
| 33 | S-7035 | Rear Brg Cover Assy | 1 | Replaces 23248, 4301987. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $241.26 | Add to Cart |
| 33 | S-7036 | Rear Brg Cover Assy | 1 | Replaces 21979, 4302005. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $329.08 | Add to Cart |
| 33 | S-7037 | Rear Brg Cover Assy | 1 | Replaces 3315657, 4302029. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $216.02 | Add to Cart |
| 33 | S-7038 | Rear Brg Cover Assy | 1 | Replaces 4300746, 4302100. USE 4300119 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $185.67 | Add to Cart |
| 34 | 4300119 | Oil Seal | 1 | SHAFT 2.753, WIDTH .5 | $11.37 | Add to Cart |
| 36 | 21937 | Nut | 1 | Replaces 216053, 235656, 238026. 1-1/4"-18 | $20.79 | Add to Cart |
| 37 | 239436 | Washer | 4 | 1/2" | $2.49 | Add to Cart |
| 38 | 86D8 | Nut | 4 | Replaces 86D08. 1/2"-20 | $2.63 | Add to Cart |
| 44 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 45 | 3316225 | Sleeve | 1 | $38.30 | Add to Cart | |
| 45 | 86147 | Sleeve | 1 | $86.48 | Add to Cart | |
| 47 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 49 | 239433 | Stud | 4 | 1/2"-20X2-5/16" | $5.16 | Add to Cart |
| 51 | 4301954 | Sensor Seal | 1 | $4.84 | Add to Cart | |
| 52 | 238370 | Lifting Eye | 1 | $4.99 | Add to Cart | |
| 53 | 5501519 | No Longer Available | 1 | 17 TEETH | — | Call for availability |
| 53 | 86303 | Speedo Driven Gear | 1 | 15 TEETH | $73.23 | Add to Cart |
| 53 | 86309 | No Longer Available | 1 | 12 TEETH | — | Call for availability |

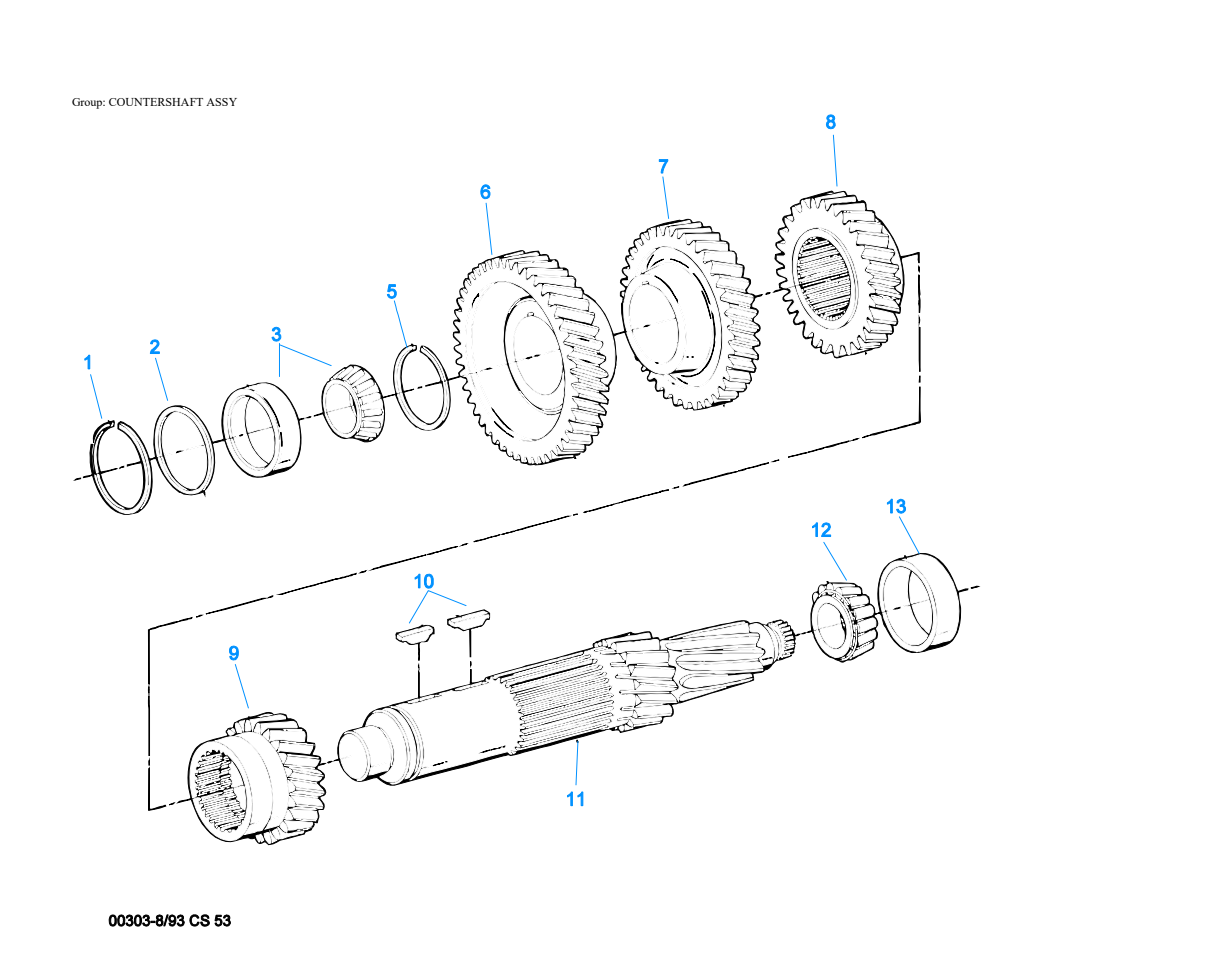

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3315686 | Snap Ring | 1 | $5.26 | Add to Cart | |
| 2 | 3315687 | Washer | 1 | $20.36 | Add to Cart | |
| 3 | K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart |
| 5 | 3315752 | Snap Ring | 1 | Replaces 3315751. | $5.01 | Add to Cart |
| 6 | 3315743 | Drive Gear-cntrshft | 1 | $159.29 | Add to Cart | |
| 7 | 3315745 | 5TH Gear-cntrshft | 1 | $175.53 | Add to Cart | |
| 8 | 3315747 | 4TH Gear-cntrshft | 1 | $124.92 | Add to Cart | |
| 9 | 4303240 | 3RD Gear-cntrshft | 1 | Replaces 22076. | $118.29 | Add to Cart |
| 10 | 230292 | Key | 2 | $4.27 | Add to Cart | |
| 11 | 4303238 | Countershaft | 1 | Replaces 3315740. | $590.37 | Add to Cart |
| 12 | 658981 | Bearing Cone | 1 | — | Call for availability | |
| 13 | 660181 | Bearing Cup | 1 | — | Call for availability |
Input Shaft
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 675250 | Bearing Cup | 1 | 1.75" INPUT | — | Call for availability |
| 1 | 711123 | Bearing Cup | 1 | 1.50" INPUT | — | Call for availability |
| 2 | 5557003 | Bearing Cone | 1 | Replaces 5202047. 1.50" INPUT | — | Call for availability |
| 2 | 742259 | Bearing Cone | 1 | 1.75" INPUT | — | Call for availability |
| 3 | 21896 | IN/SHAFT-1.50" Push/pul | 1 | USE 21893 FRONT BRG COVER | $404.42 | Add to Cart |
| 3 | 21898 | IN/SHAFT-1.75" Push/pull | 1 | USE 3316171, 4300888 OR 4301144 FRONT BRG COVER | $302.91 | Add to Cart |
| 3 | 21988 | IN/SHAFT-1.50" Push/pull | 1 | USE 21982 FRONT BRG COVER | $333.89 | Add to Cart |
| 3 | 3316257 | IN/SHAFT-1.75" Push/pull | 1 | USE 21992, 23106, 3316171 OR 4301144 FRONT BRG COVER | $275.10 | Add to Cart |
| 3 | 3316314 | Input SHAFT-1.50" Push | 1 | USE 3316313 FRONT BRG COVER | $316.19 | Add to Cart |
| 3 | 4300889 | Input SHAFT-1.50" Push | 1 | USE 4300887 FRONT BRG COVER | — | Call for availability |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-2017 | Synchronizer Kit | 1 | $360.29 | Add to Cart | ||
| K-2022 | Conversion Kit | 1 | $733.01 | Add to Cart | ||
| K-2041 | Basic Rebuild Kit | 1 | $807.44 | Add to Cart | ||
| K-2111 | Gear Replacement Kit | 1 | Replaces 3315750. | $490.81 | Add to Cart | |
| K-2181 | Gasket Kit | 1 | $34.12 | Add to Cart | ||
| K-2183 | Shim Kit | 1 | $65.70 | Add to Cart | ||
| K-2257 | Synchronizer Kit | 1 | $441.31 | Add to Cart | ||
| K-2306 | Conversion Kit | 1 | $322.25 | Add to Cart | ||
| K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart | |
| K-7026 | Small Parts Kit | 1 | $154.18 | Add to Cart | ||
| K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart | |
| K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart | |
| K-7069 | Remote Control Kit | 1 | Replaces A-5403. LEVER HEIGHT 85MM (3.35") | $510.56 | Add to Cart | |
| S-1578 | Shift Lever Assy 3-1/2" | 1 | COMPLETE ASSY - ALUMINUM HOUSING HIGH - LEVER HEIGHT 3- 1/2" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $494.57 | Add to Cart | |
| S-1827 | Shift Lever Assy 3-1/8" | 1 | Replaces S-7079. COMPLETE ASSY - ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $483.17 | Add to Cart | |
| S-7013 | Shift Bar Hsg Assy | 1 | Replaces 3315760, 4302947. COMPLETE | $1,140.33 | Add to Cart | |
| S-7035 | Rear Brg Cover Assy | 1 | Replaces 23248, 4301987. | $241.26 | Add to Cart | |
| S-7036 | Rear Brg Cover Assy | 1 | Replaces 21979, 4302005. | $329.08 | Add to Cart | |
| S-7037 | Rear Brg Cover Assy | 1 | Replaces 3315657, 4302029. | $216.02 | Add to Cart | |
| S-7038 | Rear Brg Cover Assy | 1 | Replaces 4300746, 4302100. | $185.67 | Add to Cart | |
| S-7045 | Shift Lever Assy 2-7/8" | 1 | COMPLETE ASSY - ALUMINUM HOUSING LOW - LEVER HEIGHT 2- 7/8" 33" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $548.46 | Add to Cart |

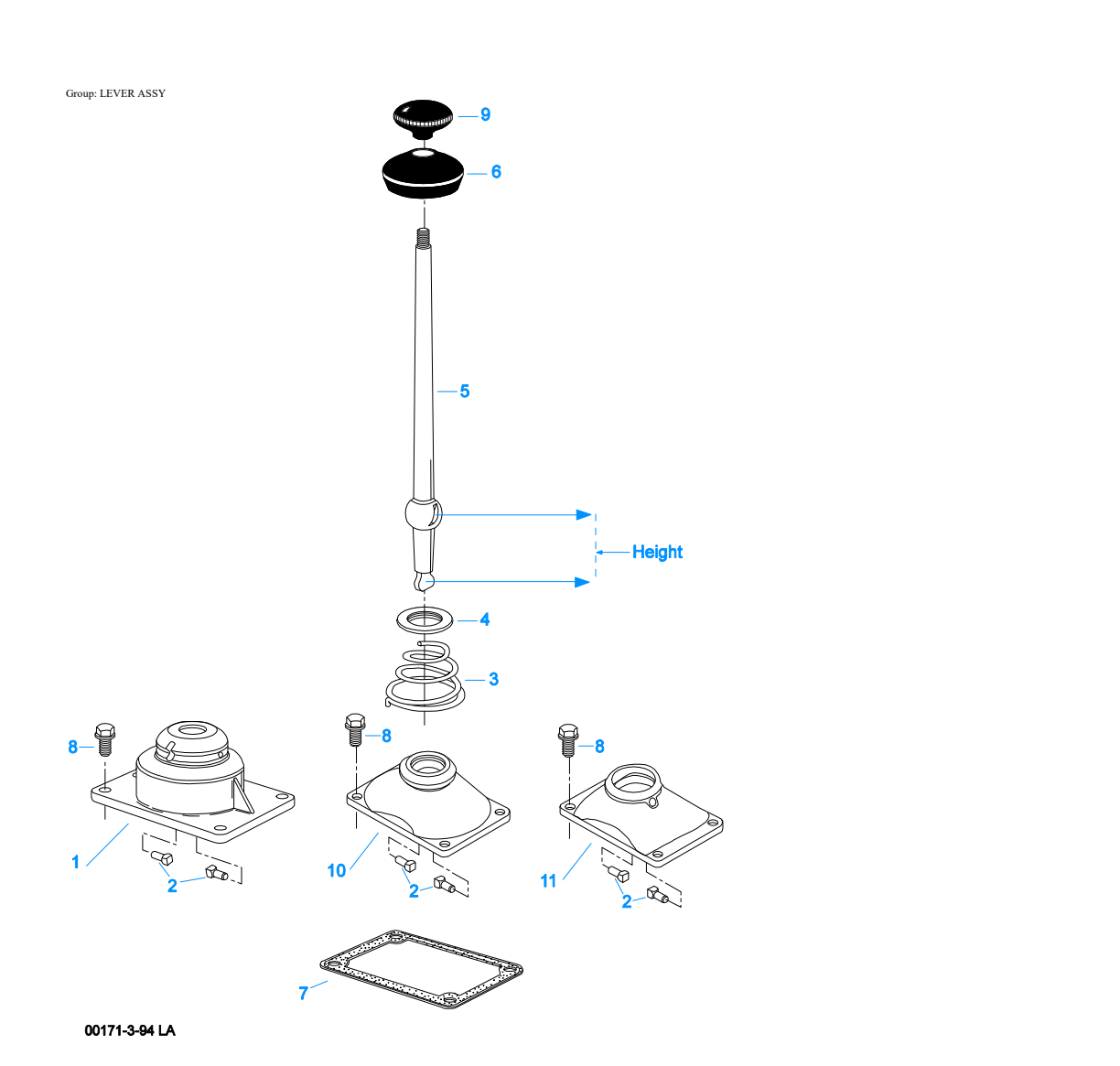

Lever Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart |
| 2 | 201054 | Pin | 2 | FOR HSGS WITHOUT PIN SLEEVES | $5.88 | Add to Cart |
| 2 | 23180 | Pin | 2 | FOR HSGS WITH PIN SLEEVES | $4.86 | Add to Cart |
| 3 | 4300690 | Spring | 1 | Replaces 229337. | $9.49 | Add to Cart |
| 4 | 23181 | Washer | 1 | $2.77 | Add to Cart | |
| 5 | 21722 | Shift Lever 27-1/2" | 1 | USE WITH K-7062 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 5 | 241076 | Shift Lever 27-1/2" | 1 | USE WITH K-7061 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 5 | 4302823 | Shift Lever 33" | 1 | USE WITH A-6448 STRAIGHT LEVER - "BEND TO SUIT" | $369.68 | Add to Cart |
| 6 | 202484 | Dust Cover | 1 | $7.34 | Add to Cart | |
| 7 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 8 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 9 | 201401 | Shift Knob | 1 | 3/8"X24 THREAD | $19.73 | Add to Cart |
| 10 | K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart |
| 11 | K-7065 | Shift Lever Hsg Kit | 1 | Replaces 4302704, 4302711, A-6448. ALUMINUM HOUSING LOW - LEVER HEIGHT 2-7/8" | $52.90 | Add to Cart |

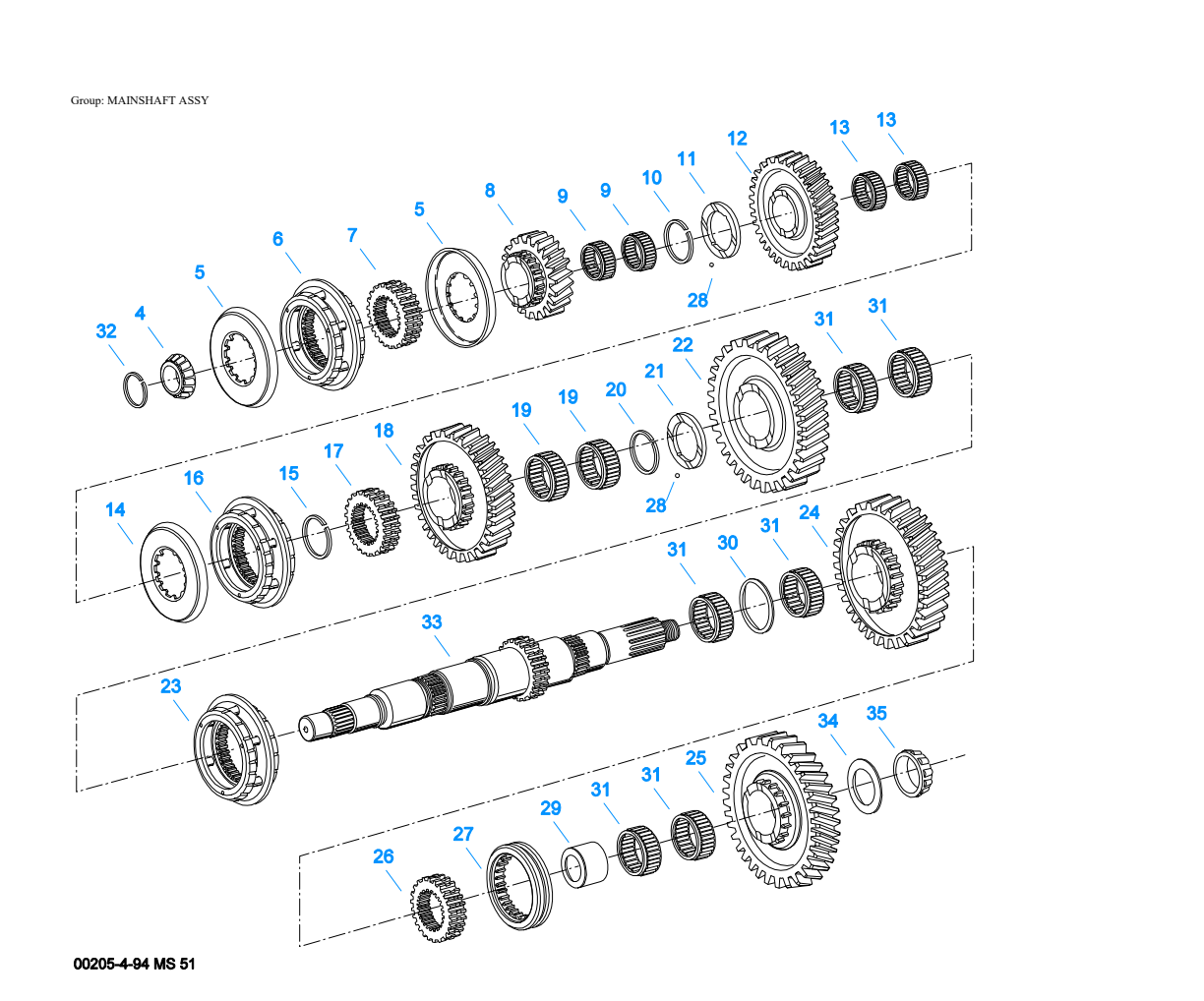

Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | 710787 | Bearing Cone | 1 | $35.16 | Add to Cart | |
| 5 | 228306 | Synchronizer Cup | 2 | $43.31 | Add to Cart | |
| 6 | A-5693 | Synchronizer Assy 5/6 | 1 | Replaces A-5254, A-5543. | $228.33 | Add to Cart |
| 7 | 3315738 | Clutch Hub 5/6 | 1 | $81.82 | Add to Cart | |
| 8 | 3315720 | 5TH Gear-mainshaft | 1 | $157.89 | Add to Cart | |
| 9 | 3315737 | Bearing | 2 | $26.96 | Add to Cart | |
| 10 | 3315728 | Snap Ring | 1 | Replaces 3315729. | $3.06 | Add to Cart |
| 11 | 3315727 | Washer | 1 | $28.00 | Add to Cart | |
| 12 | 3315715 | 4TH Gear-mainshaft | 1 | $151.82 | Add to Cart | |
| 13 | 4124075 | Bearing | 2 | $34.53 | Add to Cart | |
| 14 | 3315730 | Synchronizer Cup | 1 | $77.19 | Add to Cart | |
| 15 | 3315725 | Snap Ring | 1 | $3.33 | Add to Cart | |
| 16 | A-5692 | Synchronizer Assy 3/4 | 1 | Replaces A-5541. | $367.32 | Add to Cart |
| 17 | 3315723 | Clutch Hub 3/4 | 1 | $87.68 | Add to Cart | |
| 18 | 22075 | 3RD Gear-mainshaft | 1 | $210.44 | Add to Cart | |
| 19 | 3315722 | Bearing | 2 | $19.60 | Add to Cart | |
| 20 | 3315717 | Snap Ring | 1 | Replaces 3315718. | $4.63 | Add to Cart |
| 21 | 3315719 | Washer | 1 | $42.55 | Add to Cart | |
| 22 | 3315705 | 2ND Gear-mainshaft | 1 | $363.56 | Add to Cart | |
| 23 | A-5721 | Synchronizer Assy 2/3 | 1 | Replaces A-5540. | $558.39 | Add to Cart |
| 24 | 3315700 | 1ST Gear-mainshaft | 1 | $383.31 | Add to Cart | |
| 25 | 3315692 | Reverse Gear- Mainshaft | 1 | $310.27 | Add to Cart | |
| 26 | 3315696 | Clutch Hub Rev | 1 | $77.88 | Add to Cart | |
| 27 | 3315694 | Sliding Clutch | 1 | $108.52 | Add to Cart | |
| 28 | 10J06 | Steel Ball | 2 | 3/16" | $1.71 | Add to Cart |
| 29 | 3315698 | Bushing | 1 | $58.39 | Add to Cart | |
| 30 | 3315702 | Spacer | 1 | $14.60 | Add to Cart | |
| 31 | 3315703 | Bearing | 6 | $40.64 | Add to Cart | |
| 32 | 3313798 | Snap Ring | 1 | NO LONGER REQUIRED | $3.33 | Add to Cart |
| 33 | 23301 | Mainshaft | 1 | $465.98 | Add to Cart | |
| 34 | 3315704 | Washer | 1 | $45.54 | Add to Cart | |
| 35 | 5557003 | Bearing Cone | 1 | Replaces 5202047. | — | Call for availability |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart | |
| 71231 | Gasket Sealant | 1 | 8 MILLILITER SIZE | $33.25 | Add to Cart | |
| 71232 | Thread Adhesive | 1 | 10 MILLILITER SIZE | $28.73 | Add to Cart |

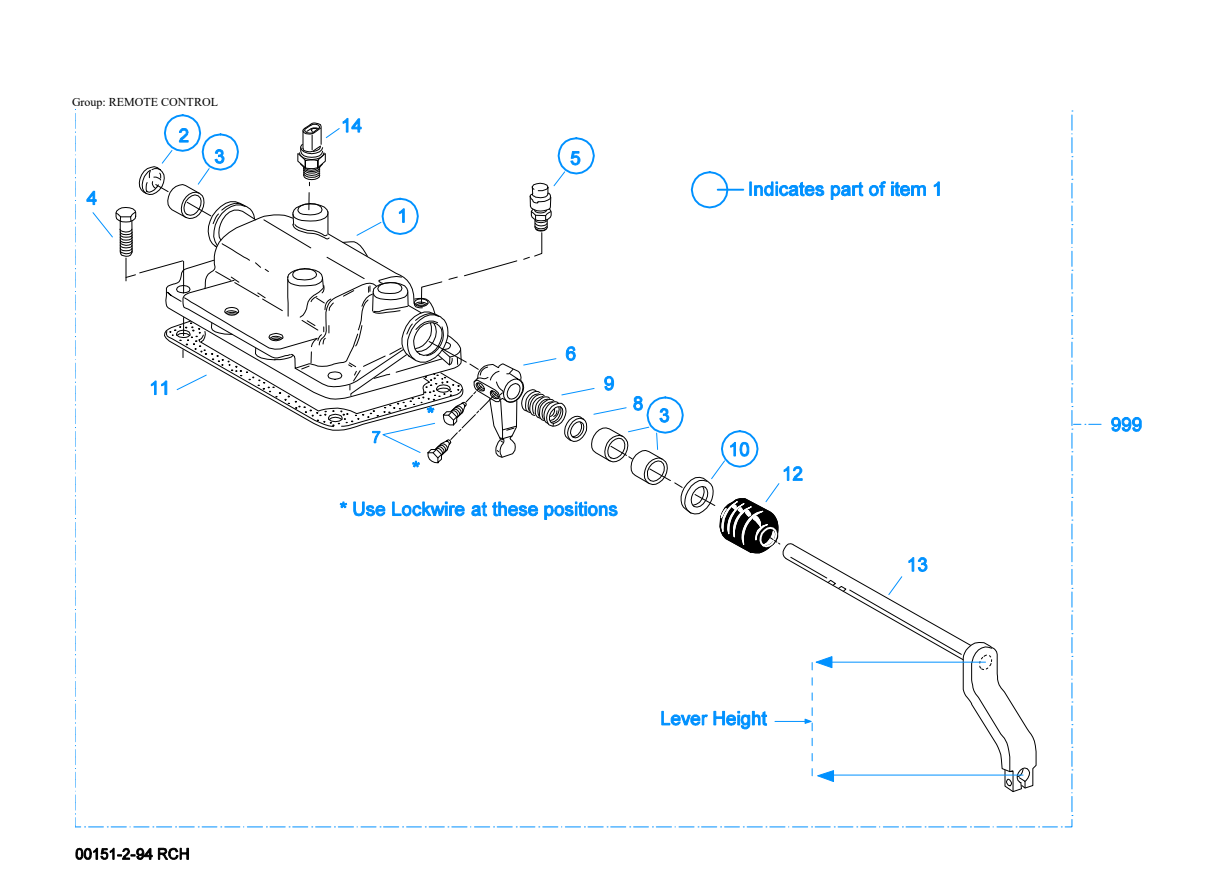

Remote Control
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3316308 | Control Housing Assy | 1 | Replaces 22115, 3316309. | $155.91 | Add to Cart |
| 2 | 12F100 | Plug 1" | 1 | $2.88 | Add to Cart | |
| 3 | 3312252 | Bushing | 3 | $5.88 | Add to Cart | |
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 5 | 3315948 | Breather | 1 | USE WITH 3316308 HOUSING ASSY | $14.64 | Add to Cart |
| 5 | 4300217 | Breather | 1 | $23.79 | Add to Cart | |
| 6 | 3316290 | Shift Finger | 1 | $108.97 | Add to Cart | |
| 7 | 3315272 | Screw | 2 | $5.85 | Add to Cart | |
| 8 | 3312745 | Washer | 1 | $4.32 | Add to Cart | |
| 9 | 3315837 | Spring | 1 | $7.74 | Add to Cart | |
| 10 | 3312225 | Oil Seal | 1 | $11.35 | Add to Cart | |
| 11 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 12 | 3314302 | Boot | 1 | $8.81 | Add to Cart | |
| 13 | A-5273 | Shaft & Lever Assy | 1 | LEVER HEIGHT 3-3/4" | $108.19 | Add to Cart |
| 13 | A-5312 | Shaft & Lever Assy | 1 | LEVER HEIGHT 85MM (3.35") | $122.12 | Add to Cart |
| 999 | A-6083 | M/r Slave Control Assy | 1 | LEVER HEIGHT 3-3/4" SPRING AND WASHER INCLUDED | $3,363.20 | Add to Cart |
| 999 | K-7069 | Remote Control Kit | 1 | Replaces A-5403. LEVER HEIGHT 85MM (3.35") | $510.56 | Add to Cart |

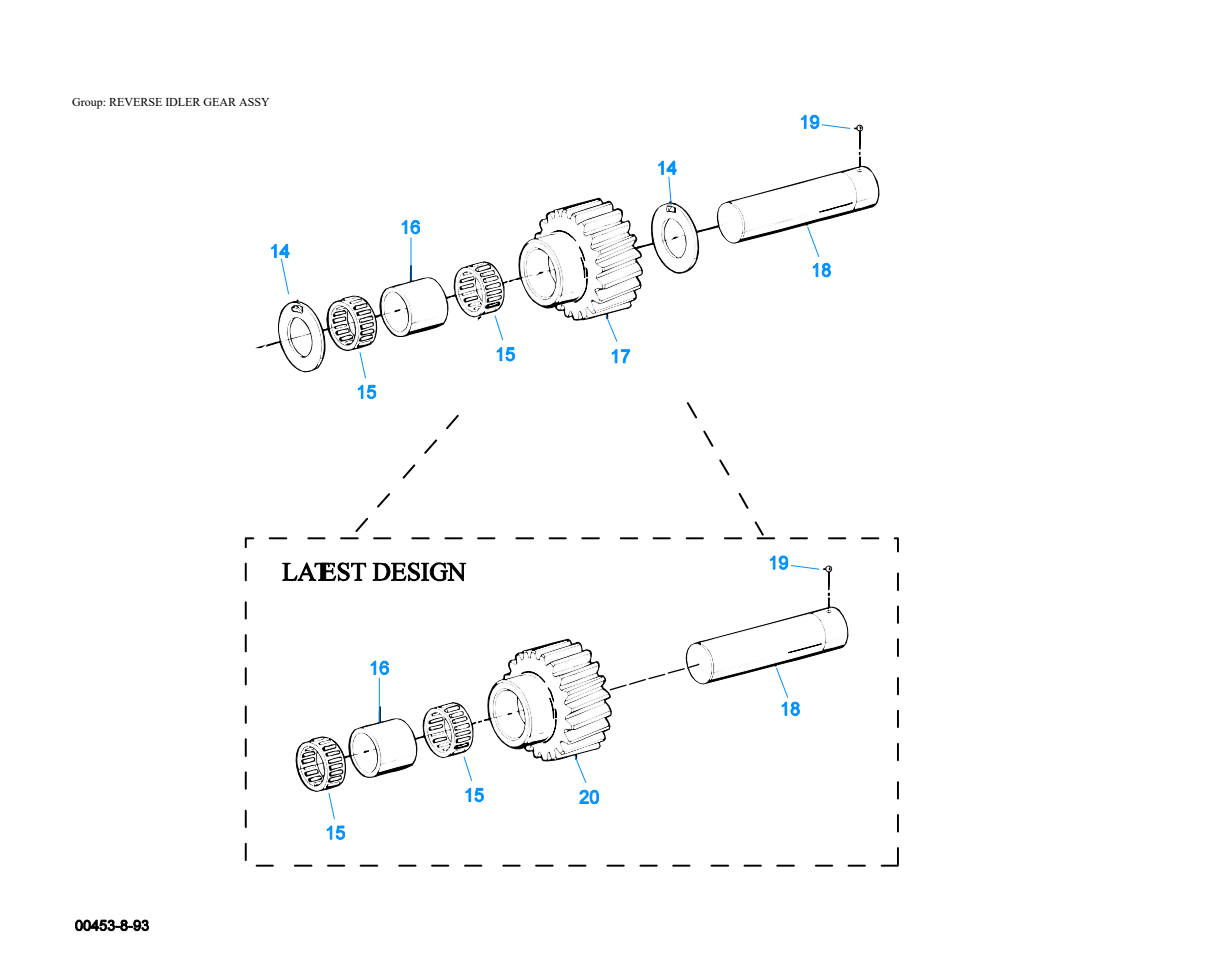

Reverse Idler Gear Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 14 | 3315673 | Washer | 2 | $24.98 | Add to Cart | |
| 15 | 3315674 | Bearing | 2 | $19.40 | Add to Cart | |
| 16 | 3315676 | Spacer | 1 | $22.06 | Add to Cart | |
| 17 | K-3530 | Reverse Idler Gear Kit | 1 | Replaces 3315753. | $148.15 | Add to Cart |
| 18 | 3315672 | Reverse Idler Shaft | 1 | $133.45 | Add to Cart | |
| 19 | 10J06 | Steel Ball | 1 | 3/16" | $1.71 | Add to Cart |
| 20 | 4304320 | Reverse Idler Gear | 1 | $173.58 | Add to Cart |

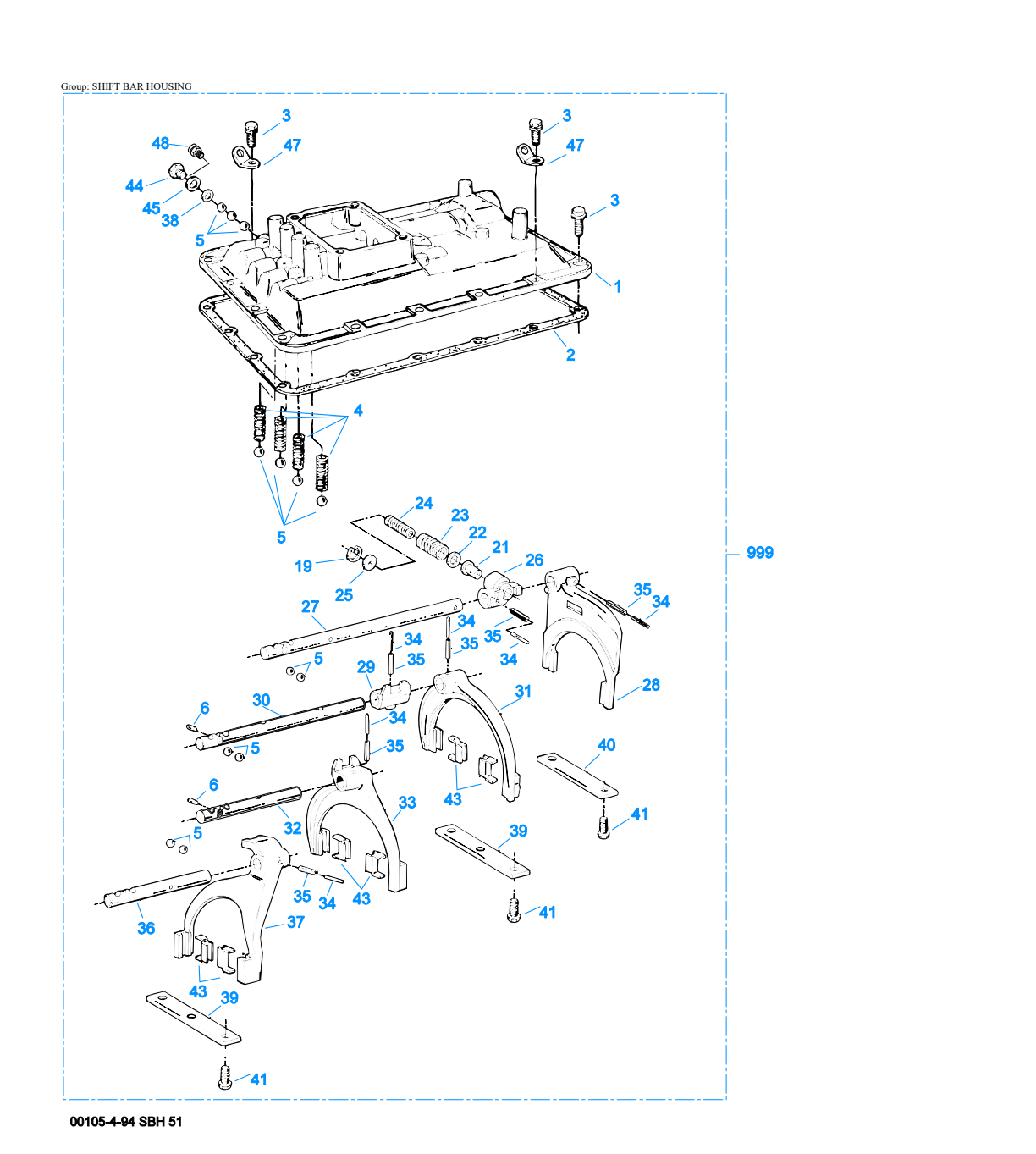

Shift Bar Housing
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | A-6744 | Shift Bar Hsg Assy | 1 | Replaces 3315760, 4302947. | $190.54 | Add to Cart |
| 2 | 4300854 | Gasket | 1 | Replaces 3315678. | $6.04 | Add to Cart |
| 3 | X-8C-600 | Capscrew | 17 | Replaces 239611. 3/8"-16X1" | $4.58 | Add to Cart |
| 4 | 3315765 | Spring | 4 | $2.77 | Add to Cart | |
| 5 | 10J14 | Steel Ball | 13 | 7/16" | $1.81 | Add to Cart |
| 6 | 201044 | Pin | 2 | $2.91 | Add to Cart | |
| 19 | 21736 | Snap Ring | 1 | $2.02 | Add to Cart | |
| 21 | 3316296 | Plunger | 1 | $18.55 | Add to Cart | |
| 22 | 3316298 | Washer | 1 | $4.99 | Add to Cart | |
| 23 | 21723 | Spring | 1 | $10.31 | Add to Cart | |
| 24 | 21724 | Spring | 1 | $6.27 | Add to Cart | |
| 25 | 3316295 | Washer | 1 | $4.70 | Add to Cart | |
| 26 | 3316300 | Shift Block Rev | 1 | $82.30 | Add to Cart | |
| 27 | 23296 | Yoke Bar Rev | 1 | $89.28 | Add to Cart | |
| 28 | 3315897 | Yoke Assy Rev | 1 | $95.85 | Add to Cart | |
| 29 | 3315778 | Shift Block 1ST/2ND | 1 | $63.20 | Add to Cart | |
| 30 | 23297 | Yoke Bar 1ST/2ND | 1 | Replaces 3315759. | $89.28 | Add to Cart |
| 31 | 3315772 | Yoke Assy 1ST/2ND | 1 | Replaces 3315770. | $107.37 | Add to Cart |
| 32 | 23298 | Yoke Bar 3RD/4TH | 1 | Replaces 21804. | $82.58 | Add to Cart |
| 33 | 3315777 | Yoke Assy 3RD/4TH | 1 | Replaces 3315775. | $138.27 | Add to Cart |
| 34 | 1JM6028 | Pin | 6 | $2.24 | Add to Cart | |
| 35 | 1JM3528 | Pin | 6 | $1.78 | Add to Cart | |
| 36 | 23299 | Yoke Bar 5TH/6TH | 1 | Replaces 3315763. | $89.28 | Add to Cart |
| 37 | 3315782 | Yoke Assy 5TH/6TH | 1 | Replaces 3315780. | $126.95 | Add to Cart |
| 38 | 4301719 | Ball Retainer- Reverse | 1 | $1.76 | Add to Cart | |
| 39 | 4301279 | Shift Bar Retainer | 2 | Replaces 3315756. | $18.50 | Add to Cart |
| 40 | 3315757 | Shift Bar Retainer | 1 | $31.20 | Add to Cart | |
| 41 | 233043 | Capscrew | 11 | 3/8"-16X1" | $4.04 | Add to Cart |
| 43 | 227675 | Insert - Yoke Pad | 6 | $7.01 | Add to Cart | |
| 44 | 235052 | Ca Plug | 1 | 9/16 - 18 | $1.50 | Add to Cart |
| 44 | 4303656 | Plug | 1 | Replaces 15917. 9/16 - 18, THREADED | $2.91 | Add to Cart |
| 45 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 47 | 238370 | Lifting Eye | 2 | $4.99 | Add to Cart | |
| 48 | 22941 | Neutral Light Switch | 1 | SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 999 | S-7013 | Shift Bar Hsg Assy | 1 | Replaces 3315760, 4302947. COMPLETE | $1,140.33 | Add to Cart |
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for FS-5106A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
