Eaton Fuller FS-8206A Parts Manual
This is the Eaton Fuller Illustrated Parts List covering the FS-8206A transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | FS-8206A |
| Transmission type | 6-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Eaton Fuller) |
| Length | 19 pages |
| Format | PDF — view below or download free |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Read the manual
This is the complete factory parts breakdown for the Eaton Fuller FS-8206A — every part in the manual, matched to our live inventory. We stock 183 of the 218 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Case Countershaft Assy Input Shaft Kits & Assemblies Lever Assy Mainshaft Assy Miscellaneous Reverse Idler Gear Assy Shift Bar Housing
No parts match that search — try the part number with no dashes.
Case
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1878 | Case Assy | 1 | Replaces 4300572. | $1,262.86 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 4 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 5 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 6 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 7 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 8 | 3315679 | Plug | 1 | $5.72 | Add to Cart | |
| 9 | 12815 | Bushing | 4 | $5.26 | Add to Cart | |
| 10 | A-5634 | Clutch Hsg Assy | 1 | Replaces 23726, 3316236, 3316237, A-5632, A-5771. #2 ALUMINUM, ABOVE CENTER LINE PULL TYPE | $429.71 | Add to Cart |
| 11 | 23380 | Cover | 1 | Replaces 206466. | $5.20 | Add to Cart |
| 12 | 86312 | No Longer Available | 1 | — | Call for availability | |
| 13 | X-8L-408 | Screw & Washer Assy | 2 | $1.79 | Add to Cart | |
| 14 | 3315659 | Gasket | 1 | $2.58 | Add to Cart | |
| 15 | 675250 | Bearing Cup | 1 | 1.75" INPUT | — | Call for availability |
| 16 | 4300888 | Front Brg Cover-pull | 1 | $203.38 | Add to Cart | |
| 17 | 22329 | Oil Seal | 1 | SHAFT 2, WIDTH .375 | $27.03 | Add to Cart |
| 18 | 239614 | Screw | 6 | 5/16-18X.81 | $7.31 | Add to Cart |
| 19 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 20 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 21 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 22 | 4300301 | FITTING-45 Degree | 2 | Replaces 11H15. | $5.45 | Add to Cart |
| 23 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 26 | 20719 | Dowel Pin | 1 | $2.24 | Add to Cart | |
| 27 | X-3-1000 | Lockwasher | 4 | 5/8" | $1.69 | Add to Cart |
| 28 | X-8-1011 | Capscrew | 4 | Replaces 1C1036. 5/8"-11X2-1/4" | $3.64 | Add to Cart |
| 29 | 675250 | Bearing Cup | 1 | 1.75" INPUT | — | Call for availability |
| 30 | 239433 | Stud | 4 | 1/2"-20X2-5/16" | $5.16 | Add to Cart |
| 31 | 4300675 | Speedo Rotor | 1 | 16 TEETH | $99.59 | Add to Cart |
| 31 | 4301984 | Speedo Rotor | 1 | 6 TEETH | — | Call for availability |
| 32 | 3315662 | Shim .004 | 1 | QUANTITY AS REQUIRED | $5.74 | Add to Cart |
| 32 | 3315663 | Shim .007 | 1 | QUANTITY AS REQUIRED | $6.73 | Add to Cart |
| 32 | 3315664 | Shim .010 | 1 | QUANTITY AS REQUIRED | $3.71 | Add to Cart |
| 32 | 3315665 | Shim .020 | 1 | QUANTITY AS REQUIRED | $5.51 | Add to Cart |
| 32 | 4300978 | Shim .040 | 1 | $12.31 | Add to Cart | |
| 33 | 239436 | Washer | 4 | 1/2" | $2.49 | Add to Cart |
| 34 | 86D8 | Nut | 4 | Replaces 86D08. 1/2"-20 | $2.63 | Add to Cart |
| 35 | K-7048 | Rear Brg Cover Kit | 1 | Replaces 4302624. USE 20807 OIL SEAL NOTE: PUSH- IN TYPE SPEEDO SENSOR | $257.15 | Add to Cart |
| 35 | S-7043 | Rear Brg Cover Assy | 1 | Replaces 22758, 4302019. USE 20807 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $263.46 | Add to Cart |
| 35 | S-7044 | Rear Brg Cover Assy | 1 | Replaces 4302352. USE 20807 OIL SEAL NOTE: SENSOR SEAL REQUIRED | $188.10 | Add to Cart |
| 36 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 37 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 38 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 39 | K-2406 | Oil Seal Kit | 1 | Replaces 20807, 20808. | $30.59 | Add to Cart |
| 40 | 12128 | Nut | 1 | $34.68 | Add to Cart | |
| 41 | 4301605 | Rear Bearing Cover | 1 | $64.17 | Add to Cart | |
| 42 | 4300363 | Lifting Eye | 1 | $2.83 | Add to Cart | |
| 43 | X-8C-830 | Hex Head Screw/washer Assy | 1 | Replaces X-8, C-826. .500-13 X 1.490 | $3.46 | Add to Cart |
| 44 | X-8L-808 | Capscrew | 3 | 1/2"-13X1-1/4" | $3.11 | Add to Cart |
| 45 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 46 | 3315681 | Shim .004 | 1 | QUANTITY AS REQUIRED | $3.01 | Add to Cart |
| 46 | 3315682 | Shim .007 | 1 | QUANTITY AS REQUIRED | $2.24 | Add to Cart |
| 46 | 3315683 | Shim .010 | 1 | QUANTITY AS REQUIRED | $3.06 | Add to Cart |
| 46 | 3315684 | Shim .020 | 1 | QUANTITY AS REQUIRED | $3.74 | Add to Cart |
| 47 | 20224 | Plug-magnetic | 1 | $9.19 | Add to Cart | |
| 48 | 4301954 | Sensor Seal | 1 | $4.84 | Add to Cart | |
| 53 | K-3454 | Speed Sensor Kit | 1 | Replaces A-6398, A-6724. SINGLE PICK-UP (2 PIN) | — | Call for availability |
| 54 | K-3455 | Speed Sensor Kit, Dual | 1 | Replaces A-7046, A-7518. DUAL PICK-UP (4 PIN) | — | Call for availability |
| 55 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 56 | X-8C-409 | Capscrew | 1 | 1/4"-20X5/8" (RETAINER FOR SENSOR) | $1.87 | Add to Cart |

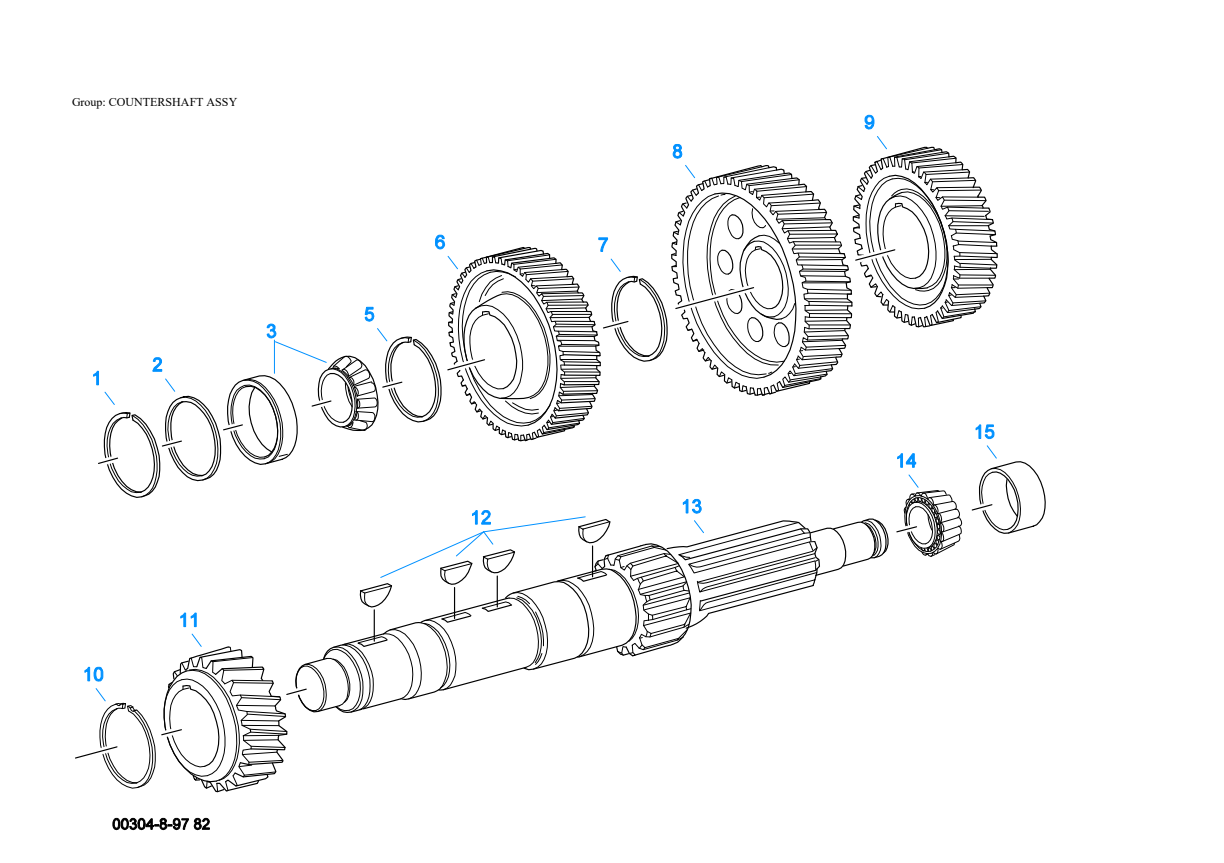

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3315686 | Snap Ring | 1 | $5.26 | Add to Cart | |
| 2 | 3315687 | Washer | 1 | $20.36 | Add to Cart | |
| 3 | K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart |
| 5 | 17399 | Snap Ring | 1 | $3.82 | Add to Cart | |
| 6 | 23378 | Drive Gear- Countershaft | 1 | Replaces 23047. | — | Call for availability |
| 7 | 22328 | Snap Ring | 1 | $5.25 | Add to Cart | |
| 8 | 22304 | 5TH Gear- Countershaft | 1 | — | Call for availability | |
| 9 | 23375 | 4TH Gear- Countershaft | 1 | Replaces 22306. | — | Call for availability |
| 10 | 22360 | Snap Ring | 1 | $7.74 | Add to Cart | |
| 11 | 23373 | 3RD Gear- Countershaft | 1 | Replaces 23049. | $364.60 | Add to Cart |
| 12 | X-6-E | Key | 4 | — | No longer available — call for replacement | |
| 13 | 23371 | Countershaft | 1 | Replaces 23051. | $823.56 | Add to Cart |
| 14 | 658981 | Bearing Cone | 1 | — | Call for availability | |
| 15 | 660181 | Bearing Cup | 1 | — | Call for availability |
Input Shaft
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 742259 | Bearing Cone | 1 | 1.75" INPUT | — | Call for availability |
| 2 | 23376 | Input Shaft | 1 | Replaces 23046. 1.75" PUSH/PULL, .9837 PILOT | $1,502.85 | Add to Cart |
| 2 | 23377 | Input Shaft | 1 | Replaces 23043. 1.75" PUSH/PULL, 1.1805 PILOT | $1,109.39 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2183 | Shim Kit | 1 | $65.70 | Add to Cart | ||
| K-2406 | Oil Seal Kit | 1 | Replaces 20807, 20808. | $30.59 | Add to Cart | |
| K-2465 | Gasket Kit | 1 | $35.89 | Add to Cart | ||
| K-2467 | Small Parts Kit | 1 | $300.38 | Add to Cart | ||
| K-2470 | Synchronizer Kit | 1 | 3RD-4TH | — | No longer available — call for replacement | |
| K-2471 | Synchronizer Kit | 1 | 5TH-6TH | — | No longer available — call for replacement | |
| K-2490 | Basic Rebuild Kit | 1 | $421.06 | Add to Cart | ||
| K-3795 | Countershaft Brg Kit | 1 | Replaces 1313645, 791943. | $34.45 | Add to Cart | |
| K-7048 | Rear Brg Cover Kit | 1 | Replaces 4302624. | $257.15 | Add to Cart | |
| S-1576 | Shift Bar Housing | 1 | Replaces 21956. HOUSING ONLY | — | Call for availability | |
| S-1878 | Case Assy | 1 | Replaces 4300572. | $1,262.86 | Add to Cart | |
| S-2528 | Shift Bar Hsg Assy | 1 | Replaces 21956. COMPLETE | — | Call for availability | |
| S-7043 | Rear Brg Cover Assy | 1 | Replaces 22758, 4302019. | $263.46 | Add to Cart | |
| S-7044 | Rear Brg Cover Assy | 1 | Replaces 4302352. | $188.10 | Add to Cart |

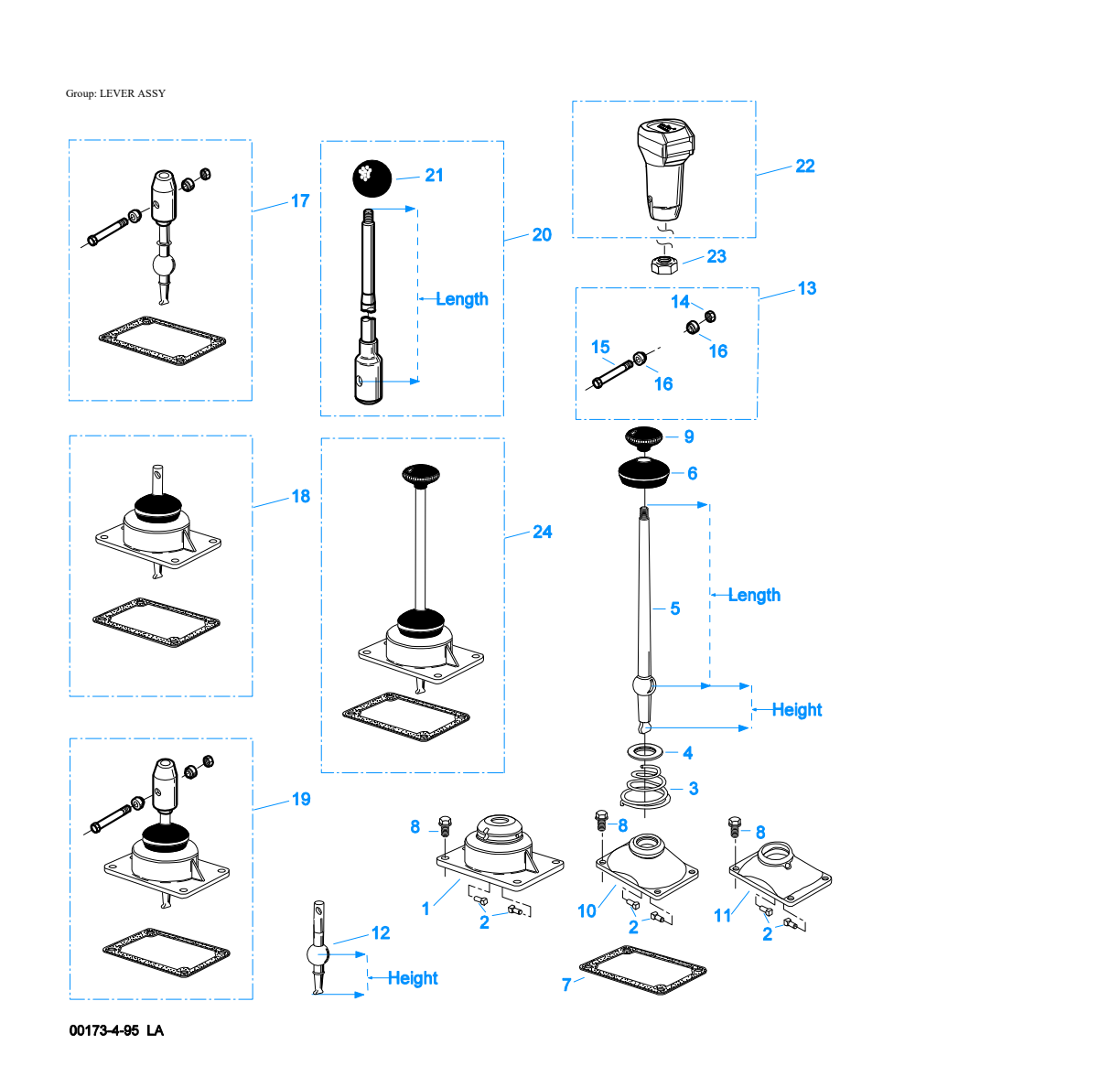

Lever Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-7062 | Shift Lever Hsg Kit | 1 | Replaces 233080, 4302711, A-6440. ALUMINUM HOUSING HIGH - LEVER HEIGHT 3-1/2" | $127.25 | Add to Cart |
| 2 | 201054 | Pin | 2 | FOR HSGS WITHOUT PIN SLEEVES | $5.88 | Add to Cart |
| 2 | 23180 | Pin | 2 | FOR HSGS WITH PIN SLEEVES | $4.86 | Add to Cart |
| 3 | 4300690 | Spring | 1 | Replaces 229337. | $9.49 | Add to Cart |
| 3 | 4301936 | Spring | 1 | USE W/CAST IRON SHIFT LEVER HOUSING | $7.36 | Add to Cart |
| 4 | 23181 | Washer | 1 | $2.77 | Add to Cart | |
| 5 | 21722 | Shift Lever 27-1/2" | 1 | USE WITH HIGH TOWER 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $369.68 | Add to Cart |
| 5 | 22138 | Shift Lever 33" | 1 | USE WITH HIGH TOWER 33" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $369.68 | Add to Cart |
| 5 | 22139 | Shift Lever 31-1/2" | 1 | USE WITH MEDIUM TOWER 31-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | — | Call for availability |
| 5 | 241076 | Shift Lever 27-1/2" | 1 | USE WITH MEDIUM TOWER 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $369.68 | Add to Cart |
| 5 | 4302823 | Shift Lever 33" | 1 | USE WITH LOW TOWER 33" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $369.68 | Add to Cart |
| 6 | 202484 | Dust Cover | 1 | $7.34 | Add to Cart | |
| 7 | 4301958 | Gasket | 1 | $13.93 | Add to Cart | |
| 8 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 9 | 201401 | Shift Knob | 1 | 3/8"X24 THREAD | $19.73 | Add to Cart |
| 10 | K-7061 | Shift Lever Hsg Kit | 1 | Replaces 241075, 4302711, A-6439. ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" | $54.04 | Add to Cart |
| 11 | K-7056 | Shift Lever Hsg Kit | 1 | Replaces 4302654. CAST IRON HOUSING LOW - LEVER HEIGHT 2-7/8" | $118.04 | Add to Cart |
| 11 | K-7065 | Shift Lever Hsg Kit | 1 | Replaces 4302704, 4302711, A-6448. ALUMINUM HOUSING LOW - LEVER HEIGHT 2-7/8" | $52.90 | Add to Cart |
| 12 | 22383 | Stub, Shift Lever 3-1/8" | 1 | MEDIUM - LEVER HEIGHT 3-1/8" | $188.38 | Add to Cart |
| 12 | 22384 | Stub, Shift Lever 3-1/2" | 1 | HIGH - LEVER HEIGHT 3-1/2" | $125.04 | Add to Cart |
| 12 | 4301937 | Stub, Shift Lever 2-7/8" | 1 | LOW - LEVER HEIGHT 2-7/8" | $141.06 | Add to Cart |
| 13 | K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | |
| 14 | X-9-503 | Nut | 1 | $1.99 | Add to Cart | |
| 15 | X-8-560 | Screw | 1 | $2.39 | Add to Cart | |
| 16 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 17 | K-7057 | Service Lever Kit 3- 1/2" | 1 | HIGH - LEVER HEIGHT 3-1/2" NOTE: REQUIRES EXISTING LEVER TO BE CUT AND WELDED (INSTRUCTIONS INCLUDED) | $178.86 | Add to Cart |
| 17 | K-7058 | Service Lever Kit 3- 1/8" | 1 | MEDIUM - LEVER HEIGHT 3-1/8" NOTE: REQUIRES EXISTING LEVER TO BE CUT AND WELDED (INSTRUCTIONS INCLUDED) | $188.05 | Add to Cart |
| 17 | K-7059 | Service Lever Kit 2- 7/8" | 1 | LOW - LEVER HEIGHT 2-7/8" NOTE: REQUIRES EXISTING LEVER TO BE CUT AND WELDED (INSTRUCTIONS INCLUDED) | $210.72 | Add to Cart |
| 18 | S-1697 | Isolator Lvr Assy 3- 1/2" | 1 | HIGH - LEVER HEIGHT 3-1/2" | — | No longer available — call for replacement |
| 18 | S-1821 | Isolator Lvr Assy 3- 1/8" | 1 | MEDIUM - LEVER HEIGHT 3-1/8" | $216.13 | Add to Cart |
| 18 | S-7015 | Isolator Lvr Assy 2- 7/8" | 1 | LOW - LEVER HEIGHT 2-7/8" | $372.21 | Add to Cart |
| 19 | S-7063 | Service Lvr Assy 3-1/8" | 1 | MEDIUM - LEVER HEIGHT 3-1/8" NOTE: REQUIRES EXISTING LEVER TO BE CUT AND WELDED (INSTRUCTIONS INCLUDED) | $546.79 | Add to Cart |
| 19 | S-7064 | Service Lvr Assy 2-7/8" | 1 | LOW - LEVER HEIGHT 2-7/8" NOTE: REQUIRES EXISTING LEVER TO BE | $485.30 | Add to Cart |
| 19 | S-7065 | Service Lvr Assy 3-1/2" | 1 | HIGH - LEVER HEIGHT 3-1/2" NOTE: REQUIRES EXISTING LEVER TO BE CUT AND WELDED (INSTRUCTIONS INCLUDED) | $564.20 | Add to Cart |
| 20 | K-7067 | Isolated Shift Lever Kit | 1 | 29-3/4" STRAIGHT LEVER - "BEND TO SUIT" 1/2" X 13 THREAD | $185.74 | Add to Cart |
| 21 | 17560 | Lever Grip | 1 | 1/2"X13 THREAD | $8.86 | Add to Cart |
| 22 | A-6905 | Shift Knob Assy | 1 | W/FULLER LOGO, 1/2" X 13 THREAD | $66.64 | Add to Cart |
| 22 | S-2537 | Shift Knob Assy | 1 | W/6 SPEED EMBLEM, 1/2" X 13 THREAD | $118.87 | Add to Cart |
| 23 | X-9-802 | Nut | 1 | 1/2"X13 THREAD | $1.87 | Add to Cart |
| 24 | S-1578 | Shift Lever Assy 3-1/2" | 1 | COMPLETE ASSY - ALUMINUM HOUSING HIGH - LEVER HEIGHT 3- 1/2" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $494.57 | Add to Cart |
| 24 | S-1827 | Shift Lever Assy 3-1/8" | 1 | Replaces S-7079. COMPLETE ASSY - ALUMINUM HOUSING MEDIUM - LEVER HEIGHT 3-1/8" 27-1/2" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $483.17 | Add to Cart |
| 24 | S-7045 | Shift Lever Assy 2-7/8" | 1 | COMPLETE ASSY - ALUMINUM HOUSING LOW - LEVER HEIGHT 2- 7/8" 33" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $548.46 | Add to Cart |
| 24 | S-7090 | Shift Lever Assy 3-1/2" | 1 | COMPLETE ASSY - ALUMINUM HOUSING HIGH - LEVER HEIGHT 3- 1/2" 33" STRAIGHT LEVER - "BEND TO SUIT" 3/8" X 24 THREAD | $234.78 | Add to Cart |

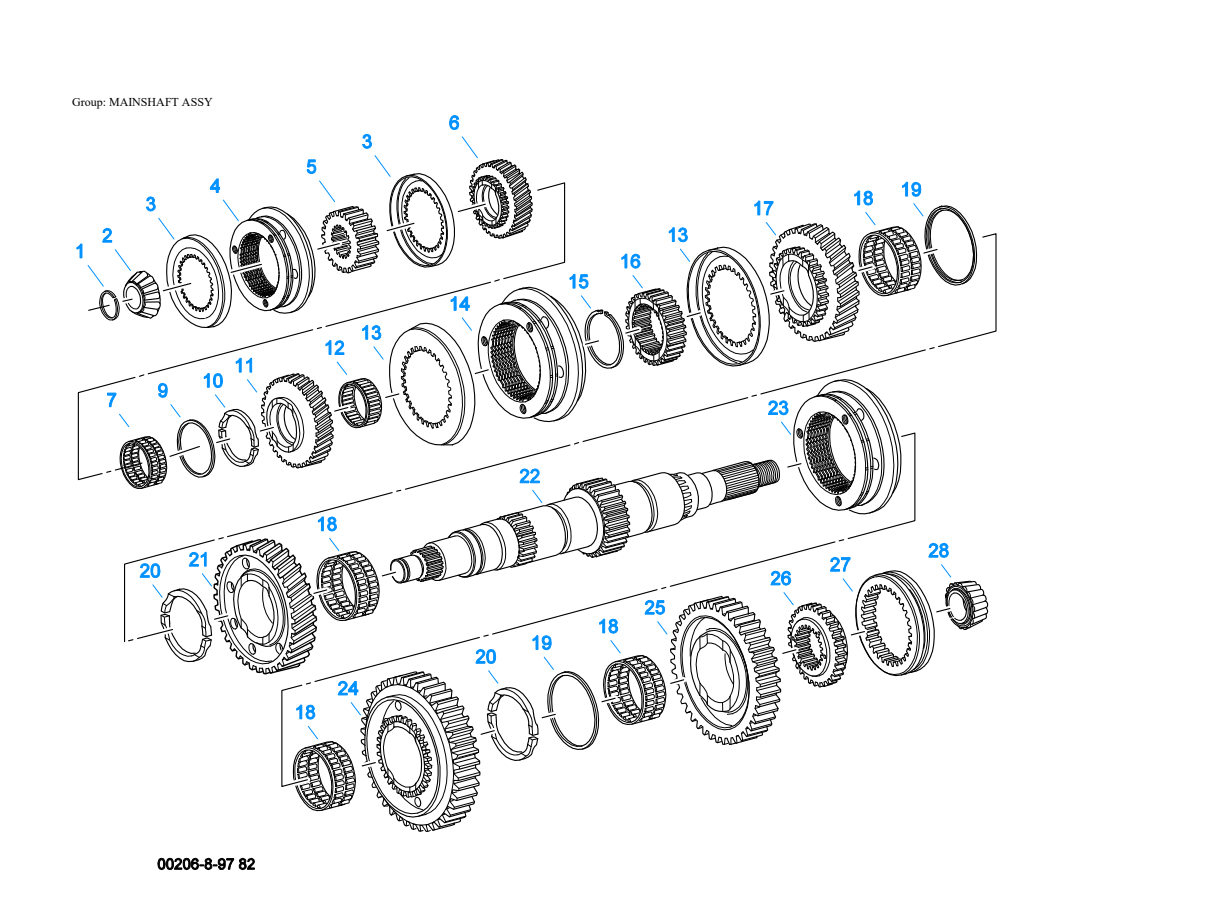

Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 3313798 | Snap Ring | 1 | $3.33 | Add to Cart | |
| 2 | 710787 | Bearing Cone | 1 | $35.16 | Add to Cart | |
| 3 | 22315 | Synchronizer Cup | 2 | $193.73 | Add to Cart | |
| 4 | A-5726 | 5TH-6TH Synchro Assy | 1 | — | No longer available — call for replacement | |
| 5 | 4300569 | Clutch Hub | 1 | Replaces 22314. | — | Call for availability |
| 6 | 22303 | 5TH Gear-mainshaft | 1 | $487.46 | Add to Cart | |
| 7 | 20704 | Bearing | 1 | $34.57 | Add to Cart | |
| 9 | 20711 | Retainer | 1 | $12.62 | Add to Cart | |
| 10 | 20710 | Washer Segment | 2 | $33.38 | Add to Cart | |
| 11 | 23374 | 4TH Gear-mainshaft | 1 | Replaces 22305. | $436.26 | Add to Cart |
| 12 | 20705 | Bearing | 1 | $40.54 | Add to Cart | |
| 13 | 22317 | Synchronizer Cup | 2 | — | No longer available — call for replacement | |
| 14 | A-5724 | 3RD-4TH Synchro Assy | 1 | — | No longer available — call for replacement | |
| 15 | 20712 | Snap Ring | 1 | $8.98 | Add to Cart | |
| 16 | 4300792 | Clutch Hub | 1 | Replaces 22316. | — | Call for availability |
| 17 | 23372 | 3RD Gear-mainshaft | 1 | Replaces 23048. | $480.99 | Add to Cart |
| 18 | 20706 | Bearing | 4 | $34.47 | Add to Cart | |
| 19 | 4300793 | Retainer Washer | 2 | Replaces 20714. | $53.16 | Add to Cart |
| 20 | 20713 | Washer Segment | 4 | $40.13 | Add to Cart | |
| 21 | 23370 | 2ND Gear-mainshaft | 1 | Replaces 23050. | — | Call for availability |
| 22 | 22756 | Mainshaft | 1 | — | Call for availability | |
| 23 | A-5723 | 1ST-2ND Synchro Assy | 1 | — | Call for availability | |
| 24 | 23369 | 1ST Gear-mainshaft | 1 | Replaces 22311. | — | Call for availability |
| 25 | 23520 | Reverse Gear- Mainshaft | 1 | — | Call for availability | |
| 26 | 22318 | Sliding Clutch | 1 | $406.84 | Add to Cart | |
| 27 | 22757 | Clutch Hub | 1 | — | Call for availability | |
| 28 | 731334 | Bearing Cone | 1 | — | Call for availability |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart | |
| 71231 | Gasket Sealant | 1 | 8 MILLILITER SIZE | $33.25 | Add to Cart | |
| 71232 | Thread Adhesive | 1 | 10 MILLILITER SIZE | $28.73 | Add to Cart |
Reverse Idler Gear Assy
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 20671 | Reverse Idler Gear | 1 | — | Call for availability | |
| 2 | 20707 | Bearing | 2 | $19.26 | Add to Cart | |
| 3 | 22324 | Idler Shaft | 1 | $96.95 | Add to Cart | |
| 4 | 20674 | O-ring | 1 | $3.99 | Add to Cart |

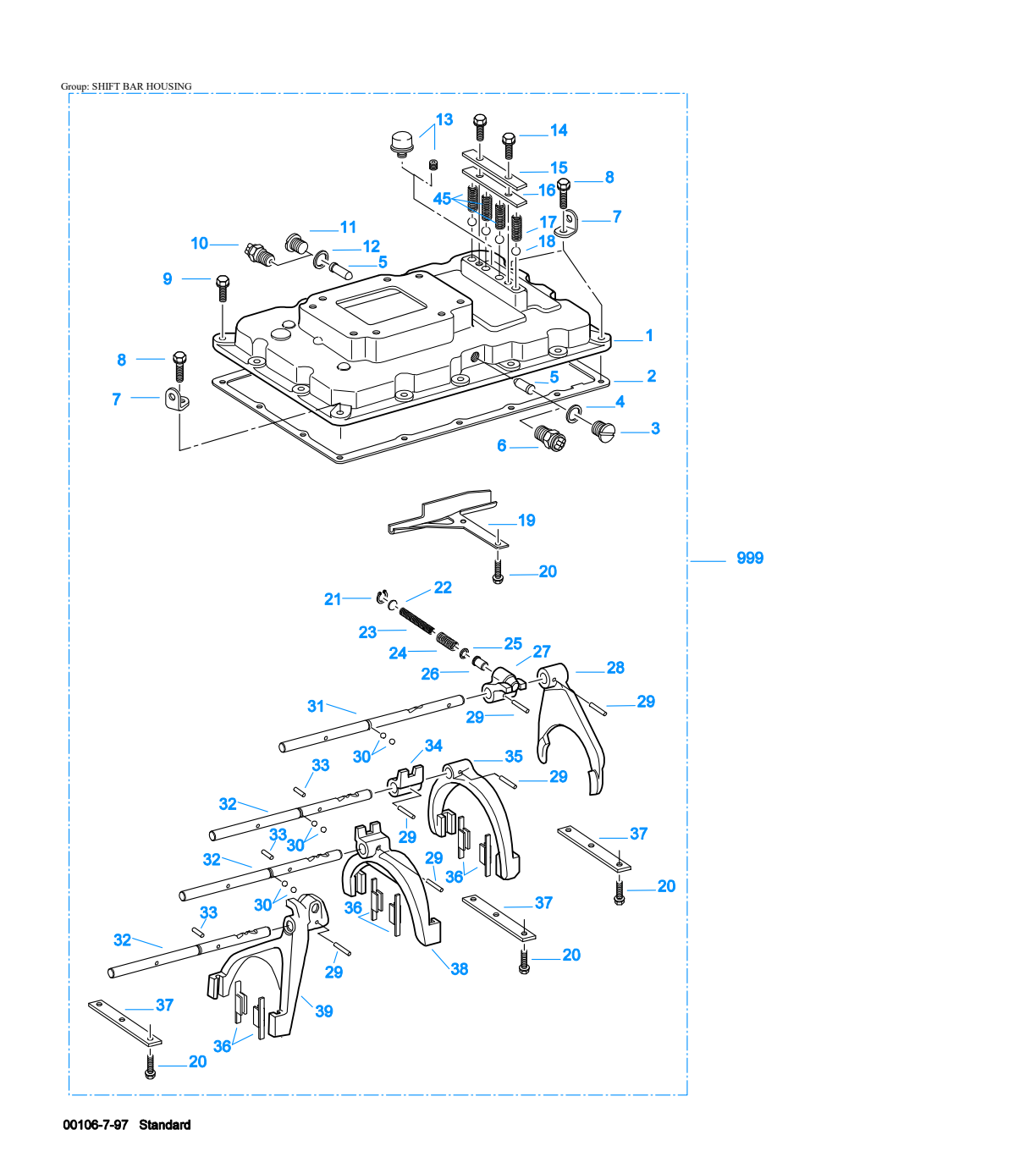

Shift Bar Housing
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1576 | Shift Bar Housing | 1 | Replaces 21956. HOUSING ONLY | — | Call for availability |
| 2 | 4300853 | Gasket | 1 | $7.76 | Add to Cart | |
| 3 | 22752 | Plug | 1 | $8.46 | Add to Cart | |
| 4 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 5 | 21970 | Pin | 2 | $15.92 | Add to Cart | |
| 6 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 7 | 20815 | Lifting Eye | 3 | Replaces 17105. | $2.88 | Add to Cart |
| 8 | X-8L-602 | Capscrew | 3 | 3/8"-16X1-1/2" | $2.09 | Add to Cart |
| 9 | X-8C-604 | Capscrew | 13 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 10 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 11 | 4303656 | Plug | 1 | Replaces 15917. 9/16 - 18, THREADED | $2.91 | Add to Cart |
| 12 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 13 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 13 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 14 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" | $1.76 | Add to Cart |
| 15 | 10838 | Spring Cover | 1 | $8.18 | Add to Cart | |
| 16 | 10839 | Gasket | 1 | $1.94 | Add to Cart | |
| 17 | 15918 | Spring | 1 | RELAXED LENGTH 1.46" (ORANGE) | $1.97 | Add to Cart |
| 17 | 15919 | Spring | 1 | RELAXED LENGTH 1.5" (GREEN) | $1.81 | Add to Cart |
| 18 | X-14-800 | Steel Ball | 4 | 1/2" | $1.78 | Add to Cart |
| 19 | 22997 | Oil Trough | 1 | $14.37 | Add to Cart | |
| 20 | 233043 | Capscrew | 9 | 3/8"-16X1" | $4.04 | Add to Cart |
| 21 | 21965 | Snap Ring | 1 | $2.11 | Add to Cart | |
| 22 | 21964 | Washer | 1 | $2.49 | Add to Cart | |
| 23 | 21723 | Spring | 1 | RELAXED LENGTH 1.36" | $10.31 | Add to Cart |
| 23 | 21724 | Spring | 1 | RELAXED LENGTH 3.46" | $6.27 | Add to Cart |
| 23 | 22155 | Spring | 1 | RELAXED LENGTH 2.79" (ORANGE) | $3.48 | Add to Cart |
| 24 | 22156 | Spring | 1 | RELAXED LENGTH 2.25" (YELLOW) | — | No longer available — call for replacement |
| 24 | 22834 | Spring | 1 | RELAXED LENGTH 1.56" (ORANGE) | $4.81 | Add to Cart |
| 25 | 21963 | Washer | 1 | $2.47 | Add to Cart | |
| 26 | 21966 | Plunger | 1 | $17.64 | Add to Cart | |
| 27 | 4301163 | Shift Block | 1 | REVERSE | $180.43 | Add to Cart |
| 28 | 22322 | Shift Yoke | 1 | REVERSE | $129.92 | Add to Cart |
| 29 | 62516 | Roll Pin | 6 | Replaces 62521. | $1.84 | Add to Cart |
| 30 | X-14-600 | Steel Ball | 6 | 3/8" | $1.71 | Add to Cart |
| 31 | 4300628 | Yoke Bar | 1 | REVERSE | $69.28 | Add to Cart |
| 32 | 4300627 | Yoke Bar | 3 | 1ST-2ND/3RD-4TH/5TH-6TH | $43.08 | Add to Cart |
| 33 | 1634 | Interlock Pin | 3 | $3.13 | Add to Cart | |
| 34 | 4301165 | Shift Block | 1 | Replaces 21958. 1ST-2ND | $136.17 | Add to Cart |
| 35 | A-5344 | Shift Yoke Assy | 1 | Replaces 22330. 1ST-2ND | $117.99 | Add to Cart |
| 36 | 21199 | Insert | 6 | $49.01 | Add to Cart | |
| 37 | 22335 | Retainer | 3 | $21.88 | Add to Cart | |
| 38 | A-5343 | Shift Yoke Assy | 1 | Replaces 2195922331. 3RD-4TH | $148.07 | Add to Cart |
| 39 | A-5670 | Shift Yoke Assy | 1 | Replaces 4300039. 5TH-6TH | $256.67 | Add to Cart |
| 45 | 1064 | Spring | 3 | $5.33 | Add to Cart | |
| 999 | S-2528 | Shift Bar Hsg Assy | 1 | Replaces 21956. COMPLETE | — | Call for availability |
Eaton Fuller parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Eaton Fuller transmission units:
- All Eaton Fuller transmission parts & units
- Remanufactured transmissions
- Search our catalog for FS-8206A
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
