Eaton Fuller RTO-16109A-ATE Parts Manual
Rebuilding this unit? Every part below is priced and ready to order. If the RTO-16109A-ATE is past saving, we also stock reman Eaton Fuller transmissions for sale in every speed, ready to ship.

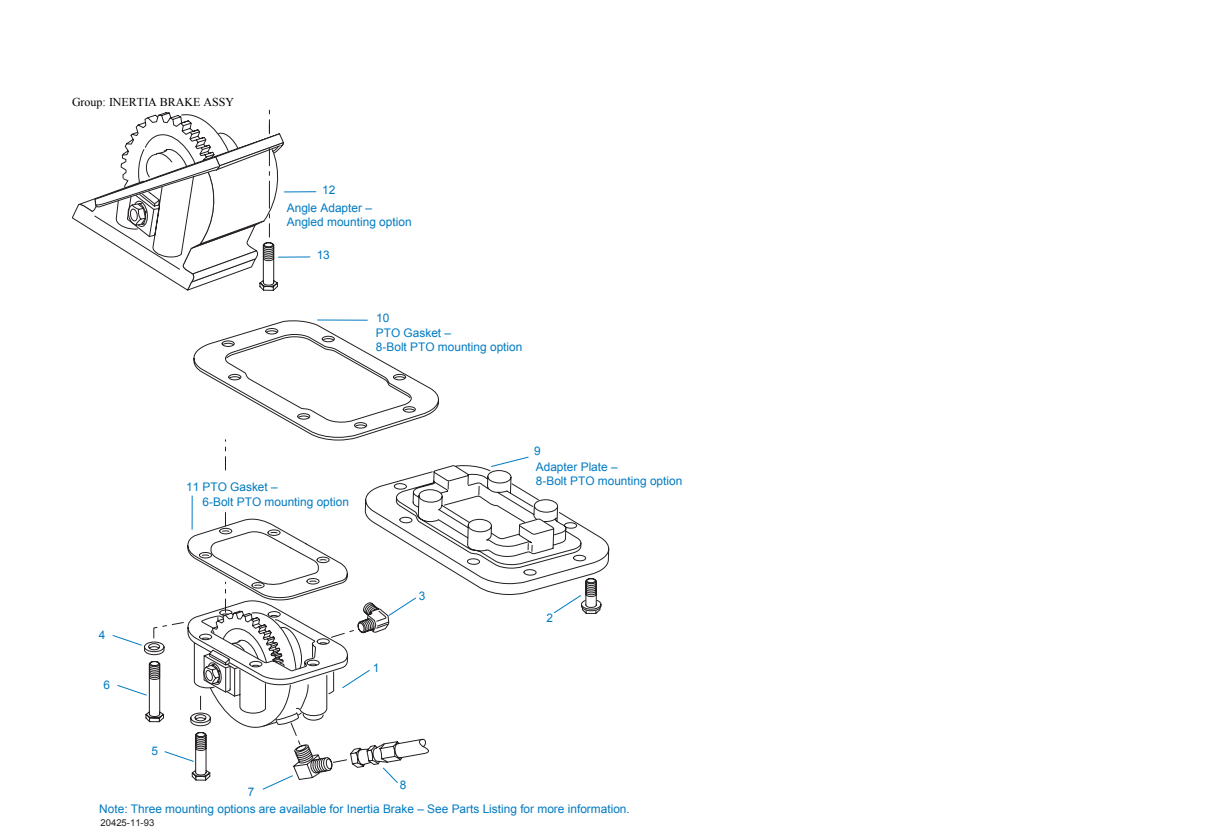

Air Sys-Inertia Brake
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 18 | X-12-210 | Pipe Plug | 1 | 1/8" | — | Call for availability |
| 19 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 20 | 55506 | Hose Assy | 1 | 18" - ROTATED 6 BOLT POSITION | $18.10 | Add to Cart |
| 20 | 55508 | Hose Assy | 1 | 30" - 8 BOLT POSITION | $19.34 | Add to Cart |
| 20 | 55525 | Hose Assy | 1 | 17" - 6 BOLT POSITION | $17.77 | Add to Cart |
| 21 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |
| 22 | 11665 | Clamp | 1 | $2.55 | Add to Cart |

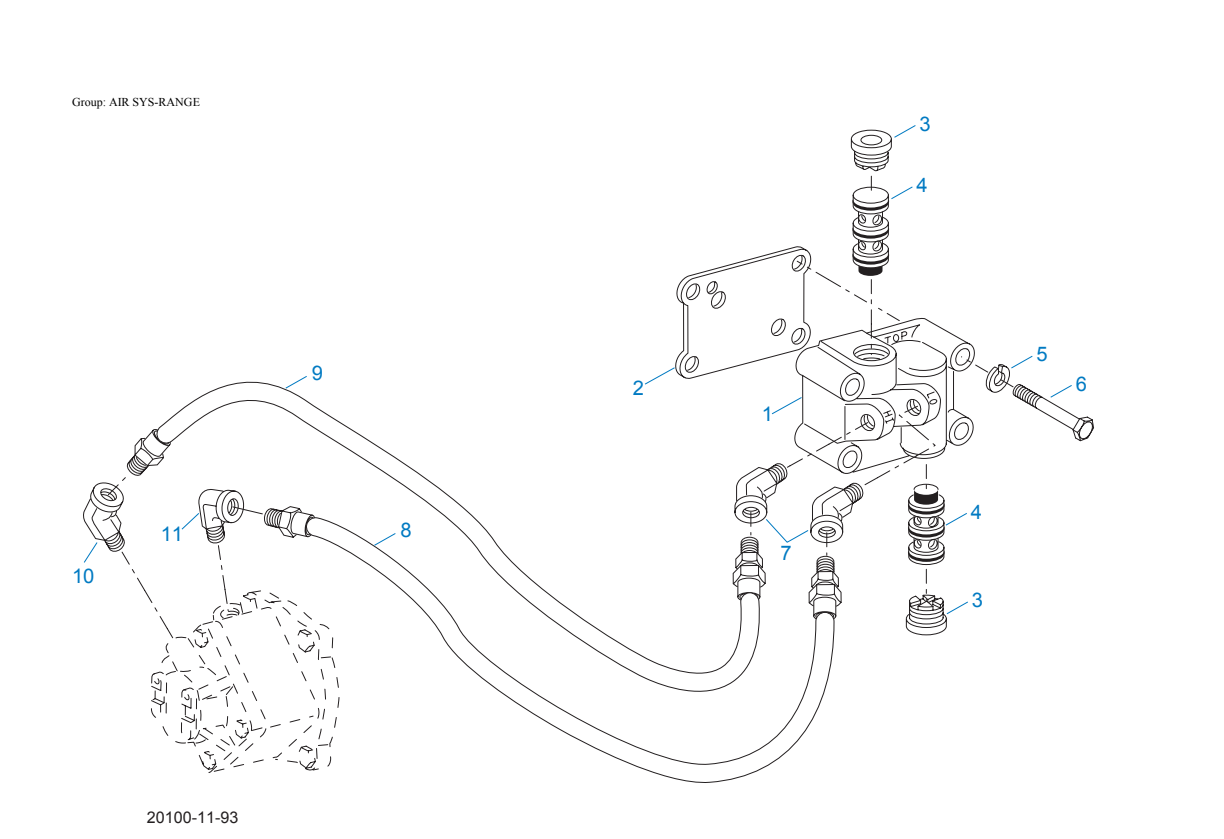

Air Sys-Range
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2979 | Range Valve Kit | 1 | Replaces A-5363. | — | Call for availability |
| 2 | 22551 | Gasket | 1 | — | Call for availability | |
| 3 | 22639 | Plug | 2 | — | Call for availability | |
| 4 | 4300810 | Insert Valve | 2 | Replaces 22641, 4303615. | $75.03 | Add to Cart |
| 5 | X-3-500 | Lockwasher | 4 | 5/16" | $1.66 | Add to Cart |
| 6 | X-8-546 | Screw | 4 | 5/16"-18X2" | — | Call for availability |
| 7 | 12880 | Elbow | 2 | 1/8" | $5.59 | Add to Cart |
| 8 | 55525 | Hose Assy | 1 | 17" | $17.77 | Add to Cart |
| 9 | 55506 | Hose Assy | 1 | 18" | $18.10 | Add to Cart |
| 10 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 11 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |

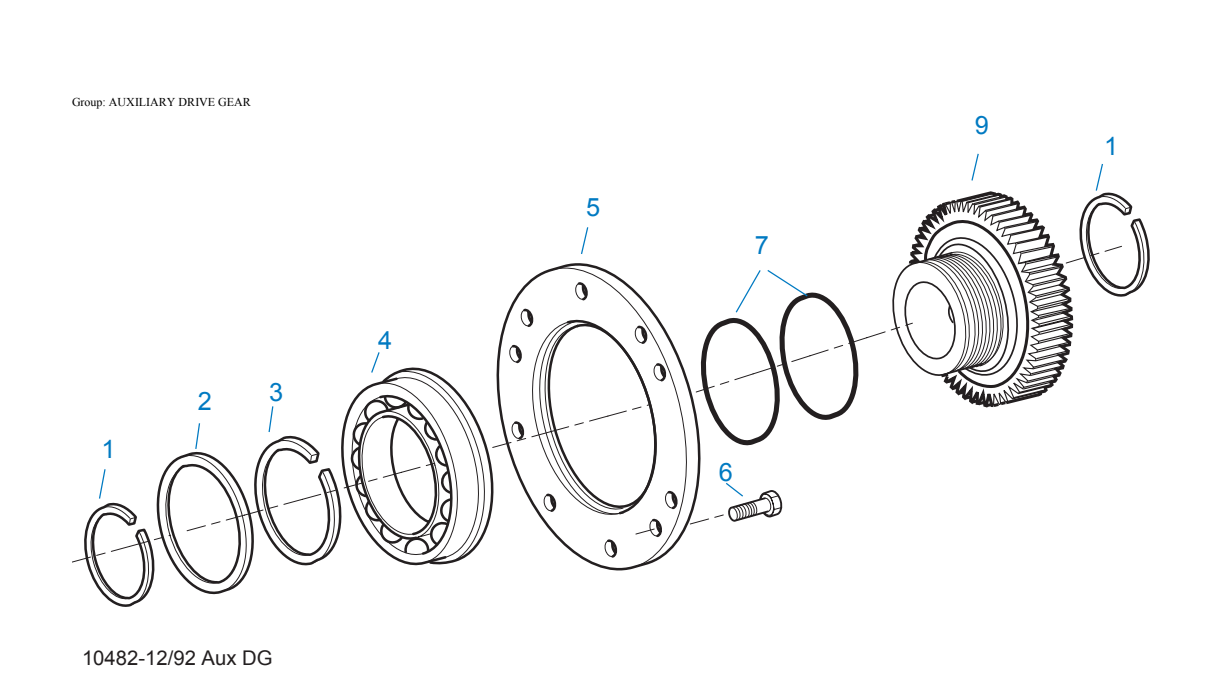

Auxiliary Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 16763 | Snap Ring | 2 | $2.01 | Add to Cart | |
| 2 | 21320 | Snap Ring Retainer | 1 | RTO ONLY | $29.52 | Add to Cart |
| 3 | 16628 | Snap Ring | 1 | $4.37 | Add to Cart | |
| 4 | 5566507-BOX | Bearing | 1 | Replaces 5566504, 5566507. | $73.44 | Add to Cart |
| 5 | 16138 | Bearing Retainer | 1 | $58.58 | Add to Cart | |
| 6 | X-8-645 | Capscrew | 6 | 3/8"-16X1" | $1.78 | Add to Cart |
| 7 | 17453 | O-ring | 2 | $5.35 | Add to Cart | |
| 9 | K-2426 | No Longer Available | 1 | Replaces 4300657. | — | Call for availability |

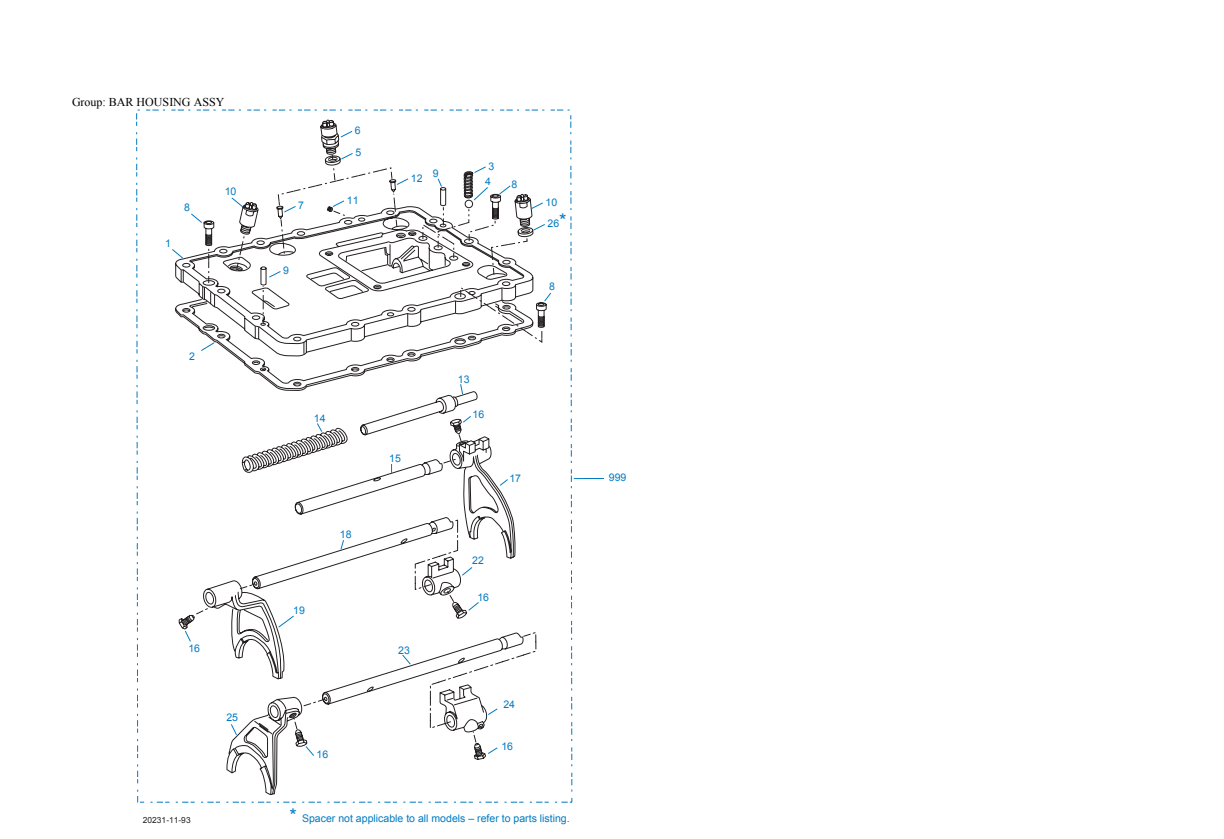

Bar Housing Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2754 | Shift Bar Hsg Assy | 1 | Replaces 22596. HOUSING ONLY | — | Call for availability |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | 1069 | Spring | 3 | $5.76 | Add to Cart | |
| 4 | X-14-800 | Steel Ball | 3 | 1/2" | $1.78 | Add to Cart |
| 5 | 15900 | Gasket | 2 | $2.24 | Add to Cart | |
| 6 | 691744 | Shift Sensor Switch | 2 | Replaces 22565. | — | Call for availability |
| 7 | 691316 | Actuating Switch Pin | 1 | Replaces 23112. | — | Call for availability |
| 8 | X-8-691 | Capscrew | 3 | 3/8"-16X1" | — | Call for availability |
| 9 | 62516 | Roll Pin | 2 | Replaces 62521. | $1.84 | Add to Cart |
| 10 | K-2980 | Sensor Update Kit | 2 | Replaces 22567, K-2631. | — | Call for availability |
| 11 | X-12-102 | Plug | 1 | — | Call for availability | |
| 12 | K-3271 | Neutral Switch Kit | 1 | Replaces 22603. | — | Call for availability |
| 13 | 691314 | Actuating Shaft Switch | 1 | Replaces 22601. | — | Call for availability |
| 14 | 22604 | Spring | 1 | — | Call for availability | |
| 15 | 22600 | Yoke Bar | 1 | LOW/REVERSE | $134.69 | Add to Cart |
| 16 | 3220 | Lockscrew | 5 | $4.28 | Add to Cart | |
| 17 | 22434 | Yoke | 1 | LOW/REVERSE | — | Call for availability |
| 18 | 22593 | Yoke Bar | 1 | 1ST/2ND | — | Call for availability |
| 19 | 691600 | Shift Yoke | 1 | Replaces 4302994. 1ST/2ND | $301.54 | Add to Cart |
| 22 | 14658 | Shift Block | 1 | 1ST/2ND | $43.77 | Add to Cart |
| 23 | 22594 | Yoke Bar | 1 | 3RD/4TH | — | Call for availability |
| 24 | 4303273 | Shift Block | 1 | Replaces 22602. 3RD/4TH | — | Call for availability |
| 25 | 691601 | Shift Yoke | 1 | Replaces 4302212. 3RD/4TH | $289.67 | Add to Cart |
| 26 | 23166 | Spacer | 1 | USE FOR RTO,B-RATIO,ATE MODELS ONLY | — | Call for availability |
| 999 | S-1876 | Shift Bar Hsg Assy | 1 | Replaces 22596. COMPLETE | — | Call for availability |

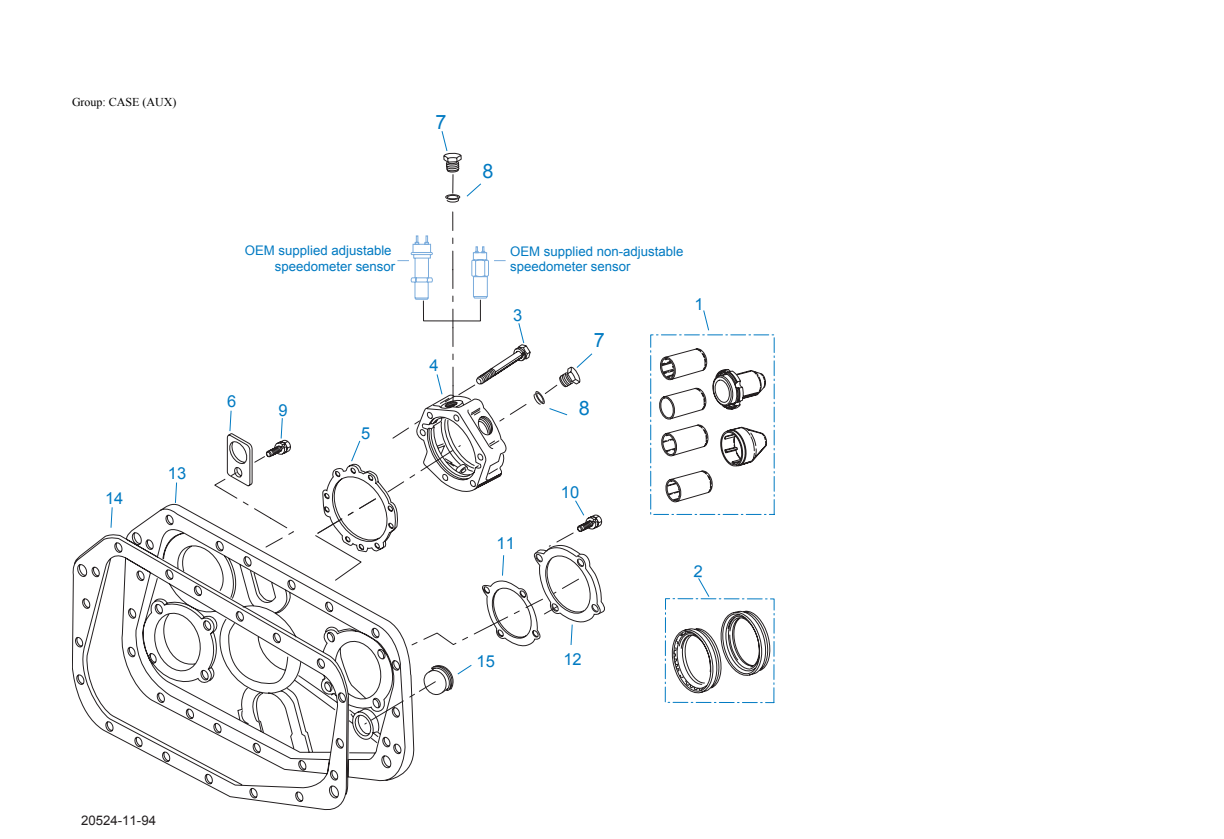

Case (Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | |
| 2 | K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart |
| 3 | X-8L-611 | Capscrew | 6 | 3/8"-16X3-1/4" | $2.85 | Add to Cart |
| 4 | S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009, 4302031, S-1558, S-1560. EXTENDED | $363.94 | Add to Cart |
| 5 | 15532 | Gasket | 1 | $3.19 | Add to Cart | |
| 6 | 23646 | Lifting Eye | 1 | — | Call for availability | |
| 7 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 8 | 4301954 | Sensor Seal | 2 | $4.84 | Add to Cart | |
| 9 | X-8L-602 | Capscrew | 16 | 3/8"-16X1-1/2" | $2.09 | Add to Cart |
| 9 | X-8L-605 | Capscrew | 1 | 3/8"-16X3" | $4.71 | Add to Cart |
| 9 | X-8L-614 | Capscrew | 2 | 3/8"-16X2" | $3.24 | Add to Cart |
| 10 | X-8L-602 | Capscrew | 8 | 3/8"-16X1-1/2" | $2.09 | Add to Cart |
| 11 | 16784 | Gasket | 2 | $2.42 | Add to Cart | |
| 12 | 16770 | Rear Bearing Cover | 2 | $108.95 | Add to Cart | |
| 13 | 21156 | Rear Housing | 1 | — | Call for availability | |
| 14 | 14335 | Gasket | 1 | $4.43 | Add to Cart | |
| 15 | 21073 | Expansion Plug | 1 | $29.98 | Add to Cart |

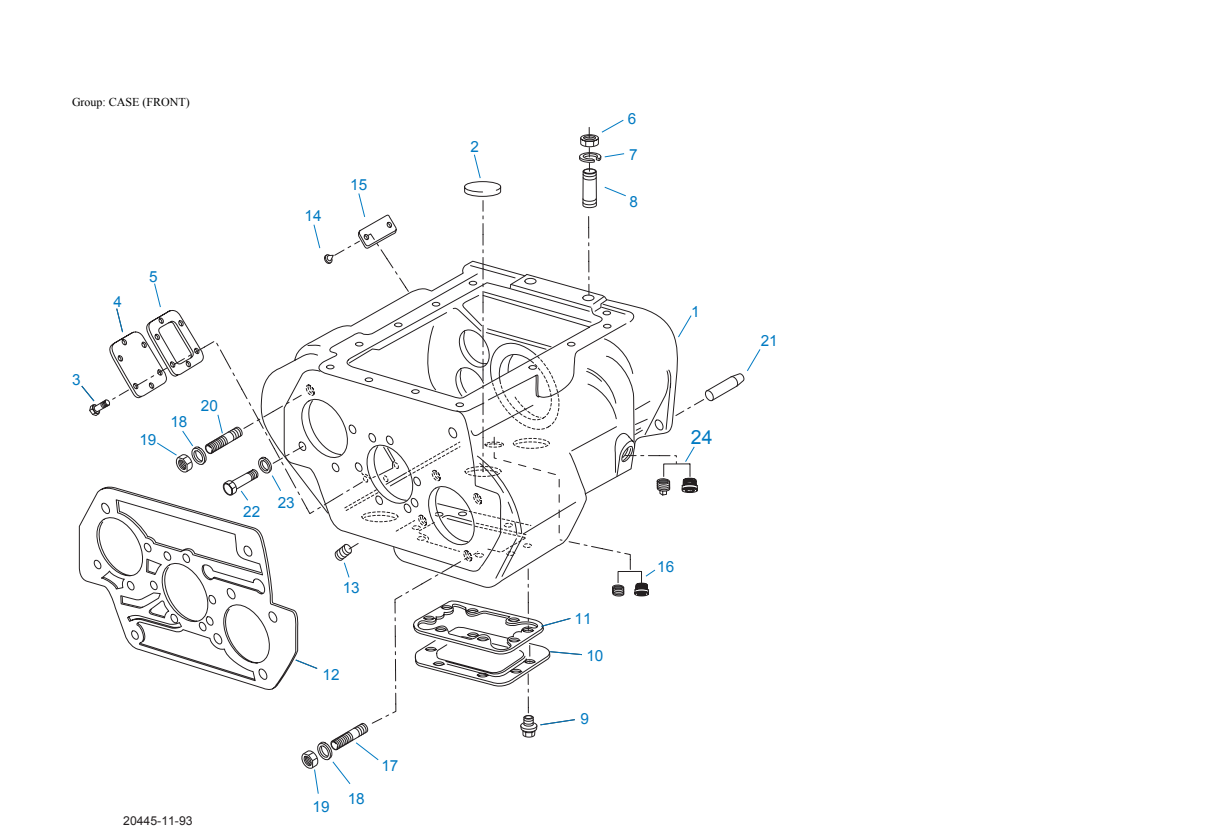

Case (Front)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1785 | Case Assy | 1 | Replaces 23583. | — | Call for availability |
| 2 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 3 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 4 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 5 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 6 | X-1-1005 | Nut | 2 | Replaces X11000. 5/8"-18 | $2.04 | Superseded by X11012Add to Cart |
| 7 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 8 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 9 | X-8-725 | Capscrew | 8 | 7/16"-14X7/8" NOT USED ON ATE MODELS | $2.42 | Add to Cart |
| 10 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. NOT USED ON ATE MODELS | $19.11 | Add to Cart |
| 11 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 12 | 22507 | Gasket | 1 | — | Call for availability | |
| 13 | X-12-802 | Pipe Plug | 1 | 1/2" | $1.94 | Add to Cart |
| 16 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 16 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 17 | 4302708 | Stud | 4 | Replaces 5966. | $3.21 | Superseded by 4306583Add to Cart |
| 18 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 19 | X-1-1005 | Nut | 6 | Replaces X11000. 5/8"-18 | $2.04 | Superseded by X11012Add to Cart |
| 20 | 22916 | Stud | 2 | — | Call for availability | |
| 21 | 14334 | Dowel | 2 | $5.33 | Add to Cart | |
| 22 | X-8-808 | Capscrew | 4 | 1/2"-13X1-1/4" | $2.75 | Add to Cart |
| 23 | X-10-802 | No Longer Available | 4 | 1/2" PLAIN | — | Call for availability |
| 24 | 4304023 | Plug | 1 | Replaces 4303747. 1-1/16" MAGNETIC, O-RING INCLUDED | $15.41 | Add to Cart |
| 24 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |

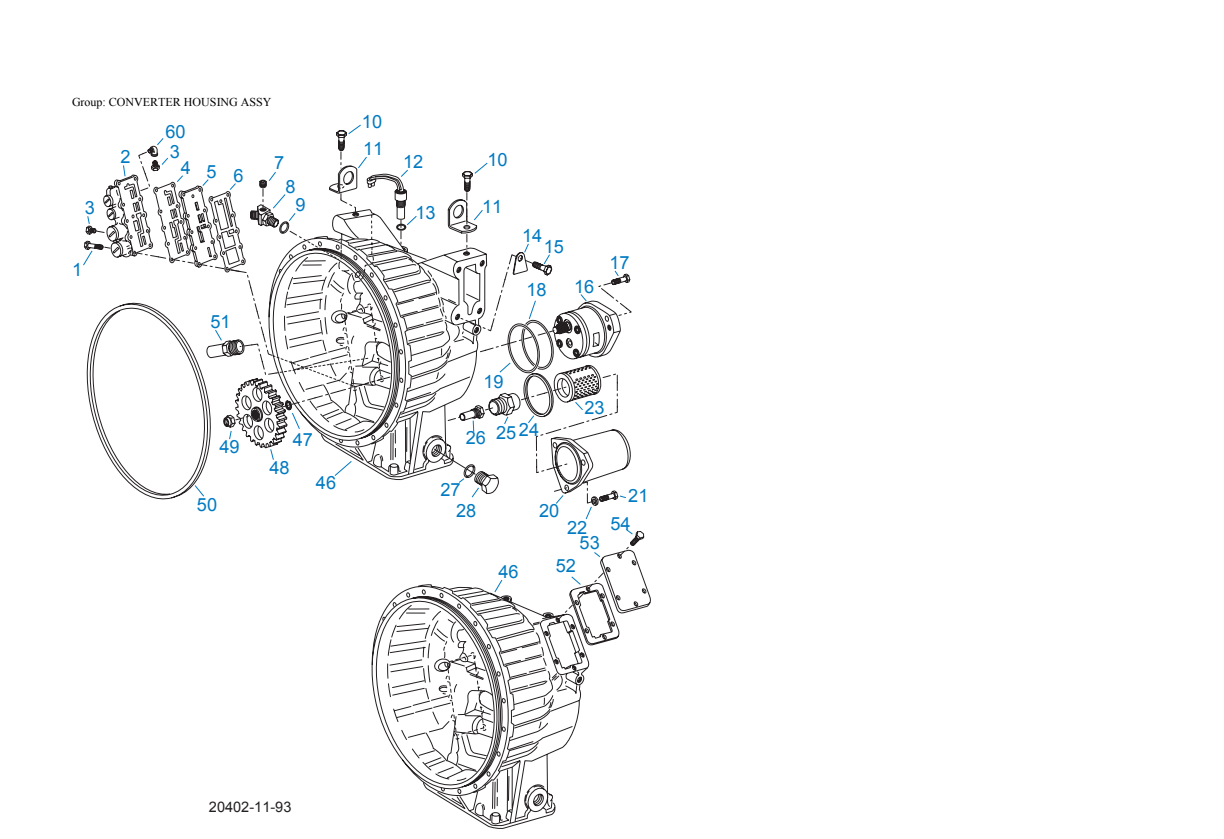

Converter Housing Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8-6104 | Capscrew | 2 | 3/8"-16X2-3/4" | — | Call for availability |
| 1 | X-8L-672 | Capscrew | 6 | 3/8"-16X3-1/4" | — | Call for availability |
| 1 | X-8L-681 | Capscrew | 2 | 3/8"-16X2-3/4" | — | Call for availability |
| 2 | A-5587 | Valve Assy | 1 | — | Call for availability | |
| 3 | X-12-210 | Pipe Plug | 4 | 1/8" | — | Call for availability |
| 4 | 22532 | Gasket | 1 | — | Call for availability | |
| 5 | 23612 | Plate | 1 | — | Call for availability | |
| 6 | 22534 | Gasket | 1 | — | Call for availability | |
| 7 | X-12-802 | Pipe Plug | 1 | 1/2" | $1.94 | Add to Cart |
| 8 | K-3226 | Elbow Kit | 1 | Replaces 4300307. | — | Call for availability |
| 9 | 23109 | O-ring | 1 | — | Call for availability | |
| 10 | X-8L-601 | Capscrew | 2 | 3/8"-16X3/4" | $6.35 | Add to Cart |
| 11 | 23645 | Lifting Eye | 2 | 90 DEG. | — | Call for availability |
| 12 | K-2632 | Eng Speed Sensor Kit | 1 | Replaces 22569. | — | Call for availability |
| 13 | 22504 | O-ring | 1 | — | Call for availability | |
| 14 | 23573 | Instruction Tag | 3 | $1.79 | Add to Cart | |
| 15 | X-8-1202 | Screw | 3 | 3/4"-10X1" | — | Call for availability |
| 16 | K-2911 | Oil Pump Kit | 1 | Replaces 4300747, 4302714. | — | Call for availability |
| 17 | X-8C-604 | Capscrew | 2 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 18 | 691342 | Seal Ring | 1 | Replaces 5568503. | — | Call for availability |
| 19 | 22430 | O-ring | 1 | — | Call for availability | |
| 20 | 23220 | Filter Bowl | 1 | — | Call for availability | |
| 21 | X-8-6105 | Screw | 3 | Replaces X86106. 3/8"-16X1-1/4" | — | Call for availability |
| 22 | X-3-607 | Conical Washer | 3 | 3/8" | $2.88 | Add to Cart |
| 23 | 22510 | Oil Filter | 1 | — | Call for availability | |
| 24 | 23108 | O-ring | 1 | — | Call for availability | |
| 25 | 22512 | Nipple | 1 | — | Call for availability | |
| 26 | A-5732 | Relief Valve Assy | 1 | — | Call for availability | |
| 27 | 23029 | O-ring | 1 | — | Call for availability | |
| 28 | 23028 | Plug | 1 | — | Call for availability | |
| 46 | K-2388 | Converter Housing Kit | 1 | Replaces 4300323, 4300377. 6 BOLT ACCESS | — | Call for availability |
| 46 | K-2625 | #1 Converter Hsg Kit | 1 | — | Call for availability | |
| 47 | 4302219 | Snap Ring | 1 | — | Call for availability | |
| 48 | 4302216 | Pump Gear | 1 | — | Call for availability | |
| 49 | X-1-1008 | Nut | 1 | 5/8"-18 | $2.32 | Add to Cart |
| 50 | 23487 | Seal Ring | 1 | — | Call for availability | |
| 51 | A-7119 | Filter Bypass Valve Assy | 1 | Replaces A-6067, A-6393. | — | Call for availability |
| 52 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 53 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 54 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 60 | 12845 | Elbow | 2 | 1/8" | $5.13 | Add to Cart |

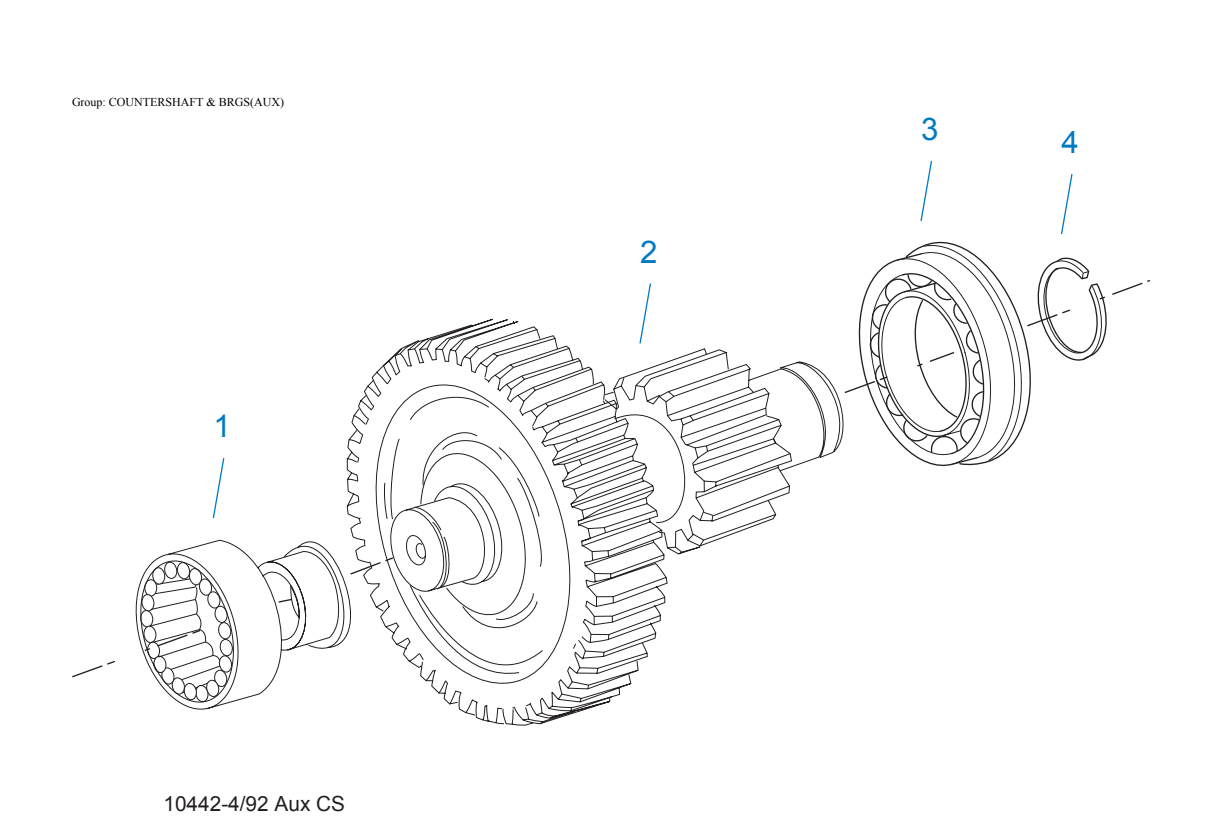

Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 8879 | Bearing | 2 | $70.13 | Add to Cart | |
| 2 | A-6383 | Welded Countershaft Assy | 2 | C/S 4302457 - D/G 4300658 | — | Call for availability |
| 3 | 81012 | Bearing | 2 | $103.37 | Add to Cart | |
| 4 | 11364 | Snap Ring | 2 | $2.68 | Add to Cart |

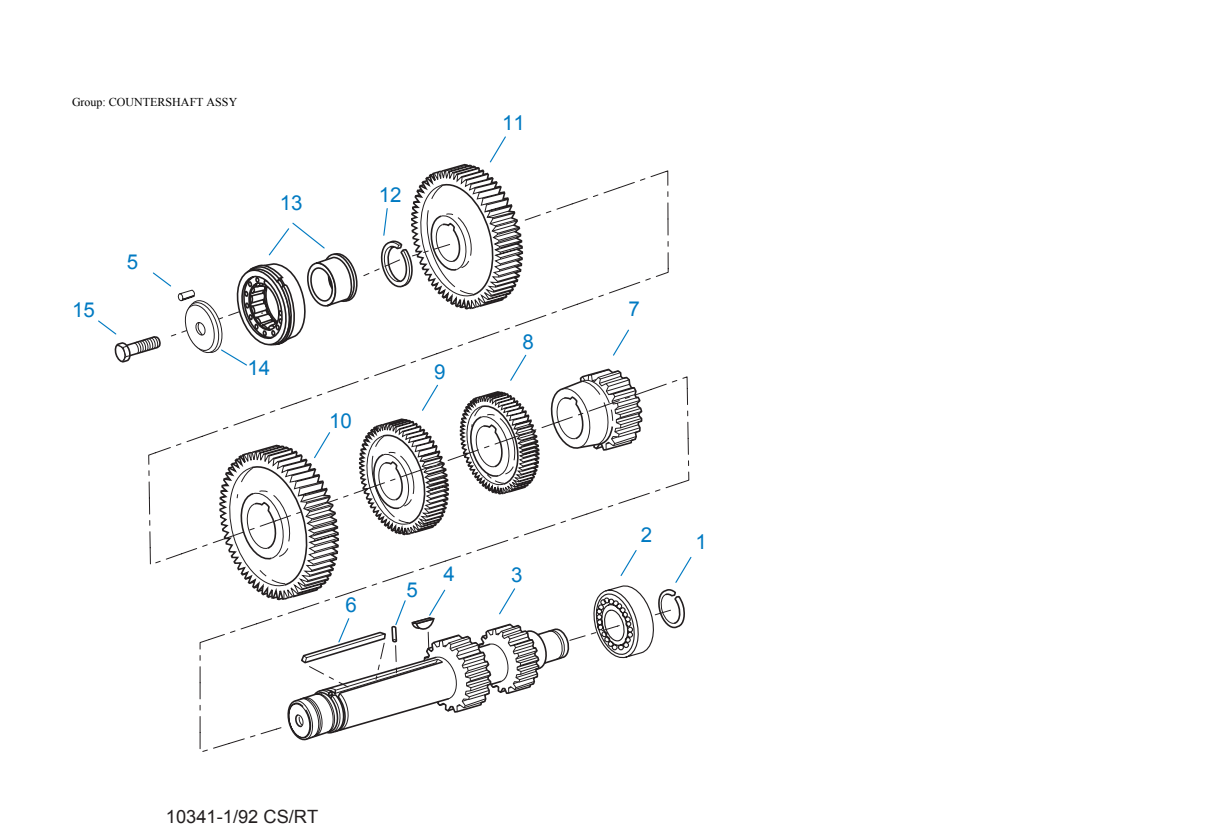

Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14317 | Snap Ring | 2 | $1.81 | Add to Cart | |
| 2 | 14366 | Bearing | 2 | — | No longer available — call for replacement | |
| 3 | K-2937 | Cntrshft-upper | 1 | Replaces 4300244. | $318.91 | Add to Cart |
| 3 | K-3783 | Cntrshft-lower | 1 | Replaces 20804, 4301054, K-2935. | $315.43 | Add to Cart |
| 4 | X-6-E | Key | 2 | — | No longer available — call for replacement | |
| 5 | 62511 | Roll Pin | 4 | $1.54 | Add to Cart | |
| 6 | 4304840 | Key | 2 | Replaces 19673. | $12.44 | Add to Cart |
| 7 | 4306076 | 1ST Gear-cntrshft | 2 | Replaces 20471. | $111.39 | Add to Cart |
| 8 | 20482 | 2ND Gear-cntrshft | 2 | Replaces 19615. | $101.39 | Add to Cart |
| 9 | 4305052 | Od Gear-cntrshft | 2 | Replaces 4302089. | $150.84 | Add to Cart |
| 10 | 15953 | Pto Gear - Lower | 1 | $103.41 | Add to Cart | |
| 10 | 20840 | Pto Gear - Upper | 1 | $105.45 | Add to Cart | |
| 11 | 4305657 | Drive Gear-cntrshft | 2 | Replaces 4302087, 21020. | $118.01 | Add to Cart |
| 12 | 19198 | Snap Ring | 2 | $2.12 | Add to Cart | |
| 13 | 4304599 | Bearing | 2 | Replaces 43026774304598. | $64.23 | Add to Cart |
| 14 | 4304605 | Retainer | 2 | Replaces 19548. ROLL PIN NO LONGER REQUIRED | $26.65 | Add to Cart |
| 15 | X-7-1005 | Capscrew | 2 | 5/8"-18X1-3/4" | $5.13 | Add to Cart |

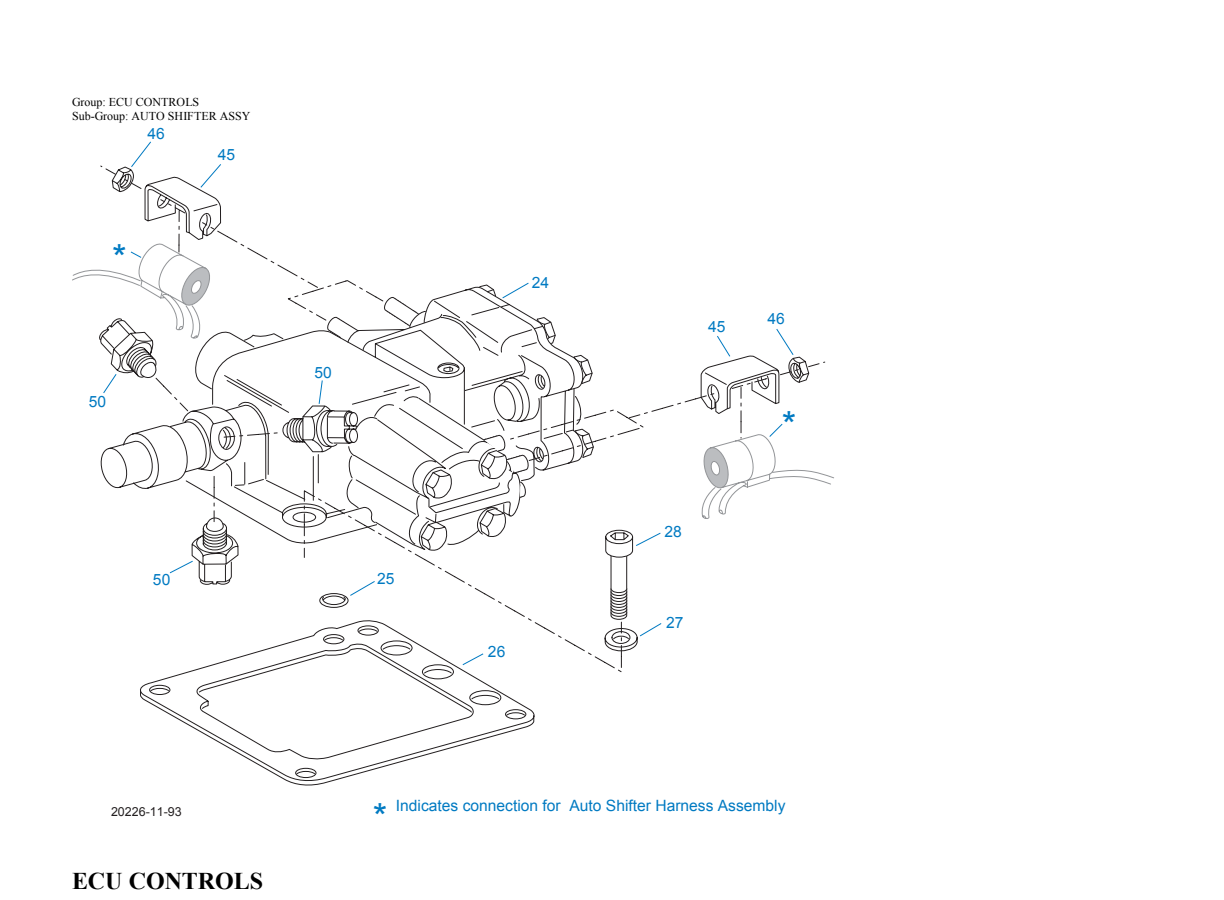

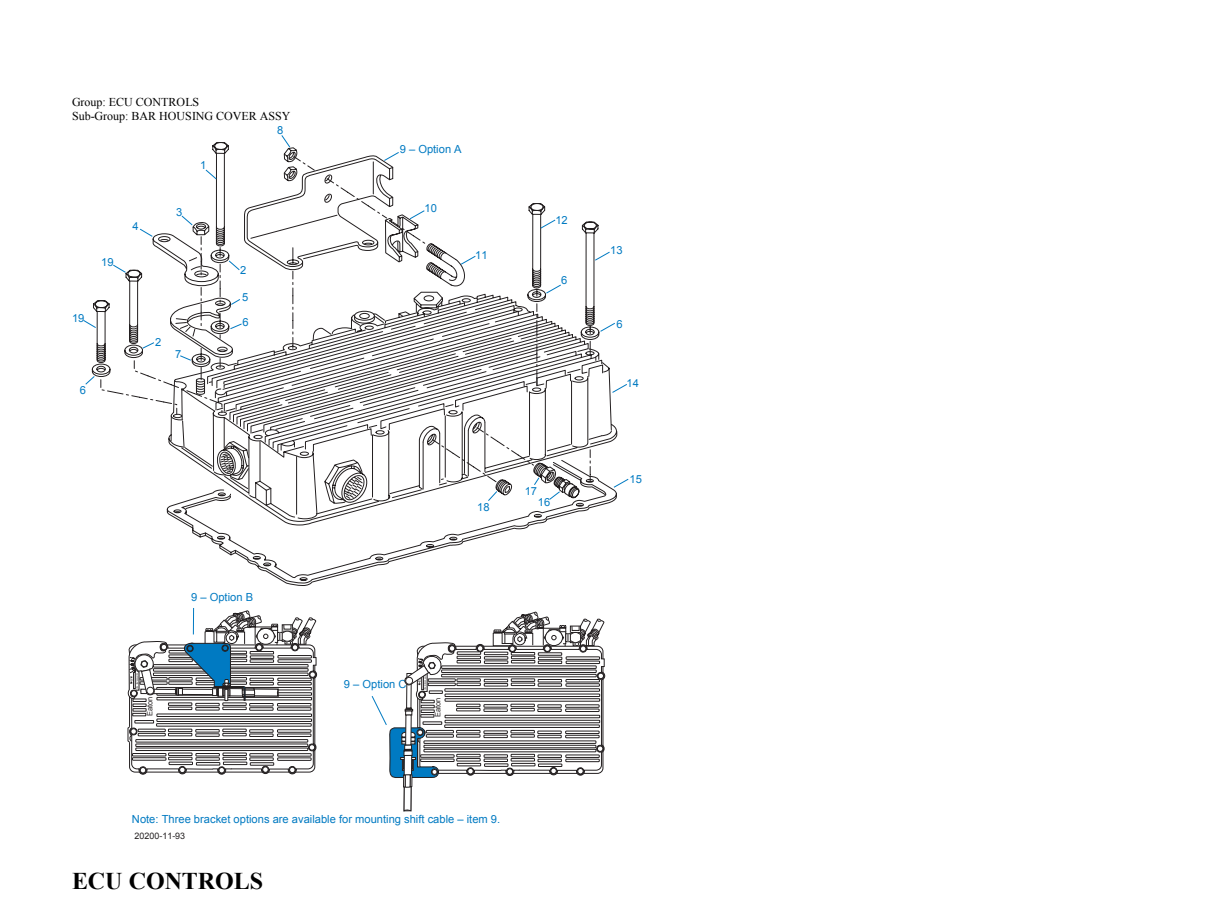

Ecu Controls
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 24 | K-2983 | Auto Shifter Kit | 1 | Replaces A-5517, K-2635. | — | Call for availability |
| 24 | K-2983R | Reman Autoshifter Kit | 1 | Replaces K-3080. | — | Call for availability |
| 25 | 14197 | O-ring | 1 | $4.68 | Add to Cart | |
| 26 | 691303 | Gasket | 1 | Replaces 22592. | — | Call for availability |
| 27 | X-10-600 | Washer | 4 | 3/8" | $1.13 | Add to Cart |
| 28 | X-8-6101 | Capscrew | 4 | 3/8"-16X1-1/2" | — | Call for availability |
| 45 | 22867 | Yoke | 4 | — | Call for availability | |
| 46 | X-16-700 | Nut | 4 | 7/16"-20 | — | Call for availability |
| 50 | 691744 | Shift Sensor Switch | 3 | Replaces 22565. | — | Call for availability |
| 28.001 | Ceemat Ecu P/n Chart | 1 | — | Call for availability | ||
| 1 | X-8-690 | Capscrew | 3 | 3/8"-16X5" | — | Call for availability |
| 2 | X-10-605 | Washer | 2 | 3/8" | $3.15 | Add to Cart |
| 3 | X-1-604 | Nut | 1 | 3/8"-24 | — | Call for availability |
| 4 | 4300049 | Shift Control Lever | 1 | 5/6 POSITION | — | Call for availability |
| 4 | 4300074 | Shift Control Lever | 1 | 7 POSITION | — | Call for availability |
| 5 | 4300042 | Shift Indicator Plate | 1 | 5 POSITION | — | Call for availability |
| 5 | 4300044 | Shift Indicator Plate | 1 | 6 POSITION | — | Call for availability |
| 5 | 4300045 | Shift Indicator Plate | 1 | 7 POSITION | — | Call for availability |
| 6 | 23473 | Washer | 15 | $5.20 | Add to Cart | |
| 7 | 22544 | Washer | 1 | — | Call for availability | |
| 8 | X-1-405 | Nut | 2 | Replaces X9402. | $1.40 | Add to Cart |
| 9 | 4300054 | Bracket | 1 | OPTION A - USE X-8-690 CAPSCREWS | — | Call for availability |
| 9 | 4300055 | Bracket | 1 | OPTION C - USE X-8-690 CAPSCREWS | — | Call for availability |
| 9 | 4300056 | Bracket | 1 | OPTION B - USE 2 PCS 4300051 AND X-8-6103 CAPSCREWS W/THIS BRACKET | — | Call for availability |
| 10 | 4300053 | Clamp | 1 | — | Call for availability | |
| 11 | 4300092 | -u- Bolt | 1 | — | Call for availability | |
| 12 | X-8-6100 | Capscrew | 1 | 3/8"-16X4-1/8" | — | Call for availability |
| 13 | X-8-647 | Capscrew | 9 | 3/8"-16X4-3/4" | $6.37 | Add to Cart |
| 15 | 4301116 | Gasket | 1 | — | Call for availability | |
| 16 | 7935 | Breather | 1 | $4.12 | Add to Cart | |
| 17 | 9332 | Bushing | 1 | — | Call for availability | |
| 18 | X-12-405 | Pipe Plug | 1 | $2.19 | Add to Cart | |
| 19 | X-8-615 | Capscrew | 2 | 3/8"-16X4-1/4" | — | Call for availability |

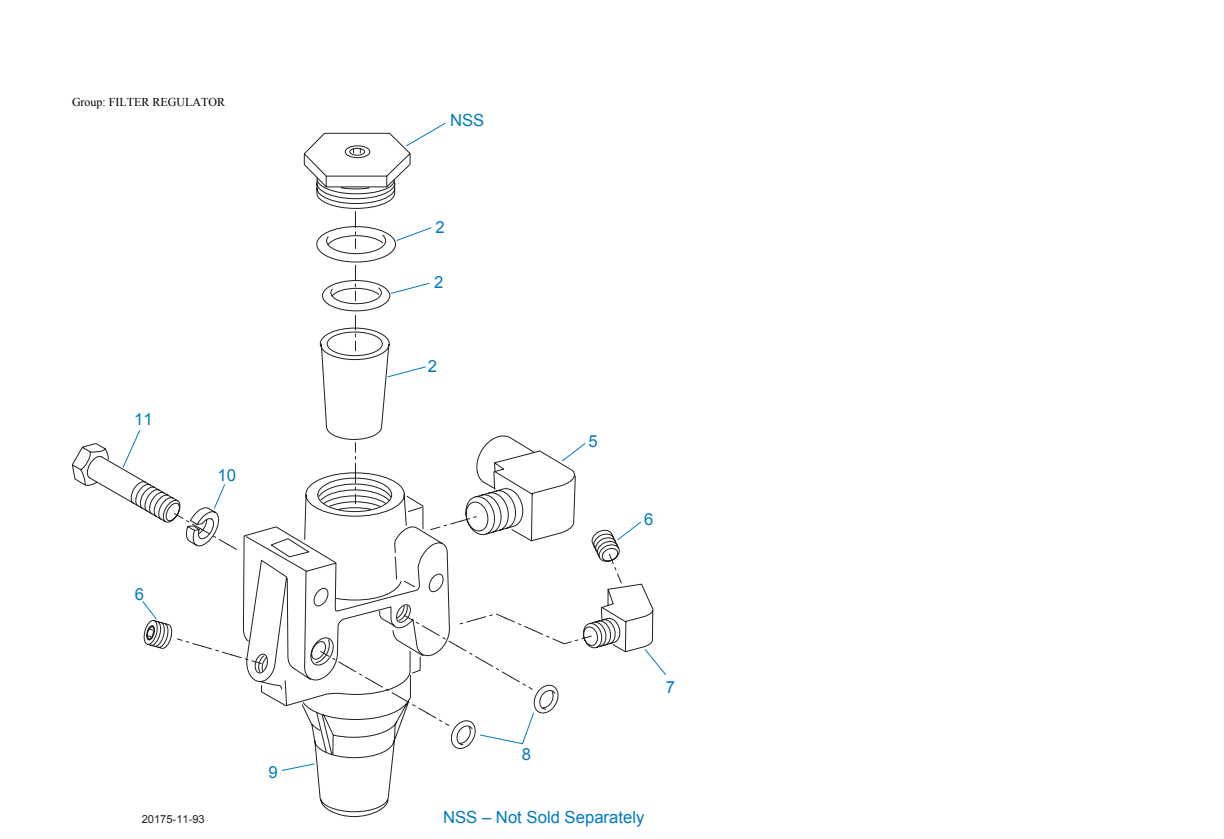

Filter Regulator
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2 | K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart |
| 5 | 23607 | Elbow | 1 | $7.43 | Add to Cart | |
| 6 | X-12-208 | Pipe Plug | 2 | 1/8" NPT | $2.30 | Add to Cart |
| 7 | 12880 | Elbow | 1 | 1/8" | $5.59 | Add to Cart |
| 8 | 15114 | O-ring | 2 | $1.59 | Add to Cart | |
| 9 | A-5373 | Filter Regulator Assy | 1 | Replaces 22677. 77 - 82 PSI | $127.18 | Add to Cart |
| 10 | X-3-400 | Lockwasher | 2 | 1/4" | $1.17 | Add to Cart |
| 11 | X-8-440 | Screw | 2 | 1/4"-20X2-1/4" | $1.87 | Add to Cart |

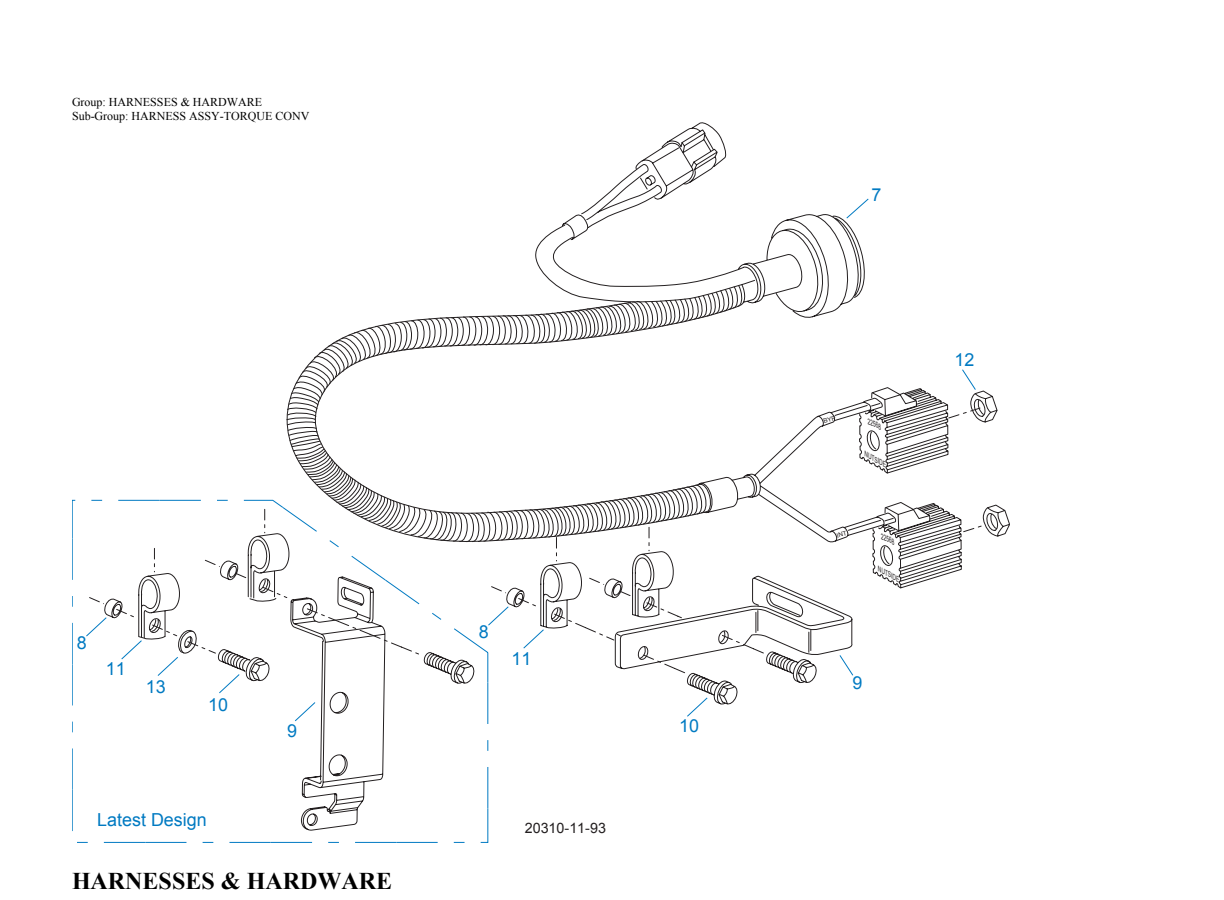

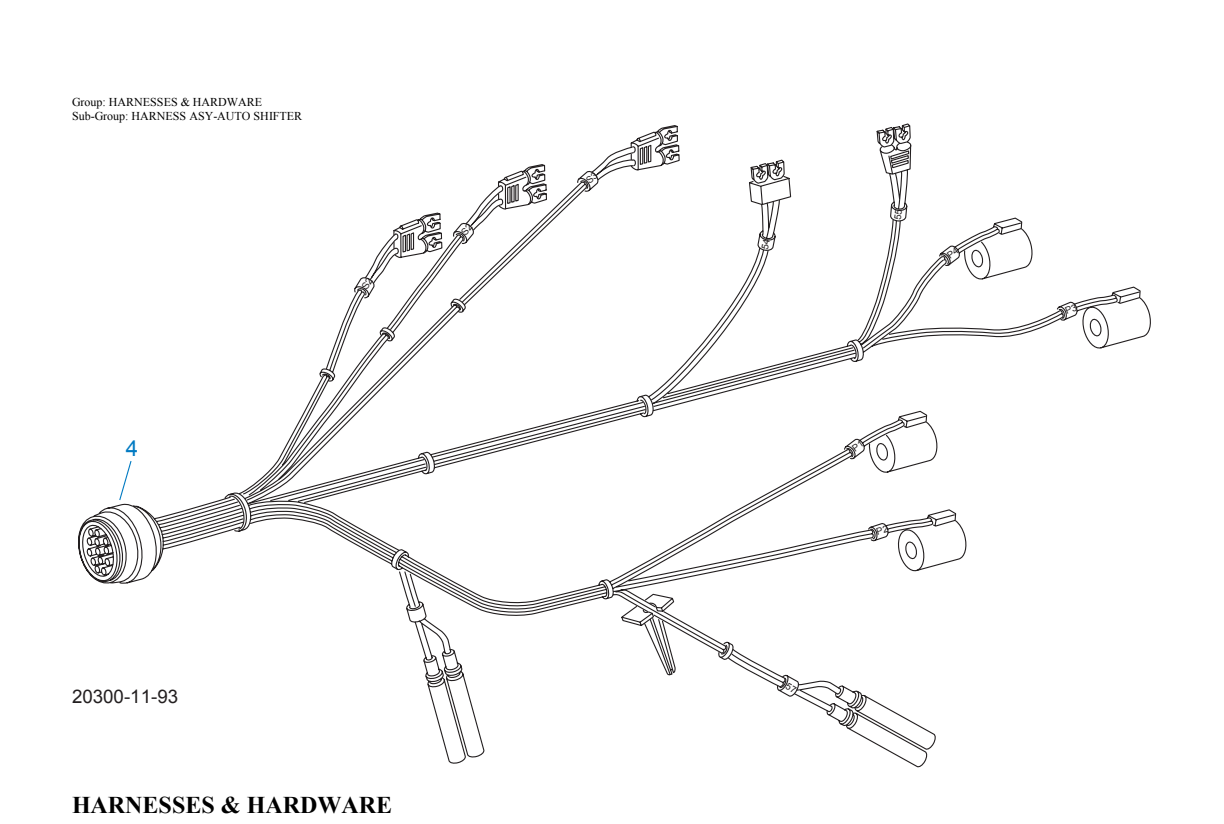

Harnesses & Hardware
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 7 | A-5519 | Harness Assy | 1 | — | Call for availability | |
| 8 | 4300689 | Spacer | 2 | — | Call for availability | |
| 9 | K-3201 | Bracket Kit | 1 | Replaces 4300625, 4303346. | — | Call for availability |
| 10 | X-8L-681 | Capscrew | 2 | 3/8"-16X2-3/4" | — | Call for availability |
| 11 | 11665 | Clamp | 2 | $2.55 | Add to Cart | |
| 12 | X-1-809 | Jam Nut | 2 | 1/2"-20 | — | Call for availability |
| 13 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 14 | K-3201 | Bracket Kit | 1 | Replaces 4300625, 4303346. | — | Call for availability |
| 4 | K-2981 | Auto Shifter Kit | 1 | Replaces A-5518, K-2384. | — | Call for availability |

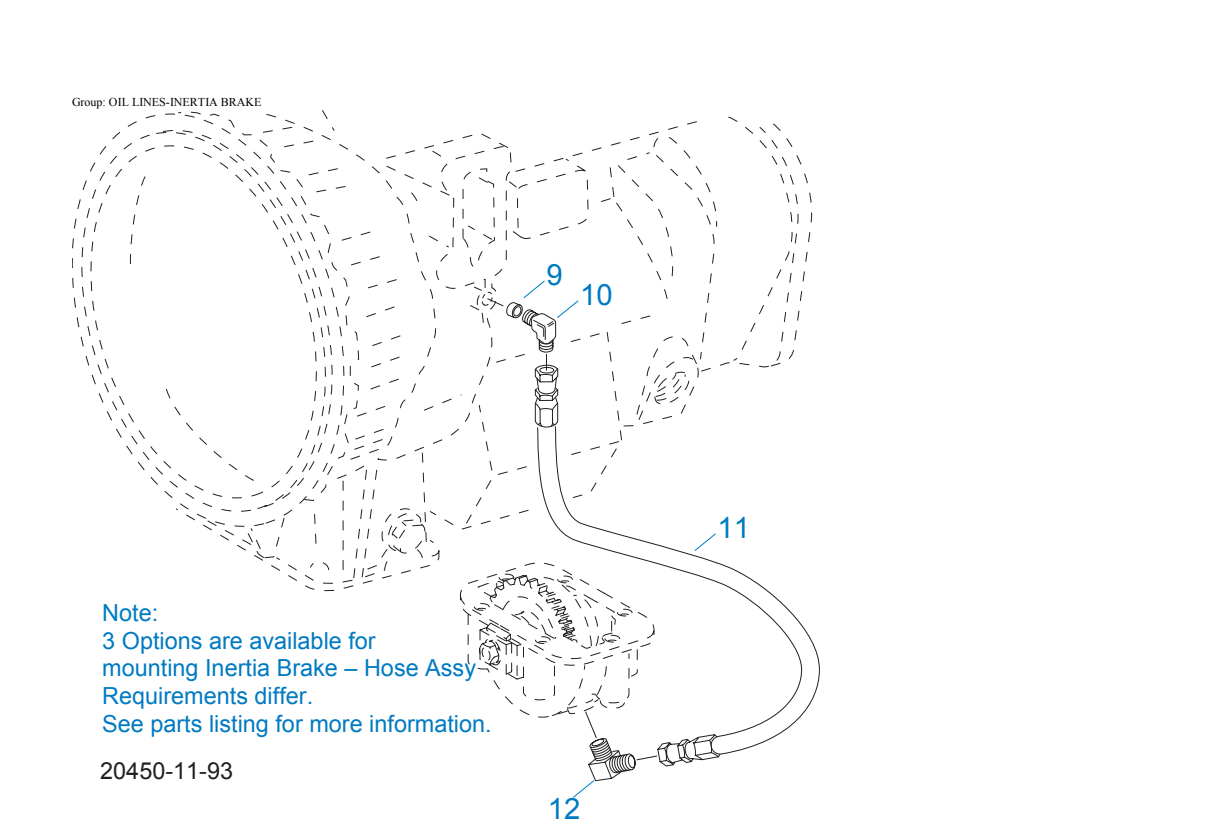

Inertia Brake Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-2906 | Inertia Brake Kit | 1 | Replaces A-6200, A-6437. | — | Call for availability |
| 2 | X-8L-722 | Capscrew | 8 | Replaces X8L721. 7/16"-14X1-1/4" | $4.23 | Add to Cart |
| 3 | 12845 | Elbow | 1 | 1/8" | $5.13 | Add to Cart |
| 4 | 23473 | Washer | 6 | $5.20 | Add to Cart | |
| 5 | X-8-636 | Screw | 4 | 3/8"-16X3-3/4" | $2.25 | Add to Cart |
| 6 | X-8-624 | Capscrew | 2 | 3/8"-16X4" | $2.55 | Add to Cart |
| 7 | 22424 | Elbow | 1 | 90 DEGREE | — | Call for availability |
| 7 | 23486 | Connector | 1 | STRAIGHT | — | Call for availability |
| 8 | 22427 | Hose Assy | 1 | 6 BOLT POSITION | — | Call for availability |
| 8 | 4302098 | Hose Assy | 1 | 8 BOLT POSITION | — | Call for availability |
| 8 | 4302099 | Hose Assy | 1 | ROTATED 6 BOLT POSITION | — | Call for availability |
| 9 | 18471 | Adapter Plate | 1 | 8 BOLT POSITION | $123.62 | Superseded by K1712Add to Cart |
| 10 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 11 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 12 | 4302464 | Angle Adapter | 1 | ROTATED 6 BOLT POSITION | — | Call for availability |
| 13 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |

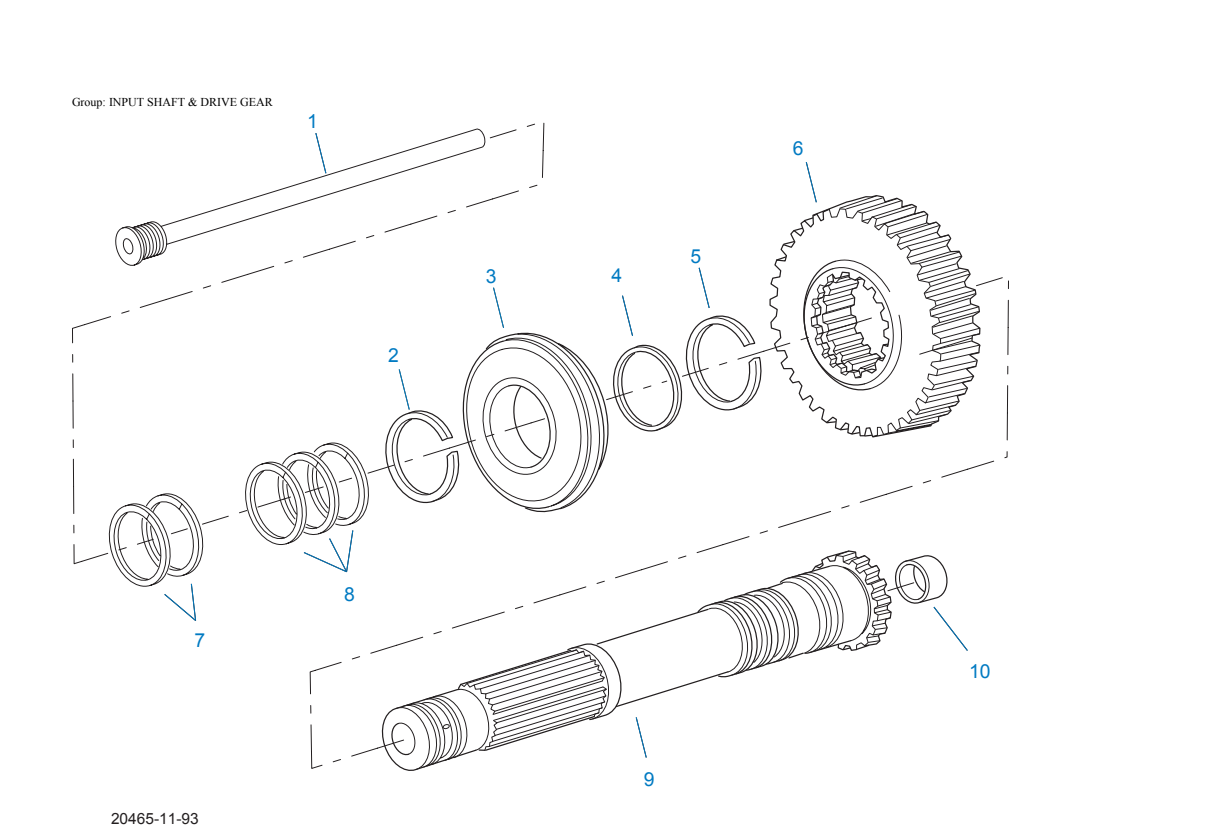

Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23402 | Input Shaft Oil Tube | 1 | — | Call for availability | |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 4301417 | Bearing | 1 | Replaces 81504. | $64.75 | Superseded by 4308451Add to Cart |
| 4 | 16463 | Spacer | 1 | $26.65 | Add to Cart | |
| 5 | 14750 | Snap Ring | 1 | $2.20 | Add to Cart | |
| 6 | 4302454 | Main Drive Gear | 1 | — | Call for availability | |
| 7 | 22428 | Piston Ring | 2 | — | Call for availability | |
| 8 | 23438 | Piston Ring | 3 | — | Call for availability | |
| 9 | S-1670 | Input Shaft Assy | 1 | Replaces 23395. | — | Call for availability |
| 10 | 20171 | Bushing | 1 | $6.86 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1698 | O-ring/element Kit | 1 | FOR FILTER REGULATOR | $16.42 | Add to Cart | |
| K-2172 | Gasket Kit | 1 | — | Call for availability | ||
| K-2262 | Oil Seal W/slinger | 1 | Replaces 191092080720808. "FOR MECHANICAL COVER" | $30.59 | Add to Cart | |
| K-2301 | Filter Regulator Kit | 1 | — | Call for availability | ||
| K-2314 | Oil Filter Kit | 1 | — | Call for availability | ||
| K-2385 | Auto-shifter Kit | 1 | — | Call for availability | ||
| K-2387R | Reman Hydra Valve Kit | 1 | Replaces K-2387, K-3085. | — | Call for availability | |
| K-2388 | Converter Housing Kit | 1 | Replaces 4300323, 4300377. | — | Call for availability | |
| K-2390 | Stator Support Kit | 1 | — | Call for availability | ||
| K-2391 | Input Shaft Kit | 1 | — | Call for availability | ||
| K-2392R | Reman Pwr Synchro Kit | 1 | Replaces K-3079. B-RATIO-AT | — | Call for availability | |
| K-2398 | Convertor Seal Kit | 1 | — | Call for availability | ||
| K-2403 | Oil Pan Retro Kit | 1 | STANDARD | — | Call for availability | |
| K-2439 | Key & Washer Kit | 1 | CONTAINS 3-SIDED KEY | $104.71 | Add to Cart | |
| K-2504 | Oil Pump Kit | 1 | — | Call for availability | ||
| K-2621 | Power Synco Lube Kit | 1 | — | Call for availability | ||
| K-2625 | #1 Converter Hsg Kit | 1 | — | Call for availability | ||
| K-2630 | Repl Kit-drive Gear | 1 | Replaces 4300548. B-RATIO | — | Call for availability | |
| K-2632 | Eng Speed Sensor Kit | 1 | Replaces 22569. | — | Call for availability | |
| K-2633 | Ball Switch Kit | 1 | — | Call for availability | ||
| K-2642 | 6 Bolt Rotated Line Kit | 1 | — | Call for availability | ||
| K-2643 | 6 Bolt Oil Line Kit | 1 | — | Call for availability | ||
| K-2644 | 8 Bolt Oil Line Kit | 1 | — | Call for availability | ||
| K-2646R | Reman 16-D Cnvtr Kit | 1 | Replaces K-3083. | — | Call for availability | |
| K-2647R | Reman 16-C Cnvtr Kit | 1 | Replaces K-3082. | — | Call for availability | |
| K-2754 | Shift Bar Hsg Assy | 1 | Replaces 22596. HOUSING ONLY | — | Call for availability | |
| K-2781R | Reman Pwr Synchro Kit | 1 | Replaces K-3078. A-RATIO-AT | — | Call for availability | |
| K-2802 | O-ring Kit-range | 1 | $19.17 | Add to Cart | ||
| K-2830 | Small Parts Kit | 1 | $294.67 | Add to Cart | ||
| K-2831 | Cylinder Kit-range | 1 | — | Call for availability | ||
| K-2874 | Throttle Sensor Kit | 1 | Replaces K-2325. 45" CABLE | — | Call for availability | |
| K-2875 | Throttle Sensor Kit | 1 | Replaces K-2505. 60" CABLE | — | Call for availability | |
| K-2876 | Throttle Sensor Kit | 1 | Replaces K-2324. 30" CABLE | — | Call for availability | |
| K-2877 | Sump Tube Return Kit | 1 | Replaces K-2620. | — | Call for availability | |
| K-2902 | Basic Rebuild Kit | 1 | ATE | — | Call for availability | |
| K-2903 | Basic Overhaul Kit | 1 | ATE | — | Call for availability | |
| K-2905 | Basic Overhaul Kit | 1 | AT | — | Call for availability | |
| K-2911 | Oil Pump Kit | 1 | Replaces 4300747, 4302714. | — | Call for availability | |
| K-2914 | Oil Pan Retro Kit | 1 | LOW PROFILE | $1,195.08 | Add to Cart | |
| K-2915 | Oil Pan Retro Kit | 1 | OFFSET | — | Call for availability | |
| K-2937 | Countershaft Repl Kit | 1 | Replaces 4300244. | $318.91 | Add to Cart | |
| K-2979 | Range Valve Kit | 1 | Replaces A-5363. | — | Call for availability | |
| K-2980 | Sensor Update Kit | 1 | Replaces 22567, K-2631. | — | Call for availability | |
| K-2981 | Auto-shifter Harness Kit | 1 | Replaces A-5518, K-2384. | — | Call for availability | |
| K-2982 | Auto-shifter Harness Ki | 1 | Replaces K-2396. 24 VOLT | — | Call for availability | |
| K-2983 | Auto Shifter Kit | 1 | Replaces A-5517, K-2635. | — | Call for availability | |
| K-2983R | Reman Autoshifter Kit | 1 | Replaces K-3080. | — | Call for availability | |
| K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | ||
| K-3783 | Countershaft Repl Kit | 1 | Replaces 20804, 22411, 4301054, K-2935. | $315.43 | Add to Cart | |
| S-1670 | Input Shaft Assy | 1 | Replaces 23395. | — | Call for availability | |
| S-1676 | Stator Support Assy | 1 | Replaces 23397. | — | Call for availability | |
| S-1785 | Case Assy | 1 | Replaces 23583. | — | Call for availability | |
| S-1876 | Shift Bar Hsg Assy | 1 | Replaces 22596. COMPLETE | — | Call for availability | |
| S-2015 | Converter Housing Assy | 1 | — | Call for availability | ||
| S-2113 | Rear Brg Cover Assy | 1 | Replaces 4302027. | — | Call for availability | |
| S-2119 | Rear Brg Cover Assy | 1 | Replaces 20048, 22045, 4302009. EXTENDED | $363.94 | Add to Cart | |
| S-2339 | No Longer Available | 1 | A-RATIO-ATE | — | Call for availability | |
| S-2341 | Range Section Assy | 1 | B-RATIO-ATE | — | Call for availability | |
| S-2343 | Range Section Assy | 1 | A-RATIO-AT | — | Call for availability | |
| S-2345 | Range Section Assy | 1 | B-RATIO-AT | — | Call for availability | |
| S-2369 | Oil Pan Cover Assy | 1 | LOW PROFILE | $553.94 | Add to Cart | |
| S-2370 | Oil Pan Assy | 1 | OFFSET | $660.53 | Add to Cart | |
| S-2688 | Mainshaft Assy | 1 | Replaces 4303404, 4303913. | $149.23 | Add to Cart |
Mainshaft & Synchro(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 14897 | Spring | 3 | $1.40 | Add to Cart | |
| 2 | A-7331 | Synchronizer Assy | 1 | Replaces 4304396, 4304397, A-5917. HI RANGE | $118.88 | Add to Cart |
| 3 | 22915 | Sliding Clutch | 1 | $156.93 | Add to Cart | |
| 4 | A-7254 | Synchronizer Assembly | 1 | Replaces A-4937, A-5876. LO RANGE | $146.52 | Add to Cart |
| 5 | 19202 | Mainshaft | 1 | Replaces 4302460. | $364.62 | Add to Cart |
| 7 | 23411 | Spacer | 1 | $170.51 | Add to Cart | |
| 8 | 4300659 | Reduction Gear | 1 | $575.80 | Add to Cart | |
| 10 | 16772 | Washer | 1 | $77.67 | Add to Cart | |
| 11 | 15260 | Bearing | 1 | $413.23 | Add to Cart | |
| 12 | 20191 | Rotor | 1 | Replaces 16295. | $40.36 | Add to Cart |
| 13 | 22254 | Nut | 1 | $15.84 | Add to Cart |
Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4304615 | 3-SIDED Key | 1 | Replaces 4300120. | $5.90 | Add to Cart |
| 1 | K-2439 | Key & Washer Kit | 1 | CONTAINS 3-SIDED KEY | $104.71 | Add to Cart |
| 2 | S-2688 | Mainshaft Assy | 1 | Replaces 4303404, 4303913. | $149.23 | Add to Cart |
| 3 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 4 | 14750 | Snap Ring | 5 | $2.20 | Add to Cart | |
| 5 | 16756 | Reverse Gear- Mainshaft | 1 | Replaces 22408. | $93.74 | Add to Cart |
| 6 | 14749 | Spacer | 5 | $6.93 | Add to Cart | |
| 7 | 4300382 | Washer .249-WHITE | 5 | $12.09 | Add to Cart | |
| 7 | 4300383 | Washer .254-GREEN | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.67 | Add to Cart |
| 7 | 4300384 | Washer .259-ORANGE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $12.34 | Add to Cart |
| 7 | 4300385 | Washer .264-PURPLE | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $25.41 | Add to Cart |
| 7 | 4300386 | Washer .269-YELLOW | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | — | No longer available — call for replacement |
| 7 | 4300387 | Washer .274-BLACK | 5 | OPTIONAL 4300382-4300387 OR 4300830 USE ANY 5 WASHERS. USE WITH 3-SIDED KEY | $28.78 | Add to Cart |
| 7 | 4300830 | Washer .244-BLUE | 5 | $9.36 | Add to Cart | |
| 8 | 22412 | Sliding Clutch | 3 | — | No longer available — call for replacement | |
| 9 | 21502 | Lo Gear-mainshaft | 1 | $232.02 | Add to Cart | |
| 10 | 20389 | 1ST Gear-mainshaft | 1 | $143.09 | Add to Cart | |
| 11 | 20390 | 2ND Gear-mainshaft | 1 | $125.68 | Add to Cart | |
| 12 | 4302455 | Od Gear-mainshaft | 1 | — | Call for availability |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4301065 | Shift Diagram Label | 1 | 5 POS REVERSE FORWARD | — | Call for availability | |
| 4301066 | Shift Diagram Label | 1 | 5 POS REVERSE REARWARD | — | Call for availability | |
| 4301067 | Shift Diagram Label | 1 | 6 POS REVERSE FORWARD | $28.59 | Add to Cart | |
| 4301068 | Shift Diagram Label | 1 | 6 POS REVERSE REARWARD | — | Call for availability | |
| 4301120 | Shift Diagram Label | 1 | 7 POS REVERSE FORWARD | — | Call for availability | |
| 4301121 | Shift Diagram Label | 1 | 7 POS REVERSE REARWARD | — | Call for availability | |
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |
Oil Lines-Inertia Brake
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 9 | 22627 | Oil Restrictor | 1 | — | Call for availability | |
| 10 | 4302077 | Elbow | 1 | — | Call for availability | |
| 11 | 22427 | Hose Assy | 1 | 6 BOLT POSITION | — | Call for availability |
| 11 | 4302098 | Hose Assy | 1 | 8 BOLT POSITION | — | Call for availability |
| 11 | 4302099 | Hose Assy | 1 | ROTATED 6 BOLT POSITION | — | Call for availability |
| 12 | 22424 | Elbow | 1 | 90 DEGREE | — | Call for availability |

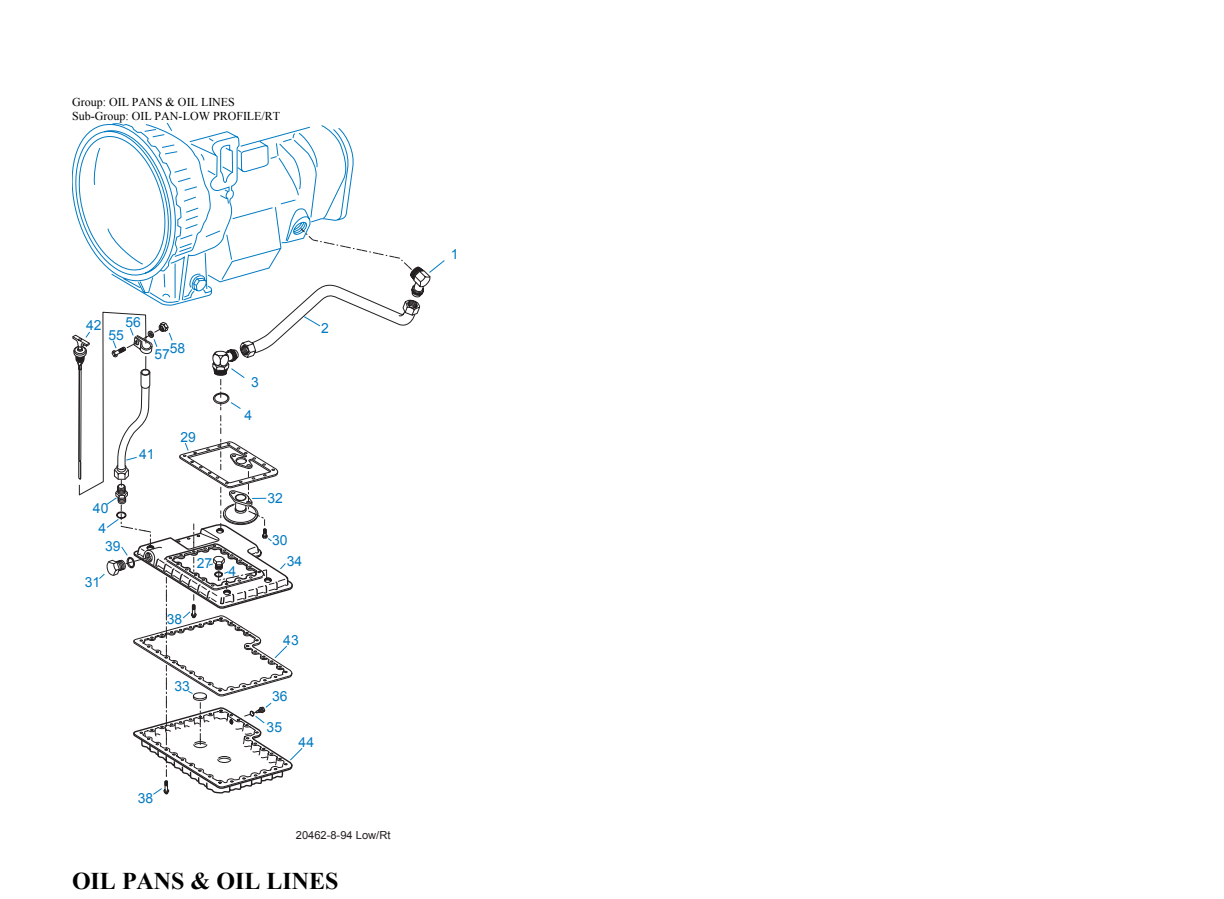

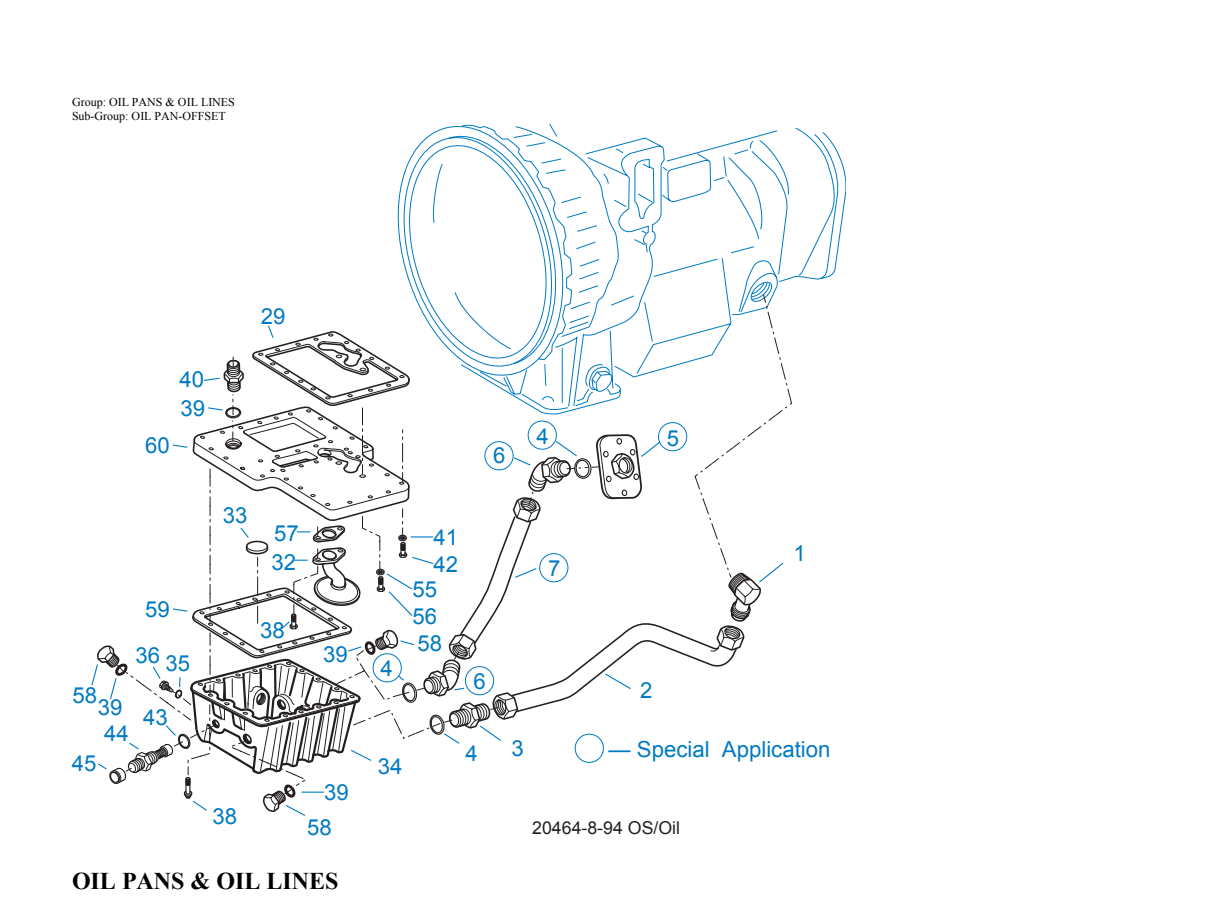

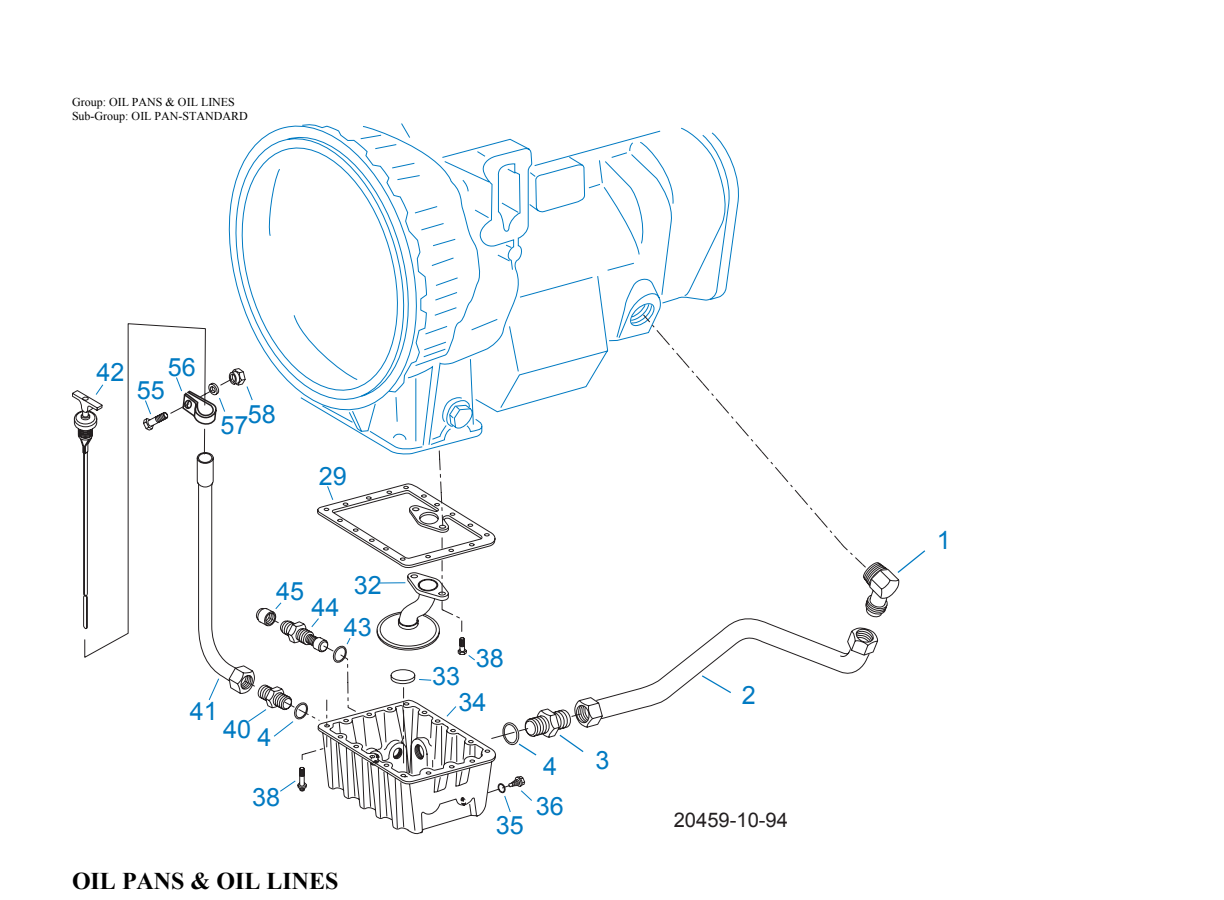

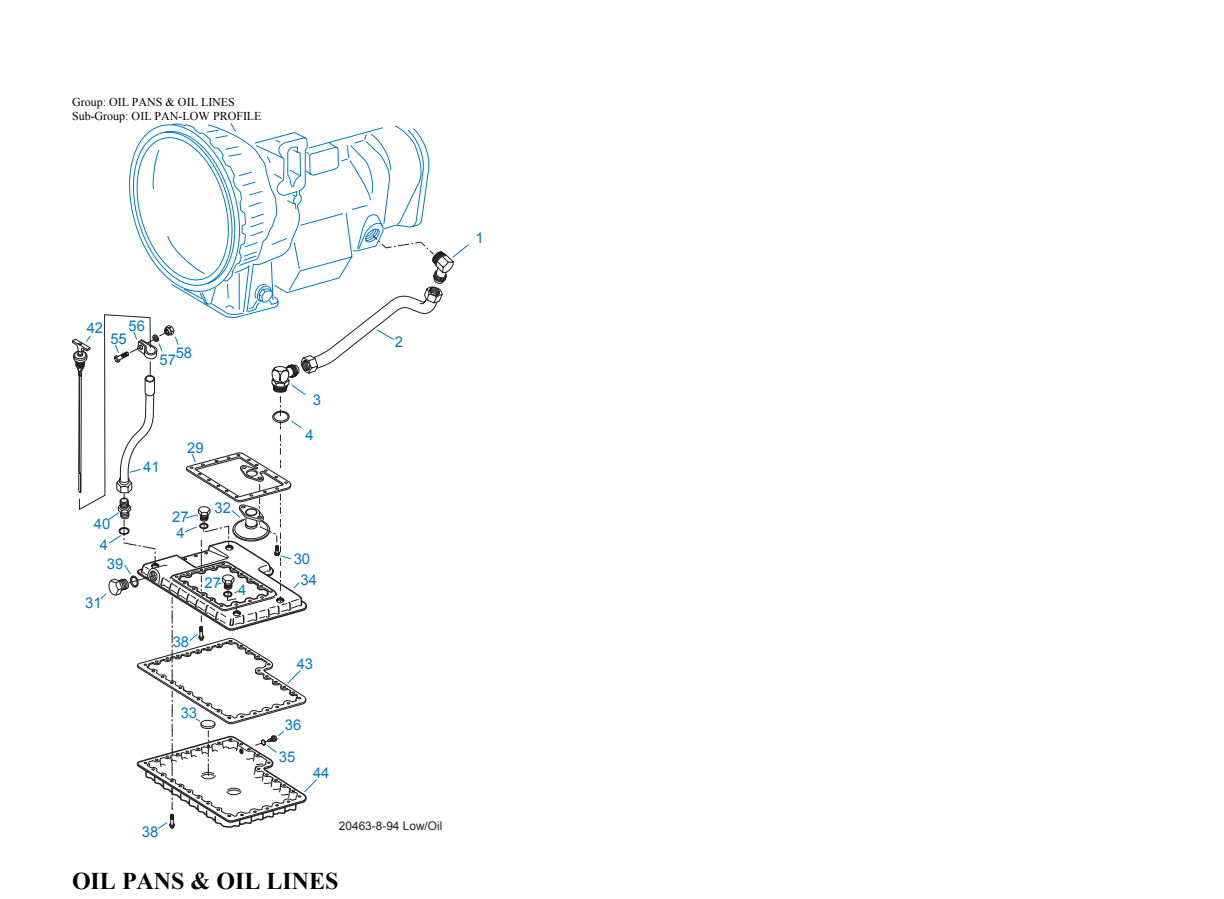

Oil Pans & Oil Lines
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | — | Call for availability |
| 2 | 4302599 | Sump Return Tube LH | 1 | — | Call for availability | |
| 3 | 4302597 | Elbow | 1 | 90 DEGREES | $62.95 | Add to Cart |
| 4 | 23109 | O-ring | 4 | — | Call for availability | |
| 27 | 22478 | Plug | 2 | — | Call for availability | |
| 29 | 22474 | Gasket | 1 | — | Call for availability | |
| 30 | X-8C-500 | Capscrew | 2 | 18X1-1/4" | $2.52 | Add to Cart |
| 31 | 23028 | Plug | 1 | — | Call for availability | |
| 32 | 4302596 | Oil Transfer Tube | 1 | — | Call for availability | |
| 33 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 34 | 4302591 | Oil Pan | 1 | — | Call for availability | |
| 35 | 4300484 | Washer | 1 | — | Call for availability | |
| 36 | 4300438 | Drain Plug | 1 | — | Call for availability | |
| 38 | X-8C-550 | Capscrew | 53 | 5/16"-18X1" | — | Call for availability |
| 39 | 23029 | O-ring | 1 | — | Call for availability | |
| 40 | 22431 | Connector | 1 | — | Call for availability | |
| 41 | 5500511 | Oil Fill Tube | 1 | STANDARD | — | Call for availability |
| 42 | 5501028 | Dipstick | 1 | Replaces 5501016. STANDARD | — | Call for availability |
| 43 | 4302595 | Oil Pan Gasket | 1 | — | Call for availability | |
| 44 | 4302593 | Oil Cover | 1 | — | Call for availability | |
| 55 | X-8-601 | Capscrew | 1 | 3/8"-16X3/4" | $1.58 | Add to Cart |
| 56 | 4300626 | Clamp | 1 | — | Call for availability | |
| 57 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 58 | X-9-604 | Nut | 1 | 3/8"-16 | — | Call for availability |
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | — | Call for availability |
| 2 | 4302598 | Sump Return Tube RH | 1 | — | Call for availability | |
| 3 | 22478 | Plug | 1 | — | Call for availability | |
| 4 | 23109 | O-ring | 4 | — | Call for availability | |
| 27 | 22478 | Plug | 2 | — | Call for availability | |
| 29 | 22474 | Gasket | 1 | — | Call for availability | |
| 30 | X-8C-500 | Capscrew | 2 | 18X1-1/4" | $2.52 | Add to Cart |
| 31 | 23028 | Plug | 1 | — | Call for availability | |
| 32 | 4302596 | Oil Transfer Tube | 1 | — | Call for availability | |
| 33 | 14373 | Magnet | 2 | $3.89 | Add to Cart | |
| 34 | 4302591 | Oil Pan | 1 | — | Call for availability | |
| 35 | 4300484 | Washer | 1 | — | Call for availability | |
| 36 | 4300438 | Drain Plug | 1 | — | Call for availability | |
| 38 | X-8C-550 | Capscrew | 53 | 5/16"-18X1" | — | Call for availability |
| 39 | 23029 | O-ring | 1 | — | Call for availability | |
| 40 | 22431 | Connector | 1 | — | Call for availability | |
| 41 | 5500511 | Oil Fill Tube | 1 | STANDARD | — | Call for availability |
| 42 | 5501028 | Dipstick | 1 | Replaces 5501016. STANDARD | — | Call for availability |
| 43 | 4302595 | Oil Pan Gasket | 1 | — | Call for availability | |
| 44 | 4302593 | Oil Cover | 1 | — | Call for availability | |
| 55 | X-8-601 | Capscrew | 1 | 3/8"-16X3/4" | $1.58 | Add to Cart |
| 56 | 4300626 | Clamp | 1 | — | Call for availability | |
| 57 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 58 | X-9-604 | Nut | 1 | 3/8"-16 | — | Call for availability |
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | — | Call for availability |
| 2 | 4301101 | Tube | 1 | Replaces 23778. | — | Call for availability |
| 3 | 23596 | Connector | 1 | — | Call for availability | |
| 4 | 23109 | O-ring | 1 | QUANTITY AS REQUIRED | — | Call for availability |
| 5 | 4301113 | Cover | 1 | — | Call for availability | |
| 6 | 22413 | Elbow | 2 | — | Call for availability | |
| 7 | 4301112 | Side Slope Tube | 1 | — | Call for availability | |
| 29 | 4301106 | Gasket | 1 | — | Call for availability | |
| 32 | 4301601 | Oil Transfer Tube | 1 | — | Call for availability | |
| 33 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 34 | 4301110 | Oil Pan | 1 | — | Call for availability | |
| 35 | 4300484 | Washer | 1 | — | Call for availability | |
| 36 | 4300438 | Drain Plug | 1 | — | Call for availability | |
| 38 | X-8C-550 | Capscrew | 22 | 5/16"-18X1" | — | Call for availability |
| 39 | 23109 | O-ring | 4 | — | Call for availability | |
| 40 | 22431 | Connector | 1 | — | Call for availability | |
| 41 | X-3-507 | Conical Washer | 20 | 5/16" | — | Call for availability |
| 42 | X-8L-540 | Capscrew | 20 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 43 | 23029 | O-ring | 1 | — | Call for availability | |
| 44 | A-5754 | Valve Assy | 1 | — | Call for availability | |
| 45 | 4300452 | Cap | 1 | — | Call for availability | |
| 55 | 4301114 | Sealing Washer | 2 | — | Call for availability | |
| 56 | X-8L-540 | Capscrew | 2 | 5/16"-18X1-7/8" | $2.04 | Add to Cart |
| 57 | 4301109 | Gasket | 1 | — | Call for availability | |
| 58 | 22478 | Plug | 3 | — | Call for availability | |
| 59 | 4301108 | Gasket | 1 | — | Call for availability | |
| 60 | 4301107 | Adapter | 1 | — | Call for availability | |
| 1 | 4301100 | Elbow | 1 | Replaces 23597. | — | Call for availability |
| 2 | 4301101 | Tube | 1 | Replaces 23778. | — | Call for availability |
| 3 | 23596 | Connector | 1 | — | Call for availability | |
| 4 | 23109 | O-ring | 2 | — | Call for availability | |
| 29 | 22474 | Gasket | 1 | — | Call for availability | |
| 32 | 4301601 | Oil Transfer Tube | 1 | — | Call for availability | |
| 33 | 14373 | Magnet | 1 | $3.89 | Add to Cart | |
| 34 | 4300432 | Oil Pan | 1 | — | Call for availability | |
| 35 | 4300484 | Washer | 1 | — | Call for availability | |
| 36 | 4300438 | Drain Plug | 1 | — | Call for availability | |
| 38 | X-8C-550 | Capscrew | 22 | 5/16"-18X1" | — | Call for availability |
| 40 | 22431 | Connector | 1 | — | Call for availability | |
| 41 | 5500503 | Oil Fill Tube | 1 | STANDARD | — | Call for availability |
| 42 | 5501021 | Dipstick | 1 | Replaces 5501004. STANDARD | — | Call for availability |
| 43 | 23029 | O-ring | 1 | — | Call for availability | |
| 44 | A-5754 | Valve Assy | 1 | — | Call for availability | |
| 45 | 4300452 | Cap | 1 | — | Call for availability | |
| 55 | X-8-601 | Capscrew | 1 | 3/8"-16X3/4" | $1.58 | Add to Cart |
| 56 | 4300626 | Clamp | 1 | — | Call for availability | |
| 57 | X-10-605 | Washer | 1 | 3/8" | $3.15 | Add to Cart |
| 58 | X-9-604 | Nut | 1 | 3/8"-16 | — | Call for availability |
Range Cylinder
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-8L-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 2 | 19690 | Cylinder Cover | 1 | $81.87 | Add to Cart | |
| 3 | 14349 | Gasket | 1 | $5.36 | Add to Cart | |
| 4 | 14344 | O-ring | 1 | $8.00 | Add to Cart | |
| 5 | 14341 | Piston | 1 | Replaces 23353. | $26.70 | Add to Cart |
| 6 | X-8L-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 7 | X-1-1010 | Nut | 1 | 5/8"-18 | $2.11 | Add to Cart |
| 8 | 14345 | O-ring | 1 | $1.84 | Add to Cart | |
| 9 | 19652 | Yoke Bar | 1 | $77.15 | Add to Cart | |
| 10 | 22542 | Bushing | 1 | $3.11 | Add to Cart | |
| 11 | 14765 | O-ring | 1 | $2.70 | Add to Cart | |
| 12 | A-5371 | Range Cylinder Assy | 1 | Replaces 22543. | $113.97 | Add to Cart |
| 13 | 14347 | Gasket | 1 | $2.29 | Add to Cart | |
| 14 | X-8-825 | Capscrew | 2 | 1/2"-13X2-3/8" | $5.14 | Add to Cart |
| 15 | 4301642 | Shift Yoke | 1 | — | Call for availability | |
| 16 | 23408 | Bracket | 1 | — | Call for availability |
Reverse Idler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | X-1-1008 | Nut | 2 | 5/8"-18 | $2.32 | Add to Cart |
| 2 | 14283 | Washer | 2 | $4.40 | Add to Cart | |
| 3 | 4302982 | Washer | 2 | Replaces 14282. | $5.69 | Add to Cart |
| 4 | 14287 | Bearing | 2 | Replaces 4305020. | $23.17 | Add to Cart |
| 5 | 16757 | Reverse Idler Gear | 2 | Replaces 22409. | $145.40 | Add to Cart |
| 6 | 16403 | Washer | 2 | $18.45 | Add to Cart | |
| 7 | K-3217 | Idler Shaft Repl Kit | 2 | Replaces 4302981. | $75.22 | Add to Cart |
| 8 | 5202 | Plug | 2 | $5.69 | Add to Cart | |
| 9 | 14282 | No Longer Available | 2 | $5.69 | Superseded by 4302982Add to Cart | |
| 11 | 4303336 | Retaining Ring | 2 | $3.99 | Add to Cart | |
| 12 | X-7-1008 | Capscrew | 2 | 5/8"-18X1-1/4 | $3.48 | Add to Cart |

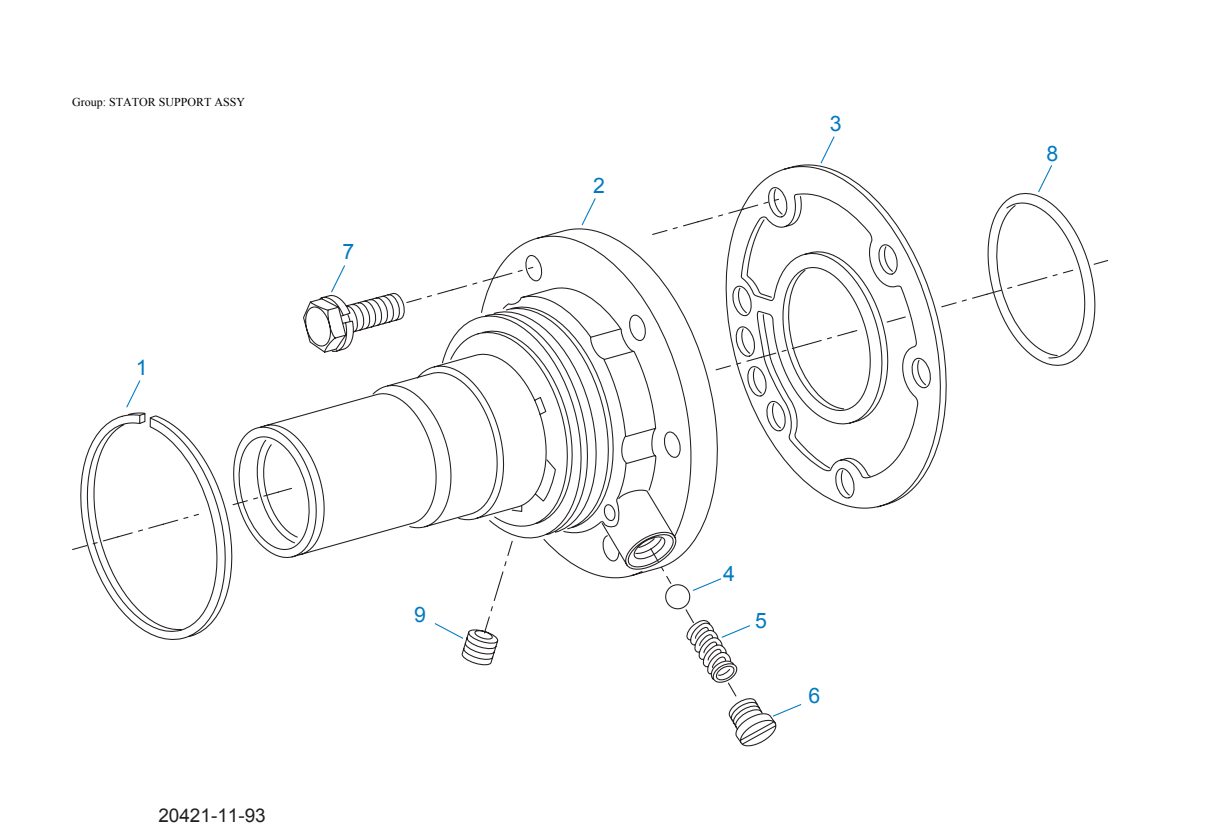

Stator Support Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 22496 | Seal Ring | 1 | — | Call for availability | |
| 2 | S-1676 | Stator Support Assy | 1 | Replaces 23397. | — | Call for availability |
| 3 | 23398 | Gasket | 1 | — | Call for availability | |
| 4 | X-14-700 | Steel Ball | 1 | 7/16" | $1.63 | Add to Cart |
| 5 | 22464 | Spring | 1 | — | Call for availability | |
| 6 | 23616 | Plug | 1 | — | Call for availability | |
| 7 | X-8L-616 | Capscrew | 6 | 3/8"-16X2-3/4" | $3.01 | Add to Cart |
| 8 | 23401 | O-ring | 1 | — | Call for availability | |
| 9 | X-12-208 | Pipe Plug | 1 | 1/8" NPT | $2.30 | Add to Cart |

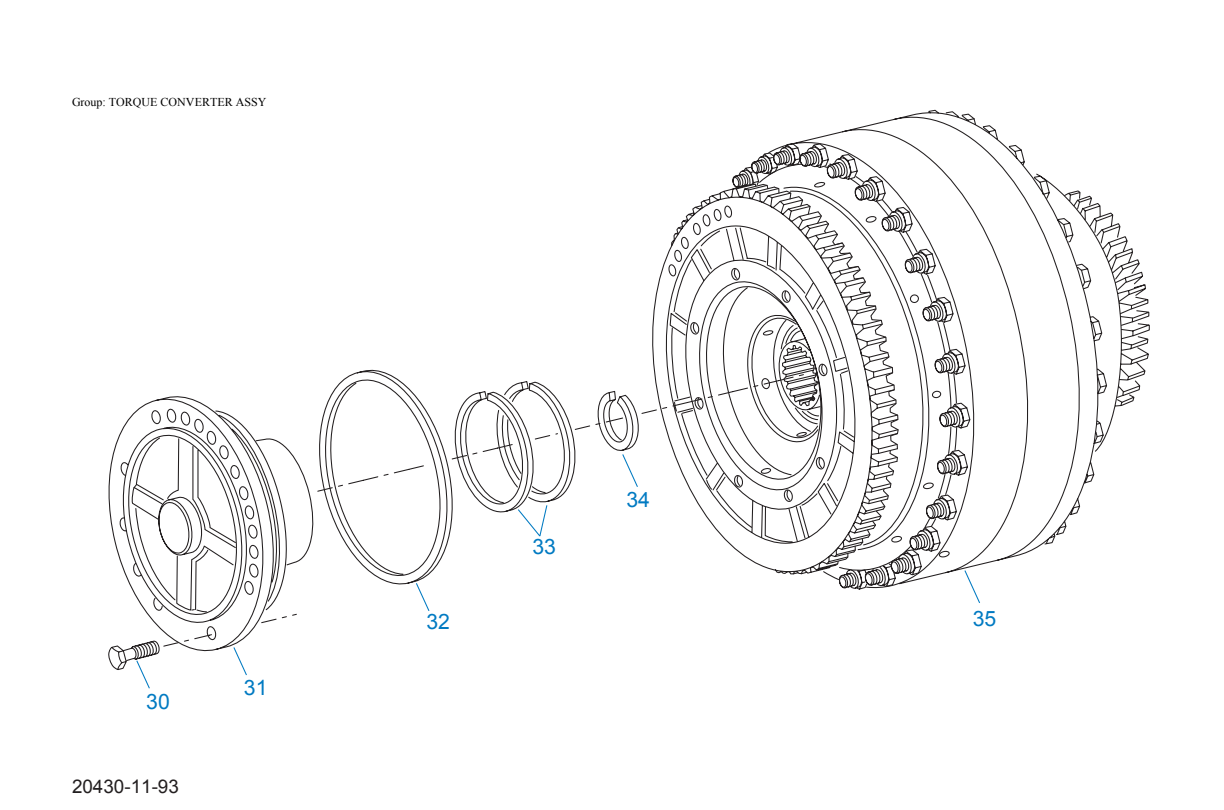

Torque Converter Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 30 | X-8-645 | Capscrew | 8 | 3/8"-16X1" | $1.78 | Add to Cart |
| 31 | 4301426 | Pilot | 1 | — | Call for availability | |
| 32 | 22463 | O-ring | 1 | — | Call for availability | |
| 33 | 22497 | Seal Ring | 2 | — | Call for availability | |
| 34 | 22429 | Snap Ring | 1 | — | Call for availability | |
| 35 | K-2646R | Reman 16-D Cnvtr Kit | 1 | Replaces K-3083. | — | Call for availability |
| 35 | K-2647R | Reman 16-C Cnvtr Kit | 1 | Replaces K-3082. | — | Call for availability |
This is the complete factory parts breakdown for the Eaton Fuller RTO-16109A-ATE — every part in the manual, matched to our live inventory. We stock 207 of the 478 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
Air Sys-Inertia Brake Air Sys-Range Auxiliary Drive Gear Bar Housing Assy Case (Aux) Case (Front) Converter Housing Assy Countershaft & Brgs(Aux) Countershaft Assy Ecu Controls Filter Regulator Harnesses & Hardware Inertia Brake Assy Input Shaft & Drive Gear Kits & Assemblies Mainshaft & Synchro(Aux) Mainshaft Assy Miscellaneous Oil Lines-Inertia Brake Oil Pans & Oil Lines Range Cylinder Reverse Idler Stator Support Assy Torque Converter Assy
No parts match that search — try the part number with no dashes.
