Eaton Fuller T-8607A Parts Manual
This is the complete factory parts breakdown for the Eaton Fuller T-8607A — every part in the manual, matched to our live inventory. We stock 294 of the 323 parts below; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
C/S & Brgs(Aux)Extended Case (Aux) Case (Front) Countershaft & Brgs(Aux) Countershaft Assy Input Shaft & Drive Gear Isolators Kits & Assemblies Levers/Housings Mainshaft Assy Miscellaneous Reverse Idler Shift Bar Hsg (Std-New) Shift Bar Hsg (Std-Old)
No parts match that search — try the part number with no dashes.

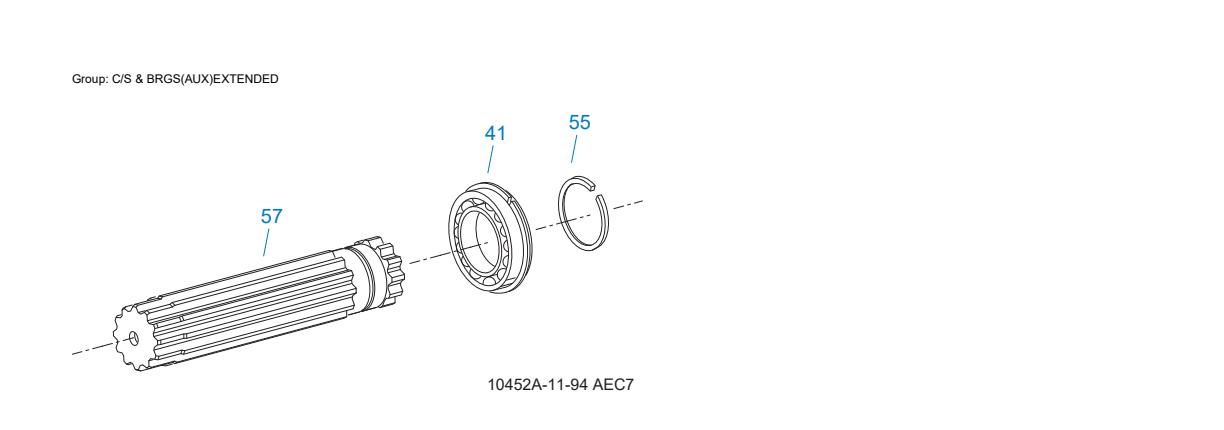

C/S & Brgs(Aux)Extended
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 41 | 81058 | Bearing | 2 | $65.37 | Add to Cart | |
| 55 | 15253 | Snap Ring | 2 | $5.67 | Add to Cart | |
| 57 | 20047 | No Longer Available | 2 | — | Call for availability |

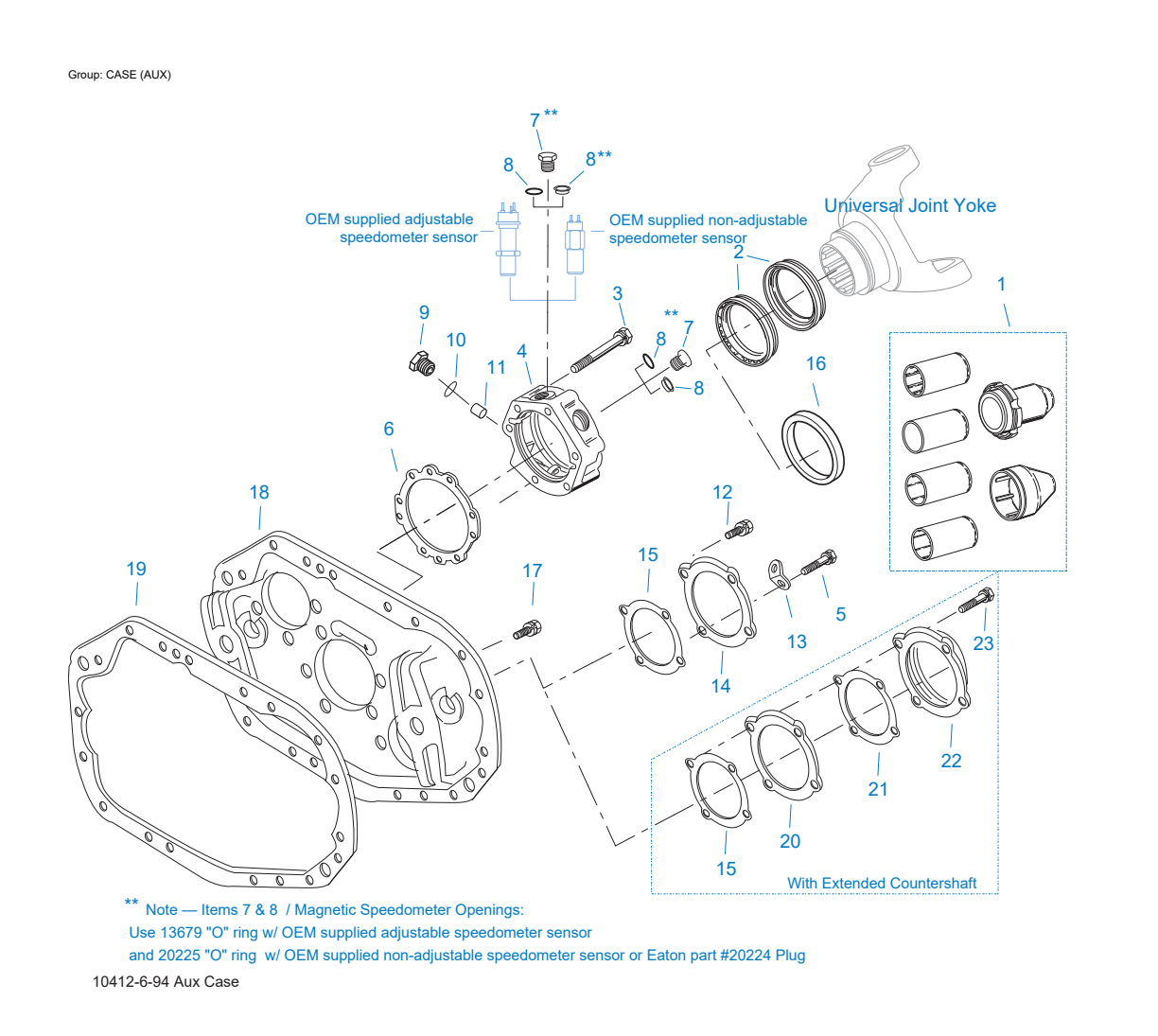

Case (Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | |
| 2 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $26.86 | Add to Cart |
| 3 | X-8L-611 | Capscrew | 6 | 3/8"-16X3-1/4" - USE W/S-2154 COVER | $2.85 | Add to Cart |
| 3 | X-8L-631 | Capscrew | 6 | Replaces X8631. 3/8"-16X3-1/2" - USE W/S-2147 COVER | $3.11 | Add to Cart |
| 4 | S-2147 | No Longer Available | 1 | Replaces 22049, S-1567. EXTENDED | — | Call for availability |
| 5 | X-8L-609 | Capscrew | 2 | 3/8"-16X1-3/4" USE W/20815 LIFTING EYES | $2.11 | Add to Cart |
| 6 | 20817 | Gasket | 1 | $5.77 | Add to Cart | |
| 7 | 20224 | Plug-magnetic | 2 | $9.19 | Add to Cart | |
| 8 | 13679 | O-ring | 1 | USE W/OEM SUPPLIED ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.60 | Add to Cart |
| 8 | 20225 | O-ring | 2 | USE W/20224 PLUG OR OEM SUPPLIED NON-ADJUSTABLE SPEEDOMETER SENSOR NOT TO BE USED WITH 4301954 SEAL | $2.06 | Add to Cart |
| 8 | 4301954 | Sensor Seal | 2 | O-RING NOT REQUIRED | $4.84 | Add to Cart |
| 9 | 20226 | Plug-mechanical | 1 | Replaces 2237. | $4.15 | Add to Cart |
| 10 | 14142 | O-ring | 1 | $1.96 | Add to Cart | |
| 11 | 7992 | Bushing | 1 | $5.82 | Add to Cart | |
| 12 | X-8L-602 | Capscrew | 6 | 3/8"-16X1-1/2" | $2.09 | Add to Cart |
| 13 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 14 | 20036 | Cover | 2 | $44.19 | Add to Cart | |
| 15 | 20037 | Gasket | 2 | $2.22 | Add to Cart | |
| 16 | K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $26.86 | Add to Cart |
| 17 | X-8L-602 | Capscrew | 10 | 3/8"-16X1-1/2" | $2.09 | Add to Cart |
| 17 | X-8L-614 | Capscrew | 7 | 3/8"-16X2" | $3.24 | Add to Cart |
| 18 | 20984 | No Longer Available | 1 | — | Call for availability | |
| 19 | 20126 | Gasket | 1 | $20.03 | Add to Cart | |
| 20 | 20040 | Adapter | 1 | $242.55 | Add to Cart | |
| 21 | 19977 | Gasket | 1 | $10.40 | Add to Cart | |
| 22 | 19975 | Cover | 1 | $314.41 | Add to Cart | |
| 23 | X-8L-609 | Capscrew | 4 | 3/8"-16X1-3/4" | $2.11 | Add to Cart |

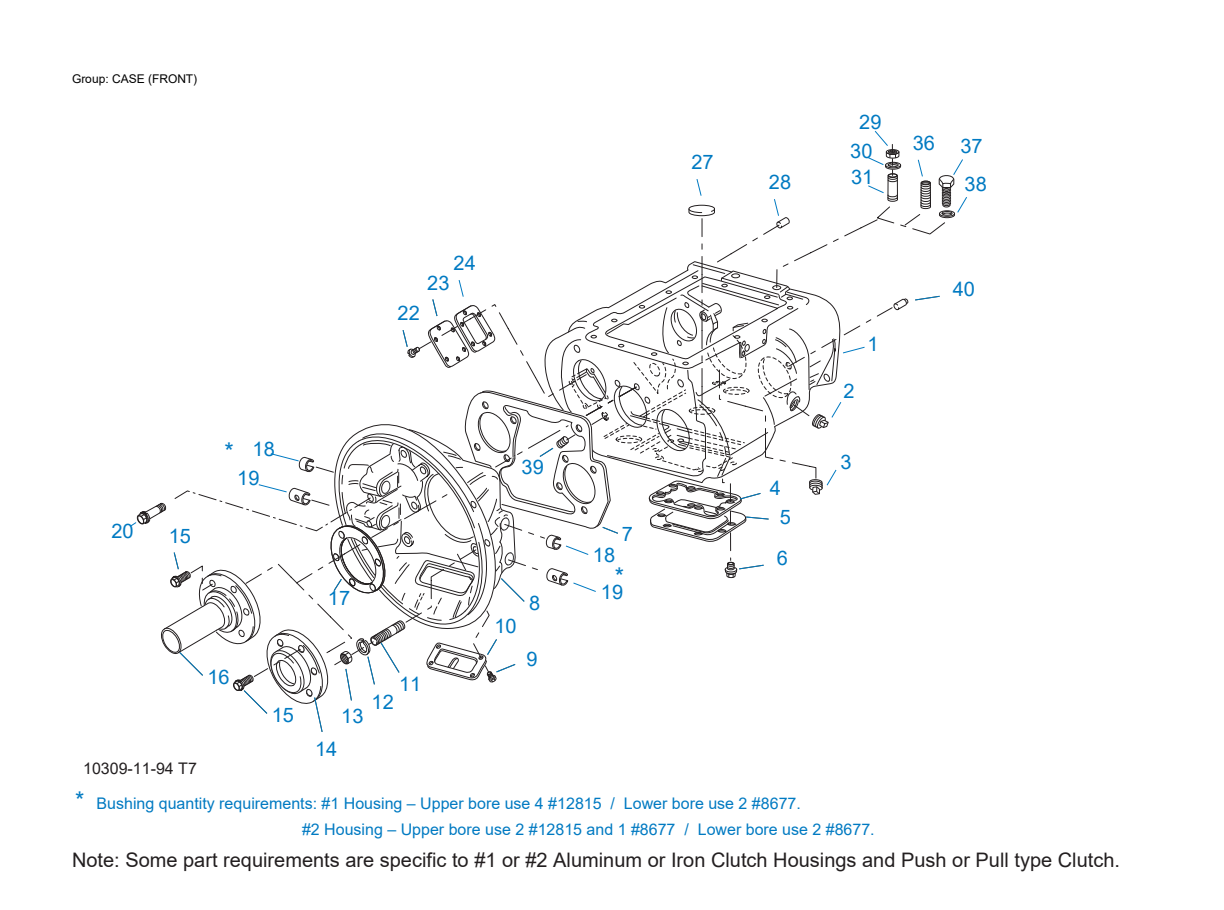

Case (Front)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-1430 | Case Assy | 1 | Replaces 20122. | $2,158.60 | Add to Cart |
| 2 | X-12-2007 | Pipe Plug | 1 | Replaces X122006. | $9.36 | Add to Cart |
| 3 | X-12-1207 | Pipe Plug | 1 | Replaces X121202, X121206. 3/4" MAGNETIC | $4.53 | Add to Cart |
| 4 | 4305310 | Gasket | 1 | Replaces 4302810. | $8.53 | Add to Cart |
| 5 | 4302809 | Pto Cover | 1 | Replaces 16596, 4300571. | $19.11 | Add to Cart |
| 6 | X-8-725 | Capscrew | 8 | Replaces X8724. 7/16"-14X7/8" | $2.42 | Add to Cart |
| 7 | 4306584 | Clutch Housing Gasket | 1 | Replaces 4304815, 4305668. | $22.49 | Add to Cart |
| 8 | A-3713 | Clutch Housing Assy | 1 | Replaces A-3700. #1 PUSH-PULL IRON | $1,231.08 | Add to Cart |
| 8 | A-3723 | Clutch Housing Assy | 1 | Replaces A-3721, A-3722. #2 PUSH-PULL IRON | $1,887.32 | Add to Cart |
| 8 | A-4772 | Clutch Housing Assy | 1 | Replaces A-4344, A-4771. #2 PUSH-PULL ALUM. | $2,336.63 | Add to Cart |
| 8 | A-6064 | Clutch Housing Assy | 1 | Replaces A-4342, A-4770, A-6062, A-6063, A-6065. #1 PUSH-PULL ALUM. | $1,376.22 | Add to Cart |
| 9 | 239614 | Screw | 4 | Replaces X-8, L-509. 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN | $7.31 | Add to Cart |
| 10 | 14506 | Hand Hole Cover | 1 | #2 PUSH | $25.71 | Add to Cart |
| 10 | 14507 | Hand Hole Cover | 1 | #2 PULL | $9.50 | Add to Cart |
| 10 | 4305230 | Hand Hole Cover | 1 | Replaces 11453. #1 PULL | $10.20 | Add to Cart |
| 10 | 4305231 | Hand Hole Cover | 1 | Replaces 1565. #1 PUSH | $11.29 | Add to Cart |
| 11 | 4306583 | Stud | 6 | Replaces 5966. | $3.21 | Add to Cart |
| 12 | X-10-1005 | Washer | 6 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 13 | X-1-1012 | Hex Nut | 6 | Replaces X-1-1005. .625-18 | $2.04 | Add to Cart |
| 14 | 20550 | Front Brg Cover | 1 | 2" PULL | $42.67 | Add to Cart |
| 14 | 20552 | Front Brg Cover | 1 | 1-3/4" PULL | $72.77 | Add to Cart |
| 15 | X-8L-604 | Capscrew | 6 | 3/8"-16X1-1/4" USE 6 PCS WITH PULL TYPE COVER USE 4 PCS WITH PUSH TYPE COVER | $2.34 | Add to Cart |
| 15 | X-8L-619 | Capscrew | 2 | 3/8"-16X1-1/4" - USE WITH PUSH TYPE COVER | $13.50 | Add to Cart |
| 16 | 20551 | Front Brg. Cover | 1 | 1-3/4" PUSH | $97.05 | Add to Cart |
| 17 | 14311 | Gasket | 1 | $2.04 | Add to Cart | |
| 18 | 12815 | Bushing | 2 | FOR #2 HOUSING - UPPER | $5.26 | Add to Cart |
| 18 | 12815 | Bushing | 4 | FOR #1 HOUSING - UPPER | $5.26 | Add to Cart |
| 18 | 8677 | Bushing | 1 | FOR #2 HOUSING - UPPER | $19.09 | Add to Cart |
| 19 | 8677 | Bushing | 3 | FOR #1 AND #2 HOUSING - LOWER | $19.09 | Add to Cart |
| 20 | X-8C-830 | Hex Head Screw/washer Assy | 4 | Replaces X-8, C-826. .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING | $3.46 | Add to Cart |
| 20 | X-8C-831 | Hex Head Screw/washer Assy | 2 | Replaces X-8, C-822. .500-13 X 3.460, FOR IRON HOUSING | $3.46 | Add to Cart |
| 22 | X-8-686 | Capscrew | 6 | 3/8"-16X3/4" | $1.97 | Add to Cart |
| 23 | 14575 | Pto Cover | 1 | Replaces 4302254. | $14.97 | Add to Cart |
| 24 | 4305309 | Gasket | 1 | Replaces 1684. | $8.58 | Add to Cart |
| 27 | 14373 | Magnet | 3 | $3.89 | Add to Cart | |
| 28 | 18128 | Pin | 1 | $24.16 | Add to Cart | |
| 29 | X-1-1012 | Hex Nut | 2 | .625-18 | $2.04 | Add to Cart |
| 30 | X-10-1005 | Washer | 2 | Replaces X31000, X101000, X101004. 1.23 X 6.60 | $1.50 | Add to Cart |
| 31 | 14554 | Stud | 2 | Replaces 1632, 6579. 5/8" X 2-3/16" | $3.29 | Add to Cart |
| 36 | 23104 | Plug | 2 | Replaces 1712. | $5.64 | Add to Cart |
| 37 | X-8-1005 | Capscrew | 2 | 5/8"-11X1-1/4" | $8.23 | Add to Cart |
| 38 | 20814 | Spacer | 2 | $2.70 | Add to Cart | |
| 39 | X-12-802 | Pipe Plug | 1 | Replaces X12800. 1/2" | $1.94 | Add to Cart |
| 40 | 62515 | Roll Pin | 1 | $1.31 | Add to Cart |
Countershaft & Brgs(Aux)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 41 | 81058 | Bearing | 2 | $65.37 | Add to Cart | |
| 53 | 20046 | Countershaft | 2 | $361.83 | Add to Cart | |
| 55 | 15253 | Snap Ring | 2 | $5.67 | Add to Cart |
Countershaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 40 | 15253 | Snap Ring | 2 | $5.67 | Add to Cart | |
| 41 | 81058 | Bearing | 4 | $65.37 | Add to Cart | |
| 42 | 20085 | Snap Ring | 2 | $2.29 | Add to Cart | |
| 43 | 20044 | No Longer Available | 2 | — | Call for availability | |
| 44 | 19311 | No Longer Available | 2 | — | Call for availability | |
| 45 | 19928 | No Longer Available | 2 | — | Call for availability | |
| 46 | 20089 | No Longer Available | 2 | — | Call for availability | |
| 47 | 20990 | No Longer Available | 2 | — | Call for availability | |
| 48 | 20991 | No Longer Available | 2 | — | Call for availability | |
| 49 | 4303921 | Bearing | 2 | Replaces 81059. | $427.85 | Add to Cart |
| 50 | 19919 | Retainer | 4 | $10.99 | Add to Cart | |
| 51 | X-8-645 | Capscrew | 4 | Replaces X8612. 3/8"-16X1" | $1.78 | Add to Cart |
| 59 | X-6-D | Key | 2 | $1.94 | Add to Cart | |
| 60 | 62511 | Roll Pin | 2 | $1.54 | Add to Cart |

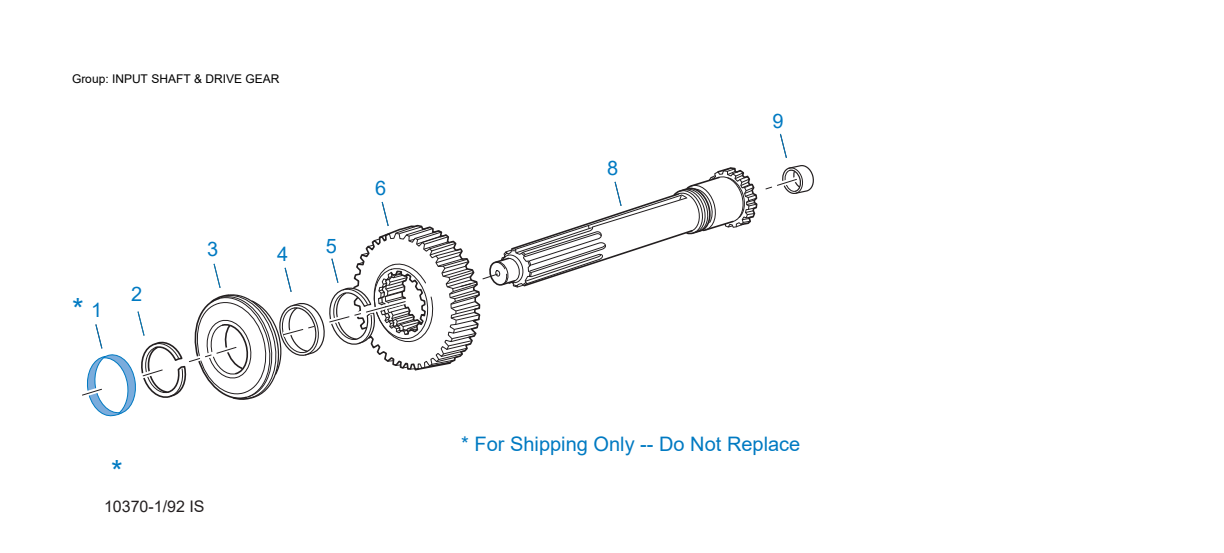

Input Shaft & Drive Gear
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 23559 | Seal | 1 | NOT SOLD FOR SERVICE | $2.62 | Add to Cart |
| 2 | 16980 | Snap Ring | 1 | $2.75 | Add to Cart | |
| 3 | 81504 | Bearing | 1 | $51.99 | Add to Cart | |
| 4 | 16396 | Spacer | 1 | $27.52 | Add to Cart | |
| 5 | 14289 | Snap Ring | 1 | $2.37 | Add to Cart | |
| 6 | 19308 | No Longer Available | 1 | — | Call for availability | |
| 8 | S-2838 | Input Shaft Assy | 1 | Replaces 23569691518. 2" PULL | $236.51 | Add to Cart |
| 8 | S-2916 | Input Shaft Assy | 1 | Replaces 20530, 4304354. 1-3/4" PUSH | — | Call for availability |
| 8 | S-2917 | Input Shaft Assy | 1 | Replaces 20531, 4304355. 1-3/4" PULL | $391.22 | Add to Cart |
| 9 | 20171 | Bushing | 1 | $6.86 | Add to Cart |

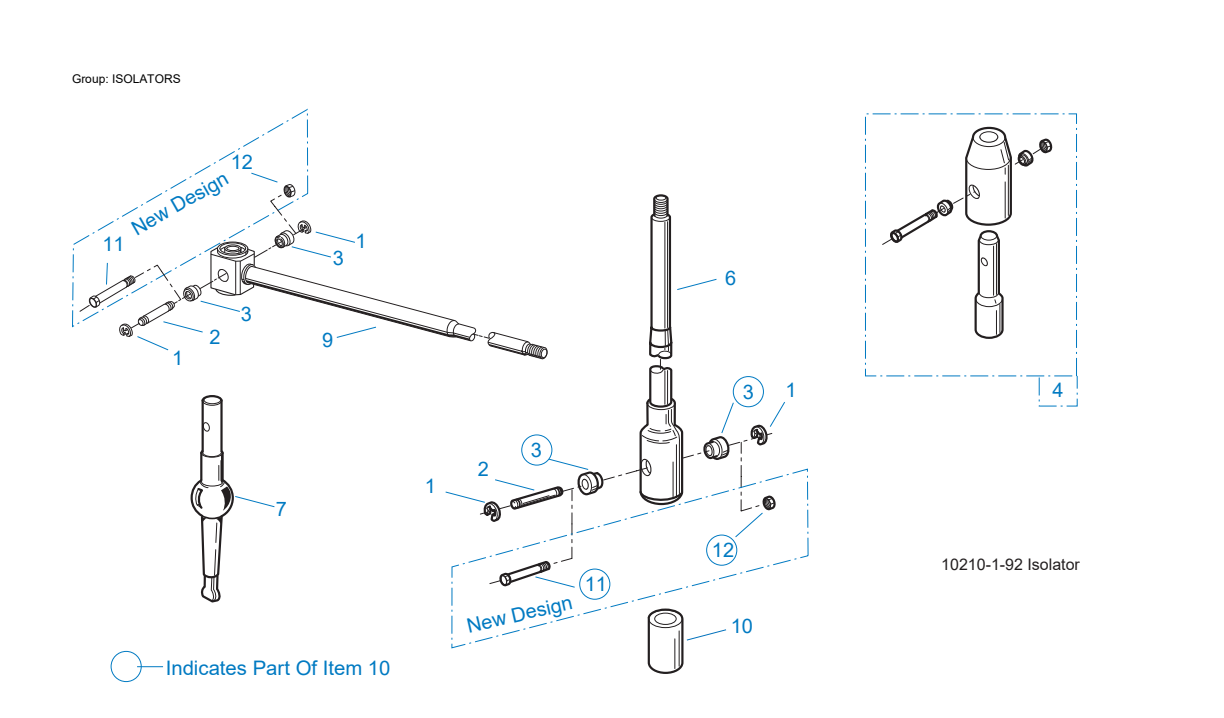

Isolators
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 19124 | -e- Ring | 2 | $1.56 | Add to Cart | |
| 2 | K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart |
| 3 | 21246 | Bushing | 2 | $2.02 | Add to Cart | |
| 4 | S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | |
| 6 | 21247 | Lever | 1 | STRAIGHT 18.67" | $327.38 | Add to Cart |
| 7 | 21235 | Stub Lever | 1 | LOW TOWER | $111.77 | Add to Cart |
| 7 | 21236 | Stub Lever | 1 | HIGH TOWER | $111.26 | Add to Cart |
| 9 | 21767 | 90 Deg Lever | 1 | STRAIGHT 33" | $369.68 | Add to Cart |
| 10 | K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart |
| 11 | X-8-560 | Screw | 1 | $2.39 | Add to Cart | |
| 12 | X-9-503 | Nut | 1 | $1.99 | Add to Cart |
Kits & Assemblies
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart | |
| K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW | $219.19 | Add to Cart | |
| K-1765 | Basic Overhaul Kit | 1 | $899.96 | Add to Cart | ||
| K-1846 | Gasket Kit | 1 | $55.85 | Add to Cart | ||
| K-1877 | Basic Rebuild Kit | 1 | $457.66 | Add to Cart | ||
| K-2003 | Pin & Bushing Kit | 1 | $5.31 | Add to Cart | ||
| K-2256 | Oil Seal Kit | 1 | Replaces 14337, 19109, 21036. | $18.84 | Add to Cart | |
| K-2262 | Oil Seal W/slinger | 1 | Replaces 19109, 20807, 20808. "FOR MECHANICAL COVER" | $26.86 | Add to Cart | |
| K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart | |
| K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $156.85 | Add to Cart | |
| K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart | |
| K-3399 | Isolator Bushing Kit | 1 | Replaces 21244, 23311. | $22.46 | Add to Cart | |
| K-3467 | Pin Replacement Kit | 1 | Replaces 21245. | $3.56 | Add to Cart | |
| K-3651 | Oil Seal Tool Kit | 1 | — | No longer available — call for replacement | ||
| S-1430 | Case Assy | 1 | Replaces 20122. | $2,158.60 | Add to Cart | |
| S-1794 | Isolator Assy | 1 | $170.02 | Add to Cart | ||
| S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart | |
| S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart | |
| S-2730 | Shift Bar Hsg Assy | 1 | Replaces 20175, 23621. HOUSING ONLY | $449.08 | Add to Cart | |
| S-2731 | Shift Bar Hsg Assy (x) | 1 | Replaces 20175, 23621. COMPLETE (X) | $1,630.08 | Add to Cart | |
| S-2732 | Shift Bar Housing Assy | 1 | Replaces 23585. HOUSING ONLY | $446.84 | Add to Cart | |
| S-2733 | Shift Bar Hsg Assy (std) | 1 | Replaces 20526, 23585. COMPLETE (STD) | $1,378.38 | Add to Cart | |
| S-2838 | Input Shaft Assy | 1 | Replaces 23569691518. 2" PULL | $236.51 | Add to Cart |

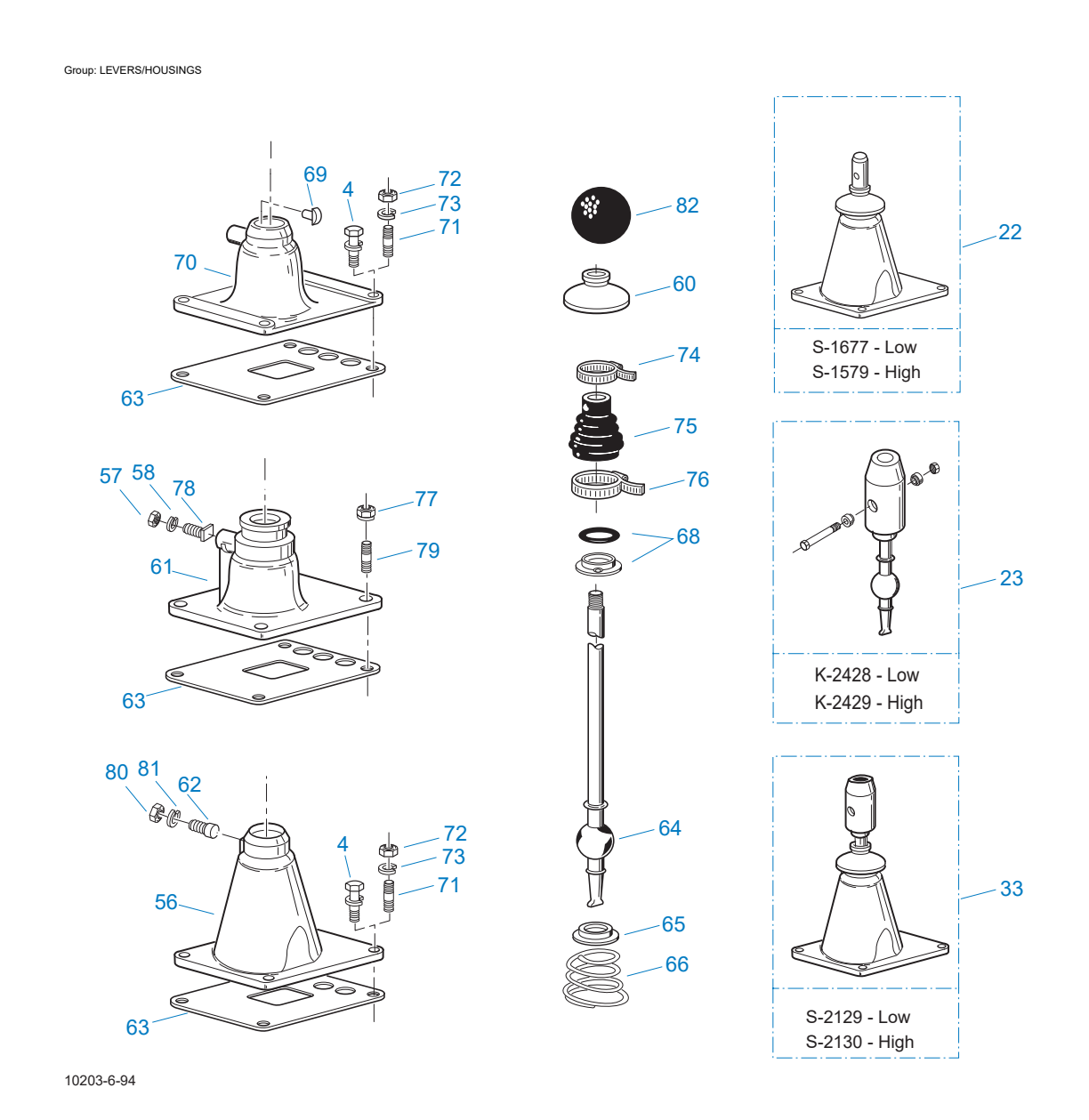

Levers/Housings
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 4 | X-8C-604 | Capscrew | 4 | 3/8"-16X1-1/4" | $3.74 | Add to Cart |
| 23 | K-2428 | Lever Replacement Kit | 1 | LOW TOWER | $171.72 | Add to Cart |
| 23 | K-2429 | Lever Replacement Kit | 1 | HIGH TOWER | $156.85 | Add to Cart |
| 24 | S-1579 | Shift Tower Assy | 1 | HIGH TOWER | $238.95 | Add to Cart |
| 24 | S-1677 | Shift Tower Assy | 1 | LOW TOWER | $257.10 | Add to Cart |
| 33 | S-2129 | Shift Lever Hsg Assy | 1 | LOW TOWER | $320.71 | Add to Cart |
| 33 | S-2130 | Shift Lever Hsg Assy | 1 | Replaces S-2053. HIGH TOWER | $334.77 | Add to Cart |
| 56 | K-2973 | Shift Lever Hsg Kit | 1 | Replaces 17166, 17167, 4303050, 4304910, K-1630, K-1941. HIGH TOWER | $136.74 | Add to Cart |
| 57 | X-1-500 | Nut | 1 | 5/16"-24 | — | Call for availability |
| 58 | X-3-500 | Lockwasher | 1 | 5/16" | $1.66 | Add to Cart |
| 60 | 10427 | Boot | 1 | $4.05 | Add to Cart | |
| 61 | K-1631 | Shift Lever Hsg | 1 | Replaces 14456, 17168, 4304327. LOW, USE W/14795 BOOT | $219.19 | Add to Cart |
| 62 | 6541 | Pin | 1 | 3/8" | $36.68 | Add to Cart |
| 63 | 4305294 | Gasket | 1 | Replaces 4303431. | $10.08 | Add to Cart |
| 64 | 17600 | Gear Shift Lever | 1 | STRAIGHT - LOW 21-1/2" | $327.38 | Add to Cart |
| 64 | 18482 | Gear Shift Lever | 1 | STRAIGHT - HIGH 35" | $369.68 | Add to Cart |
| 65 | 2538 | Retainer | 1 | $5.42 | Add to Cart | |
| 66 | 2536 | Spring | 1 | $5.59 | Add to Cart | |
| 68 | K-3376 | O-ring & Washer Kit | 1 | Replaces 4301211. | $6.24 | Add to Cart |
| 69 | 18299 | Pin | 1 | $2.49 | Add to Cart | |
| 70 | K-1476 | Shift Lever Hsg | 1 | Replaces 4530, 17163, 18298, 4304905, A-4437. LOW TOWER | $103.90 | Add to Cart |
| 71 | 11934 | Stud | 4 | Replaces 7467. | $43.71 | Add to Cart |
| 72 | X-1-600 | Nut | 4 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 73 | X-3-600 | Lockwasher | 4 | 3/8" | $1.33 | Add to Cart |
| 74 | 14453 | Clamp | 1 | $4.89 | Add to Cart | |
| 75 | 14795 | Boot | 1 | $75.78 | Add to Cart | |
| 76 | 14454 | Clamp | 1 | — | No longer available — call for replacement | |
| 77 | X-1-604 | Nut | 4 | 3/8"-24 | — | Call for availability |
| 78 | 14461 | Pin | 1 | — | Call for availability | |
| 79 | 14236 | No Longer Available | 4 | — | Call for availability | |
| 80 | X-1-600 | Nut | 1 | 3/8"-24-N.F.PLAIN | $1.36 | Add to Cart |
| 81 | X-3-600 | Lockwasher | 1 | 3/8" | $1.33 | Add to Cart |
| 82 | 17560 | Lever Grip | 1 | 1/2"-13 | $8.86 | Add to Cart |

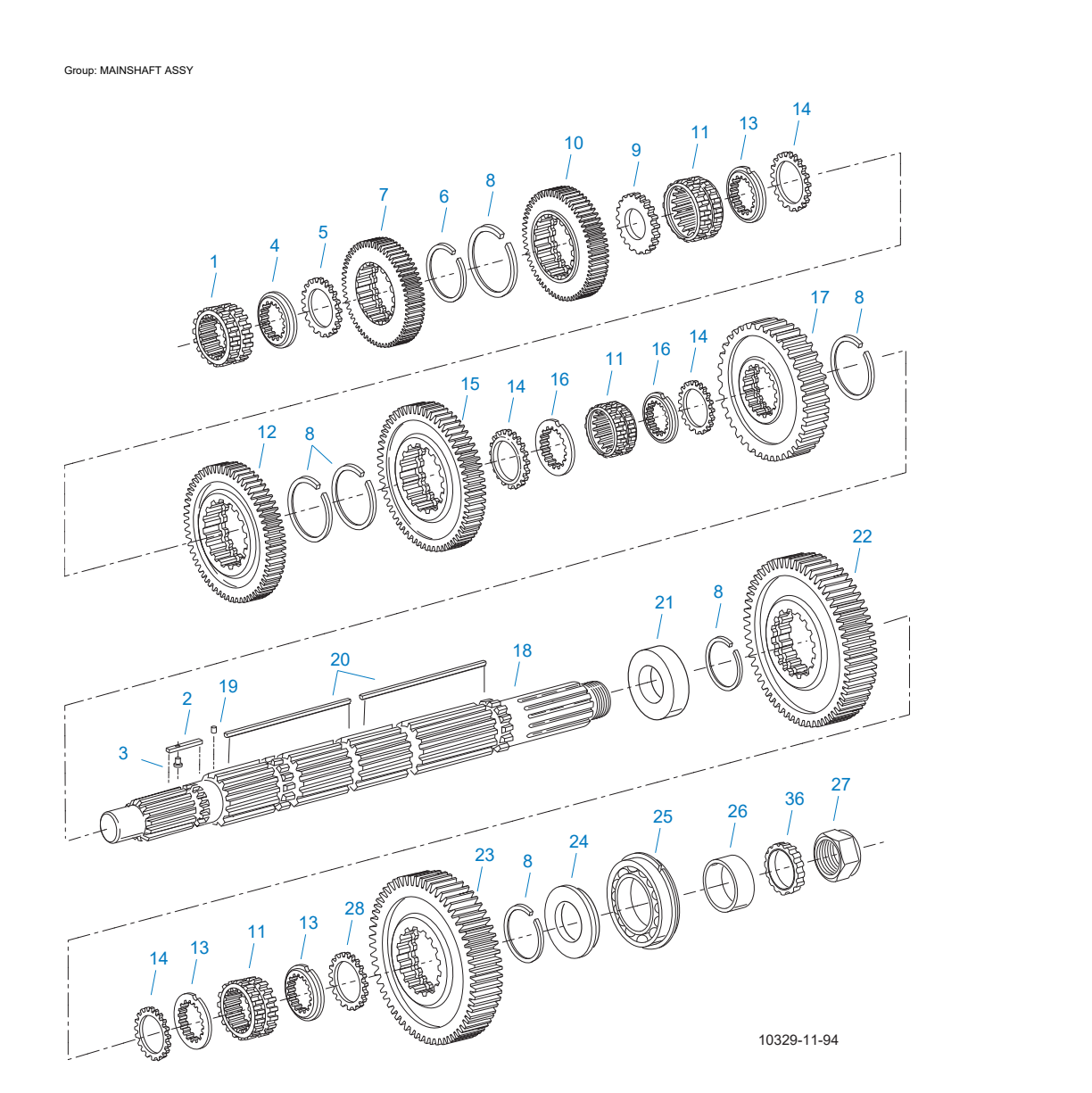

Mainshaft Assy
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 18747 | Sliding Clutch | 1 | $104.36 | Add to Cart | |
| 2 | A-5093 | Key & Pin Assy | 1 | Replaces 21129. | $28.30 | Add to Cart |
| 3 | 14832 | Pin | 1 | $6.50 | Add to Cart | |
| 4 | 14274 | Washer .248-.250 White | 1 | Replaces 18717. | $15.94 | Add to Cart |
| 4 | 14276 | Washer .258-.260 Orange | 1 | Replaces 18719. | $8.51 | Add to Cart |
| 4 | 14277 | Washer .263-.265 Purple | 1 | Replaces 18720. | $7.62 | Add to Cart |
| 4 | 14278 | Washer .268-.270 Yellow | 1 | Replaces 18721. | $7.51 | Add to Cart |
| 4 | 14279 | Washer .273-.275 Black | 1 | Replaces 18722. | $110.63 | Add to Cart |
| 4 | 4300512 | Washer .253-.255 Green | 1 | Replaces 14275, 18718. | $15.54 | Add to Cart |
| 5 | 14273 | Spacer | 1 | $362.01 | Add to Cart | |
| 6 | 14289 | Snap Ring | 1 | $2.37 | Add to Cart | |
| 7 | 19309 | No Longer Available | 1 | — | Call for availability | |
| 8 | 16798 | Snap Ring | 6 | $5.21 | Add to Cart | |
| 9 | 18317 | Spacer | 1 | $107.04 | Add to Cart | |
| 10 | 19927 | No Longer Available | 1 | — | Call for availability | |
| 11 | 19910 | Sliding Clutch | 3 | Replaces 18316. | $134.64 | Add to Cart |
| 12 | 20088 | No Longer Available | 1 | — | Call for availability | |
| 13 | 19911 | Washer .248-.250 White | 3 | Replaces 18334. | $34.19 | Add to Cart |
| 13 | 19912 | Washer .253-.255 Green | 3 | Replaces 18335. | $35.15 | Add to Cart |
| 13 | 19913 | Washer .258-.260 Orange | 3 | Replaces 18336. | $29.88 | Add to Cart |
| 13 | 19914 | Washer .263-.265 Purple | 3 | Replaces 18337. | $26.86 | Add to Cart |
| 13 | 19915 | Washer .268-.270 Yellow | 3 | Replaces 18338. | $27.69 | Add to Cart |
| 13 | 19916 | Washer .273-.275 Black | 3 | Replaces 18339. | $27.69 | Add to Cart |
| 13 | 20011 | Washer .243-.245 Wht/red | 3 | $30.66 | Add to Cart | |
| 14 | 4303199 | Spacer | 4 | Replaces 18318. | $15.58 | Add to Cart |
| 15 | 19923 | No Longer Available | 1 | — | Call for availability | |
| 16 | 19911 | Washer .248-.250 White | 2 | Replaces 18334. | $34.19 | Add to Cart |
| 17 | 19922 | No Longer Available | 1 | — | Call for availability | |
| 18 | S-1522 | No Longer Available | 1 | Replaces 21078. | — | Call for availability |
| 19 | 62504 | Roll Pin | 1 | $1.28 | Add to Cart | |
| 20 | 19909 | Key | 2 | $21.53 | Add to Cart | |
| 21 | 19921 | Spacer | 1 | $180.11 | Add to Cart | |
| 22 | 20050 | No Longer Available | 1 | — | Call for availability | |
| 23 | 20048 | Reverse Gear- Mainshaft | 1 | $337.23 | Add to Cart | |
| 24 | 20988 | No Longer Available | 1 | — | Call for availability | |
| 25 | 81029 | Bearing | 1 | $83.61 | Add to Cart | |
| 26 | 21028 | No Longer Available | 1 | — | Call for availability | |
| 27 | 12128 | Nut | 1 | $34.68 | Add to Cart | |
| 28 | 4303199 | Spacer | 1 | Replaces 18318. | $15.58 | Add to Cart |
| 36 | 21130 | No Longer Available | 1 | — | Call for availability |
Miscellaneous
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 19958 | Shift Diagram Label | 1 | $28.59 | Add to Cart | ||
| 71203 | Silicone Lube | 1 | 8 OZ (236.59 CC)-FLEET SIZE | $46.48 | Add to Cart | |
| 71204 | Adhesive Sealant | 1 | 0.5 CC (SINGLE APPLICATION SIZE) | $10.64 | Add to Cart | |
| 71205 | Sealant | 1 | 2 CC (SINGLE APPLICATION SIZE) | $10.82 | Add to Cart | |
| 71206 | Silicone Lube | 1 | 4 CC (SINGLE APPLICATION SIZE) | $4.23 | Add to Cart |

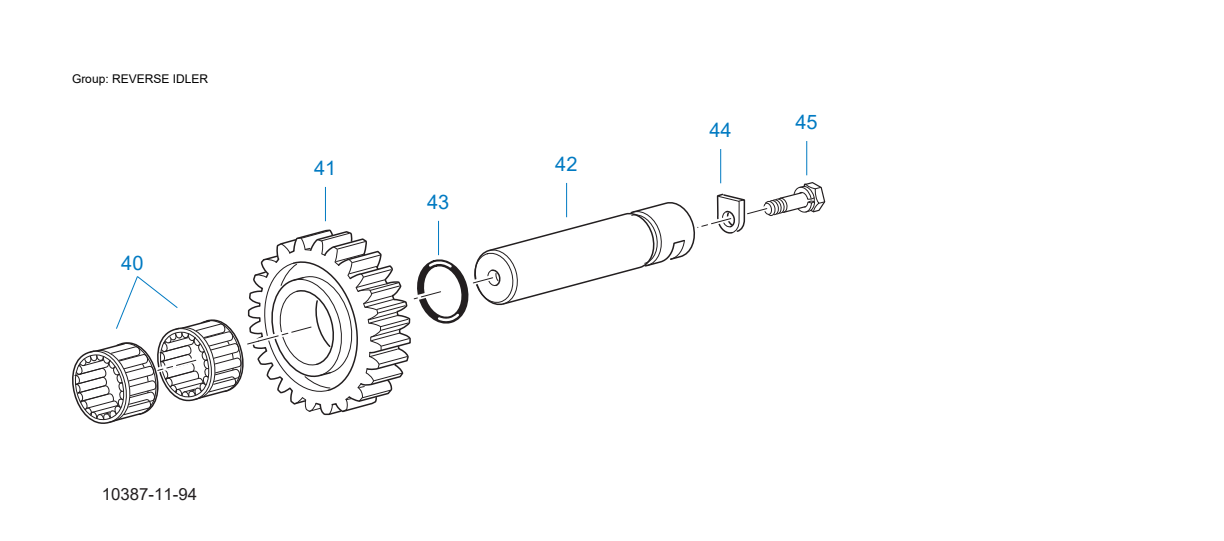

Reverse Idler
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 40 | 15045 | Bearing | 4 | $6.48 | Add to Cart | |
| 41 | 21227 | Idler Gear | 2 | $137.94 | Add to Cart | |
| 42 | 20127 | Idler Shaft | 2 | $58.20 | Add to Cart | |
| 43 | 20128 | O-ring | 2 | $2.93 | Add to Cart | |
| 44 | 8270 | Lock | 2 | $2.06 | Add to Cart | |
| 45 | X-8C-556 | Capscrew | 2 | Replaces X8L500. 5/16"-18X3/4" | $3.82 | Add to Cart |
Shift Bar Hsg (Std-New)
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2732 | Shift Bar Housing Assy | 1 | Replaces 23585. HOUSING ONLY | $446.84 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | X-8L-604 | Capscrew | 14 | 3/8"-16X1-1/4" | $2.34 | Add to Cart |
| 4 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 5 | X-14-800 | Steel Ball | 4 | 1/2" | $1.78 | Add to Cart |
| 6 | 15918 | Spring | 4 | $1.97 | Add to Cart | |
| 8 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 8 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 9 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 10 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 11 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 12 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" | $1.76 | Add to Cart |
| 13 | 10839 | Gasket | 1 | $1.94 | Add to Cart | |
| 14 | 10838 | Spring Cover | 1 | $8.18 | Add to Cart | |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $2.09 | Add to Cart |
| 17 | 18739 | Spring | 1 | $2.75 | Add to Cart | |
| 18 | 18738 | Plunger | 1 | $5.91 | Add to Cart | |
| 19 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 26 | 23588 | Yoke Bar | 1 | 1ST/REVERSE | $53.74 | Add to Cart |
| 27 | 19793 | Snap Ring | 1 | $1.89 | Add to Cart | |
| 28 | 19792 | Retainer | 1 | $7.44 | Add to Cart | |
| 29 | 19838 | Spring | 1 | $3.46 | Add to Cart | |
| 30 | 19791 | Spring | 1 | $3.52 | Add to Cart | |
| 31 | 19790 | Plunger | 1 | $29.54 | Add to Cart | |
| 32 | 3220 | Lockscrew | 6 | $4.28 | Add to Cart | |
| 33 | 19869 | Shift Block | 1 | 1ST/REVERSE | $48.87 | Add to Cart |
| 34 | X-14-600 | Steel Ball | 6 | 3/8" | $1.71 | Add to Cart |
| 35 | 19896 | Shift Block | 1 | 1ST/REVERSE | $77.04 | Add to Cart |
| 36 | 23589 | Yoke Bar | 1 | 2ND/3RD | $51.22 | Add to Cart |
| 37 | 19906 | Shift Yoke | 1 | 2ND/3RD | $92.76 | Add to Cart |
| 38 | 1634 | Interlock Pin | 2 | $3.13 | Add to Cart | |
| 39 | 18864 | Shift Yoke | 1 | 6TH/7TH | $90.50 | Add to Cart |
| 40 | 23591 | Yoke Bar | 1 | 6TH/7TH | $50.14 | Add to Cart |
| 41 | 18752 | Shift Block | 1 | Replaces 18340. 6TH/7TH | $77.48 | Add to Cart |
| 42 | 18409 | Shift Block | 1 | Replaces 18341. 2ND/3RD | $52.42 | Add to Cart |
| 43 | 18344 | Shift Yoke | 1 | 4TH/5TH | $111.16 | Add to Cart |
| 44 | 23590 | Yoke Bar | 1 | 4TH/5TH | $42.22 | Add to Cart |
| 45 | 15776 | Lockscrew | 1 | $5.74 | Add to Cart | |
| 46 | 19907 | Spacer | 1 | 4TH/5TH | $33.25 | Add to Cart |
| 47 | 19867 | Shift Block | 1 | 1ST/REVERSE (SECONDARY) | $58.74 | Add to Cart |
| 48 | 21231 | Yoke Bar | 1 | 1ST/REVERSE (SECONDARY) | $58.53 | Add to Cart |
| 49 | 19875 | Shift Yoke | 1 | 1ST/REVERSE (SECONDARY) | $113.83 | Add to Cart |
| 50 | 15776 | Lockscrew | 1 | $5.74 | Add to Cart | |
| 51 | 21232 | Spacer | 1 | $9.45 | Add to Cart | |
| 52 | 3220 | Lockscrew | 1 | $4.28 | Add to Cart | |
| 81 | 22941 | Neutral Light Switch | 1 | Replaces 12639. SWITCH NORMALLY CLOSED | $42.29 | Add to Cart |
| 82 | 4303655 | Plug | 1 | Replaces 17178. | $5.22 | Add to Cart |
| 83 | 17179 | Gasket | 1 | $2.25 | Add to Cart | |
| 84 | 23587 | Pin | 1 | $11.22 | Add to Cart | |
| 85 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 86 | 20449 | Oil Trough | 1 | $36.81 | Add to Cart | |
| 87 | X-8-516 | Capscrew | 2 | 5/16"-18X5/8" | $1.94 | Add to Cart |
| 88 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 999 | S-2733 | Shift Bar Hsg Assy (std) | 1 | Replaces 20526, 23585. COMPLETE (STD) | $1,378.38 | Add to Cart |
Shift Bar Hsg (Std-Old)
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | S-2733 | Shift Bar Hsg Assy (std) | 1 | Replaces 20526, 23585. COMPLETE (STD) | $1,378.38 | Add to Cart |
| 2 | 4302676 | Gasket | 1 | Replaces 14918. | $5.64 | Add to Cart |
| 3 | X-8L-604 | Capscrew | 16 | 3/8"-16X1-1/4"- OR USE 14 PCS OF X-8L-604 WITH 2 PCS OF X-8L-602 | $2.34 | Add to Cart |
| 4 | X-12-603 | Pipe Plug | 1 | Replaces X12602. 3/8" NPT | $4.40 | Add to Cart |
| 5 | X-14-800 | Steel Ball | 4 | 1/2" | $1.78 | Add to Cart |
| 6 | 15918 | Spring | 4 | $1.97 | Add to Cart | |
| 8 | 4304602 | Breather | 1 | Replaces 23605. 1/4" NPT | $8.22 | Add to Cart |
| 8 | X-12-404 | Pipe Plug | 1 | 1/4" NPT | $1.97 | Add to Cart |
| 9 | 4303656 | Plug | 1 | Replaces 15917. | $2.91 | Add to Cart |
| 10 | 15900 | Gasket | 1 | $2.24 | Add to Cart | |
| 11 | 15899 | Pin | 1 | $4.30 | Add to Cart | |
| 12 | X-8L-600 | Capscrew | 2 | 3/8"-16X1" | $1.76 | Add to Cart |
| 13 | 10839 | Gasket | 1 | $1.94 | Add to Cart | |
| 14 | 10838 | Spring Cover | 1 | $8.18 | Add to Cart | |
| 15 | 20815 | Lifting Eye | 2 | Replaces 17105. | $2.88 | Add to Cart |
| 16 | X-8L-602 | Capscrew | 2 | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | $2.09 | Add to Cart |
| 17 | 18739 | Spring | 1 | $2.75 | Add to Cart | |
| 18 | 18738 | Plunger | 1 | $5.91 | Add to Cart | |
| 19 | 8968 | Plug | 1 | $4.91 | Add to Cart | |
| 26 | 19901 | Yoke Bar | 1 | 1ST/REVERSE | $71.71 | Add to Cart |
| 27 | 19793 | Snap Ring | 1 | $1.89 | Add to Cart | |
| 28 | 19792 | Retainer | 1 | $7.44 | Add to Cart | |
| 29 | 19838 | Spring | 1 | $3.46 | Add to Cart | |
| 30 | 19791 | Spring | 1 | $3.52 | Add to Cart | |
| 31 | 19790 | Plunger | 1 | $29.54 | Add to Cart | |
| 32 | 3220 | Lockscrew | 6 | $4.28 | Add to Cart | |
| 33 | 19869 | Shift Block | 1 | 1ST/REVERSE | $48.87 | Add to Cart |
| 34 | X-14-1200 | Steel Ball | 3 | 3/4" | $2.83 | Add to Cart |
| 35 | 19896 | Shift Block | 1 | 1ST/REVERSE | $77.04 | Add to Cart |
| 36 | 19902 | Yoke Bar | 1 | 2ND/3RD | $74.00 | Add to Cart |
| 37 | 19906 | Shift Yoke | 1 | 2ND/3RD | $92.76 | Add to Cart |
| 38 | 1634 | Interlock Pin | 2 | $3.13 | Add to Cart | |
| 39 | 18864 | Shift Yoke | 1 | 6TH/7TH | $90.50 | Add to Cart |
| 40 | 19904 | Yoke Bar | 1 | 6TH/7TH | $68.95 | Add to Cart |
| 41 | 18752 | Shift Block | 1 | Replaces 18340. 6TH/7TH | $77.48 | Add to Cart |
| 42 | 18409 | Shift Block | 1 | Replaces 18341. 2ND/3RD | $52.42 | Add to Cart |
| 43 | 18344 | Shift Yoke | 1 | 4TH/5TH | $111.16 | Add to Cart |
| 44 | 19903 | Yoke Bar | 1 | 4TH/5TH | $71.51 | Add to Cart |
| 45 | 22943 | Lockscrew | 1 | $15.26 | Add to Cart | |
| 46 | 19907 | Spacer | 1 | 4TH/5TH | $33.25 | Add to Cart |
| 47 | 19867 | Shift Block | 1 | 1ST/REVERSE (SECONDARY) | $58.74 | Add to Cart |
| 48 | 19905 | No Longer Available | 1 | 1ST/REVERSE (SECONDARY) | — | Call for availability |
| 49 | 19875 | Shift Yoke | 1 | 1ST/REVERSE (SECONDARY) | $113.83 | Add to Cart |
| 50 | 3220 | Lockscrew | 2 | $4.28 | Add to Cart | |
| 100 | 20449 | Oil Trough | 1 | $36.81 | Add to Cart | |
| 101 | X-8-516 | Capscrew | 2 | 5/16"-18X5/8" | $1.94 | Add to Cart |
| 102 | X-3-506 | Lockwasher | 2 | 5/16" | $1.36 | Add to Cart |
| 104 | 22940 | Reverse Light Switch | 1 | Replaces 16830. SWITCH NORMALLY OPEN | $17.31 | Add to Cart |
| 999 | S-2733 | Shift Bar Hsg Assy (std) | 1 | Replaces 20526, 23585. COMPLETE (STD) | $1,378.38 | Add to Cart |
