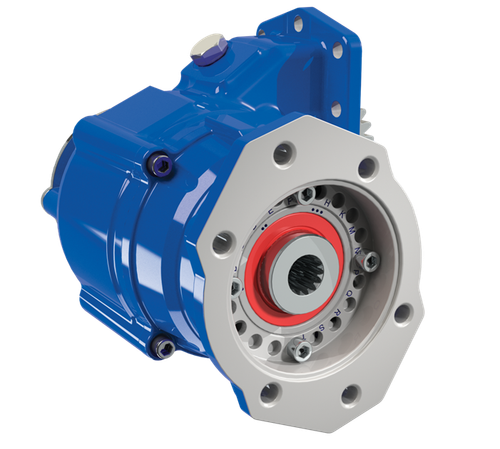

The Muncie A30-A1007-MX1IIPX or A30A1007MX1IIPX is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series automatic transmissions. The rotatable pump flange simplifies hydraulic pump positioning, while increased clearance around the mounting area eases installation in tight bays. Tapered roller bearings extend service life over conventional ball-bearing designs, and an increased-diameter output shaft handles higher torque loads. The unit carries a single intermittent/continuous torque rating and is available in three housing arrangements to suit different chassis configurations. Compatible with the EX Drive shaft extension for applications requiring additional reach. Call us to confirm the right housing arrangement and gear speed for your specific transmission and application.
Features
10-bolt constant drive mounting for Allison 3000 and 4000 Series transmissions
Rotatable pump flange allows flexible hydraulic pump positioning
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher torque capacity
Three housing arrangements available to match chassis requirements
Compatible with EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
