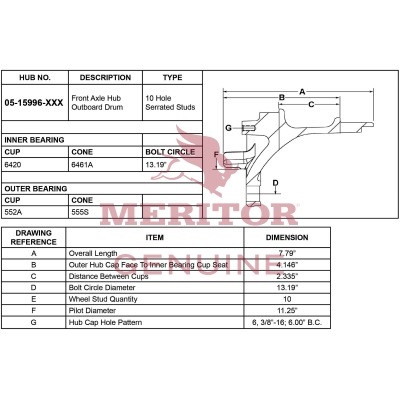

05-15996-001 Meritor Assembly - Front Hub

Meritor Assembly-Frt Hub P/N: 05-15996-001 or 0515996001. Genuine Meritor - Rockwell OEM brake parts, brake calipers, brake chambers, brake dust shields, brake shoes, brake foot valves, and more. Genuine Meritor parts are just a click or call away.

Features

Axle Series:FH
Tone Ring:Y
Hub Style:Conventional
Axle Application:Steer
Fully Dressed:No
Hub Type:Hub only
Base Part Number:15996
ABS Pilot Diameter:6.302/6.299 in.
Inner Bearing Surface (IBS) to Mounting Face:4.13 in.
GAWR (lb):17600
Drum Bolt Size:.904/.906 in.
IBS to Outer Surface:4.13 in.
Wheel Stud Pattern:10
Inner Cup:6420
Outer Cone:555S
Inner Cone:6461A
Oil Seal:A1205P1108; A1205Z780
Outer Cup:552A
Hub Cap Bolt Circle Diameter:6.00 in.
Wheel Stud Bolt Circle Diameter:13.189 in.
Hub Cap Pattern:06
Hub Cap Bolt Thread:3/8-16 UNC-2B
Wheel Stud Hole:.904/.906 in.
IBS to OBS:2.345/2.325 in.
Drum Bolt Pattern:10
Drum Bolt Circle Diameter:13.189 in.
Brake Type:Drum
VMRS Code:018-001-003
Drum Pilot Diameter:11.250/11.247 in.
Flange Outer Diameter:14.67/14.66 in.
Wheel Pilot Diameter:11.055/11.047 in.
