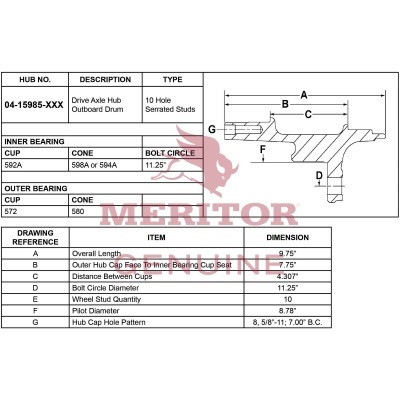

04-15985-002 Meritor Assembly - Hub / Rear

Meritor Assembly-Hub/Rear P/N: 04-15985-002 or 0415985002. Genuine Meritor - Rockwell OEM brake parts, brake calipers, brake chambers, brake dust shields, brake shoes, brake foot valves, and more. Genuine Meritor parts are just a click or call away.

Features

Tone Ring:Y
Axle Series:R
Axle Application:Drive
Fully Dressed:No
Hub Style:Conventional
Hub Type:Hub only
Base Part Number:15985
Outer Cone:580
Drum Position:Outboard
Wheel Stud Pattern:10
GAWR (lb):27000
Inner Bearing Surface (IBS) to Mounting Face:1.31 in.
IBS to OBS:4.327/4.287 in.
Drum Bolt Pattern:10
Wheel Stud Hole:.904/.906 in.
Drum Bolt Size:.904/.906 in.
ABS Pilot Diameter:6.882/6.879 in.
Inner Cone:594A
Outer Cup:572
Inner Cup:592A
Oil Seal:A1205Q2487
Drum Bolt Circle Diameter:11.25 in.
Wheel Stud Bolt Circle Diameter:11.25 in.
IBS to Outer Surface:7.77/7.73 in.
Brake Type:Drum
DriveStud Bolt Circle Dia:7.00 in.
VMRS Code:018-002-001
Drive Stud Pattern:08
Drive Stud Thread:5/8-11 UNC-3B
Drum Pilot Diameter:8.778/8.775 in.
Flange Outer Diameter:13.00 in.
Wheel Pilot Diameter:8.653/8.646 in.
Wheel Stud:09-001989
