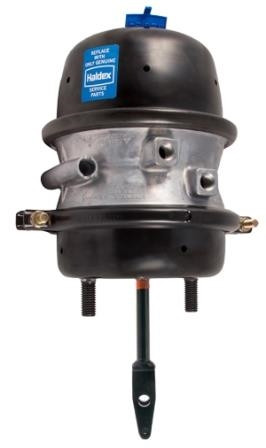

Genuine Midland Haldex 30/30 brake parts P/N: GC3030LS4CW, for more precise availability please give us a call and we will help you out!

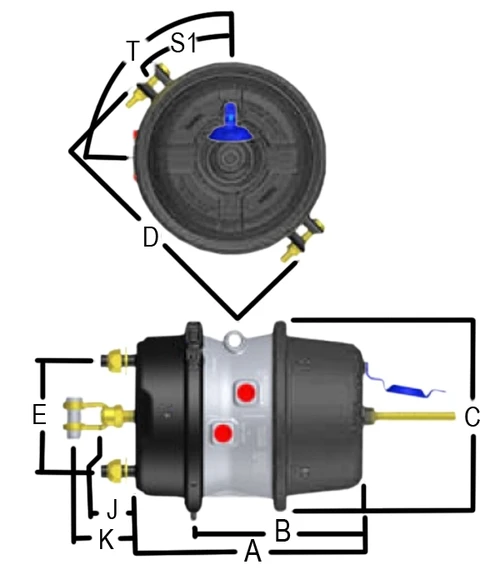

B = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clampband
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Features
Combination with Welded Clevis - Long Stroke - Size 3030 - Square Bosses (Trailer, Vantraax® and Intraax®)
Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
Rugged Service Housing; 9 gauge steel, powder coated
Orange Alert® Stroke Indicator
Self-piloting Dust Shield
Sizes to fit all drum brake applications
Tech Specs
- Stroke Type Long
- Available Stroke 3.00", 76mm
- A 9.9", 251mm
- B 7.4", 187mm
- C 8.3", 211mm
- D 10.2", 259mm
- J 9.75"
- K 11.00"
- Weight 22.5 lbs. , 10.2 kg.
- Quantity 1
Additional Information
A = Length from mounting bracket to end of Spring HousingB = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clampband
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
