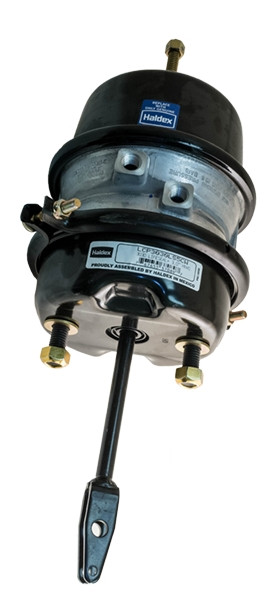

Genuine Midland Haldex 3030ls brake parts P/N: LCP3030LS4CW, for help on parts, availability or questions - call us, we will gladly help.
Features
3030 LifeSeal+
Stroke 3.0"
Center-line of clevis pin 11.00"
Heavy duty housing
Standard power spring
Welded clevis
Tech Specs
- Actuator Type Size 3030
- Stroke Type Long
- Available Stroke 3.0"
- Pushrod Threads N/A
- Weight 22.0 lbs

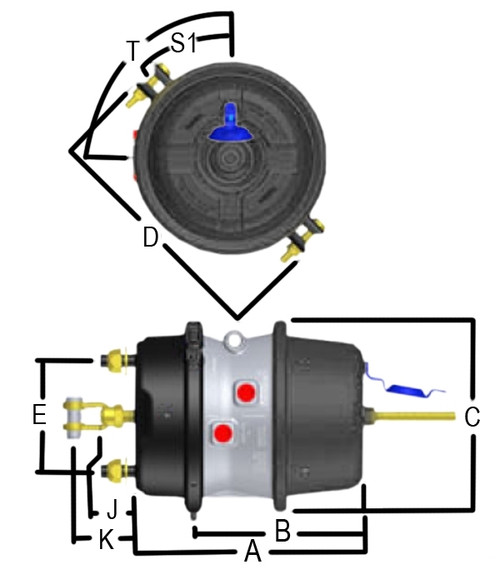

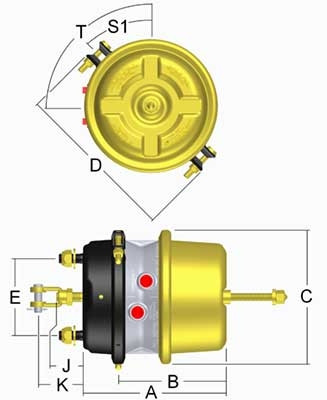

- A - Length from mounting bracket to end of Spring Housing 9.72"
- B - Length of Piggyback 7.19"
- C - Dimension at rolled Spring Housing flange 8.19"
- D - Dimension at Service Clampband 10.18"
- E - Stud Spacing 4.75"
- J - Pushrod Length from face of Service Housing N/A
- K - Distance to Clevis Pin centerline from face of Service Housing 11.00"
- S1 - Service Clampband position 180°
- T - Air Port position 0°
