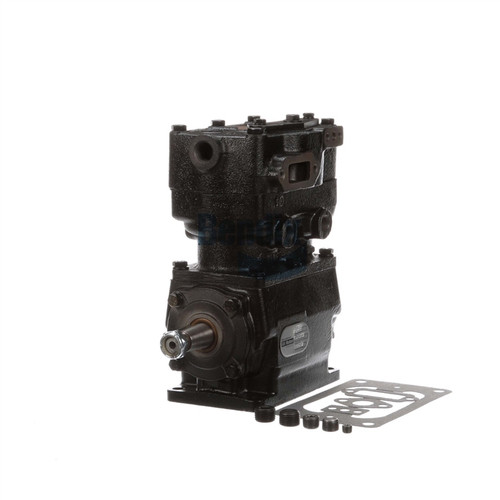

The Midland Haldex EL16020X is a 1600 Series single-cylinder air compressor designed as an exact replacement for OEM part number N7202. It is rated at 16.1 CFM at 1250 RPM with a 2.75 in. bore diameter and a 1.87 in. stroke, and it accepts up to 35 PSI turbo-charge pressure. The unit features a 4-hole base mount, a rotatable head with top/flange discharge, belt drive, end cap oil feed, base oil drain, and water cooling. Head and block both rotate right. The external shaft measures 2.14 in. long. Overall dimensions are 11.60 in. tall, 4.79 in. wide, and 8.93 in. long. Call us to confirm proper fit for your application.
A refundable core charge of $210.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
OEM N7202 exact replacement, Core Group 1601
16.1 CFM rated displacement at 1250 RPM
2.75 in. bore diameter, 1.87 in. stroke
Accepts up to 35 PSI turbo-charge pressure
4-hole base mount, belt drive, water cooled
Rotatable head with top/flange discharge; end cap oil feed and base oil drain
Tech Specs
- OEM Part Number: N7202 Exact Replacement
- Head Rotation: Right
- Block Rotation: Right
- Notes: High Capacity
- Overall Height: 11.60 in.
- Overall Width: 4.79 in.
- Overall Length: 8.93 in.
- External Shaft Length: 2.14 in.
- Bore Diameter: 2.75 in.
- Stroke: 1.87 in.
- Turbo-Charge Pressure: 35 Max PSI
- Rated Displacement: 16.1 CFM @ 1250 RPM
- Core Group: 1601
