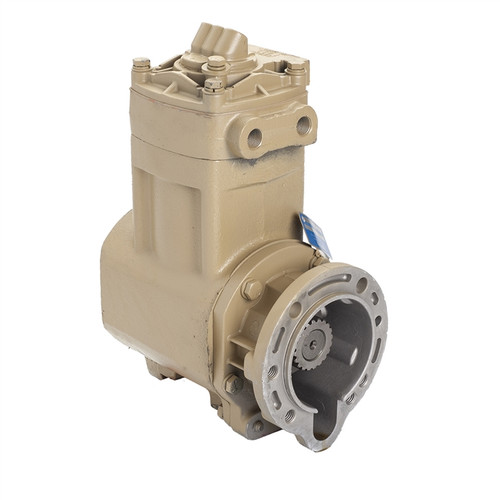

Genuine Midland Haldex 1600 Compressor brake parts P/N: EL16090X, we offer the best service in the industry with years of expert knowledge! Call us if you have questions.
Service units are furnished without governors and manifolds and may require head rotation and end cap rotation before installation or changeover. Service and Remanufactured units have a 1 inch oil drain port with no threads.
Torque Nut to 80 - 100 ft. lbs.
Include Installation Gaskets
A refundable core charge of $210.00 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Remanufactured Detroit Diesel 41°
Head Rotatable
Flange Mount, Gear Drive
Top/Flange Discharge Type
End Cap Oil Feed
Flange Oil Drain
Water Cooled
Overall Height: 12.19 in.
Overall Width: 7.10 in.
Overall Length: 9.90 in.
External Shaft Length: .41 in.
Approximate Weight: 49 lbs.
Tech Specs
- Head Rotation Right
- Block Rotation Right
- Application DDC 41° Engines
- Notes High Capacity
- OEM Part Number N7209
- Core Group 1600
- Overall Height 12.00 in. (EL1300), 12.19 in. (EL1600)
- Overall Width 7.10 in.
- Overall Length 9.90 in.
- External Shaft Length .41 in.
- Bore Diameter 2.75 in.
- Stroke 1.50 in. (EL1300) and 1.87 in. (EL1600)
- Rated Displacement 13.0 (EL1300) and 16.1 (EL1600) CFM @ 1250 RPM
- Approximate Weight 49 lbs.
Additional Information
Orientation viewed from front.Service units are furnished without governors and manifolds and may require head rotation and end cap rotation before installation or changeover. Service and Remanufactured units have a 1 inch oil drain port with no threads.
Torque Nut to 80 - 100 ft. lbs.
Include Installation Gaskets
