Muncie FR6Q Series Parts List & Service Manual

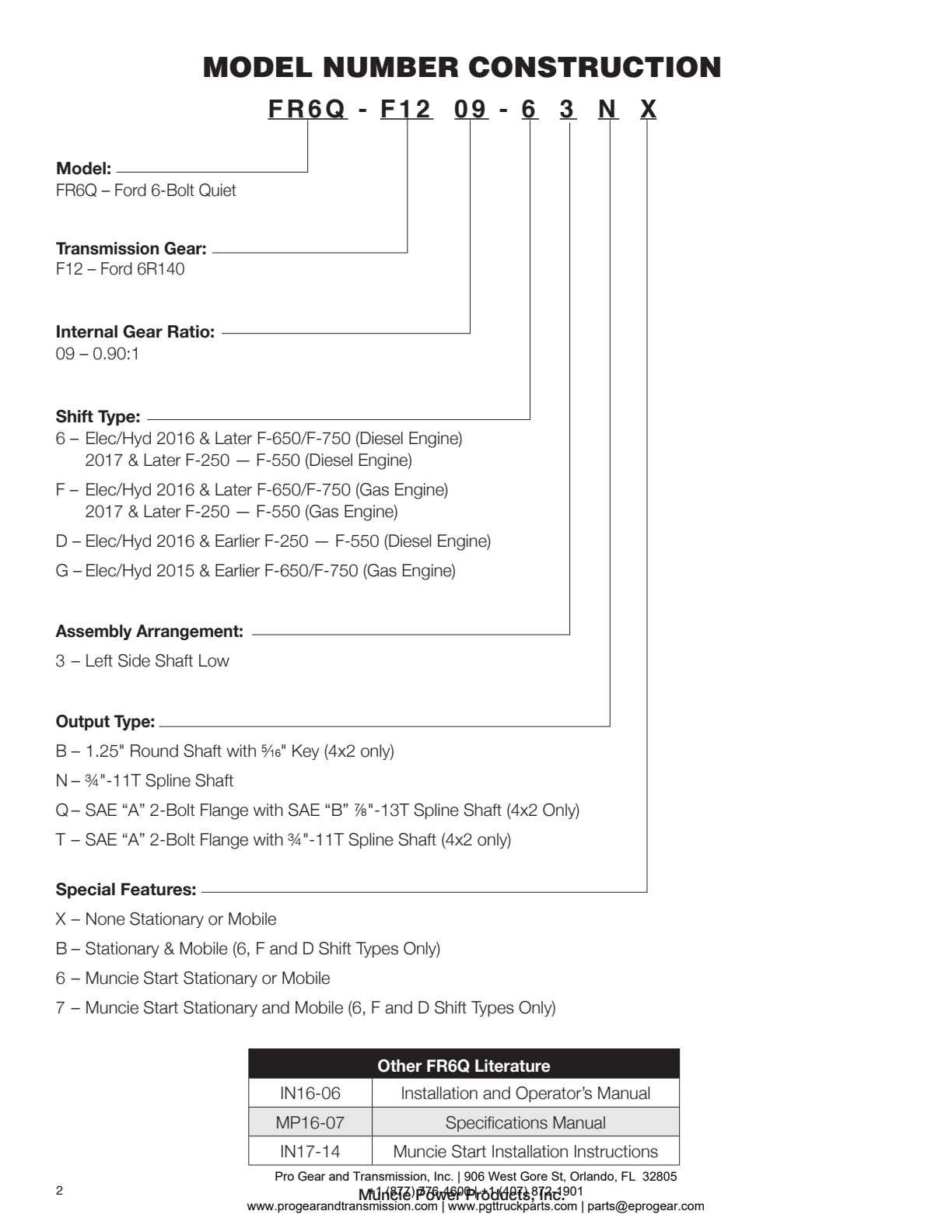

Model Number Construction
FR6Q Exploded View
Item 3Item 1Item 2Item 3Item 4Item 5Item 6Item 7Item 10Item 8Item 9Item 12Item 13Item 14Item 3Item 15Item 11Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 10T21017 | Bearing | 1 | $74.28 | Add to Cart | |
| 2 | 24T36470 | Snap Ring: Output | 1 | $2.28 | Add to Cart | |
| 3 | 21T62472 | Thrust Washer | 2 | $18.94 | Add to Cart | |
| 4 | 10T62471 | Needle Bearing | 1 | $34.82 | Add to Cart | |
| 5 | 02T62402 | Output Gear | 1 | $1,052.19 | Add to Cart | |
| 06T62415 | Output Shaft “B” - | $365.38 | Add to Cart | |||
| 6 | 06T62416 | Output Shaft “N” “T” - , | 1 | $344.86 | Add to Cart | |
| 06T62434 | Output Shaft “Q” - | $365.38 | Add to Cart | |||
| 7 | 12T39023 | O-Ring | 2 | $5.18 | Add to Cart | |
| 8 | 49T61803 | Friction Disc | 7 | $19.33 | Add to Cart | |
| 9 | 49T62876 | Wave Spacer Disc | 6 | $16.67 | Add to Cart | |
| 10 | 27T61827 | Piston Return Spring | 1 | $17.17 | Add to Cart | |
| 11 | 49T61822 | Piston | 1 | $127.96 | Add to Cart | |
| 12 | 12T36540 | Piston O.D. O-Ring | 1 | $11.58 | Add to Cart | |
| 13 | 49T39022 | Piston Cup | 1 | $124.14 | Add to Cart | |
| 14 | 10T39072 | Bearing | 1 | $32.54 | Add to Cart | |
| 15 | 24T39182 | Snap Ring | 1 | $6.99 | Add to Cart | |
| 26T01627 | Woodruff Key | 1 | $5.78 | Add to Cart |
Detail B - Housing Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 11T63830 | Output Shaft Seal | 1 | $18.50 | Add to Cart | |
| 2 | 01T63403 | Housing - “B”, “N” | $864.39 | Add to Cart | ||
| 2 | 01T63404 | Housing - “Q”, “T” | $864.39 | Add to Cart | ||
| 3 | 19T63009 | Set Screw | 1 | $3.72 | Add to Cart | |
| 4 | 27T63431 | Coil Spring | 4 | $3.92 | Add to Cart | |
| 1 | 21T42017 | Tabbed Thrust Washer | 4 | $9.49 | Add to Cart | |
| 2 | 10T39145 | Needle Bearing | 2 | $72.02 | Add to Cart | |
| 3 | 04T62405 | Idler Gear (42 Tooth) | 1 | $542.18 | Add to Cart | |
| 4 | 12T36276 | O-Ring | 2 | $9.40 | Add to Cart | |
| 5 | 08T62417 | Idler Gear Shaft | 1 | $237.50 | Add to Cart | |
| 6 | 07T62045 | Input Gear Shaft | 1 | $210.05 | Add to Cart | |
| 7 | 49T62346 | Rocker | 1 | $943.72 | Add to Cart | |
| 8 | 03T62406 | Input Gear (37 Tooth) | 1 | $559.44 | Add to Cart | |
| 9 | 19T63010 | Set Screw | 1 | $7.62 | Add to Cart |
Detail D - Rear Cover Assembly
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 15T62484 | Rear Cover (Standard) | $457.17 | Add to Cart | ||
| 1 | 15T62756 | Rear Cover (M-Start) | $442.76 | Add to Cart | ||
| 2 | 19T62950 | Cap Screw For Solenoid | 2 | $3.53 | Add to Cart | |
| 3 | 35T43600 | Solenoid Valve | $376.57 | Add to Cart | ||
| 3 | 35T62496 | Solenoid Valve (M-Start) | $376.33 | Add to Cart | ||
| 4 | 12T36280 | O-Ring - Output Shaft | 1 | $2.33 | Add to Cart | |
| 5 | 49T62436 | Solenoid Clamp Ring | 1 | $6.00 | Add to Cart | |
| 6 | 43T62475 | Lubrication Tube | 1 | $52.87 | Add to Cart | |
| 7 | 19T35237 | Cap Screw - Cover | 3 | $5.22 | Add to Cart | |
| 8 | 12T36863 | O-Ring - Cover | 1 | $11.73 | Add to Cart |
Gasket Kit, FR6Q-GSK
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 10T21017 | Qty Qty Bearing - 1 | $74.28 | Add to Cart | |||
| 24T36470 | Snap Ring: Output - 1 | $2.28 | Add to Cart | |||
| 21T62472 | Thrust Washer - 2 | $18.94 | Add to Cart | |||
| 10T62471 | Needle Bearing - 1 | $34.82 | Add to Cart | |||
| 12T39023 | O-Ring 2 2 | $5.18 | Add to Cart | |||
| 27T61827 | Piston Return Spring - 1 | $17.17 | Add to Cart | |||
| 49T61803 | Friction Disc - 7 | $19.33 | Add to Cart | |||
| 49T62876 | Wave Spacer Disc - 6 | $16.67 | Add to Cart | |||
| 12T36540 | Piston O.D. O-Ring 1 1 | $11.58 | Add to Cart | |||
| 10T39072 | Bearing - 1 | $32.54 | Add to Cart | |||
| 24T39182 | Snap Ring - 1 | $6.99 | Add to Cart | |||
| 11T63830 | Output Shaft Seal 1 1 | $18.50 | Add to Cart | |||
| 21T42017 | Tabbed Thrust Washer - 4 | $9.49 | Add to Cart | |||
| 10T39145 | Needle Bearing - 2 | $72.02 | Add to Cart | |||
| 12T36276 | O-Ring 2 2 | $9.40 | Add to Cart | |||
| 27T63431 | Rocker Spring - 4 | $3.92 | Add to Cart | |||
| 12T36280 | O-Ring - Output Shaft 1 1 | $2.33 | Add to Cart | |||
| 12T36863 | O-Ring - Cover 1 1 | $11.73 | Add to Cart | |||
| 13T41973 | PTO Gasket 1 1 | $70.08 | Add to Cart |
FR6Q Installation Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 20T62874 | Stud | $12.04 | Add to Cart | |||
| 43T42792 | . | $18.78 | Add to Cart |
FR6Q Installation Kit Parts Breakdown
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 1 | 30T60223 | Pressure Switch | 1 | $147.87 | Add to Cart | |
| 2 | 36T42362 | Dash Bracket | 1 | $7.40 | Add to Cart | |
| N.S. | 36MK1007 | Dash Bracket Bolt Kit | 1 | $5.27 | Add to Cart | |
| N.S. | 37T35674 | Grommet | 1 | $2.82 | Add to Cart | |
| N.S. | 28T35442 | Cable Ties (48TK6200) | 6 | $2.22 | Add to Cart | |
| 3 | 30T35687 | Rocker Switch | 1 | $66.82 | Add to Cart | |
| 4 | 36T42380 | Face Place | 1 | $6.96 | Add to Cart | |
| N.S. | 34T43730 | Wire Harness (See IN16-07 For Details) (48TK6201) | 1 | $403.23 | Add to Cart | |
| 5 | 30T41975 | Rocker Switch | 1 | $70.50 | Add to Cart | |
| 6 | 36T42383 | Face Place | 1 | $8.71 | Add to Cart | |
| 7 | 32MSR12V | Light | 1 | $14.21 | Add to Cart | |
| N.S. | 34T43740 | Wire Harness (See IN16-07 For Details) (48TK6205) | 1 | $403.23 | Add to Cart | |
| N.S. | 34T43735 | Wire Harness (See IN16-07 For Details) | 1 | $403.23 | Add to Cart | |
| 49T43320 | Heat Shield Back Kit (See Back Page For Details) | 1 | $1,028.56 | Add to Cart | ||
| 43TK5527 | Pressure Switch Back Relocation Kit (See Back Page) | 1 | $381.36 | Add to Cart | ||
| N.S. | 48TK5557 | Heat Shield Fasteners (48TK6206) | 1 | $36.39 | Add to Cart | |
| 6 | 35T42383 | Face Place | 1 | Call for availability | ||
| N.S. | 34T43745 | Wire Harness (See IN16-07 For Details) | 1 | $403.23 | Add to Cart | |
| N.S. | 48TK5557 | Heat Shield Fasteners (48TK6311) | 1 | $36.39 | Add to Cart | |
| N.S. | 34T41671 | Wire Harness (See IN16-07 For Details) (48TK6312) | 1 | $403.23 | Add to Cart | |
| N.S. | 34T41940 | Wire Harness (See IN16-07 For Details) (48TK6313) | 1 | $870.24 | Add to Cart | |
| N.S. | 34T43359 | Wire Harness (See IN16-07 For Details) | 1 | $546.51 | Add to Cart | |
| N.S. | 48TK5557 | Heat Shield Fasteners | 1 | $36.39 | Add to Cart |
FR6Q Shift Option Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 48TK6200 | Shift Option Kit 6X | $1,066.60 | Add to Cart | |||
| 48TK6201 | Shift Option Kit 6B | $1,066.60 | Add to Cart | |||
| 48TK6205 | Shift Option Kit FX | $1,066.60 | Add to Cart | |||
| 48TK6206 | Shift Option Kit FB | $1,066.60 | Add to Cart | |||
| 48TK6311 | Shift Option Kit DX | $753.88 | Add to Cart | |||
| 48TK6312 | Shift Option Kit DB | $764.12 | Add to Cart | |||
| 48TK6313 | Shift Option Kit GX | $1,142.02 | Add to Cart |
Heat Shield/Pressure Switch Relocation Parts List, FX, FB and GX Shift Options Only
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 43TK5527 | Kit | $381.36 | Add to Cart | |||
| 30T60228 | $172.61 | Add to Cart | ||||
| 49T43356 | 22T37605 | 19M10001 | $5.68 | Add to Cart | ||
| 516X18 | 5-16 X 18 Loop Clamp Hex Nut | Call for availability | ||||
| 19M10001 | 49T43356 22T37605 | $2.33 | Add to Cart | |||
| 45T43308 | $133.59 | Add to Cart | ||||
| 38T63052 | $407.57 | Add to Cart |
Other Parts Shown in This Manual
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| FR6Q-GSK | Fr6q Gasket Kit | $171.83 | Add to Cart | |||
| FR6Q-RBK | Fr6q Rebuild Kit | $534.59 | Add to Cart | |||
| 19T42075 | Screw 12 Point | $11.67 | Add to Cart | |||
| 19T62875 | Shoulder Bolt M10x1.5 | $13.78 | Add to Cart | |||
| 20T62873 | Stud M10 X 1.5 Stud | $8.07 | Add to Cart | |||
| 22T62877 | Nut M10x1.5 12 Pt | $11.73 | Add to Cart | |||
| 43T42793 | Fitting Metric Straight X Orsf | $34.10 | Add to Cart | |||
| 45T42791 | Hose Assembly Orsfx90orsf | $82.38 | Add to Cart | |||
| 22T37605 | Whiz-Lock Nut | $2.28 | Add to Cart | |||
| 34T43820 | Start Fr6q Harness | $118.96 | Add to Cart | |||
| 43M68014 | Lube Fitting | $19.98 | Add to Cart | |||
| 43T43215 | Straight Hydraulic Fitting Adapter | $9.75 | Add to Cart | |||
| 48TK5470 | FR6Q Wire Extension Kit | $17.00 | Add to Cart |
