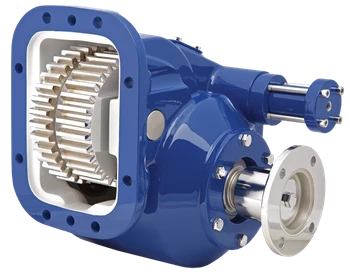

The Muncie 828B-U6809-Q2CX or 828BU6809Q2CX is an 82 Series power take-off built for high-torque, heavy-duty truck applications. At speed ratio 05, the series delivers up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM, making it capable of driving high-volume hydraulic pumps and high-CFM blowers. The cast-iron housing supports eight available speed ratios and nine output shaft options. A double-acting air shift provides positive engagement and disengagement. Seven direct-mount pump flange options cover SAE "B," "BB," "C," and "D" as well as DIN 5462 mounts, with rotatable flanges that let you position the pump for maximum clearance. Two companion flange output types accommodate remote pump and mechanical drive setups. Call us to confirm proper fit for your application.
Features
Double-acting air shift for positive engagement and disengagement
Up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM (speed ratio 05)
Continuous torque rating of 350 lb-ft at speed ratio 05
Seven direct-mount pump flange options: SAE B, BB, C, D and DIN 5462
Rotatable direct-mount flanges for pump positioning and clearance
Cast-iron housing with 8 available speed ratios and 9 output shaft options
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 85 | 450 | 315 | (71) | (610) | (427) |
| 08 | 85 | 450 | 315 | (63) | (610) | (427) |
| 09 | 78 | 410 | 287 | (58) | (556) | (389) |
| 10 | 78 | 410 | 287 | (58) | (556) | (389) |
| 12 | 71 | 375 | 263 | (53) | (508) | (356) |
| 13 | 71 | 375 | 263 | (53) | (508) | (356) |
| 15 | 67 | 350 | 245 | (50) | (475) | (332) |
| 19 | 57 | 300 | 210 | (43) | (407) | (285) |
