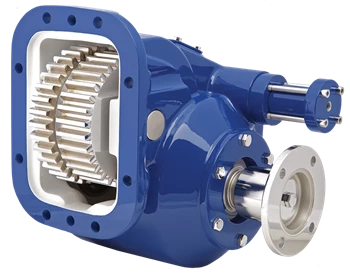

The Muncie 828S-U6810-D2CX or 828SU6810D2CX is a heavy-duty 82 Series power take-off from Muncie Power Products. The 82 Series is built for high-torque applications, with intermittent torque capacity up to 500 lb.ft. and up to 95 H.P. at 1,000 RPM on select ratios, making it suitable for high-volume pumps and high-CFM blowers. The double-acting air shift design delivers positive engagement and disengagement under load. The cast iron housing is standard across the series, and the rotatable direct-mount pump flange allows positioning for maximum clearance. Eight speed ratios and nine output shaft options are available within the series. Call us to confirm this specific configuration fits your transmission and application.
Features
Muncie 82 Series power take-off, part 828S-U6810-D2CX or 828SU6810D2CX
Double-acting air shift for positive engagement and disengagement
Intermittent torque capacity up to 500 lb.ft. at select speed ratios
Up to 95 H.P. at 1,000 RPM (intermittent) on select ratios
Cast iron housing construction
Rotatable direct-mount pump flange for flexible pump positioning
Additional Information
Parts manual and diagrams: Muncie 82 Series PTO parts list with prices
Equivalent PTOs:
- Chelsea823XMAHX-A4XVView and buy
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
