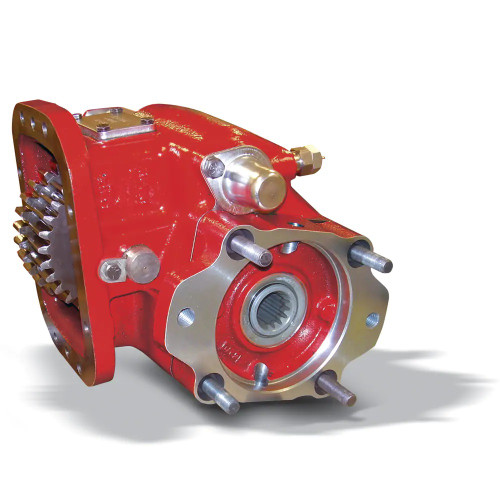

The Chelsea 823 Series Power Take-Off Assembly, part number 823XMAHX-A4XV or 823XMAHXA4XV, is Chelsea's extra heavy-duty PTO built for high-torque applications including oil field, logging, pumper/cleaner trucks, and mining. It mounts via an 8-bolt aperture and fits automatic and manual transmissions from Allison, Eaton/Fuller, Volvo/Mack, and other manufacturers. The lever/mechanical shift design pairs with a 1-1/2" 10-tooth spline output shaft and a 1410 Series companion flange. Intermittent torque rating reaches 500 lb-ft (678 Nm). Shaft power measures 48 HP at 500 RPM and 95 HP at 1000 RPM. The cast iron housing features tapered cone bearings on the output shaft for greater load-bearing capability. Call us to confirm proper fit for your specific transmission and application.
Features
Extra heavy-duty 8-bolt mounting, fits automatic and manual transmissions
Lever/mechanical shift type
1-1/2" 10-tooth spline output shaft with 1410 Series companion flange
Intermittent torque rating: 500 lb-ft (678 Nm) - check application pages for actual torque ratings
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM (36 kW and 71 kW respectively)
Compatible transmissions include Allison, Eaton/Fuller, Volvo/Mack, and others
Tech Specs
- Intermittent Torque: 500 lb-ft / 678 Nm (check application pages for actual torque ratings)
- Shift Type: Lever, Mechanical
- Output Power: 56+ HP / 51+ kW
- Compatible Transmissions: Allison, Eaton/Fuller, Volvo/Mack, Other
- Output Shaft Type: 1-1/2" 10-tooth spline with 1410 Series companion flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP (500 RPM), 95 HP (1000 RPM) / 36 kW (500 RPM), 71 kW (1000 RPM)
Additional Information
Parts Manual: Chelsea 823 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
