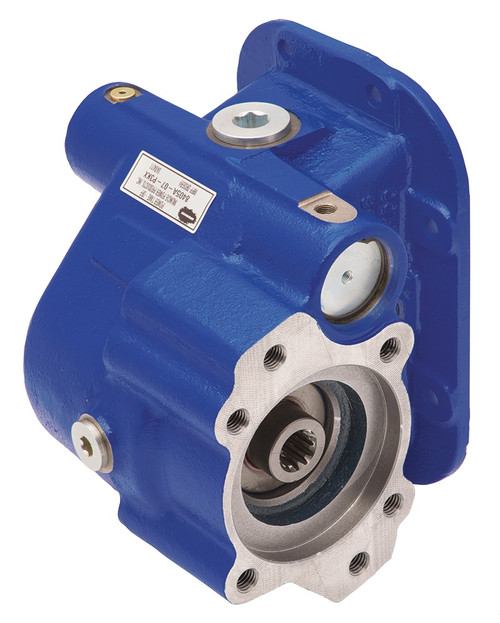

The Muncie 8405B-08-A3PX or 8405B08A3PX is an 8405 Series power take-off built around a ductile iron housing for durability in high-vibration environments. This unit features an integral air shift, an 8-bolt mounting pad, and an SAE "B" or SAE "B-B" 2- or 4-bolt pump mounting flange with an optional 1-1/4" shaft. The speed ratio designation "08" places it in the middle of three available ratios for this series, with an intermittent torque rating of 230 ft-lb and continuous torque of 161 ft-lb at 1,000 RPM, delivering 44 intermittent HP. A drain port and inspection port for backlash adjustment are also included. Call us to confirm proper fit for your transmission and application.
Features
Ductile iron housing rated for high-vibration applications
Integral air shift mechanism
Integral 8-bolt mounting pad
SAE "B" and SAE "B-B" 2- or 4-bolt pump mounting flange, optional 1-1/4" shaft
230 ft-lb intermittent torque / 161 ft-lb continuous torque at 1,000 RPM (08 ratio)
Drain port and inspection port for backlash adjustment
Tech Specs
- Speed Ratio: 08
- Intermittent Torque: 230 ft-lb (312 Nm)
- Continuous Torque: 161 ft-lb (218 Nm)
- Intermittent HP at 1,000 RPM: 44 HP (33 kW)
- Mounting: Integral 8-bolt pad
- Shift Type: Integral air shift
- Pump Flange: SAE "B" or SAE "B-B", 2- or 4-bolt
- Optional Output Shaft: 1-1/4"
- Housing Material: Ductile iron
