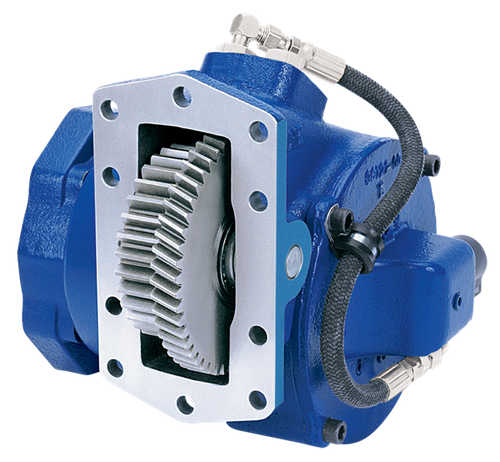

The Muncie CS10-A1007-H1XX or CS10A1007H1XX is a 10-bolt, heavy-duty clutch shift power take-off from the Muncie CS10 Series. Direct mount flanges are rotatable, accommodating SAE "B", "BB", and "C" as well as DIN 5462 pump configurations for maximum installation clearance. Three remote mount output shaft options cover both keyed and flange types for versatile remote pump drive setups. Standard pressure lubrication comes built in, and the patented Muncie drag brake stops shaft rotation any time the PTO is in the off position. Two assembly arrangements let you mount the unit shaft-high or shaft-low on either side of the transmission. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design
Patented Muncie drag brake prevents output shaft rotation when PTO is off
Rotatable direct mount flanges accept SAE "B", "BB", "C", and DIN 5462 pumps
Three remote mount output shaft options in keyed and flange types
Standard pressure lubrication included
Two assembly arrangements for shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
