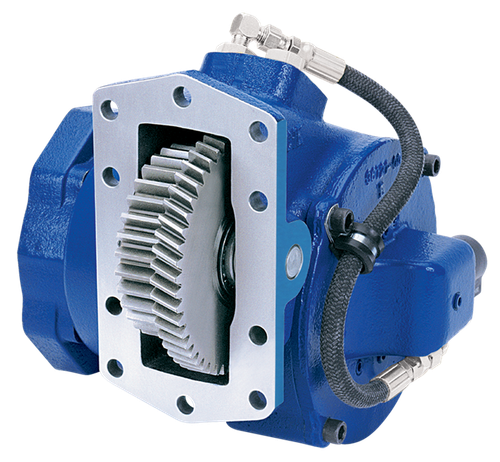

The Muncie CS10-A1007-H3CU or CS10A1007H3CU is a heavy-duty clutch shift power take-off from Muncie Power's CS10 Series, designed for demanding truck hydraulic applications. This 10-bolt unit supports SAE "B", "BB", and "C" as well as DIN 5462 direct mount pump flanges, and the rotatable flanges let you position the pump for maximum clearance in tight installations. Three remote mount output shaft options cover both keyed and flange configurations, giving flexibility for remote pump drives. Two assembly arrangements allow mounting shaft high or low on either side of the transmission. A patented Muncie drag brake prevents output shaft rotation when the PTO is disengaged, and standard pressure lubrication is included. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift PTO from Muncie Power CS10 Series
SAE "B", "BB", and "C"; DIN 5462 direct mount pump flange options
Rotatable direct mount flanges for maximum pump clearance
Three remote mount output shafts - keyed and flange types available
Two assembly arrangements: mount shaft high or low on either side of the transmission
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Standard pressure lubrication included
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
