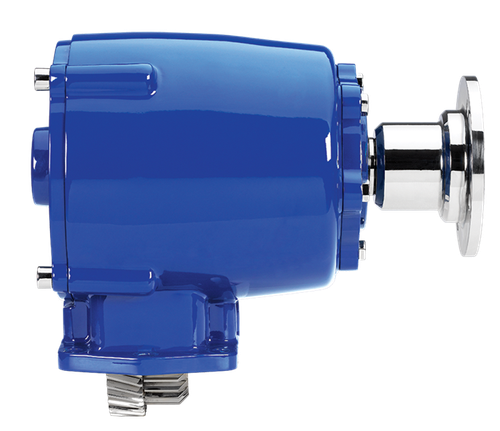

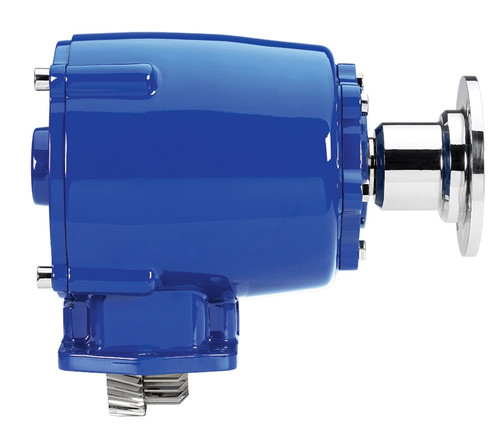

The Muncie CS40-A1012-J32P or CS40A1012J32P is a 10-bolt heavy-duty clutch shift power take-off from Muncie's CS40/41 Series, designed to deliver maximum power from Allison 3000 and 4000 series and Caterpillar CX transmissions. Precision ground gears provide high torque capacity with quiet operation. Oversized bearings and components contribute to durability under demanding duty cycles. The unit supports a 1410 series remote mount output shaft for remote pump drives, and accepts SAE "C" and DIN 5462 direct mount configurations to fit most pumps requiring high power input. Two assembly arrangements allow mounting shaft high or low on either side of the transmission. Standard pressure lubrication is included. For fire pump applications, maximum output speed is rated at 4,000 RPM. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Extra large bearings and components for durability in high-demand applications
1410 series remote mount output shaft supports remote pump drives
SAE "C" and DIN 5462 direct mount options with rotatable flanges for pump positioning clearance
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Maximum output speed of 4,000 RPM rated for fire pump applications
Standard pressure lubrication included at no extra cost
Tech Specs
- Series: CS40/41 Clutch Shift
- Configuration: 10-Bolt Heavy Duty
- Shift Type: Clutch Shift
- Compatible Transmissions: Allison 3000 Series, Allison 4000 Series, Caterpillar CX
- Output Options: 1410 Series Remote Mount; SAE "C" 2/4-Bolt Direct Mount; DIN 5462 Direct Mount
- Direct Mount Flanges: Rotatable for pump positioning
- Assembly Arrangements: Two (shaft high or shaft low, either side of transmission)
- Max Output Speed (Fire Pump): 4,000 RPM
- Lubrication: Standard pressure lubrication
- Series Torque/HP Ratings (by speed ratio):
- - Speed Ratio 07: 114 HP intermittent @ 1,000 RPM | 600 lb-ft intermittent torque | 420 lb-ft continuous torque (813 Nm intermittent | 569 Nm continuous)
- - Speed Ratio 10: 103 HP intermittent @ 1,000 RPM | 545 lb-ft intermittent torque | 382 lb-ft continuous torque (739 Nm intermittent | 517 Nm continuous)
- - Speed Ratio 12: 93 HP intermittent @ 1,000 RPM | 490 lb-ft intermittent torque | 343 lb-ft continuous torque (664 Nm intermittent | 465 Nm continuous)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 07 | 114 | 600 | 420 | (85) | (813) | (569) |
| 10 | 103 | 545 | 382 | (76) | (739) | (517) |
| 12 | 93 | 490 | 343 | (70) | (664) | (465) |
