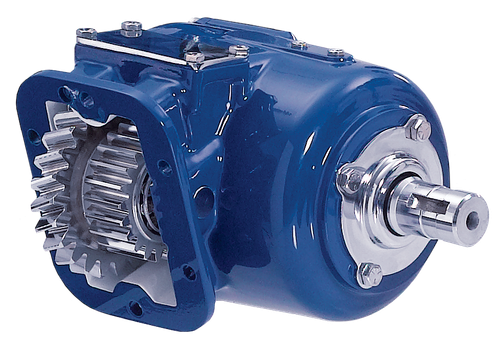

The Muncie CS6B-A6704-S1IP or CS6BA6704S1IP is a CS6 Series 6-bolt clutch-shift power take-off designed to fit most popular automatic and manual transmissions, with coverage across 19 transmission input gear configurations. Direct-mount flange options include SAE "A", "B", and "BB" as well as DIN 5462, and the rotatable flanges allow pump positioning for maximum clearance. Three remote-mount output shaft styles are available in both keyed and flange types for remote pump drive applications. The patented Muncie drag brake prevents output shaft rotation when the PTO is in the off position. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed in service. Call us to confirm proper fit for your transmission and pump configuration.
Features
CS6 Series 6-bolt clutch-shift power take-off
Fits 19 transmission input gear configurations across most popular automatic and manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct-mount pump flange options
Rotatable direct-mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Optional pulse generator for System Protection Device shaft-speed monitoring
Tech Specs
- PTO Series: CS6
- Shift Type: 6-bolt clutch shift
- Transmission Input Gear Fits: 19 configurations (automatic and manual)
- Direct Mount Flanges: SAE "A", SAE "B", SAE "BB", DIN 5462
- Remote Mount Output Shafts: Three styles - keyed and flange types
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Pulse Generator: Compatible with System Protection Device
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
