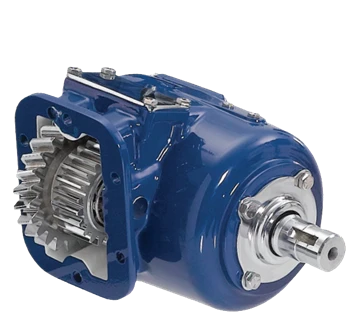

The Muncie CS6B-A6705-H1TP or CS6BA6705H1TP is a CS6 Series power take-off unit with a 6-bolt clutch shift configuration. It covers 19 transmission input gear combinations, making it compatible with Allison 1000/2000 series automatics and most popular manual transmissions. Direct mount pump options include SAE "A", "B", and "BB" flanges as well as DIN 5462, with rotatable flanges that let you position the pump for maximum clearance. Three remote mount output shafts are available in keyed and flange types for versatility in remote pump drive setups. The patented Muncie drag brake holds the output shaft stationary when the PTO is in the OFF position. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed. Confirm proper fit for your transmission and application before ordering, or call Pro Gear and Transmission for assistance.
Features
6-bolt clutch shift configuration
19 transmission input gears - fits Allison 1000/2000 series and most popular manual transmissions
SAE "A", "B", and "BB"; DIN 5462 direct mount pump flanges - rotatable for pump clearance
Three remote mount output shafts in keyed and flange types for remote pump drive applications
Patented Muncie drag brake prevents output shaft rotation when PTO is in OFF mode
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
- Shift Type: Clutch Shift
- Bolt Pattern: 6-Bolt
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Output Shafts: Three remote mount options - keyed and flange types
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Accessory: Pulse generator for System Protection Device shaft speed monitoring
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
