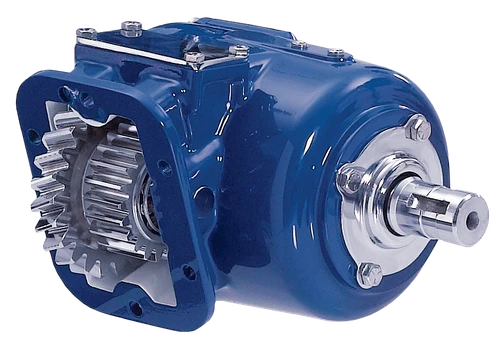

The Muncie CS6S-F6609-A3BP is a CS6/CS8 Series Power Take-Off designed for direct mount pump applications. This series accommodates six transmission input gears, making it compatible with a wide range of automatic and manual transmissions, including Allison 1000/2000 Series. Three remote mount output shaft configurations are available in keyed and flange types. Direct mount flanges are rotatable to allow pump positioning for maximum clearance, and SAE "A", "B", and "BB" as well as DIN 5462 pump mount options are supported. The patented Muncie drag brake prevents shaft rotation when the PTO is in the off position. CS6S-F6609-A3BP or CS6SF6609A3BP. Call us to confirm proper fit for your application.
Features
CS6/CS8 Series PTO, part number CS6S-F6609-A3BP or CS6SF6609A3BP
Six transmission input gears for compatibility with Allison 1000/2000 Series and many manual transmissions
SAE "A", "B", and "BB"; DIN 5462 direct mount pump options
Rotatable direct mount flanges for adjustable pump positioning and clearance
Patented Muncie drag brake prevents shaft rotation when PTO is disengaged
Optional pulse generator supports PTO shaft speed monitoring
