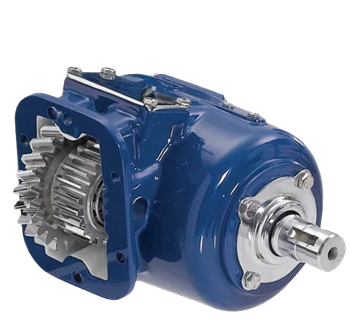

The Muncie CS8 Series Power Take-Off, part number CS8B-U6004-P1GX or CS8BU6004P1GX, is an 8-bolt clutch shift PTO designed to fit most popular automatic and manual transmissions, including the Allison 1000/2000 series. Direct mount pump options cover SAE "A", "B", and "BB" flanges as well as DIN 5462, with rotatable flanges that let you position the pump for maximum clearance. Three remote mount output shafts are available in keyed and flange types for versatility with remote pump drives. Muncie's patented drag brake prevents output shaft rotation when the PTO is off. An optional pulse generator supports System Protection Device monitoring of PTO shaft speed. Available from Pro Gear and Transmission - call us to confirm proper fit for your application.
Features
CS8 Series 8-bolt clutch shift PTO
Fits Allison 1000/2000 series and most popular manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flanges
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents shaft rotation in OFF mode
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
- Series: CS8
- Shift Type: 8-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Output Shaft Options: Three remote mount shafts - keyed and flange types
- Drag Brake: Patented Muncie drag brake (shaft locked in OFF position)
- Optional Accessory: Pulse generator for System Protection Device compatibility
- Transmission Compatibility: Allison 1000/2000 series and most popular manual transmissions
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
