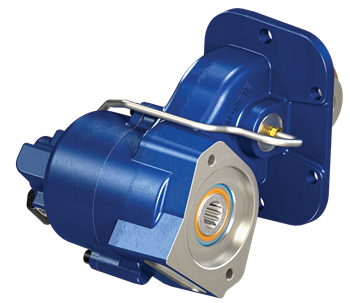

The Muncie FR64-F1506-I4NX (also referenced as FR64F1506I4NX) is a solenoid-activated power takeoff designed specifically for 4x2 and 4x4 Ford Super Duty F-350, F-450, and F-550 trucks equipped with the Ford 6R140 transmission. It may also be used on F-650 and F-750 applications. A built-in noise abatement mechanism eliminates virtually all gear rattle, making it notably quieter than standard PTOs. Installation is simplified by a one-piece design with rocker and a preconfigured wiring harness. Stationary-duty ratings reach 200 lb-ft intermittent torque and 140 lb-ft continuous torque at 1,000 RPM. Call us to confirm proper fit for your specific truck and upfit configuration.
Features
Fits 4x2 and 4x4 Ford Super Duty F-350, F-450, F-550 (and F-650/F-750) with Ford 6R140 transmission
Solenoid-activated engagement
Noise abatement mechanism eliminates virtually all gear rattle
Preconfigured wiring harness simplifies electrical hookup
One-piece installation with rocker
Stationary-duty intermittent torque: 200 lb-ft; continuous torque: 140 lb-ft at 1,000 RPM
Tech Specs
- Speed Ratio: Stationary (09)
- Intermittent HP @ 1,000 RPM (Stationary): 39 HP (29 kW)
- Intermittent Torque (Stationary): 200 lb-ft (271 Nm)
- Continuous Torque (Stationary): 140 lb-ft (190 Nm)
- Intermittent HP @ 1,000 RPM (Mobile): 22 HP (16 kW)
- Intermittent Torque (Mobile): 120 lb-ft (162 Nm)
- Continuous Torque (Mobile): 120 lb-ft (162 Nm)
- Note: 120 lb-ft is the FR6Q series limit in mobile applications (continuous/intermittent)
- Activation: Solenoid
- Application: Ford 6R140 transmission, 4x2 and 4x4 Ford Super Duty F-350 to F-550 (also F-650/F-750)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | |||||||
|---|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) | Weight |
(09) Stationary | 39 | 200 | 140 | (29) | (271) | (190) | |
(09) Mobile | 22 | *120 | 120 | (16) | (162) | (162) | |
| *FR6Q limit in mobile applications continuous intermittent | |||||||
