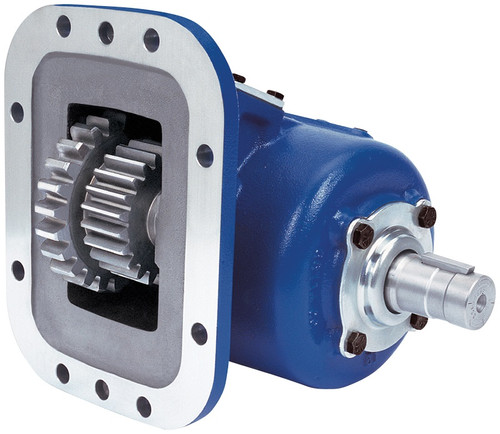

The Muncie SH Series Power Take-Off, part number SH6BA6905M1BP, is an air-shift-only PTO built for high-torque applications. Positioned between the Muncie TG and 82 Series, it features an integral air shift design with no exposed air cylinder, a 6-bolt cast iron housing, and compatibility with 17 input gear sets to fit most popular transmission applications. Five available speed ratios and 12 output shaft options give it broad hydraulic pump compatibility. At the 05 and 07 speed ratios, intermittent torque capacity is 400 lb-ft (542 Nm) and continuous torque is 280 lb-ft (379 Nm). Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air shift design - no exposed air cylinder
6-bolt cast iron housing for easy mounting and strength
17 input gear sets compatible with most popular transmissions
5 speed ratios across the series
12 output shaft options to fit most popular pump types
Intermittent torque up to 400 lb-ft (542 Nm) at 05 and 07 speed ratios
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
