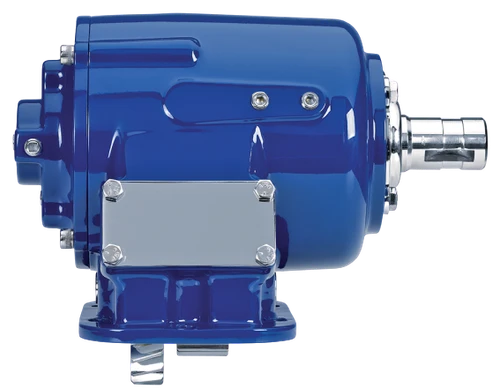

The Muncie SH6S-F7007-E3CX (also listed as SH6SF7007E3CX) is an SH6 Series medium-duty power take-off unit built around a 6-bolt cast iron housing and an integral air shift design that eliminates exposed air cylinders. Five speed ratios cover a wide range of output requirements, and 12 output shaft options make it compatible with most popular pump types. The 17 available input gear sets allow it to fit most popular transmission configurations. At the 07 speed ratio, intermittent torque capacity is 400 lb-ft (542 Nm) and continuous torque is 280 lb-ft (379 Nm) at 1,000 RPM. Call us to confirm the right ratio and output configuration for your application.
Features
SH6 Series medium-duty PTO with 6-bolt cast iron housing
Integral air shift design - no exposed air cylinder
5 speed ratios for application versatility
12 output shaft options to fit most popular pump types
17 input gear sets to fit most popular transmissions
07-ratio intermittent torque: 400 lb-ft (542 Nm); continuous: 280 lb-ft (379 Nm)
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
