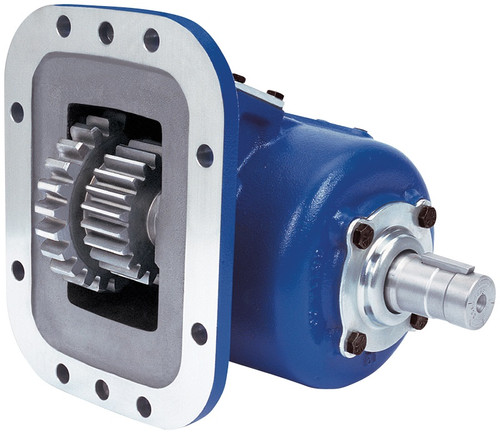

The Muncie SH8D-S6809-A1IX or SH8DS6809A1IX is an SH8 Series air shift power take-off built for high-torque applications. Its integral air shift design keeps the air cylinder fully internal, eliminating exposed external components. The 8-bolt cast iron housing mounts securely to the transmission, and 17 available input gear sets cover most popular transmission configurations. Five speed ratios let you match output to the application, while 12 output shaft options accommodate most common pump types. Torque ratings vary by speed ratio, ranging from 325 ft-lbs continuous up to 400 ft-lbs intermittent at the lower ratios. Dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air shift design with no exposed external air cylinder
8-bolt cast iron housing for secure, high-strength mounting
17 input gear sets to fit most popular transmission configurations
5 speed ratios covering multiple output requirements
12 output shaft options compatible with most common pump types
Intermittent torque ratings up to 400 ft-lbs (542 Nm) depending on speed ratio
Tech Specs
- Speed Ratio 05: 76 HP / 400 ft-lbs intermittent torque / 280 ft-lbs continuous torque
- Speed Ratio 07: 76 HP / 400 ft-lbs intermittent torque / 280 ft-lbs continuous torque
- Speed Ratio 09: 71 HP / 375 ft-lbs intermittent torque / 263 ft-lbs continuous torque
- Speed Ratio 12: 62 HP / 325 ft-lbs intermittent torque / 228 ft-lbs continuous torque
- Speed Ratio 13: 62 HP / 325 ft-lbs intermittent torque / 228 ft-lbs continuous torque
- All HP ratings at 1000 RPM
- Housing: 8-bolt cast iron
- Shift type: Air shift only
- Dimensions: 11.63 in. H x 13.38 in. W x 15.63 in. L
- Input gear sets: 17
- Output shaft options: 12
- Speed ratios available: 5
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
