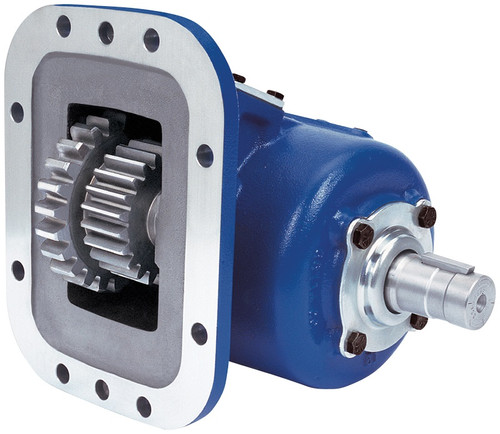

The Muncie SH8S-M6509-P3IX or SH8SM6509P3IX is an air-shift-only power take-off from the Muncie SH8 Series, engineered for high-torque applications that fall between lighter-duty and heavy-duty PTO classes. The integral air shift design keeps the air cylinder fully enclosed within the housing, eliminating exposed external hardware. The 8-bolt cast iron housing mounts securely to the transmission without adapters in most installations. Five available speed ratios let you match output speed to the driven pump, and 12 output shaft options cover the most widely used pump interfaces. Input gear sets span 17 configurations to fit most popular transmissions. Intermittent torque ratings reach up to 400 lb-ft at speed ratios 05 and 07. Call us to confirm the right ratio and output shaft configuration for your application.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for secure, high-strength transmission mounting
5 speed ratios to match output speed to the driven pump
12 output shaft options covering the most popular pump interfaces
17 input gear set configurations fitting most popular transmissions
Intermittent torque up to 400 lb-ft (542 Nm) at speed ratios 05 and 07
Tech Specs
- Housing: 8-bolt cast iron
- Shift type: Air shift only (integral, no exposed air cylinder)
- Speed ratios available: 5
- Input gear set configurations: 17
- Output shaft options: 12
- Intermittent torque (ratio 05 and 07): 400 lb-ft (542 Nm)
- Continuous torque (ratio 05 and 07): 280 lb-ft (379 Nm)
- Intermittent HP at 1000 RPM (ratio 05 and 07): 76 HP (57 kW)
- Intermittent torque (ratio 09): 375 lb-ft (508 Nm)
- Continuous torque (ratio 09): 263 lb-ft (356 Nm)
- Intermittent HP at 1000 RPM (ratio 09): 71 HP (53 kW)
- Intermittent torque (ratio 12 and 13): 325 lb-ft (441 Nm)
- Continuous torque (ratio 12 and 13): 228 lb-ft (309 Nm)
- Intermittent HP at 1000 RPM (ratio 12 and 13): 62 HP (46 kW)
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
