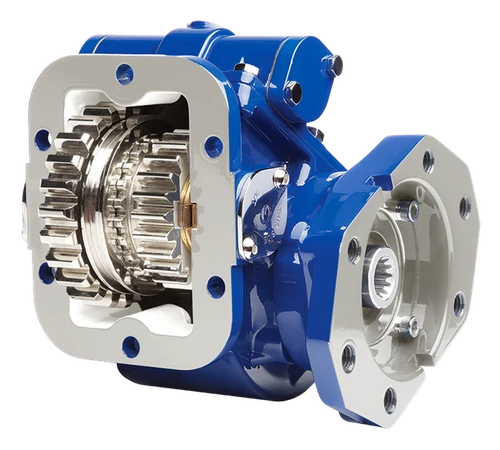

TG6B-U6804-A1BX or TG6BU6804A1BX is a Muncie TG6 Series PTO with a 6-bolt mounting and mechanical shift. The TG Series is a double-gear type power take-off, and its constant mesh input gear isolates the transmission from engagement errors. The series uses a die-cast aluminum housing that cuts noise and sheds heat well, and its modular design keeps repairs simple. It is a genuine Muncie part from Pro Gear and Transmission. Call us to confirm the right input gear and shift setup for your transmission.
Features
TG6 Series double-gear power take-off
6-bolt mounting with mechanical shift
Constant mesh input gear isolates the transmission from engagement errors
Die-cast aluminum housing with good heat dissipation
Modular design provides flexibility and ease of repair
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
Equivalent PTOs:
- Chelsea442GAAHX-A3XDView and buy
Matched by full model number. Check the mounting, input gear and output against the unit you are replacing before you order. Look up any Chelsea, Muncie or Bezares number on our Muncie to Chelsea PTO cross reference.
