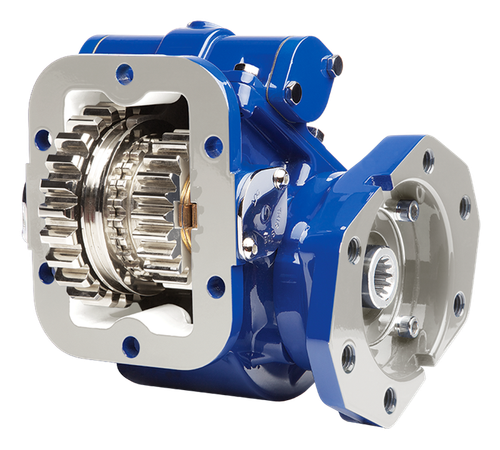

The Muncie TG6N-S7109-A1BX or TG6NS7109A1BX is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. Part of Muncie's widely used TG Series, this unit features a die-cast aluminum housing for reduced noise and improved heat dissipation. The constant mesh input gear isolates the transmission from engagement errors, and the modular design simplifies field repair. Rotatable hydraulic flanges maximize pump clearance, and the extra-large shift cover opening makes backlash checks straightforward. Compact dimensions of 9.13 in. H x 10.38 in. W x 12.5 in. L keep mounting interference to a minimum. A genuine Muncie part available from Pro Gear and Transmission - call us to confirm proper fit for your application.
Features
TG6 Series double-gear PTO with 6-bolt housing and mechanical shift
Die-cast aluminum housing reduces noise and improves heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Modular design allows flexible configuration and straightforward field repair
Rotatable hydraulic flanges adjust for maximum pump clearance
Extra-large shift cover opening provides easy access to check backlash
Tech Specs
- Series: Muncie TG6 Series double-gear power take-off
- Part Number: TG6N-S7109-A1BX or TG6NS7109A1BX
- Housing: 6-bolt, die-cast aluminum
- Shift Type: Mechanical shift
- Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
