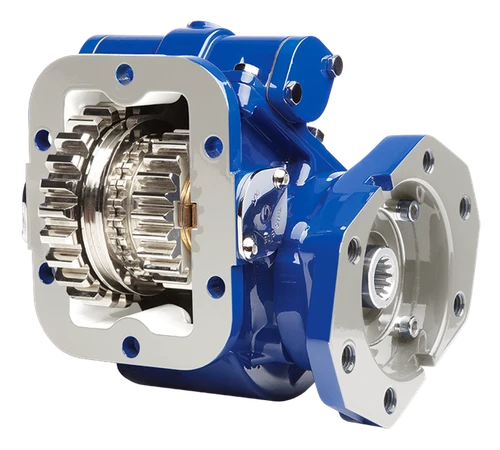

The Muncie TG6N-S7115-A2QH or TG6NS7115A2QH is a TG6 Series double-gear power take-off with a 6-bolt mechanical shift configuration. The die-cast aluminum housing reduces noise and dissipates heat more effectively than cast iron, while the compact envelope minimizes interference at the transmission mounting pad. A constant mesh input gear keeps engagement errors from feeding back into the transmission gearset. Rotatable hydraulic flanges let you clock the output flange for maximum pump clearance in tight installations, and the extra-large shift cover opening gives direct access for backlash checks without pulling the unit. An electric or hydraulic shift option is also available to eliminate shift cables where layout demands it. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear PTO, part number TG6N-S7115-A2QH or TG6NS7115A2QH
6-bolt housing for simplified transmission mounting
Mechanical shift configuration; electric or hydraulic shift option available
Die-cast aluminum housing for reduced noise and improved heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Rotatable hydraulic flanges for maximum pump clearance in tight installations
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Ratings shown are TG Series family ratings across available speed ratios. Confirm the specific ratio and configuration for part number TG6N-S7115-A2QH with Pro Gear and Transmission before ordering.
