TG8B-U6808-A1BX Muncie PTO

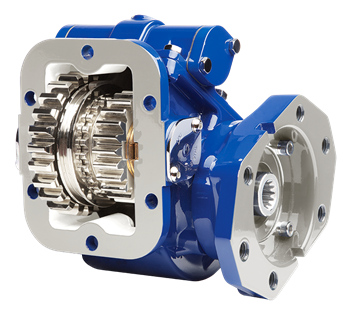

Muncie TG8B-U6808-A1BX or TG8BU6808A1BX is a TG Series 8-bolt, mechanical shift PTO, a genuine Muncie part from Pro Gear and Transmission. The TG Series is a double-gear design with a die-cast aluminum housing and a constant mesh input gear. That input gear meshes with a gear in the transmission so engine power can drive mounted equipment, and the clearance of that mesh sets how quietly the unit runs: a mesh set too tight tends to whine, one set too loose tends to chatter. Call us to confirm proper fit for your transmission and application.

Features

TG Series double-gear PTO with 8-bolt housing
Mechanical shift
Die-cast aluminum housing reduces weight and noise, with superior heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Extra large shift cover opening allows easy access to check backlash
Modular design provides flexibility and ease of repair

Tech Specs

•

Additional Information

PTO Torque & Horsepower Ratings
Relación de velocidad	Intermitente HP a 1000 RPM	Torque Intermitente lb/pie	Torque Continuo lb/pie	Intermitente (kw) a 1000 RPM	Torque Intermitente (NM)	Torque Continuo (NM)
04	54	285	200	(40)	(386)	(270)
05	51	270	189	(38)	(366)	(256)
06	47	245	172	(35)	(332)	(232)
07	44	230	161	(33)	(312)	(218)
08	44	230	161	(33)	(312)	(218)
09	39	205	144	(29)	(278)	(195)
12H	40	210	147	(30)	(284)	(199)
13H	40	210	147	(30)	(284)	(199)
15H	37	195	137	(28)	(264)	(185)
18H	33	175	123	(25)	(237)	(166)

Approximate Weight: 22 lbs. (10.0 Kg.)

Parts manual and diagrams: Muncie TG Series PTO parts list with prices
