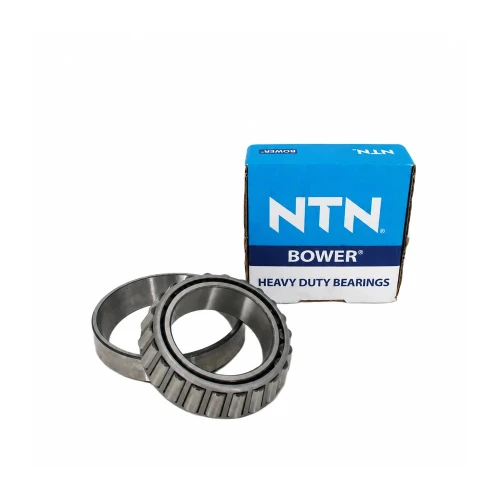

31310HD NTN Bower tapered roller bearing set fits a 50 mm bore, 110 mm outside diameter, with a 29.25 mm assembled width. The cone measures 27 mm wide and the cup measures 19 mm wide. This 30310 series bearing carries a dynamic load rating of 113 kN and a static load rating of 130 kN, built to ABEC-1, RBEC-1, JIS-0, and ISO-Normal tolerance class.
Interchanges:
- Timken 31310 $213.59
Features
50 mm bore (ID)
110 mm outside diameter (OD)
29.25 mm assembled width
Cone width 27 mm, cup width 19 mm
113 kN dynamic load rating, 130 kN static load rating
30310 series, ABEC-1 / RBEC-1 / JIS-0 / ISO-Normal tolerance class
Tech Specs
- Bore (ID): 50 mm
- Outside Diameter (OD): 110 mm
- Assembled Width: 29.25 mm
- Cone Width: 27 mm
- Cup Width: 19 mm
- Dynamic Load Rating: 113 kN
- Static Load Rating: 130 kN
- Series: 30310
- Tolerance Class: ABEC-1, RBEC-1, JIS-0, ISO-Normal
