Spicer PSO100-10S Parts Manual
Drive Gear Group - Input Main Section
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| A-1 | 201-35-2 | Shaft- Input (2 .00''-1 0 Spline #306 (1 .180'' Dia .) Pilot | 1 | — | Call for availability | |
| A-1 | 201-35-6 | Shaft-input (1 .750''-10 Spline #205 ( .983'' Dia .) Pilot (PS0100-10S Only) | 1 | — | Call for availability | |
| A-1 | 201-35-7 | Shaft- Input (1 .750''-1 0 Spline #306 (1 .180'' Dia .) Pilot (PS01 00-10S Only) | 1 | — | Call for availability | |
| A-2 | 313645X | S/assy Bearing & Belleville Snap Ring | 1 | $183.51 | Add to Cart | |
| A-3 | 201-381-1 | Snap Ring - Input Shaft | 1 | $3.15 | Add to Cart |

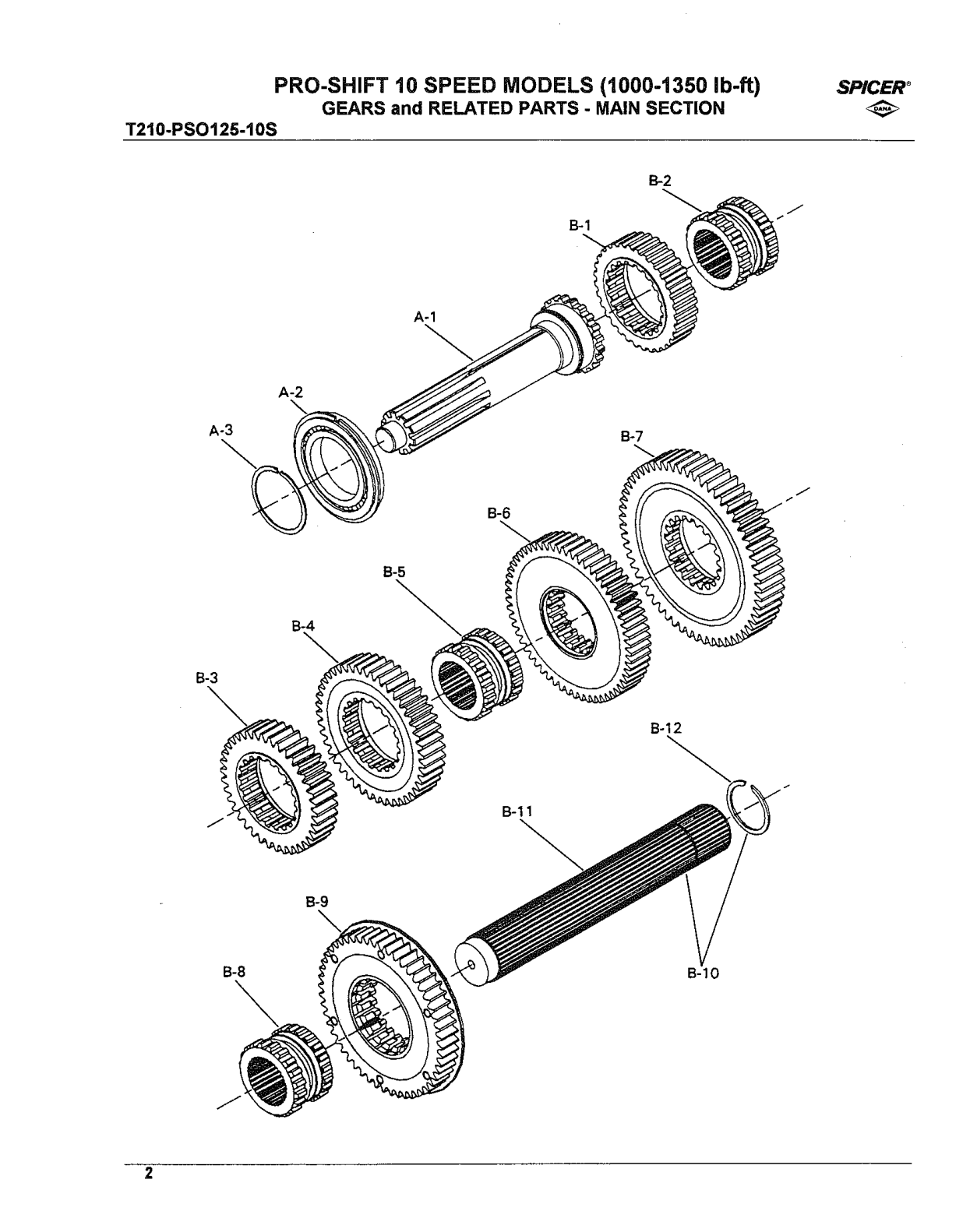

Mainshaft Group Main Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| B-1 | 201-8-49 | Gear- Drive (5th & 1Oth) (sot) (overdrive Transmissions) | 1 | $377.24 | Add to Cart | |
| B-1 | 201-8-57 | Gear- Drive (5th & 10th) (44T) (direct Transmissions) | 1 | — | Call for availability | |
| B-2 | 201-465-5 | Collar- M/s Clutch (4th 5th & 9th 1Oth) | 1 | $172.90 | Add to Cart | |
| B-3 | 201-8-48 | Gear- Mainshaft (4th & 9th) (40T) (overdrive Transmissions) | 1 | $377.24 | Add to Cart | |
| B-3 | 201-8-58 | Gear- Mainshaft (4th & 9th) (54T) (direct Transmissions) | 1 | $167.54 | Add to Cart | |
| B-4 | 201-8-46 | Gear- Mainshaft (3rd & 8th) (46T) | 1 | $268.72 | Add to Cart | |
| B-5 | 201-465-2 | Collar- Mis Clutch (2nd 3rd & 7th 8th) | 1 | $176.98 | Add to Cart | |
| B-6 | 201-8-45 | Gear- Mainshaft (2nd & 7th) (62T) | 1 | $512.66 | Add to Cart | |
| B-7 | 201-8-44 | Gear- Mainshaft (1st) (62T) | 1 | $361.53 | Add to Cart | |
| B-8 | 201-465-2 | Collar- Mis Clutch (1st & Rev.) | 1 | $176.98 | Add to Cart | |
| B-9 | 201-8-10-1X | Gear- Mishaft Reverse (includes Thrust Ring & Rivets) | 1 | $657.38 | Add to Cart | |
| B-10 | 201-362-1-1X | Kit- Mainshaft & Snap Ring | 1 | $305.99 | Add to Cart | |
| B-11 | Mainshaft | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| B-12 | 201-381-3 | Snap Ring - Mainshaft Drive Gear- Range | 1 | $8.09 | Add to Cart |

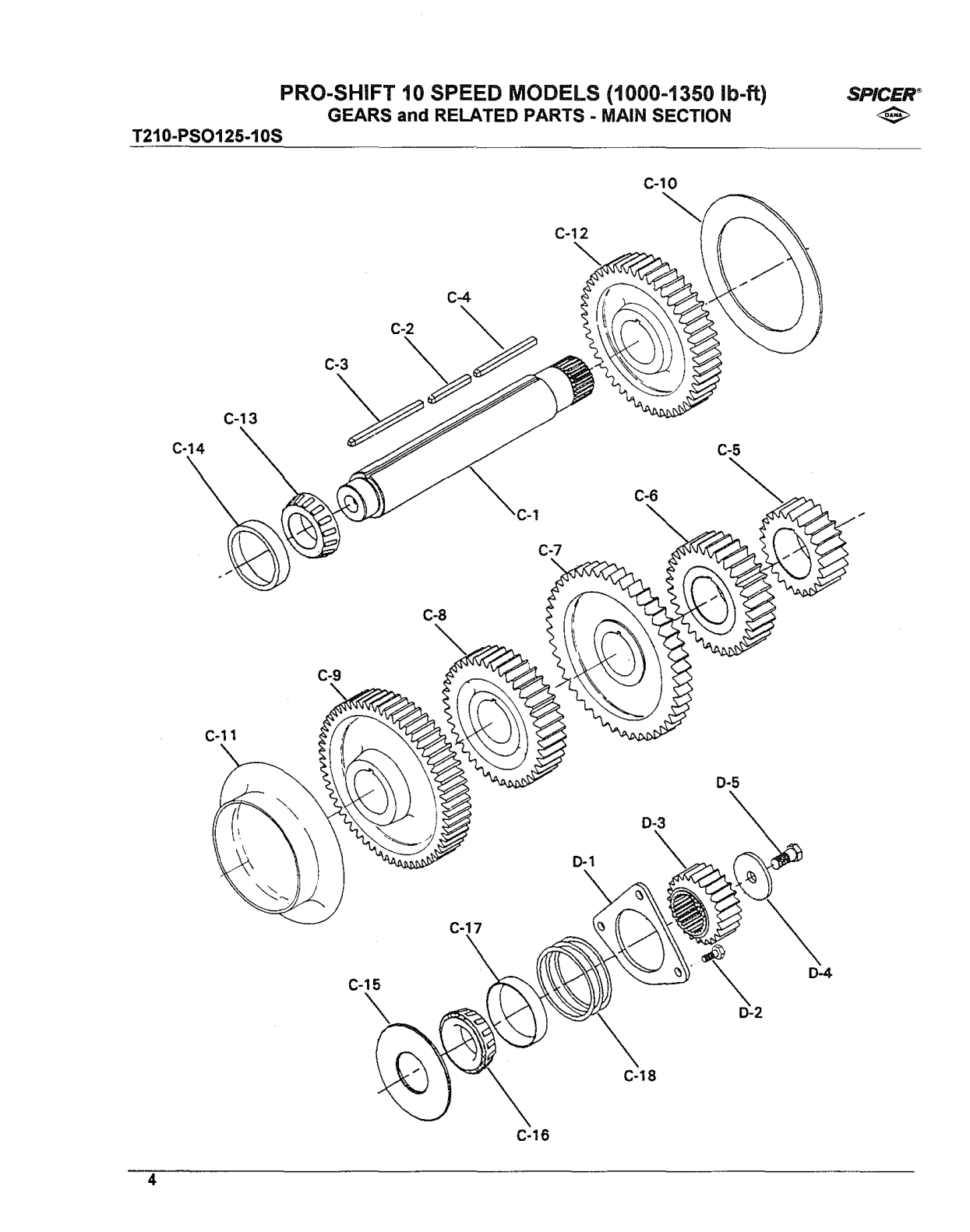

Countershaft Group Main Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C-1 | 201-30-2 | Countershaft- Main | 2 | — | Call for availability | |
| C-2 | 201-210-4-2 | Key- Countershaft Gear- Middle | 2 | $4.19 | Add to Cart | |
| C-3 | 201-210-4-3 | Key- Countershaft Gear- Front | 2 | $11.02 | Add to Cart | |
| C-4 | 201-210-4-1 | Key- Countershaft Gear- Rear | 2 | $4.64 | Add to Cart | |
| C-5 | 201-196-36 | Gear- Countershaft (1st & 6th) (28T) | 2 | $168.73 | Add to Cart | |
| C-6 | 201-196-38 | Gear- Countershaft (2nd & 7th) (38T) | 2 | $238.80 | Add to Cart | |
| C-7 | 201-312-3 | Gear- Countershaft Pto Drive | 2 | $280.05 | Add to Cart | |
| C-8 | 201-196-42 | Gear- Countershaft (3rd & 8th) (39T) | 2 | $235.80 | Add to Cart | |
| C-9 | 201-196-40 | Gear- Countershaft (4th & 9th) (63T) (overdrive Transmissions) | 2 | $177.75 | Add to Cart | |
| C-9 | 201-196-50 | Gear- Countershaft (4th & 9th) (61T) (direct Transmissions) | 2 | $238.69 | Add to Cart | |
| C-10 | 201-47-2 | Ring - Countershaft Thrust (flat) | 2 | $20.15 | Add to Cart | |
| C-11 | 201-47-5 | Ring Countershaft H .e Gear Thrust | 2 | $52.11 | Add to Cart | |
| C-12 | 201-196-41 | Gear- Countershaft H .e (5th & 1Oth) (59T) (overdrive Transmissions) | 2 | $220.13 | Add to Cart | |
| C-12 | 201-196-49 | Gear- Countershaft H .e (5th & 1Oth) (66T) (direct Transmissions) | 2 | — | Call for availability | |
| C-13 | 551013 | Bearing_- Cone Front Countershaft | 2 | $49.38 | Add to Cart | |
| C-14 | 550375 | Bearing - Cup Front Countershaft | 2 | $17.99 | Add to Cart | |
| C-15 | 201-47-3 | Ring - Countershaft (1st) Thrust | 2 | $14.83 | Add to Cart | |
| C-16 | 550182 | Bearing - Cone Rear Countershaft | 2 | $36.48 | Add to Cart | |
| C-17 | 550375 | Bearing - Cup Rear Countershaft | 2 | $17.99 | Add to Cart | |
| C-18 | 201-228-1-1 | Shim - Countershaft Rear Bearing (.005 Thick) | AIR | — | Call for availability | |
| C-18 | 201-228-1-2 | Shim - Countershaft Rear Bearing (.01 0 Thick) | AIR | — | Call for availability | |
| C-18 | 201-228-1-3 | Shim - Countershaft Rear Bearing (.015 Thick) | AIR | — | Call for availability | |
| C-18 | 201-228-1-4 | Shim - Countershaft Rear Bearing (.020 Thick) | AIR | — | Call for availability | |
| C-18 | 201-228-1-5 | Shim - Countershaft Rear Bearing (.030 Thick) | AIR | — | Call for availability | |
| D-1 | 201-360-1 | Plate - Retainer Countershaft | 1 | $10.03 | Add to Cart | |
| D-2 | 545002-1 | Screw- Plate Retaining Countershaft | 3 | $2.23 | Add to Cart | |
| D-3 | 201-196-12 | Gear- Countershaft Reverse- Range (21T) | 2 | $279.20 | Add to Cart | |
| D-4 | 330952 | Washer- Countershaft Reverse Drive Gear Retaining | 2 | $3.00 | Add to Cart | |
| D-5 | 545001-5 | Screw - Reverse Drive Gear Retaining Washer | 2 | — | Call for availability |

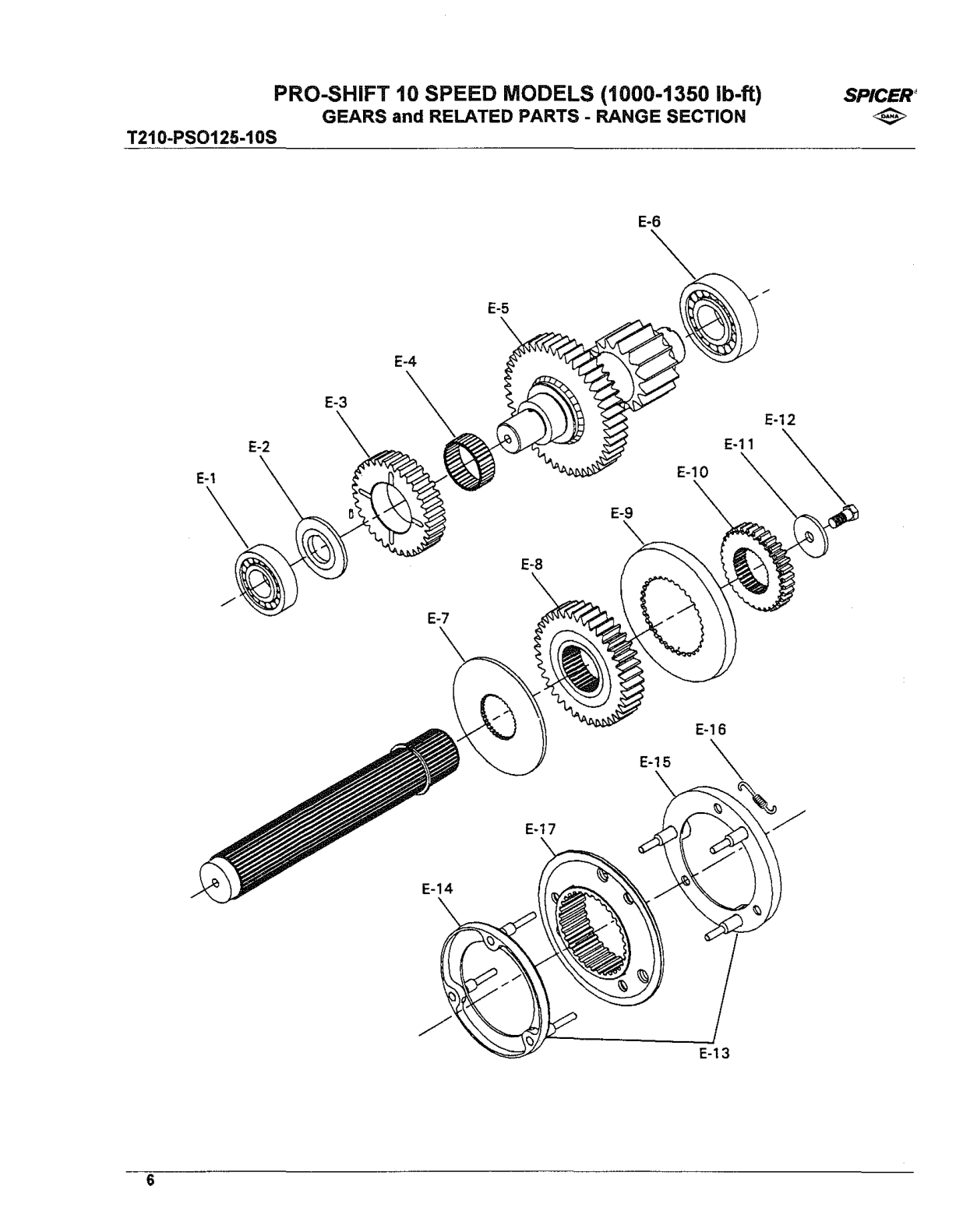

Counters Haft and Synchronizer Group Range Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| E-1 | 550996 | Bearing - Countershaft Front | 2 | $61.00 | Add to Cart | |
| E-2 | 330955 | Washer- Countershaft Reverse Idler Thrust | 2 | $20.01 | Add to Cart | |
| E-3 | 201-5-2 | Gear- Reverse Idler Countershaft | 2 | $132.94 | Add to Cart | |
| E-4 | 550997 | Bearing - Needle Reverse Idler | 2 | $14.83 | Add to Cart | |
| E-5 | 201-30-19 | Countershaft S/assy Range (20T/48T) (overdrive Transmissions) | 2 | $914.73 | Add to Cart | |
| E-5 | 201-30-12 | Countershaft S/assy Range (20T/48T) (overdrive Transmissions Less | 2 | $794.51 | Add to Cart | |
| E-5 | 201-30-17 | Countershaft S/assy Range (20T/45T) (direct Transmissions) | 2 | — | Call for availability | |
| E-6 | 550998 | Bearing - Countershaft Rear | 2 | $135.42 | Add to Cart | |
| E-7 | 201-47-6 | Ring -thrust Mainshaft Drive Gear | 1 | $33.46 | Add to Cart | |
| E-8 | 201-8-51 | Gear- Mainshaft Head End (26T) (overdrive Transmissions) | 1 | $217.67 | Add to Cart | |
| E-8 | 201-8-59 | Gear- Mainshaft Head End (26T) (direct Transmissions) | 1 | $342.97 | Add to Cart | |
| E-9 | 201-494-1 | Race - Synchronizer Outer | 1 | $204.93 | Add to Cart | |
| E-10 | 201-466-2 | Gear- Clutch Drive (high Range) | 1 | $180.99 | Add to Cart | |
| E-11 | 330954 | Washer- Mainshaft Clutch Gear Retaining (high Range) | 1 | $4.90 | Add to Cart | |
| E-12 | 545001-5 | Screw- Clutch Gear Retaining Washer (high Range) | 1 | — | Call for availability | |
| E-13 | 201-563-1-1X | Synchronizer- High & Low (includes E-14, E-15, & E-16) | 1 | $560.75 | Add to Cart | |
| E-14 | S/assy. Synchronizer- High Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| E-15 | S/assy. Synchronizer- Low Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| E-16 | 201-72-9 | Spring - Extension | 3 | — | Call for availability | |
| E-17 | 201-465-4 | Collar- Clutch - High & Low Range | 1 | $205.39 | Add to Cart |

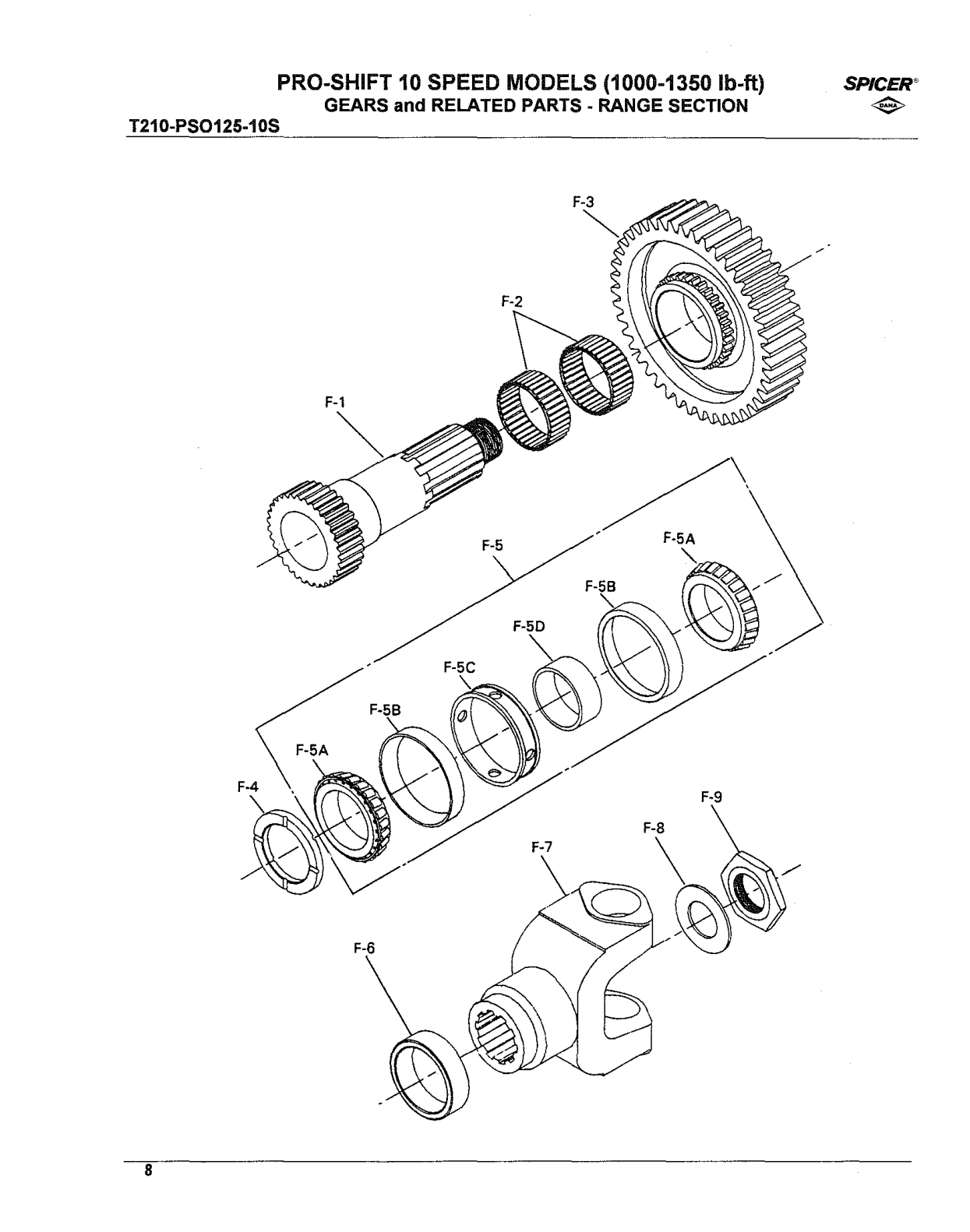

Mainshaft Group -Output Range Section
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| F-1 | 201-362-3 | Output Shaft | 1 | — | Call for availability | |
| F-2 | 313668X | Kit- Needle Bearing - Output Shaft (includes (2) Pes. 550975) | 1 | $78.71 | Add to Cart | |
| F-3 | 201-8-41 | Gear- Output- Low Range (52T) | 1 | — | No longer available — call for replacement | |
| F-4 | 201-47-4 | Washer- Thrust Output Shaft | 1 | $34.68 | Add to Cart | |
| F-5 | 313628X | S/assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | |
| F-5A | Bearing Cone Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5B | Bearing Cup Output Shaft | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5C | Spacer- Bearing Cup Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-5D | Spacer- Bearing Cone Output Shaft | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| F-6 | 201-37-6 | Spacer- Speedometer | 1 | — | Call for availability | |
| F-6 | 201-452-1 | Electronic Speedometer Signal Gear (16 Grooves) | 1 | $86.79 | Add to Cart | |
| F-6 | 201-452-2 | Speedometer Drive Gear (4T) Ratio 3:1 | 1 | — | Call for availability | |
| F-6 | 97-453-1 | Speedometer Driven Gear (12T) | 1 | — | Call for availability | |
| F-6 | 201-452-3 | Speedometer Drive Gear (8T) Ratio 2:1 | 1 | — | Call for availability | |
| F-6 | 97-453-7 | Speedometer Driven Gear (16T) | 1 | — | Call for availability | |
| F-6 | 330734 | Washer- Output Shaft Nut | 1 | $6.27 | Add to Cart | |
| F-!i | 545065 | Nut- Output Shaft (1 .75"-16 UNEF-3B) | 1 | $31.43 | Add to Cart |

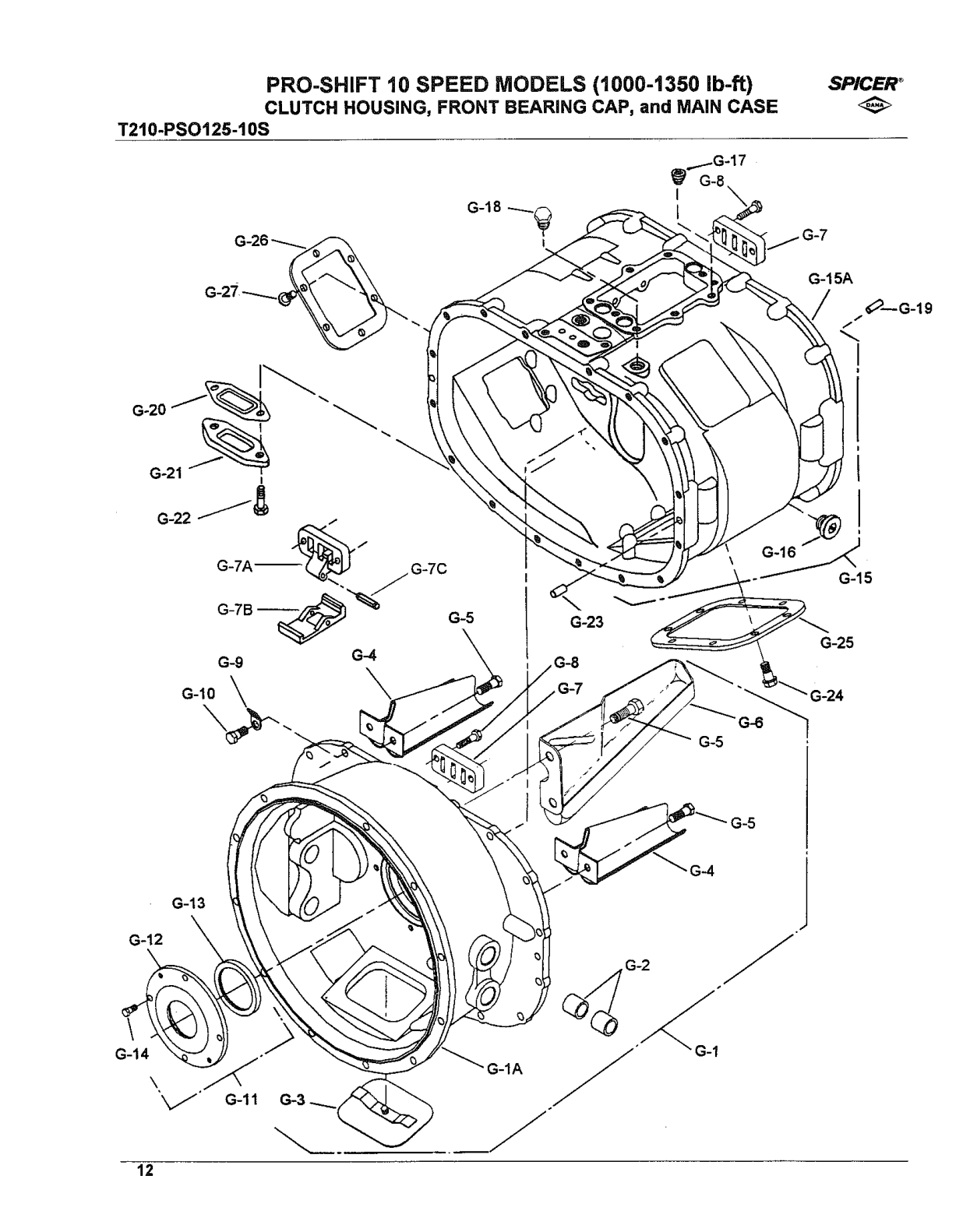

Clutch Housing Front Bearing CAP and MAIN CASE
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| C4G-2 | / | — | Call for availability |
Clutch Housing Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-1 | 201-518-10-SX | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-21-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-14-5X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #2) | 1 | $1,391.14 | Add to Cart | |
| G-1 | 201-518-12-SX | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-22-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-8-4X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-20-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-19-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| G-1 | 201-518-23-2X | Clutch Housing Hand Hole Cover, Oil Troughs And Bushings (sae #1) | 1 | — | Call for availability | |
| N .S. | 201-463-26 | "0 " Ring - Countershaft Front (aluminum Clutch Housings Only) | 2 | $20.25 | Add to Cart | |
| G-1A | Clutch Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-2 | 97-24-8 | Bushing - Clutch Release Shaft | 4 | $5.45 | Add to Cart | |
| G-3 | 97-96-18-1X | S/assy. - Hand Hole Cover | 1 | — | Call for availability | |
| G-4 | 201-468-1 | Oil Trough - Countershaft | 2 | $16.37 | Add to Cart | |
| G-5 | 545002-13 | Screw- Oil Troughs (2 Each) ( .375"-16 X .500") | 4 | $2.29 | Add to Cart | |
| G-6 | 201-468-2 | Oil Trough Drive Gear (less Optilube Only)(bim 301504 | 1 | — | Call for availability | |
| N .S. | 330934 | Magnet- Ceramic (location Is Case Side Bottom) | 1 | $4.72 | Add to Cart | |
| G-7 | 40-477-1 | Support- Shift Rails (front & Rear) | 2 | $12.28 | Add to Cart | |
| G-7A | 201-477-3 | Support- Shift Rails (front) (neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-7B | 201-200-6 | Plate - Lift (neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-7C | 201-438-15-3 | Pin - Roll (2 .125") (neutral Start Switch Provision) | 1 | — | Call for availability | |
| G-8 | 545002-7 | Screw- Support Bar ( .375"-16 X 1 .50") (2 Each) | 4 | $2.33 | Add to Cart | |
| G-9 | 330969 | Lift Hook | 2 | $2.49 | Add to Cart | |
| G-10 | 545001-1 | Screw- Clutch Housing ( .500"-13 X 1 .375") | 16 | $2.59 | Add to Cart |
Front Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-11 | 201-19-2-1X | S/assy Drive Gear Bearing Cap And Oil Seal (includes G-12 Thru G-14) | 1 | $215.72 | Add to Cart | |
| G-12 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-13 | 97-463-36-1X | Oil Seal - Drive Cap Bearing Cap (wflnstallation Sleeve) | 1 | $38.68 | Add to Cart | |
| G-14 | 545002-1 | Screw- Drive Gear Bearing Cap ( .375"-16 X .875") | 4 | $2.23 | Add to Cart |
Main Case Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| G-15 | 201-15-13-1X | S/assy Main Case (includes G-15A Thru G-22) | 1 | — | Call for availability | |
| G-15 | 201-15-2-1X | S/assy Main Case (includes G-15A Thru G-18) (less Optilube Bim 301504 | 1 | — | Call for availability | |
| G-15 | 201-15-10-1X | S/assy Main Case (includes G-15A Thru G-22) (aluminum For | — | Call for availability | ||
| G-15A | Case | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| G-16 | 545123 | Plug - Filler & Drain | 1 | $22.03 | Add to Cart | |
| G-17 | 201-39-4 | Plug - Pressure Port Hole | 1 | — | Call for availability | |
| G-18 | 201-39-1 | Plug - Case Oil Return Hole | 1 | $2.67 | Add to Cart | |
| N .S | 330934 | Magnet- Ceramic (location Is At Large Pto Opening) | 1 | $4.72 | Add to Cart | |
| G-19 | 500597-14 | Pin - Alignment (optilube Mounting Plate) | 2 | $2.19 | Add to Cart | |
| G-20 | 201-118-4 | Gasket- Oil Outlet Cover (location Is Case Bottom) | 1 | $3.91 | Add to Cart | |
| G-21 | 201-96-5 | Cover- Oil Outlet (location Is Case Bottom) | 1 | $33.96 | Add to Cart | |
| G-22 | 545002-2 | Screw- Oil Outlet Cover (location Is Case Bottom) | 2 | $2.67 | Add to Cart | |
| G-23 | 201-438-3 | Pin - Dowel Case | 4 | $3.75 | Add to Cart | |
| G-24 | 545012 | Screw- Pto Aperture Cover (8 Hole) | 8 | $3.23 | Add to Cart | |
| G-25 | 73-267-1 | Cover- Pto (8 Hole) | 1 | $160.99 | Add to Cart | |
| G-26 | 50-267-2 | Cover- Pto (6 Hole) | 1 | $122.97 | Add to Cart | |
| G-27 | 330800 | Screw- Pto Aperture Cover (6 Hole) | 6 | — | Call for availability |

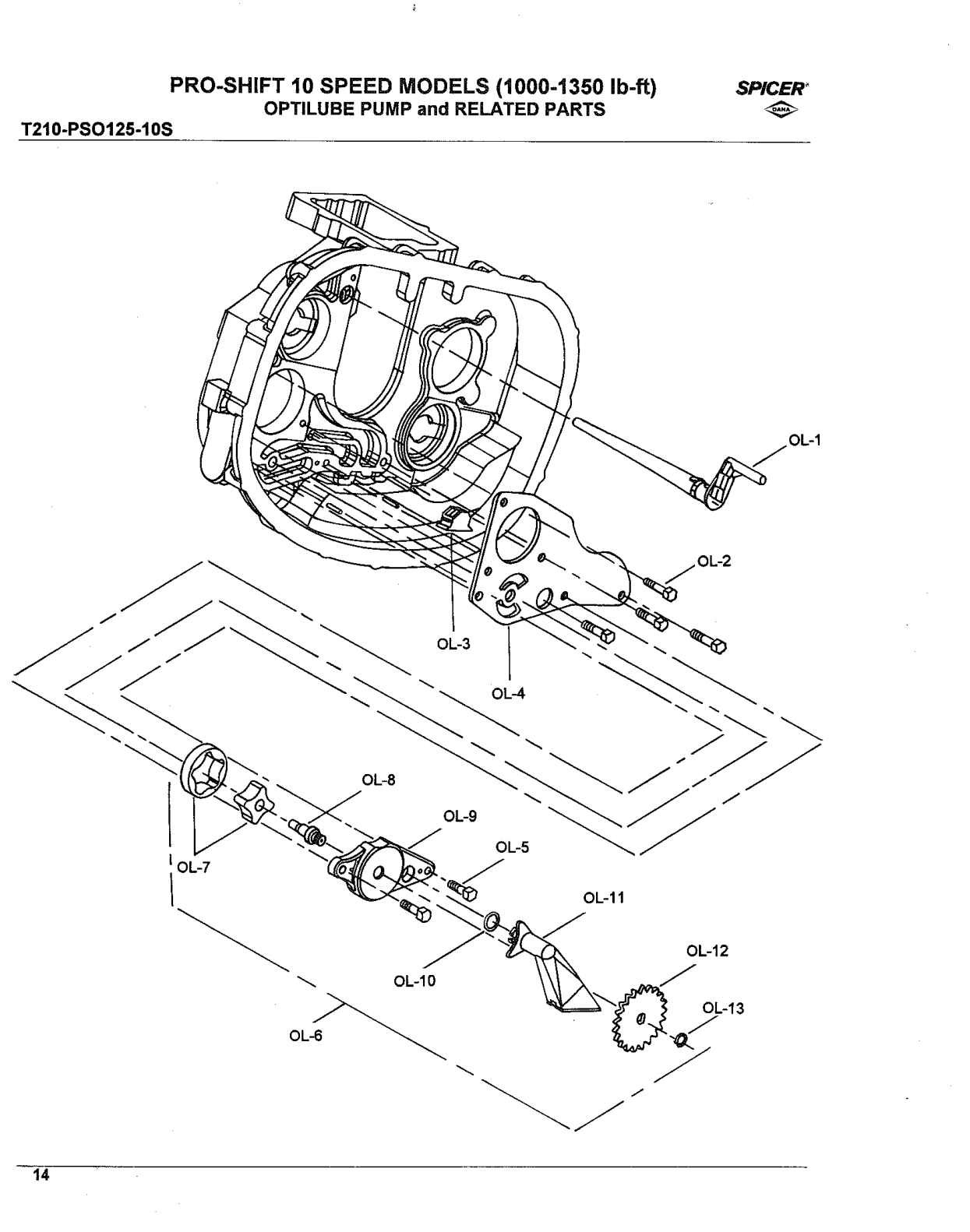

Optilube PUMP and Related Parts
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-501-11-2X | Kit- Optilube Pump (includes OL-1 Thru OL-13 | 1 | $598.57 | Add to Cart | ||
| OL-1 | 201-420-13X | S/assy. - Discharge Tube | 1 | — | No longer available — call for replacement | |
| OL-2 | 545002-1 | Screw- Mounting Plate | 4 | $2.23 | Add to Cart | |
| OL-3 | 201-501-13X | S/assy Oil Bypass Valve | 1 | $23.99 | Add to Cart | |
| OL-4 | 201-360-2 | Plate - Internal Pump Mounting | 1 | $27.70 | Add to Cart | |
| OL-5 | 545002-2 | Screw- Pump Housing | 2 | $2.67 | Add to Cart | |
| OL-6 | 201-501-11-1X | S/assy Optilube Pump Housing And Gears (includes OL-7 Thru OL-13) | 1 | $598.57 | Add to Cart | |
| OL-7 | Gerotor Element- Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-8 | Shaft- Internal Oil Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-9 | Housing Pump | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-10 | "0 " Ring -tube | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-11 | S/assy Inlet Tube | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-12 | Gear- Lube Pump Drive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| OL-13 | Ring Gear Pump Snap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability |

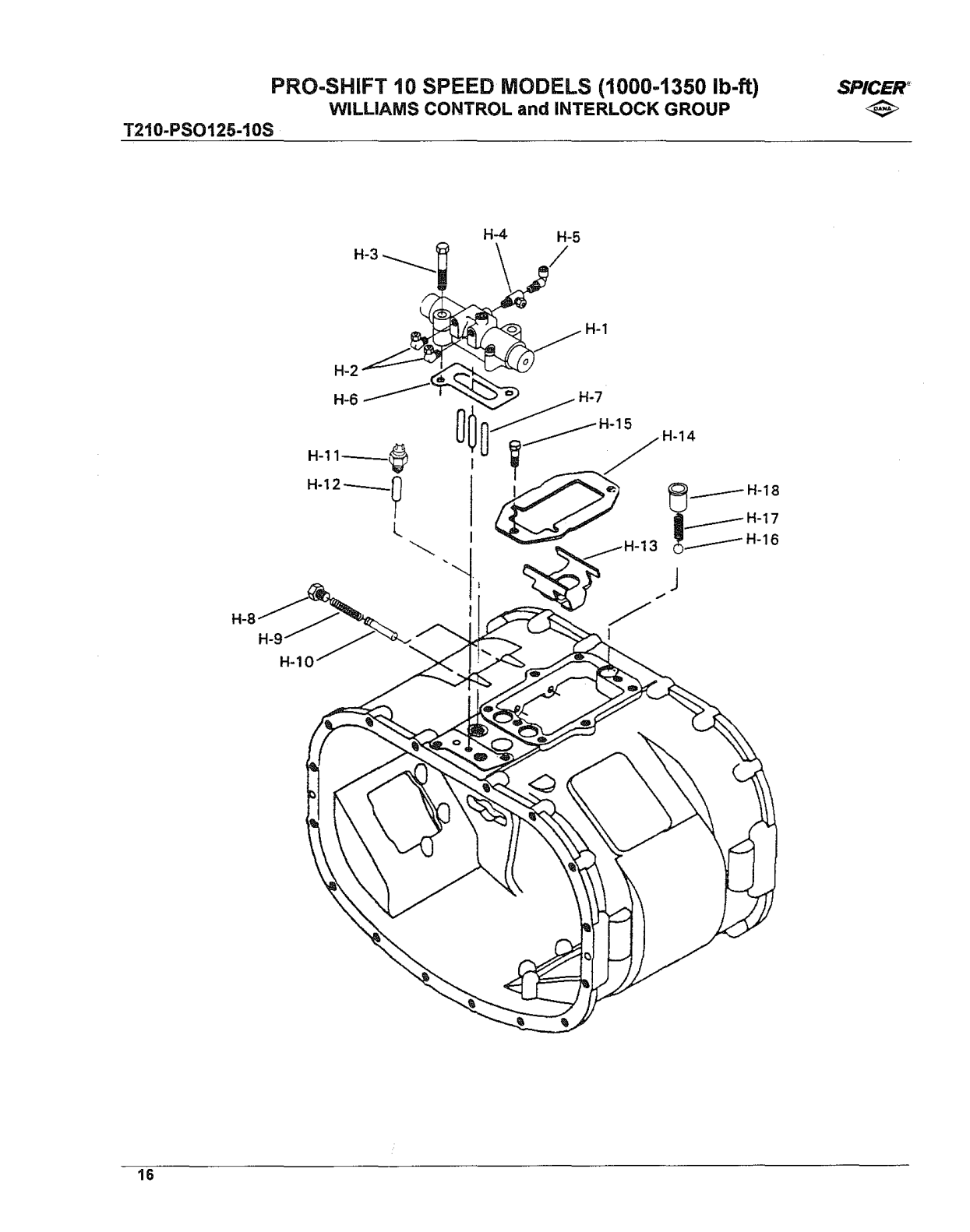

Interlock Parts Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| H-1 | 313630X | S/assy. - Williams Control | 1 | — | Call for availability | |
| H-2 | 545025-2 | Elbow- Williams Control 90 Degree | 2 | $28.71 | Add to Cart | |
| H-3 | 545028-6 | Screw - Williams Control ( .438"-14 X 2 .250") | 2 | $2.13 | Add to Cart | |
| H-4 | 545109 | Tee - Adapter Williams Control | 1 | $33.48 | Add to Cart | |
| H-5 | 545130 | Elbow- Williams Control | 1 | — | Call for availability | |
| N .S | 201-420-7 | Tube Support (#38163 Legris Tube Support) | AIR | — | Call for availability | |
| H-6 | 201-118-1 | Gasket- Williams Control | 1 | — | Call for availability | |
| H-7 | 201-438-5 | Pin - Williams Air Control Valve | 3 | — | Call for availability | |
| H-8 | 545128 | Plug - 1 St And Reverse Spring Plunger | 2 | $2.84 | Add to Cart | |
| H-9 | 62-72-6 | Spring - 1 St And Reverse | 2 | — | Call for availability | |
| H-10 | 40-438-1 | Pin - Plunger 1 St And Reverse | 2 | — | Call for availability | |
| H-11 | 313538 | Switch - Back Up Light (pin Connection) | 1 | $31.37 | Add to Cart | |
| H-11 | 313552 | Switch - Back Up Light (tang Connection) | 1 | $25.15 | Add to Cart | |
| H-12 | 201-438-2 | Pin -actuating Back Up Light Switch | 1 | $3.68 | Add to Cart | |
| H-13 | 201-200-1 | Interlock- Shifter Rail | 1 | $14.52 | Add to Cart | |
| H-14 | 201-200-2 | Plate - Interlock Retainer | 1 | $14.17 | Add to Cart | |
| H-15 | 330801-1 | Screw- Interlock Plate ( .438"-14 X .875') | 2 | $2.67 | Add to Cart | |
| H-16 | 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | |
| H-17 | 201-72-2 | Spring - Poppet Shift Rail | 3 | $3.23 | Add to Cart | |
| H-18 | 201-487-1 | Insert- Poppet Spring & Ball | 3 | — | Call for availability |
Shift Bar and Fork Assemblies
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| SB-1 | 313696X | Fork And Bar Assy. -1 St And Reverse | 1 | — | Call for availability | |
| SB-1 | 313795X | Fork And Bar Assy 1st And Reverse (neutral Start Swhch Provision) | 1 | — | Call for availability | |
| SB-2 | 313694X | Fork And Bar Assy 2nd And 3rd | 1 | — | Call for availability | |
| SB-2 | 313796X | Fork And Bar Assy 2nd And 3rd (neutral Start Switch Provision) | 1 | — | Call for availability | |
| SB-4 | 313642-1X | Bar Assy 4th And 5th | 1 | — | Call for availability | |
| SB-4 | 313818-1X | Bar Assy 4th And 5th (neutral Start Switch Provision) | 1 | $122.96 | Add to Cart | |
| and | 201-66-18-3X | Fork Assy 4th And 5th | 1 | $550.14 | Add to Cart | |
| and | 313695X | Fork And Bar Assy 4th And 5th (direct Transmissions) | 1 | — | No longer available — call for replacement | |
| and | 313819X | Fork And Bar Assy 4th And 5th (direct Transmissions) (neutral Start | 1 | — | Call for availability | |
| SB-5 | 545029-3 | Screw- Fork Mounting Bracket Overdrive ( .375" X 1 .00") | 2 | — | Call for availability | |
| SB-6 | 201-411-3-1X | Kit- Shift Fork Mounting Bracket Pin And Snap Rings | 1 | $90.22 | Superseded by 20141151XAdd to Cart | |
| SB-7 | Mounting Bracket -overdrive Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-8 | Pin Mounting | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-9 | Snap Ring Mounting Bracket Pin | 2 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-9 | 313642-1X | Kit- Overdrive Shift Bar, Pins And Snap Rings | 1 | $189.54 | Add to Cart | |
| SB-11 | Snap Ring Clevis Pin | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-12 | Clevis Pin Shift Fork | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-13 | Shift Bar- 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-13 | 313818-1X | Kit- Overdrive Shift Bar, Pins And Snap Rings With Neutral | 1 | $122.96 | Add to Cart | |
| SB-13 | 201-66-18-3X | Kit- Overdrive Shift Fork, Pins And Snap Rings | 1 | $550.14 | Add to Cart | |
| SB-10 | Shift Fork S/assy 4th And 5th Overdrive | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| SB-14 | 201-486-1 | Shoe - Overdrive Shift Fork | 2 | $22.54 | Add to Cart | |
| SB-14 | 201-438-6-1X | Kit- Overdrive Shift Fork Mounting Pin And Snap Ring | 1 | $6.22 | Add to Cart | |
| SB-12 | 201-438-7-1X | Kit- Overdrive Shift Fork Bracket Pin And Snap Rings | 1 | $9.95 | Add to Cart |

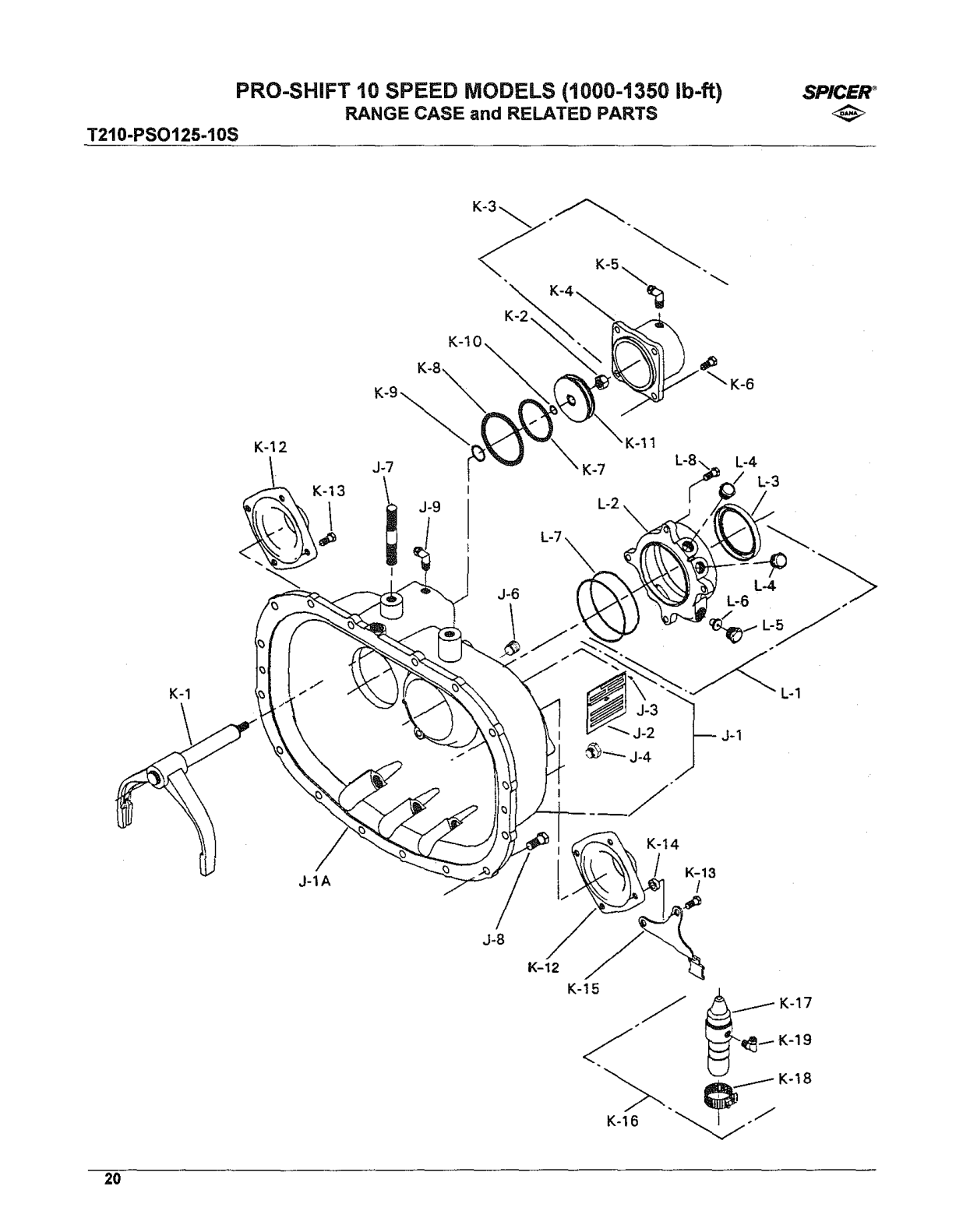

Range Case Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| J-1 | 201-15-3-1X | S/assy Case (range) (includes J -1A Thru J-6) | 1 | $1,092.84 | Add to Cart | |
| J-1A | Case Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| J-2 | NP-96 | Name Plate | 1 | $2.16 | Add to Cart | |
| J-3 | 252-SP | Pin - Name Plate | 4 | $1.90 | Add to Cart | |
| N .S. | NP-196 | Patent Plate | 1 | $2.97 | Add to Cart | |
| J-4 | 545123 | Plug - Filler & Drain Magnetic | 2 | $22.03 | Add to Cart | |
| J-6 | 201-39-1 | Plug - Temperature Indicator Hole | 1 | $2.67 | Add to Cart | |
| J-7 | 330360-7 | Stud - Rear Mounting (2.375"') | 2 | $4.65 | Add to Cart | |
| J-7 | 330360-15 | Stud - Rear Mounting (3.562"') | 2 | — | Call for availability | |
| J-8 | 545001-1 | Screw- Range Case ( .500"-13 X 1 .375'') | 16 | $2.59 | Add to Cart | |
| J-9 | 545025-1 | Elbow- 90 Degree | 1 | $20.33 | Add to Cart |
Range Piston Housing and Shift Fork Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-1 | 201-66-23-2X | S/assy Fork And Rod Range | 1 | — | Call for availability | |
| K-2 | 545045 | Nut- Piston Rod - Range | 1 | $3.15 | Add to Cart | |
| K-3 | 201-501-2-1X | S/assy- Piston Housing - Range (includes K-4 Thru K-6) | 1 | $334.54 | Add to Cart | |
| K-4 | Housing Piston Range | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| K-5 | 545025-1 | Elbow- Piston Housing 90 Degree | 2 | $20.33 | Add to Cart | |
| K-6 | 545002-1 | Screw- Piston Housing ( .375"-16 X .875") | 4 | $2.23 | Add to Cart | |
| K-7 | 201-463-1 | "0 " Ring - Piston Shift- Range | 1 | $9.41 | Add to Cart | |
| K-8 | 201-463-2 | "0 " Ring - Piston Housing - Range | 1 | $6.67 | Add to Cart | |
| K-9 | 201-463-3 | "0 " Ring - Piston Rod - Range | 1 | $2.39 | Add to Cart | |
| K-10 | 183-463-6 | "0 " Ring - Piston To Rod - Range | 1 | — | Call for availability | |
| K-11 | 201-136-7 | Piston - Shift- Range | 1 | $45.08 | Add to Cart |
Countershaft Bearing Cap Group
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| K-12 | 201-22-3 | Cap - Countershaft Bearing | 2 | $21.43 | Add to Cart | |
| K-13 | 545002-1 | Screw- Bearing Cap ( .375"-16 X .875'') | 6 | $2.23 | Add to Cart | |
| and | 545002-7 | Screw- Bearing Cap ( .375"-16 X 1 .500") | 2 | $2.33 | Add to Cart | |
| and | 330969 | Lift Hook | 1 | $2.49 | Add to Cart | |
| K-14 | 500381-4 | Spacer - Filter Regulator | 4 | — | Call for availability | |
| K-15 | 201-411-1 | Bracket- Filter Regulator | 1 | $4.70 | Add to Cart | |
| K-16 | 313644X | Kit- Power Control And Mounting Parts (includes K-17 Thru K-19) | 1 | $881.94 | Add to Cart | |
| K-17 | 313042 | S/assy Filter Regulator | 1 | $784.67 | Add to Cart | |
| K-18 | 330831 | Clamp - Filter Regulator Mounting | 1 | — | Call for availability | |
| K-19 | 545025-1 | Elbow- Filter Regulator 90 Degree | 1 | $20.33 | Add to Cart |
Rear Bearing Cap Group
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| L-1 | 201-19-8-1X | S/assy Electronic I Mechanical Bearing Cap Rear (includes L-2 Thru L-5) | 1 | $395.32 | Add to Cart | |
| L-2 | Bearing Cap | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| L-3 | 201-463-8 | Seal - Bearing Cap Rear | 1 | $43.25 | Add to Cart | |
| L-4 | 545021 | Plug - Electronic Speedometer | 2 | $18.89 | Add to Cart | |
| L-5 | 55-334-1 | Plug - Speedometer Outlet | 1 | $88.44 | Add to Cart | |
| L-7 | 201-228-2-1 | Shim - Output Shaft (.005 Thick) | AIR | — | Call for availability | |
| L-7 | 201-228-2-2 | Shim - Output Shaft (.01 0 Thick) | AIR | — | Call for availability | |
| L-7 | 201-228-2-3 | Shim - Output Shaft (.015 Thick) | AIR | — | Call for availability | |
| L-7 | 201-228-2-4 | Shim - Output Shaft (.020 Thick) | AIR | — | Call for availability | |
| L-7 | 201-228-2-5 | Shim - Output Shaft (.030 Thick) | AIR | — | Call for availability | |
| L-8 | 545002-6 | Screw- Bearing Cap Rear (.375"-16 X .250'') | 4 | $2.29 | Add to Cart |
Following Parts Are Not Included in Above Assemblies:
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| P-1 | 201-420-5-1X | Harness - Air Tubing (48" Long) | 1 | — | No longer available — call for replacement | |
| P-1 | 201-420-5-ZX | Harness - Air Tubing (92" Long For Remote Control Use) | 1 | — | Call for availability | |
| P-2 | 97-463-7 | "0 " Ring - Retaining Air Harness | 3 | $2.61 | Add to Cart | |
| P-3 | 201-483-3 | Boot- Floorboard (oval) | 1 | $27.62 | Add to Cart | |
| P-3 | 201-483-4 | Boot- Floorboard (oval) | 1 | — | Call for availability | |
| P-3 | 201-483-5 | Boot- Floorboard (rectangular) | 1 | — | Call for availability | |
| P-3 | 313766X | Shift Knob Assy (includes P-4 Thru P-11) | 1 | — | No longer available — call for replacement | |
| P-4 | 201-20-6 | Insert - Shift Pattern | 1 | $31.05 | Add to Cart | |
| P-5 | 201-118-5 | Gasket- Shift Knob | 1 | $2.56 | Add to Cart | |
| P-6 | 500370-4 | Nut- Shift Knob Retaining | 1 | — | Call for availability | |
| P-7 | 500357-13 | Washer- Shift Knob Retaining | 1 | $2.33 | Add to Cart | |
| P-8 | 204-W | Washer- Shift Knob Stop | 1 | — | Call for availability | |
| P-9 | Knob - Shift Air Valve (serviced As 313766X) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-10 | 201-205-1 | Index Washer | 1 | — | Call for availability | |
| P-11 | 201-438-8 | Roll Pin - Shift Knob | 1 | $2.79 | Add to Cart | |
| N .S | 201-420-7 | Tube Support | NR | — | Call for availability | |
| P-12A | S/assy Shift Lever (single Crimp Isolator Style) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-12B | S/assy Shift Lever (double Crimp Isolator Style) (includes Lower End) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-13 | 545063 | Set Screw (single Crimp Style Isolator Only) | 1 | $6.27 | Add to Cart | |
| P-18 | 101-483-2 | Boot- Shift Tower & Lever | 1 | $26.15 | Add to Cart | |
| N .S | 33Q-15-1 | Tie Cable (upper) | 1 | — | Call for availability | |
| N .S | 33Q-15-2 | Tie Cable (lower) | 1 | — | Call for availability | |
| P-19 | 97-381-11 | Snap Ring | 1 | $11.83 | Add to Cart | |
| P-20 | 34Q-8 | Ring - Outer | 2 | $248.46 | Add to Cart | |
| P-21 | 34Q-7 | Ring -inner | 2 | $248.46 | Add to Cart | |
| P-23 | 201-72-3 | Spring - Disc | 2 | $248.46 | Add to Cart | |
| N .S | 201-17-2X | S/assy Tower Housing (includes P-24 & P-25) | 1 | $284.86 | Add to Cart | |
| N .S | 201-17-3X | S/assy Tower Housing (includes P-24 & P-25) | 1 | — | Call for availability | |
| P-24 | Tower- (6 .312" Fulcrum) (serviced As 201 -17-2X) | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| P-25 | 312268 | Breather | 1 | $31.32 | Add to Cart | |
| P-26 | 201-118-2 | Gasket- Tower Housing | 1 | $3.83 | Add to Cart | |
| P-27 | 545028-2 | Screw- Tower Housing | 6 | $2.87 | Add to Cart |

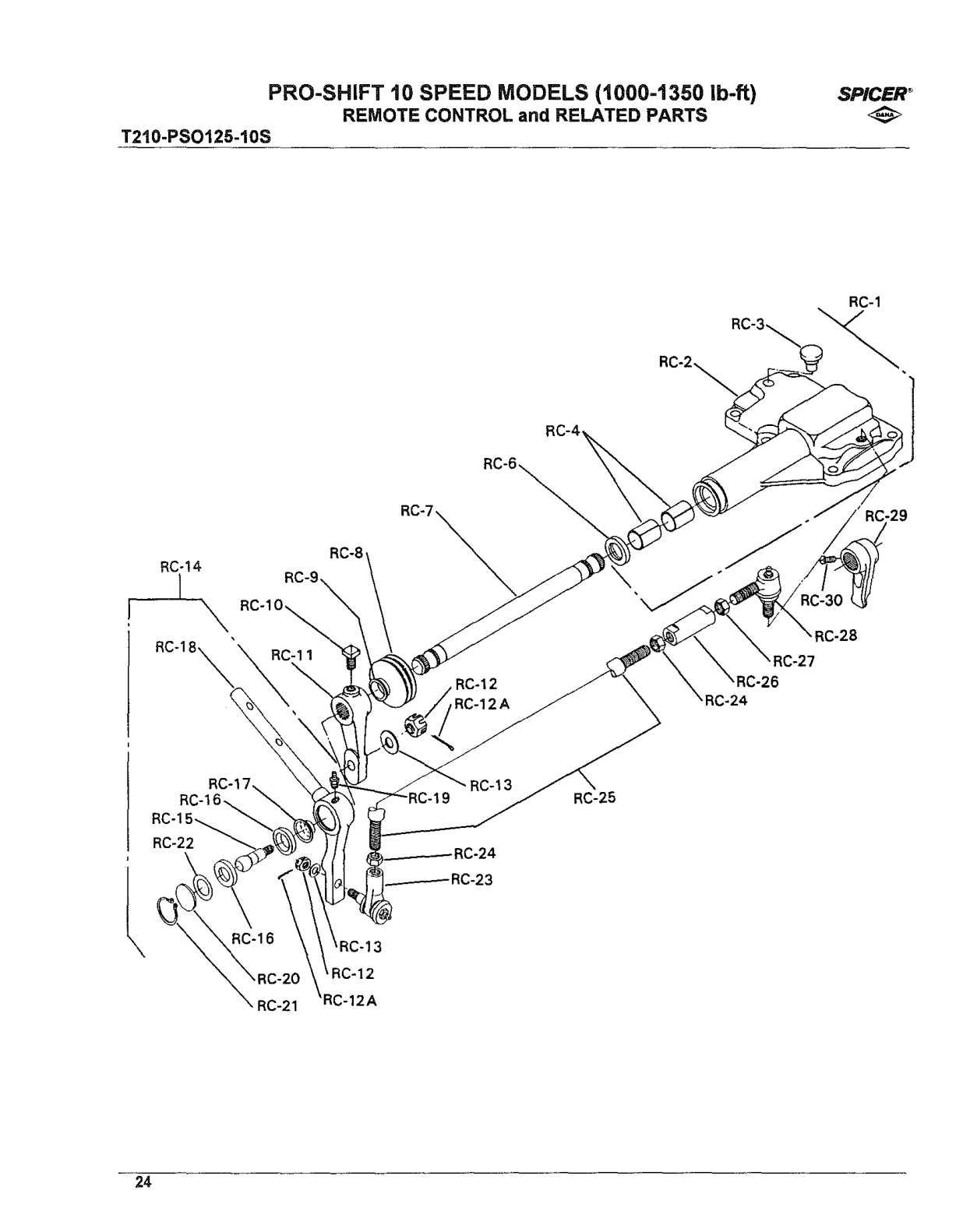

Following Parts Are Not Included in Above Assembly:
Click a number on the diagram to highlight that part below.
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 201-18-6-3X | Remote Control Assembly | 1 | — | Call for availability | ||
| RC-1 | 201-18-GX | S/assy Remote Control Housing Bushings And Ball Joint | 1 | — | Call for availability | |
| RC-2 | Remote Control Housing | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-3 | 312268 | Breather Assembly | 1 | $31.32 | Add to Cart | |
| RC-4 | 40-24-1 | Bushing - Remote Control Housing | 2 | — | Call for availability | |
| RC-6 | 28P-19 | Seal - Remote Control Housing | 1 | — | Call for availability | |
| RC-7 | 201-65-5 | Rod - Inner Shift Control | 1 | $41.45 | Add to Cart | |
| RC-8 | 97-483-3 | Boot- Shift Rod Rubber | 1 | — | Call for availability | |
| RC-9 | 33Q-15-1 | Tie - Cable | 2 | — | Call for availability | |
| RC-10 | 545136 | Bolt- Outer Shift Lever | 1 | — | Call for availability | |
| RC-11 | 201-6-3 | Lever- Remote Outer Shift Control | 1 | $92.60 | Add to Cart | |
| RC-12 | 500371-3 | Nut- Ball Stud | 2 | $2.29 | Add to Cart | |
| RC-12 | 500024-5 | Cotter Pin | 1 | — | Call for availability | |
| RC-13 | 500362-11 | Lock Washer | 2 | — | Call for availability | |
| RC-14 | 201-6-11-1X | S/assy Selector Lever And Arm (includes RC-15 Thru RC-22) | 1 | — | Call for availability | |
| RC-15 | 545117 | Ball - Stud Selection Lever | 1 | — | Call for availability | |
| RC-16 | 201-999-3 | Bearing - Race Selector Lever | 2 | — | Call for availability | |
| RC-17 | 201-483-2 | Boot- Selection Lever | 1 | — | Call for availability | |
| RC-18 | Lever- Selection | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| N .S. | 313727X | Kit- Parts (includes RC-19 And RC-20) | 1 | — | Call for availability | |
| RC-19 | Nipple Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-20 | Retainer- Selection Lever | 1 | Not sold separately - order the sub-assembly it belongs to | — | Call for availability | |
| RC-21 | 201-381-4 | Snap Ring - Selection Lever | 1 | — | Call for availability | |
| RC-22 | 201-72-10 | Spring - Disc Selection Lever | 1 | — | Call for availability | |
| RC-23 | 313673 | Ball Joint- Female | 1 | $46.61 | Add to Cart | |
| RC-24 | 545114 | Jam Nut- Turnbuckle | 2 | — | Call for availability | |
| RC-25 | 201-65-6 | Tie Rod | 1 | — | Call for availability | |
| RC-26 | 73Q-2 | Turn Buckle | 1 | — | Call for availability | |
| RC-27 | 545113 | Jam Nut- Turnbuckle (left Hand) | 1 | — | Call for availability | |
| RC-28 | 313715 | Ball Joint- Male ( .500-13 Unc Thread On End Into Housing) | 1 | — | Call for availability | |
| RC-29 | 201-6-2 | Finger- Inner Shift | 1 | $146.95 | Add to Cart | |
| RC-30 | 545137 | Screw- Shift Finger | 1 | — | Call for availability | |
| N .S | 545028-2 | Screw- Control Housing ( .438"-14 X 1 .500'') | 6 | $2.87 | Add to Cart | |
| N .S | 201-118-2 | Gasket- Tower Housing | 1 | $3.83 | Add to Cart |
Service Parts Overhaul KITS
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313400-76X | Major Overhaul Kit | 1 | $1,272.81 | Superseded by 2014001XAdd to Cart | ||
| 313432-33X | Kit- Minor Overhaul | 1 | $998.94 | Add to Cart | ||
| 313669X | Range Piston Housing Repair | 1 | — | Call for availability | ||
| 313429-23X | Kit- Shift Tower Repair Parts | 1 | $85.70 | Add to Cart | ||
| 201-35-2 | Shaft-input (2 .000"-10 Spline #306 (1 .180" Dia .) Pilot) | 1 | — | Call for availability | ||
| 201-210-4-1 | Key- Countershaft Gear Rear | 2 | $4.64 | Add to Cart | ||
| 201-210-4-2 | Key- Countershaft Gear Middle | 2 | $4.19 | Add to Cart | ||
| 201-210-4-3 | Key- Countershaft Gear Front | 2 | $11.02 | Add to Cart | ||
| 201-438-6-1X | Kit- Overdrive Shift Fork Mounting Pin And Snap Ring | 1 | $6.22 | Add to Cart | ||
| 201-438-7-1X | Kit- Overdrive Shift Fork Bracket Pin And Snap Rings | 1 | $9.95 | Add to Cart | ||
| 201-47-4 | Washer- Output Shaft Thrust (range) | 1 | $34.68 | Add to Cart | ||
| 201-47-6 | Ring - Range Mainshaft Drive Gear Thrust | 1 | $33.46 | Add to Cart | ||
| 330955 | Washer- Countershaft Reverse Idler Thrust (range) | 2 | $20.01 | Add to Cart | ||
| 500007-24 | Key- Woodruff Pto Gear | 2 | — | Call for availability | ||
| 545065 | Nut- Mainshaft | 1 | $31.43 | Add to Cart | ||
| 2367 | Manual - Service (PS0-1 0) | 1 | — | Call for availability | ||
| 2370 | Manual - Service (automate) | 1 | — | Call for availability | ||
| 2783 | Bulletin - Mainshaft Nut (loclite Application) | 1 | — | Call for availability | ||
| 312475-45X | Kit- Gasket | 1 | $37.46 | Add to Cart | ||
| 313667X | Kit- Shim | 1 | $39.63 | Add to Cart | ||
| 201-381-1 | Ring - Snap Input Shaft | 1 | $3.15 | Add to Cart | ||
| 201-381-3 | Ring -snap Mainshaft Range Drive Gear | 1 | $8.09 | Add to Cart | ||
| 201-463-26 | "0 " Ring - Countershaft Front | 2 | $20.25 | Add to Cart | ||
| 2863 | Bulletin - "0 " Ring Installation Instructions For Spicer Lite Series | 1 | — | Call for availability | ||
| 201-463-8 | Seal - Output Shaft Rear Bearing Cap | 1 | $43.25 | Add to Cart | ||
| 545080-1 | Anaerobic Sealant- Mainshaft Nut (0 .5 Cc Vial) | 1 | — | Call for availability | ||
| 97-463-36-1X | Oil Seal - Drive Gear Bearing Cap (w/lnstallation Tool) | 1 | $38.68 | Add to Cart | ||
| 313628X | S/assy. - Bearing And Spacer Output Shaft | 1 | $287.93 | Add to Cart | ||
| 313668X | Kit- Output Shaft Gear Needle Bearing | 1 | $78.71 | Add to Cart | ||
| 550996 | Bearing - Countershaft Front | 2 | $61.00 | Add to Cart | ||
| 550998 | Bearing - Countershait Rear | 2 | $135.42 | Add to Cart | ||
| 313645X | S/assy Bearing And Belleville Snap Ring (input Shaft) | 1 | $183.51 | Add to Cart | ||
| 550182 | Bearing - Countershaft Rear Cone | 2 | $36.48 | Add to Cart | ||
| 550375 | Bearing - Countershaft Rear Cup | 2 | $17.99 | Add to Cart | ||
| 551010 | Bearing - Countershaft Front Cup (before Ssn #J930506005) | 2 | — | Call for availability | ||
| 551011 | Bearing - Countershaft Front Cone (before Ssn #J930506005) | 2 | — | Call for availability | ||
| 551013 | Bearing - Countershaft Front Cone (alter Ssn #J930506005) | 2 | $49.38 | Add to Cart | ||
| 550997 | Bearing - Reverse Idler Needle | 2 | $14.83 | Add to Cart |
Service Parts Overhaul Kits
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 313669X | Kit - Range Piston Housing Repair (included In Major Overhaul Kit) | 1 | — | Call for availability | ||
| 183-463-6 | "0 " -ring - Splitter Or Range Piston | 1 | — | Call for availability | ||
| 201-463-1 | "0 " -ring - Range Shift Piston | 1 | $9.41 | Add to Cart | ||
| 201-463-2 | "0 " -ring - Range Piston Housing | 1 | $6.67 | Add to Cart | ||
| 201-463-3 | "0 " -ring - Range Piston Rod | 1 | $2.39 | Add to Cart | ||
| 2726 | Bulletin - "0 " Ring Lubrication Instruction | 1 | — | Call for availability | ||
| 330895 | Lubricant - "0 " Ring | 1 | — | Call for availability | ||
| 313429-23X | Kit- Shift Tower Small Parts Repair (included In Major Overhaul Kit) | 1 | $85.70 | Add to Cart | ||
| 201-438-2 | Pin -actuating Back-up Light | 1 | $3.68 | Add to Cart | ||
| 201-438-5 | Pin -air Control Valve | 3 | — | Call for availability | ||
| 201-487-1 | Insert- Poppet Spring And Ball | 3 | — | Call for availability | ||
| 201-72-2 | Spring - Shift Rail Poppet | 3 | $3.23 | Add to Cart | ||
| 201-80-1 | Ball - Poppet | 3 | $7.47 | Add to Cart | ||
| 40-438-1 | Pin - 1st And Reverse Select Plunger | 2 | — | Call for availability | ||
| 20172-6 | Spring - 1st And Reverse Shift Plunger | 2 | — | Call for availability | ||
| 312475-45X | Gasket Kit (included In Major And Minor Overhaul Kit) | 1 | $37.46 | Add to Cart | ||
| 201-118-1 | Gasket- Williams Air Control Valve | 1 | $6.27 | Add to Cart | ||
| 201-118-2 | Gasket- Tower Housing | 1 | $3.83 | Add to Cart | ||
| 201-155-3 | Gasket- Upper Tower | 1 | — | Call for availability | ||
| 2824 | Bulletin -anaerobic Sealant Application | 1 | — | Call for availability | ||
| 545056-10 | Anaerobic Sealant- 50cc Tube | 1 | — | Call for availability | ||
| 313667X | Shim Kit (included In Major And Minor Overhaul Kit) | 1 | $39.63 | Add to Cart | ||
| 2825 | Bulletin - Countershaft Shim Instructions | 1 | — | Call for availability | ||
| 201-228-1-1 | Shim - Countershaft Rear Bearing ( .005" Thick) | 4 | — | Call for availability | ||
| 201-228-1-2 | Shim - Countershaft Rear Bearing (.01 0" Thick) | 4 | — | Call for availability | ||
| 201-228-1-3 | Shim - Countershaft Rear Bearing ( .015" Thick) | 4 | — | Call for availability | ||
| 201-228-1-4 | Shim - Countershaft Rear Bearing ( .020" Thick) | 4 | — | Call for availability | ||
| 201-228-1-5 | Shim - Countershaft Rear Bearing ( .030" Thick) | 4 | — | Call for availability | ||
| 201-228-2-1 | Shim - Output Shaft ( .005" Thick) | 1 | — | Call for availability | ||
| 201-228-2-2 | Shim - Output Shaft (.01 0" Thick) | 1 | — | Call for availability | ||
| 201-228-2-3 | Shim - Output Shaft ( .015" Thick) | 1 | — | Call for availability | ||
| 201-228-2-4 | Shim - Output Shaft ( .020" Thick) | 1 | — | Call for availability | ||
| 201-228-2-5 | Shim - Output Shaft ( .030" Thick) | 1 | — | Call for availability | ||
| CP-1 | 313292-1X | Kit - Countershaft Oil Pump | 1 | $2,132.71 | Add to Cart | |
| CP-1A | 313292 | Oil Pump | 1 | — | Call for availability | |
| CP-2 | 545005-7 | Screw- Oil Pump (.312-18 X .875) | 4 | — | Call for availability | |
| CP-3 | 70-223-25 | Gasket- Countershaft Oil Pump Mounting | 1 | $4.82 | Add to Cart | |
| CP-4 | 201-22-2 | Countershaft Rear Bearing Cap Adapter (right Side) | 1 | — | Call for availability | |
| CP-5 | 313117-5 | Hose Assembly. - Outlet To Pump Inlet | 1 | — | Call for availability | |
| CP-6 | 313697X | Filter- Oil Screen | 1 | — | Call for availability | |
| CP-7 | 545002-1 | Screw- Countershaft Rear Bearing Cap | 4 | $2.23 | Add to Cart | |
| CP-8 | 545051 | Elbow- Oil Return Hole And Pump Inlet | 2 | — | Call for availability | |
| CP-9 | 545049-2 | Nipple - Pump Outlet | 1 | — | Call for availability | |
| CP-10 | 545140 | Elbow- Pump Outlet | 1 | — | Call for availability | |
| N .S. | 2834 | Bulletin - Installation | 1 | — | Call for availability | |
| N .S | 545056-10 | Anaerobic Sealant- 50cc Tube | 1 | — | Call for availability | |
| AC-1 | 201-420-2-3 | Tubing Air .250" 0 .0 (red) | 1 | — | Call for availability | |
| AC-2 | 201-420-3-3 | Tubing Air .250" 0 .0 (green) | 1 | — | Call for availability | |
| AC-3 | 201-420-4-3 | Tubing Air .250" 0 .0 (black) | 1 | — | Call for availability | |
| N .S | 201-420-9 | Tubing Convoluted Condutt | 1 | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| Model | 1201-15-3-1X | 201 -19-5-2X | version * (see the manual's footnote) | — | Call for availability | |
| Model | 2201-15-3-1X | 201 -19-5-2X • | — | Call for availability | ||
| Model | 3201-15-3-1X | 201 -19-5-2X • | — | Call for availability | ||
| Model | 4201-15-3-1X | 201 -19-5-2X • 201 -452-1 6-4-6611 -1 | — | Call for availability | ||
| Model | 5201-15-3-1X | 201 -19-8-1X 201 -452-1 6-4-6611 -1 201 -17 -2-20X | — | Call for availability | ||
| Model | 6201-15-3-1X | 201 -19-5-2X * 201 -452-1 6-1 -5651X 201 | -18-6-3X | — | Call for availability | |
| Model | 7201-15-3-1X | 201 -19-8-1X 201 -452-1 6 .3-4-651 -1 | — | Call for availability | ||
| Model | 8201-15-3-1X | 201 -19-8-1X 201 -452-1 6-4-6611 -1 | — | Call for availability | ||
| Model | 9201-15-3-1X | 201 -19-8-1 X 201 -452-2 97-453-1 6-1 -6011 201 | -18-6-1X | — | Call for availability | |
| Model | 10201-15-3-1X | 201 -19-5-2X * 201 -452-1 | — | Call for availability | ||
| Model | 11201-15-3-1X | 201 -19-8-1X 201 -452-1 6 .3-4-651 -1 | — | Call for availability |
Tabulated Bills of Material
| Item | Part No. | Description | Qty | Notes | Price | |
|---|---|---|---|---|---|---|
| 2201-15-3-1X | 201 -19-5-2X | version * (see the manual's footnote) | — | Call for availability | ||
| Model | 1201-15-3-1X | 201 -19 -5 -2X | — | Call for availability | ||
| Model | 2201-15-3-1X | 201 -19-5-2X * 201 -452-1 6 .5-4-3451 | — | Call for availability | ||
| Model | 3201-15-3-1X | 201 -19-5-2X * 201 -452-1 6 .3-4-651 -1 201 -17 -2-64X | — | Call for availability | ||
| Model | 4201-15-3-1X | 201 -19-5-2X * 201 -452-1 6-4-661 1 -1 | — | Call for availability | ||
| Model | 5201-15-3-1X | 201 -19-8-1X 201 -452-1 6-4-661 1 -1 201 -17 -2-20X | — | Call for availability | ||
| Model | 6201-15-3-1X | 201 -19-5-2X * 201 -452-1 6-1 -5651X 201 -18-6-3X | — | Call for availability | ||
| Model | 7201-15-3-1X | 201 -19-8-1X 201 -452-2 97-453-1 6-4-661 1 20 1 | -18-6-3X | — | Call for availability | |
| Model | 8201-15-3-1X | 201 -19-8-1 X 201 -452-1 6 .3-4-651 -1 | — | Call for availability | ||
| Model | 9201-15-3-1X | 201 -19-8-1 X 201 -452-1 6 .5-4-3451 -1 | — | Call for availability | ||
| Model | 10201-15-3-1X | 201 -19-5-2X * 201 -452-1 | — | Call for availability | ||
| PS100 -100 | PS100-10D | PS135 -10D PS135 -100 | — | Call for availability | ||
| None | 301604-1 | None 301606-1 | — | Call for availability | ||
| None | 301608-1 | LPS135 -10D LPS135 -100 | — | Call for availability |
No parts match that search — try the part number with no dashes.
This is the complete factory parts breakdown for the Spicer Transmission LPS0125-10S — every part in the manual, matched to our live inventory. We stock 201 of the 448 parts above; click any part number to view it, or add it straight to your cart. Click a number on any diagram to jump to that part.
This is the Spicer Illustrated Parts List covering the PSO100-10S transmission. Use it to identify every serviceable part in your unit — assemblies, gears, shafts, housings and seals — before you order replacements.
| Models covered | PSO100-10S |
| Transmission type | 10-speed, twin-countershaft, heavy duty |
| Document | Illustrated Parts List (Spicer) |
| Length | 40 pages |
| Format | PDF — free download |
What’s inside
- Service kits & assemblies with recommended stocking quantities
- Mainshaft & countershaft gear groups
- Drive gears, idler & auxiliary drive gears
- Case, clutch & shift-bar housings
- Shift lever, forks & selector assemblies
- Bearings, seals, snap rings & small parts
- Air-shift and range-control components (where fitted)
- Exploded parts diagrams with OEM part numbers
Spicer parts & units we stock
Pro Gear and Transmission stocks new, remanufactured and good-used parts for Spicer transmission units:
- All Spicer transmission parts & units
- Remanufactured transmissions
- Search our catalog for PSO100-10S
Not sure exactly which unit you have? Check our identification guides, or Ask an Expert — send us photos of your data tag and our drivetrain specialists will identify the unit and the exact parts you need. Or call (877) 776-4600.
